Mixer OFFICINE CUBER mod. MVL in stainless steel with fiberglass tank

Mixer OFFICINE CUBER mod. MVL in stainless steel with fiberglass tank

Adresse:Caldogno, Italy

Description

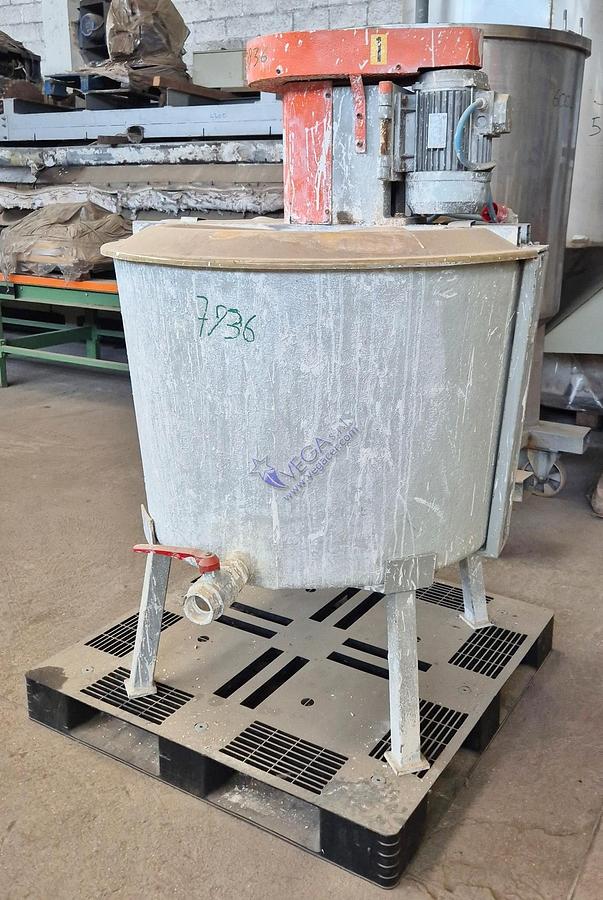

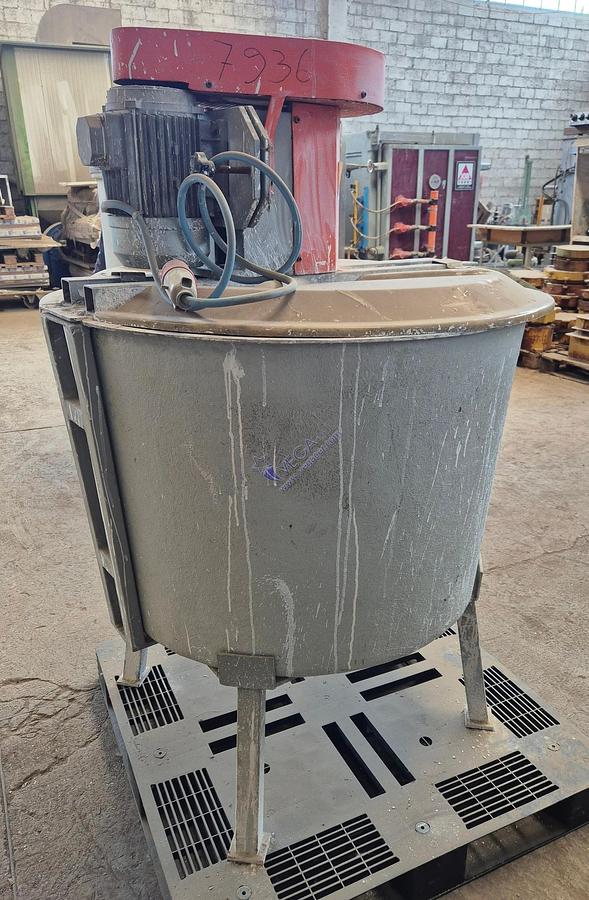

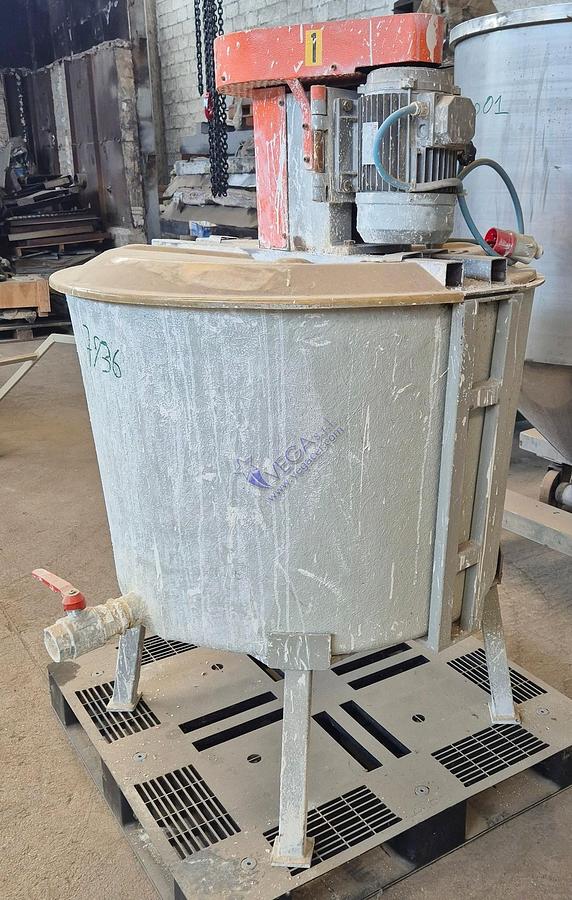

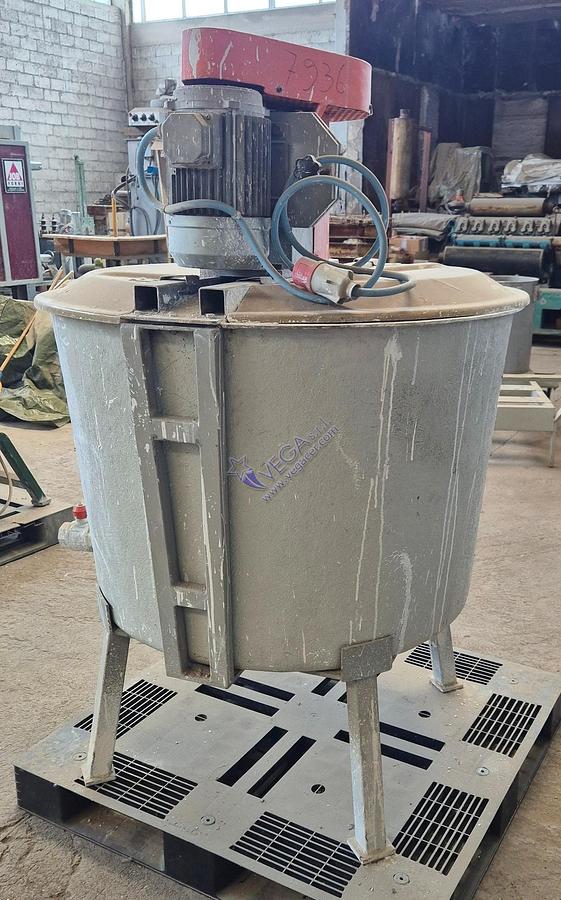

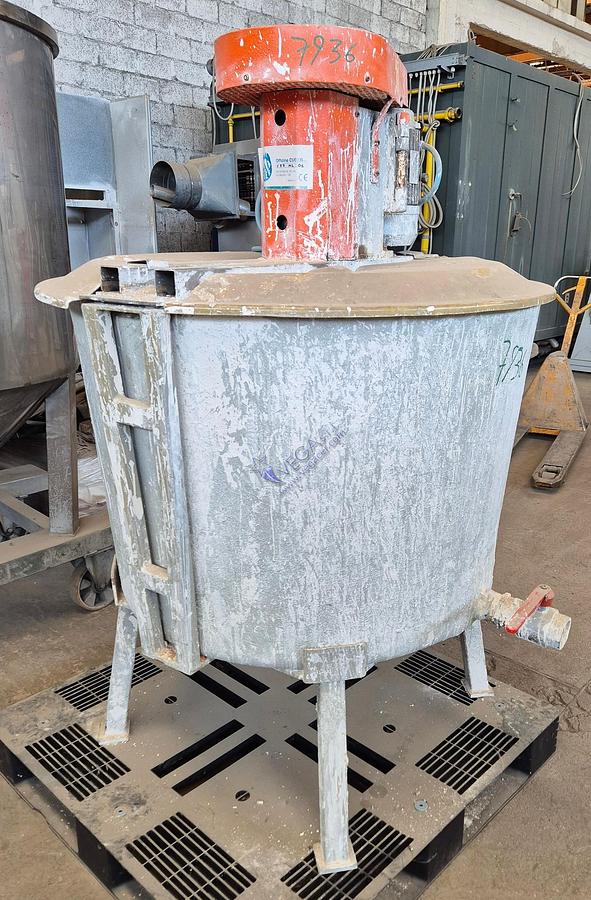

The mixer OFFICINE CUBER mod. MVL is a sturdy and reliable unit designed for the preparation and mixing of ceramic slips or compounds, ensuring excellent material homogeneity thanks to its stainless steel structure and fiberglass tank with a useful capacity of 500 liters.

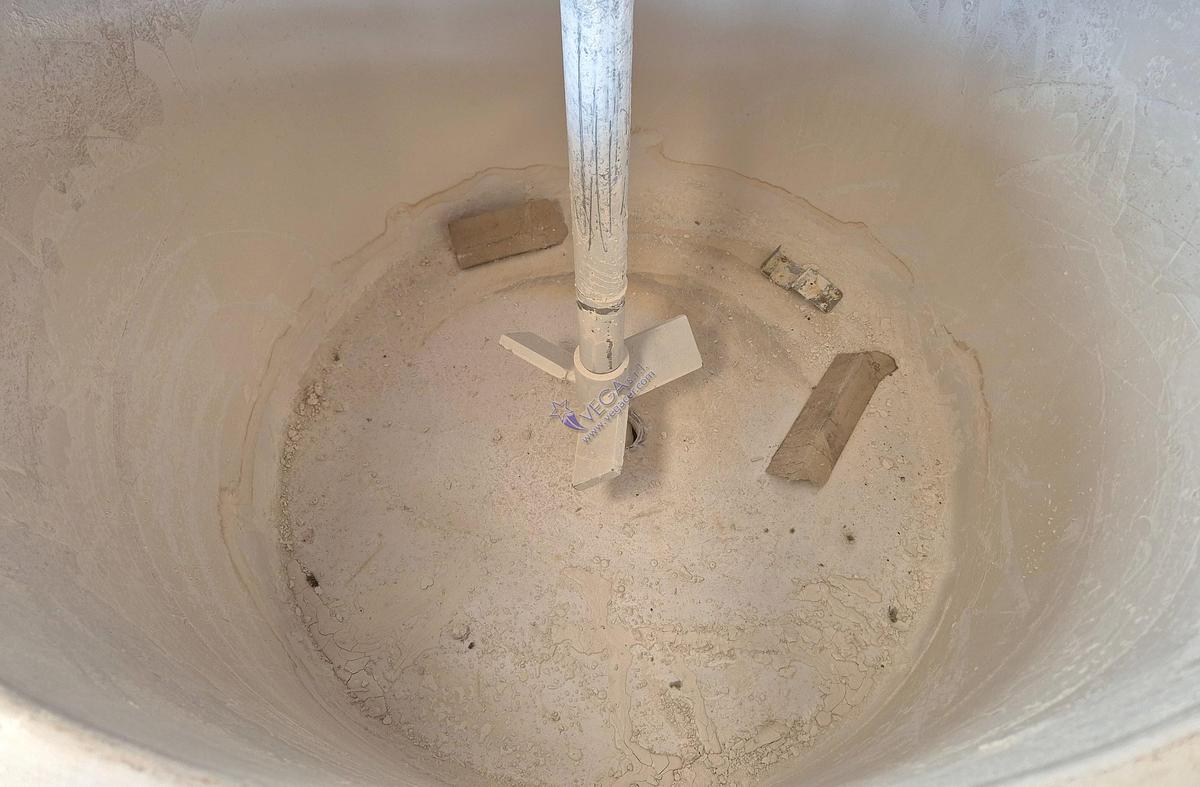

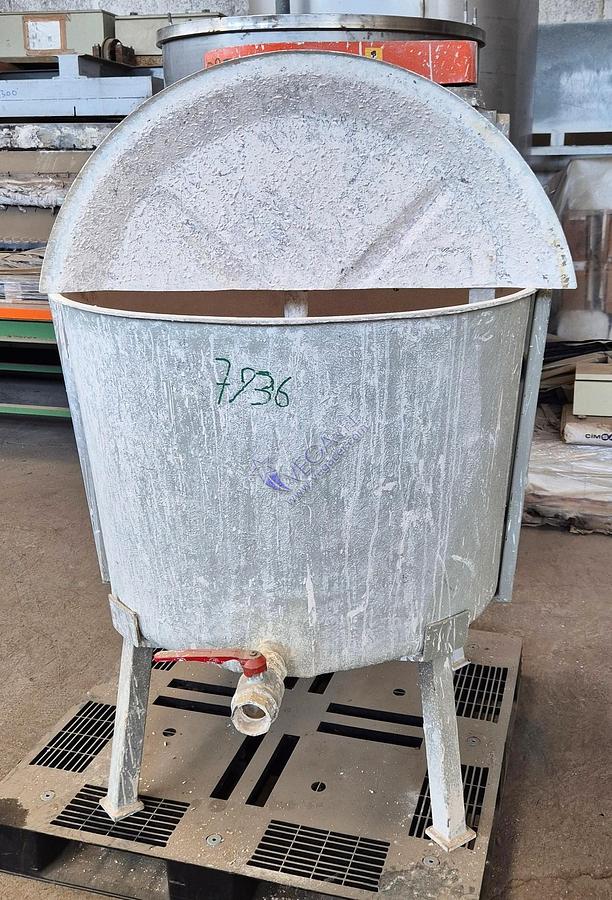

It comes complete with a fiberglass lid and a stainless steel welded-blade propeller with a diameter of 280 mm, reaching a rotation speed of 280 rpm. Both the shaft and the support crosspiece are made of stainless steel, providing strength and long-lasting durability even under intensive working conditions.


The machine includes a 2-inch ball-type bottom discharge valve for easy emptying operations, as well as a support stand that ensures stability and safety during use.


The mixer is powered by a 2.2 kW motor, operating at 400 V, 50 Hz, three-phase. The overall dimensions are 1100 x 1600 mm (diameter x height).

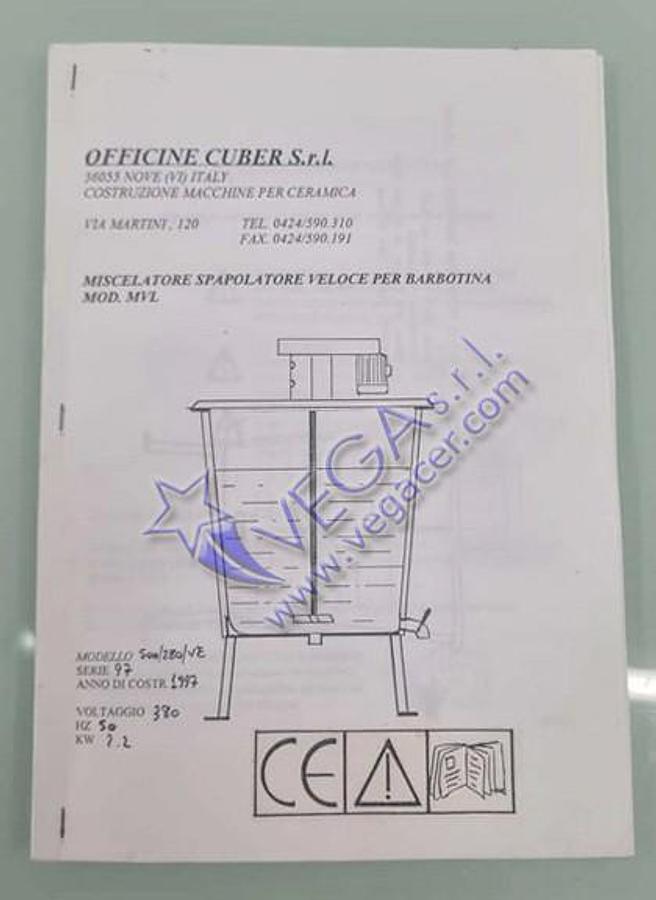

The unit is supplied complete with manual and CE certification.

Tout afficher

Caractéristiques

FabricantOFFICINE CUBER
Modèlemod. MVL
ConditionD'occasion
Numéro de stock7936
Complete of tankYES
Tank materialfiberglass
Tank useful capacity lt500
Tank dimensions (diameter) x (height) mm980 x 700
Complete of tank lidYES
Tank lid materialfiberglass
Complete of propellerYES
Propeller typewelded blade
Propeller materialstainless steel
Propeller diameter mm280
Propeller speed rpm280
Shaft materialstainless steel
Complete of shaft support crosspieceYES
Shaft support crosspiece materialstainless steel
Complete with bottom discharge valveYES
Bottom valve type2 inch ball valve
Complete with support stand YES
Power kW2,2
Tension Volt / Frequency Hz400/50
Phasethree phases
Mixer overall dimensions (diameter) x (height) mm1100 x 1600
Complete with CE certificationYES
Complete with manualYES
