Mixer TESSARI ROBERTO mod. TR 700

Mixer TESSARI ROBERTO mod. TR 700

Adresse:Caldogno, Italy

Description

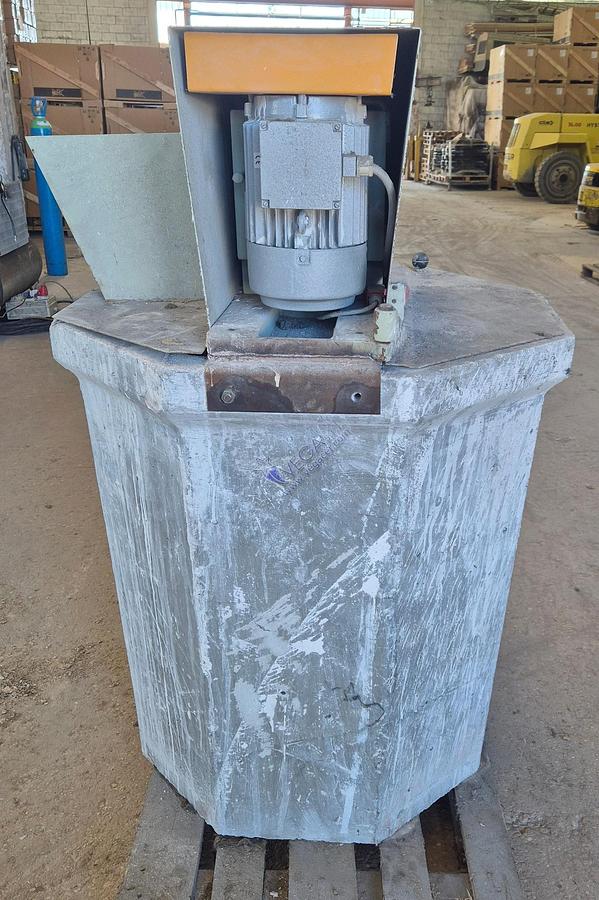

The mixer TESSARI ROBERTO mod. TR 700 is a sturdy and reliable machine designed for the preparation and mixing of materials with high efficiency and continuous operation.

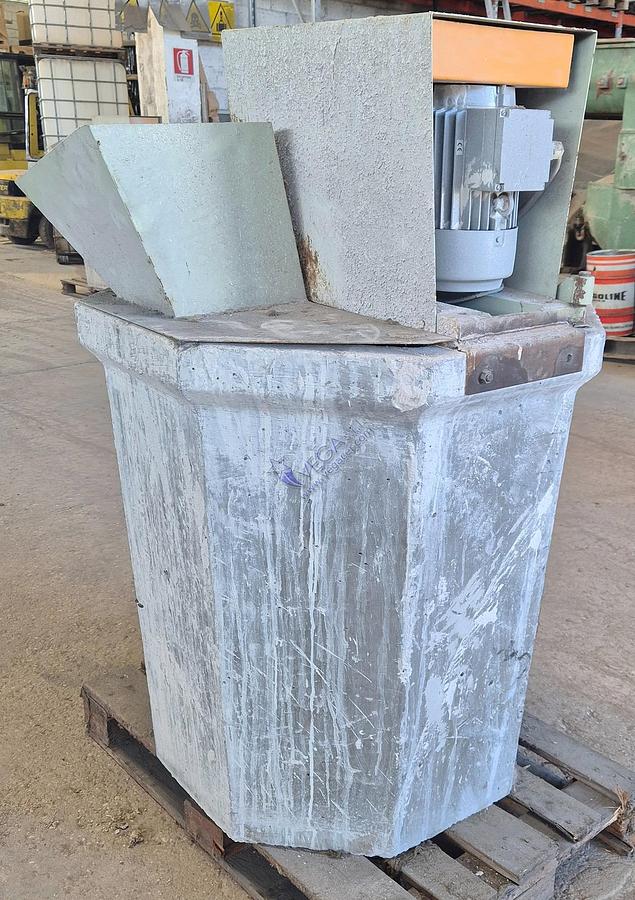

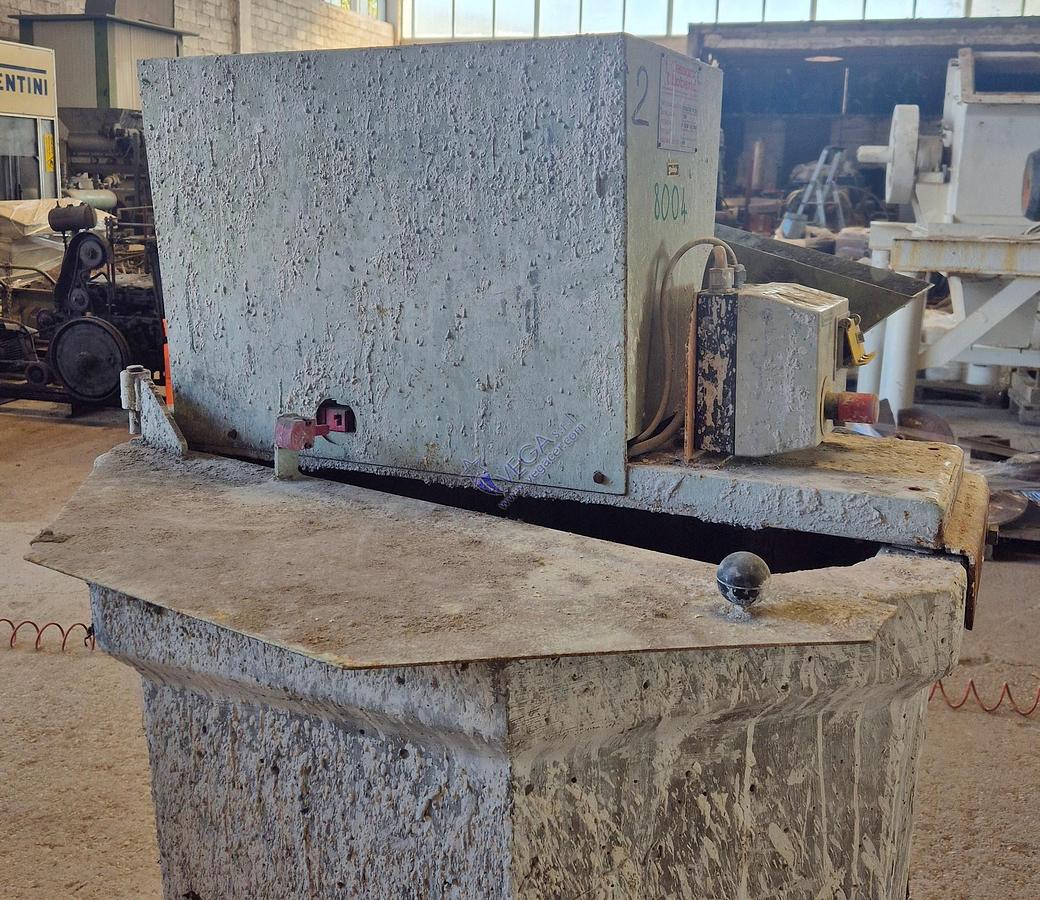

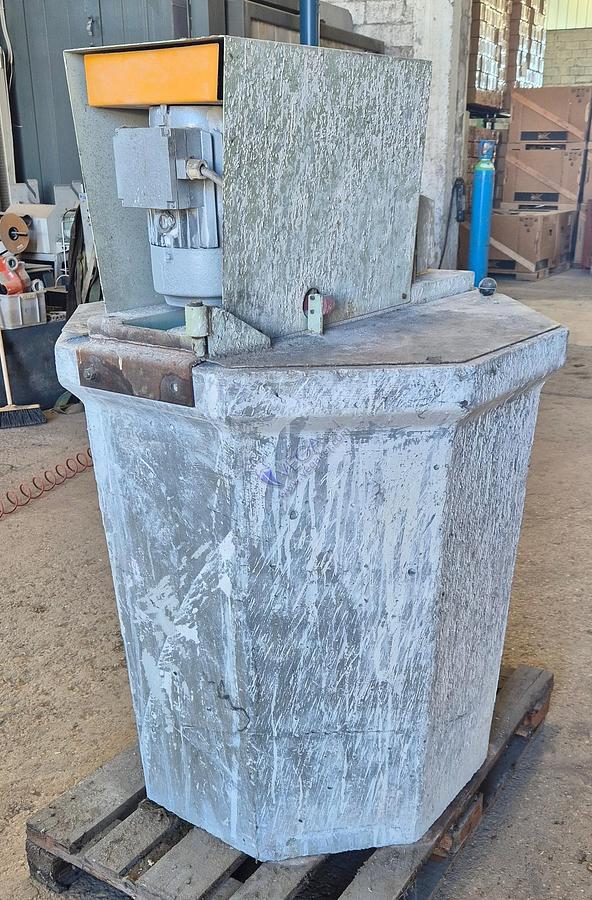

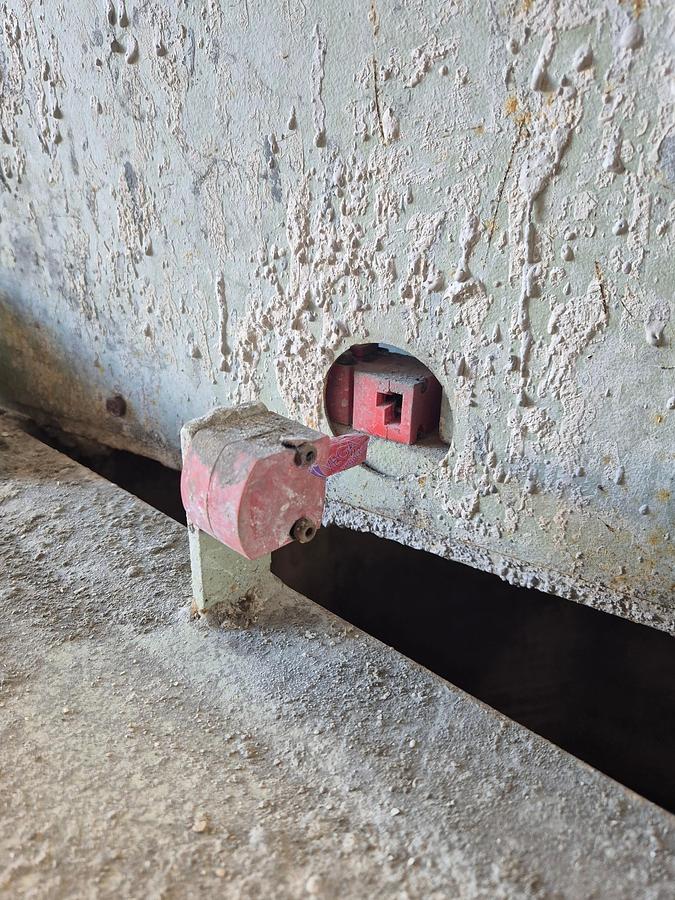

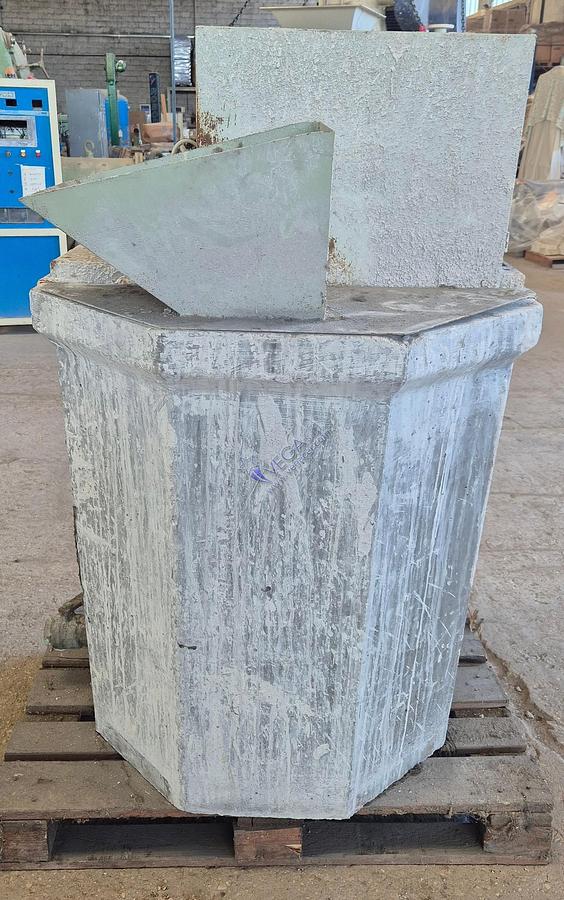

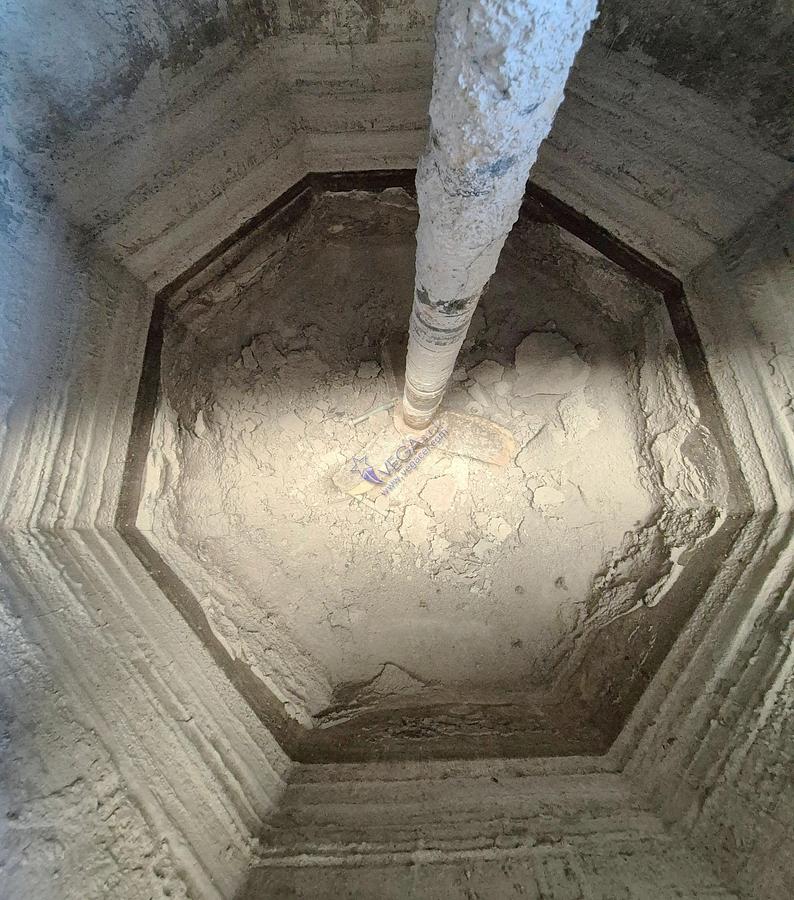

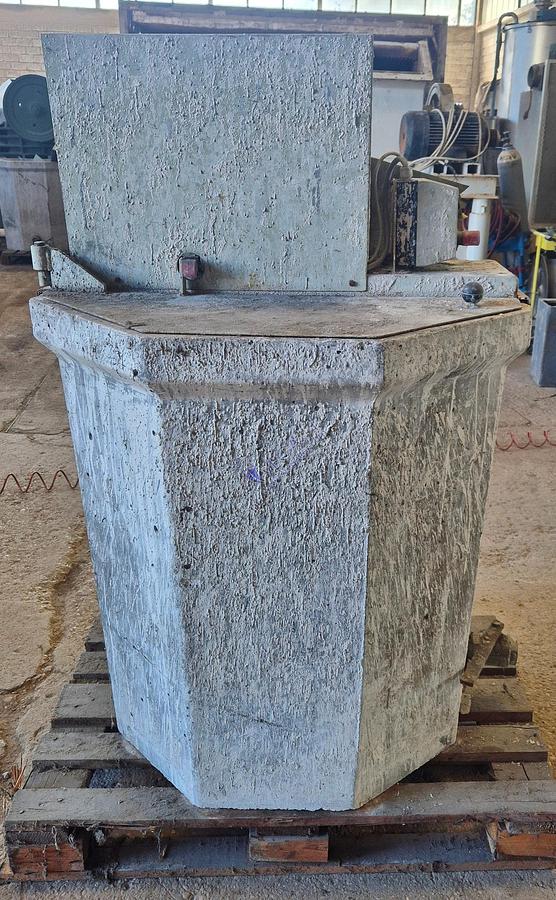

It comes complete with a concrete tank featuring an octagonal shape, with an approximate useful capacity of 450 liters (to be verified) and a total capacity of about 330 liters (to be verified). The internal tank dimensions are 800 x 880 mm, and it includes a lid equipped with a safety micron to ensure maximum operator protection.

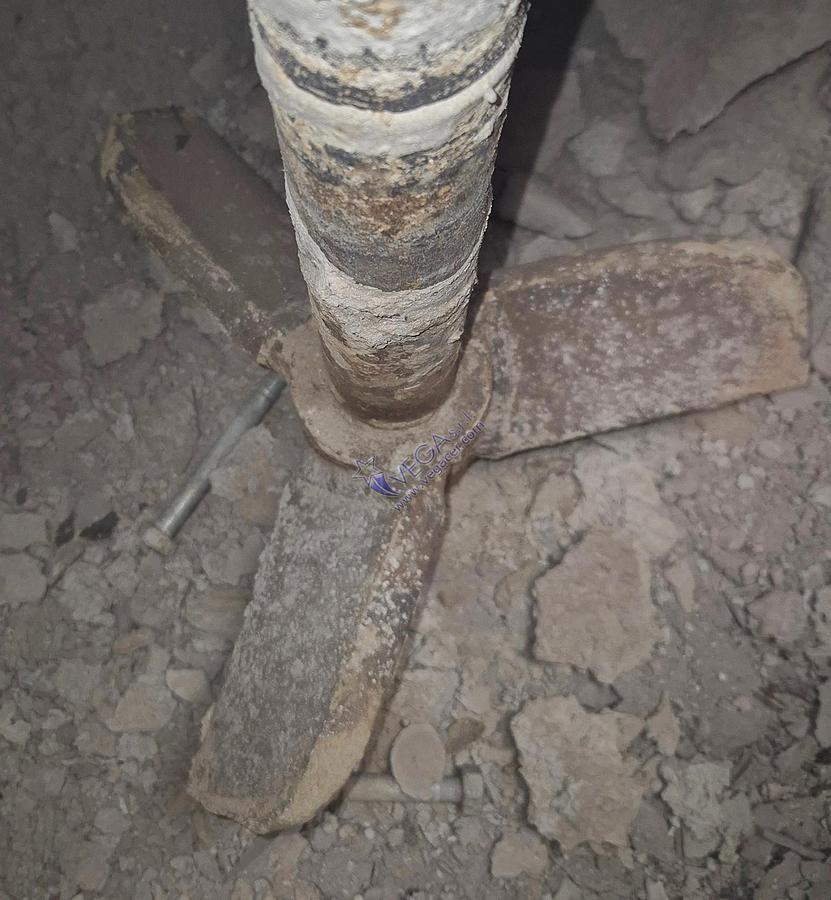

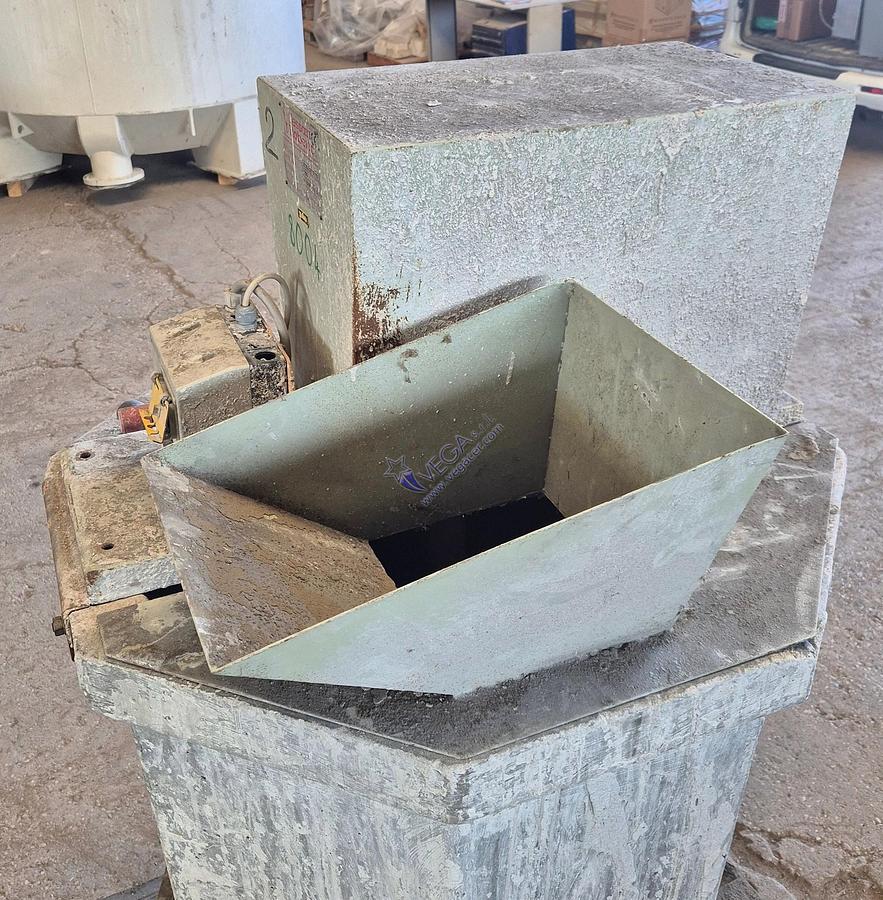

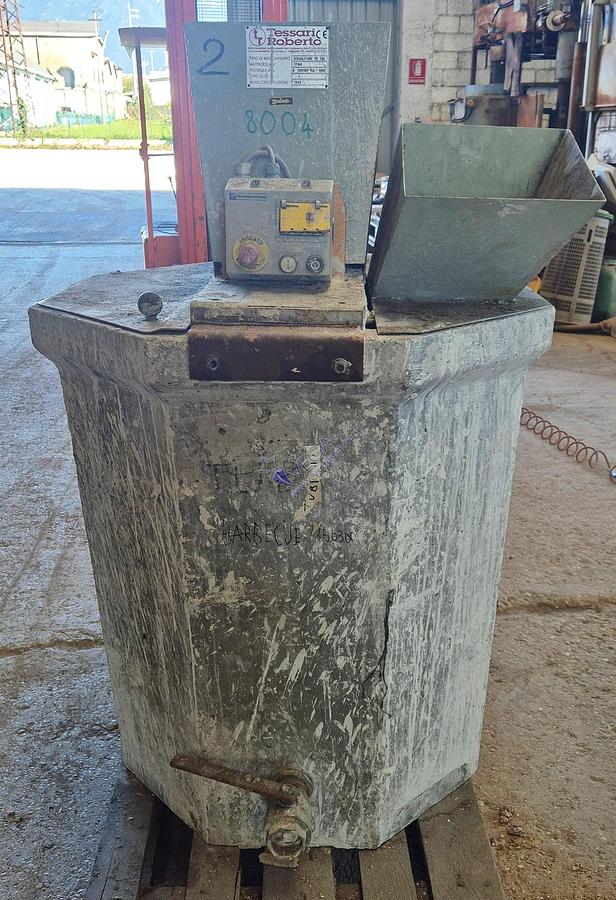

The mixer is equipped with a 3-blade welded propeller with a diameter of 400 mm, shaft support crosspiece, loading hopper, and a 2-inch ball-type bottom discharge valve.

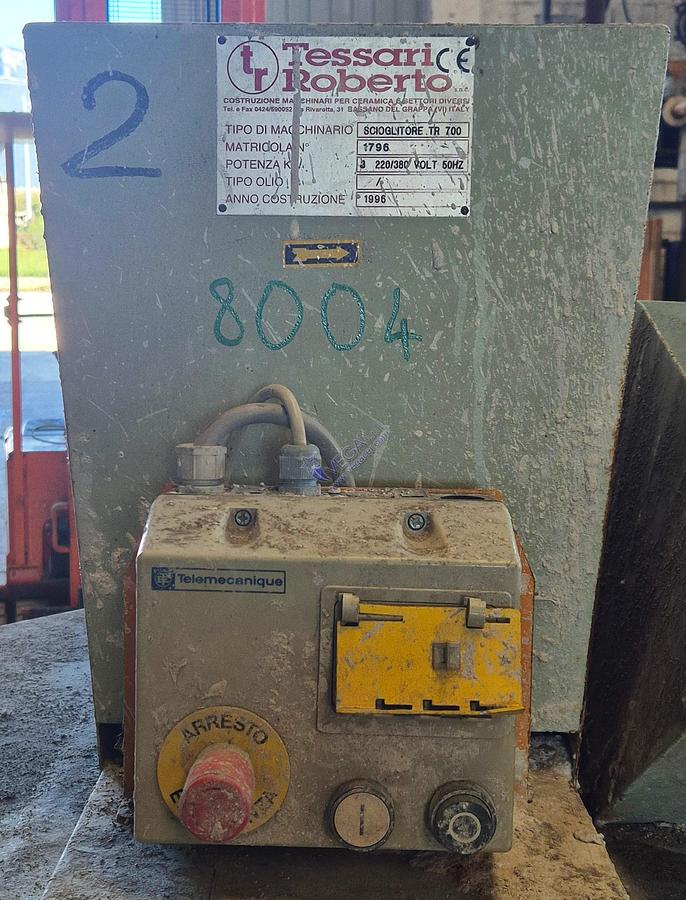

It is also complete with an electrical control panel featuring start, stop, and emergency commands, and includes a safety locking device for secure operation.


The installed power is 3 kW, operating at 400 V / 50 Hz, three-phase.

The overall dimensions are 1000 x 1100 x 1530 mm.

Tout afficher

Caractéristiques

FabricantTESSARI ROBERTO
Modèlemod. TR 700
ConditionD'occasion
Numéro de stock8004
Complete of tankYES
Tank materialconcrete
Tank shapeoctagonal
Tank useful capacity m3450 (to be verified)
Tank total capacity m3330 (to be verified)
Tank dimensions (diameter) x (height) mm800 x 880
Complete of tank lidYES
Complete with a safety micron in the lid of the tankYES
Complete of propellerYES
Propeller type3-blade welded
Propeller diameter mm400
Complete of shaft support crosspieceYES
Complete with loading hopperYES
Complete with bottom discharge valveYES
Bottom valve type 2-inch ball valve
Complete with electric switchboard YES
Controls on the electrical panelstart, stop, emergency
Complete with safety locking device on the electrical panelYES
Power kW3
Tension Volt / Frequency Hz400/50
Phasethree phases
Mixer with tank overall dimensions (width) x (lenght) x (height) mm1000 x 1100 x 1530
