Gas turbo kiln UMBRA FORNI mod. TURBO.FIRING.LINE - 4 m3, 1100°C
Gas turbo kiln UMBRA FORNI mod. TURBO.FIRING.LINE - 4 m3, 1100°C
Location:Caldogno, Italy
Description

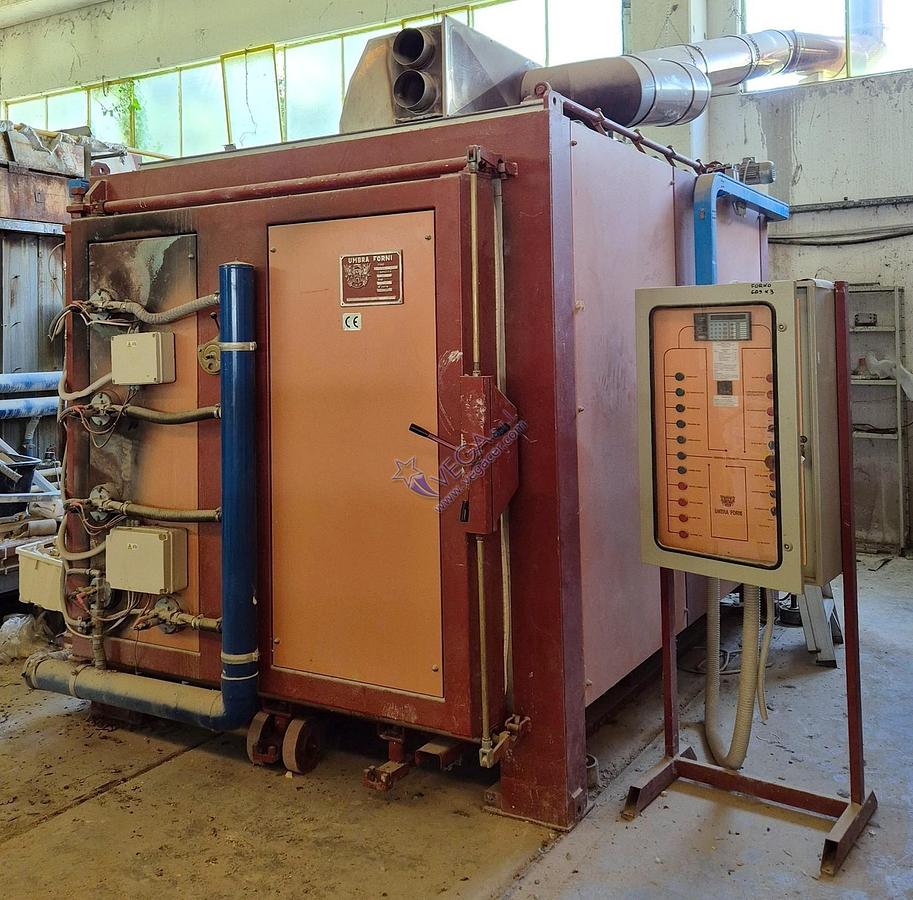

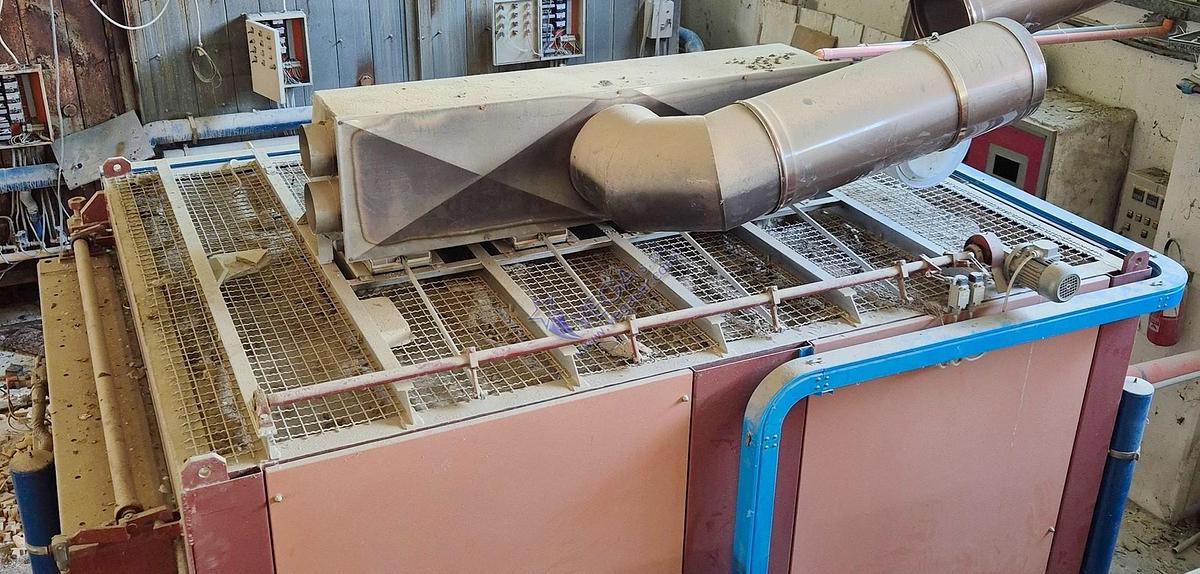

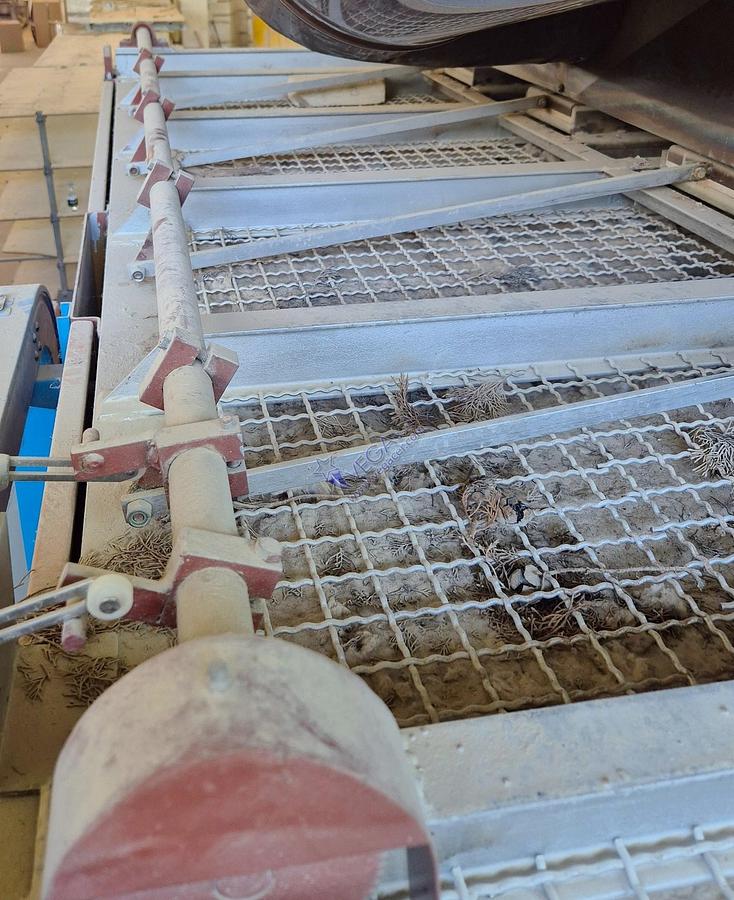

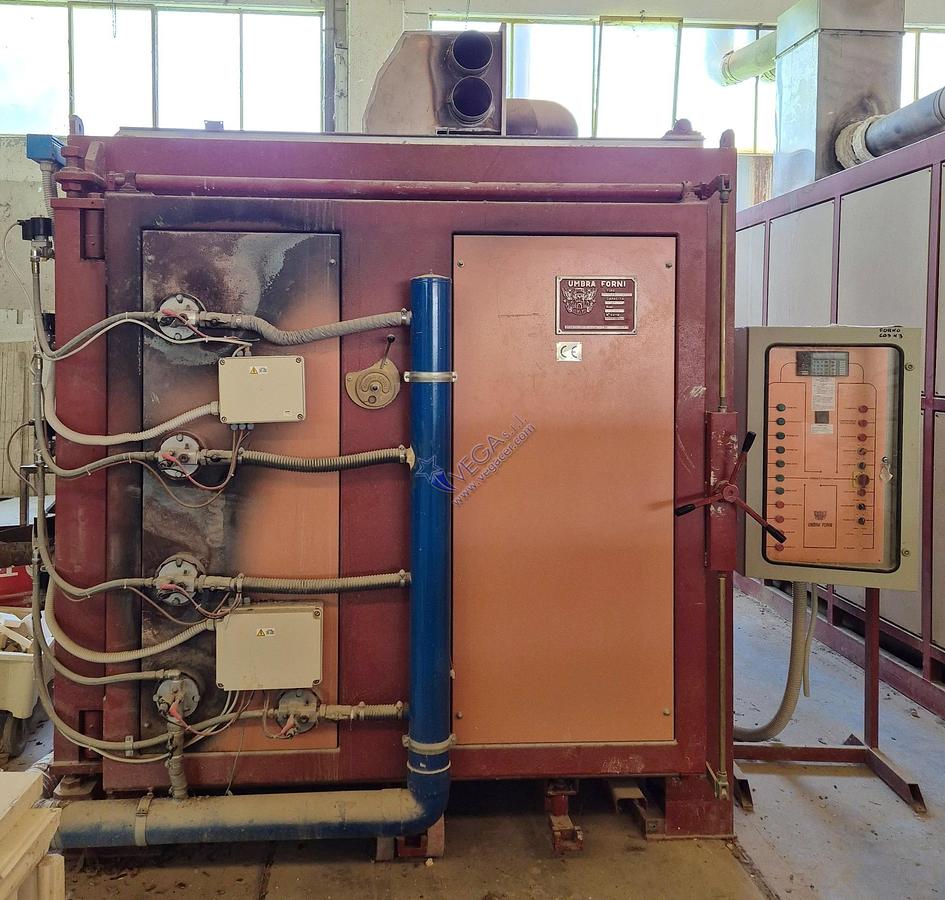

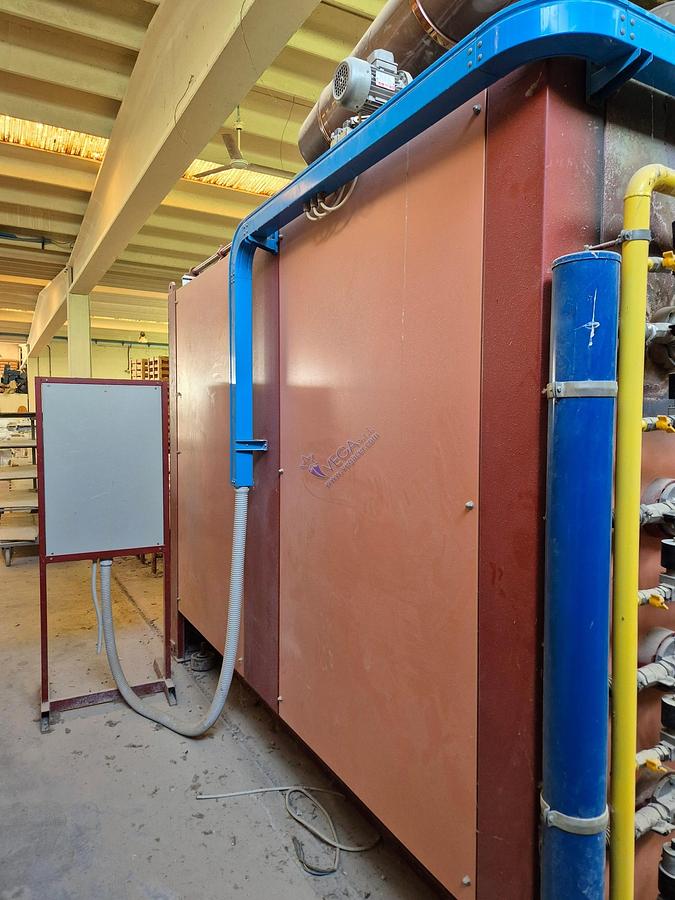

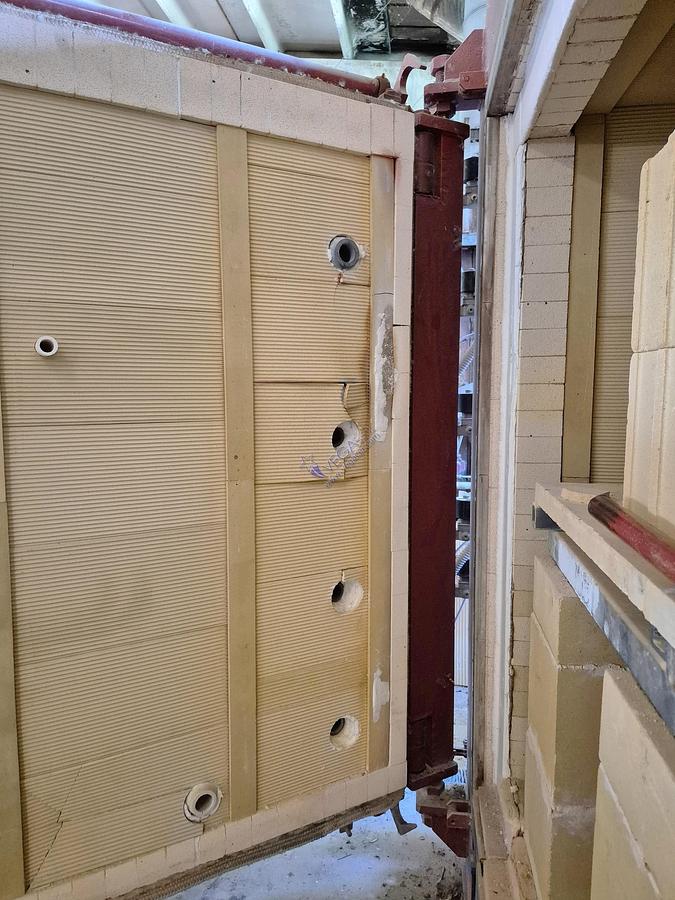

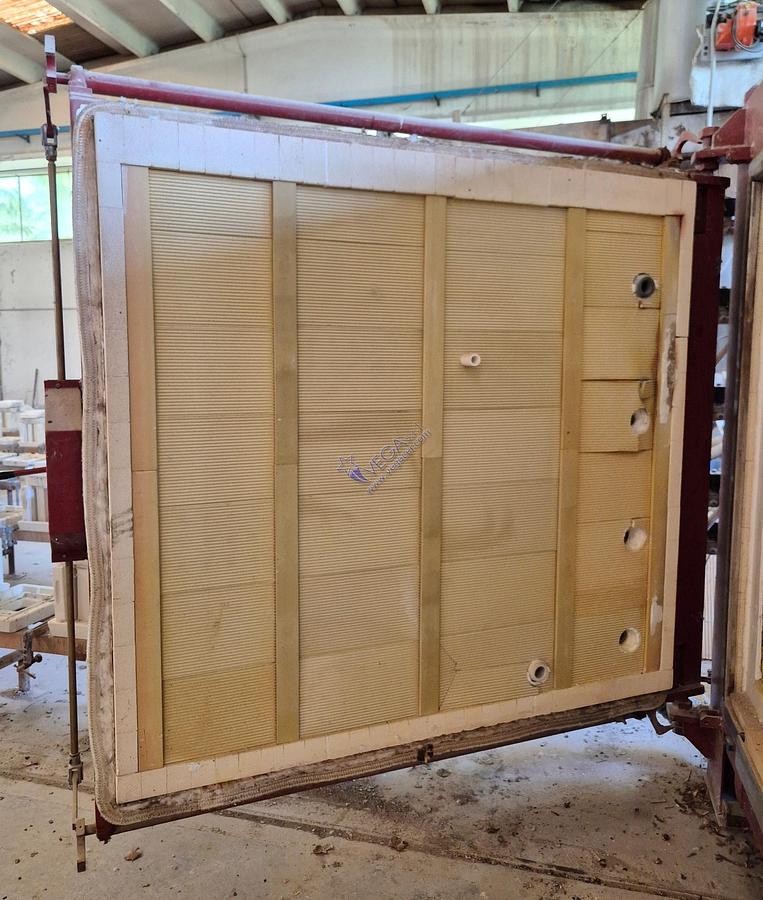

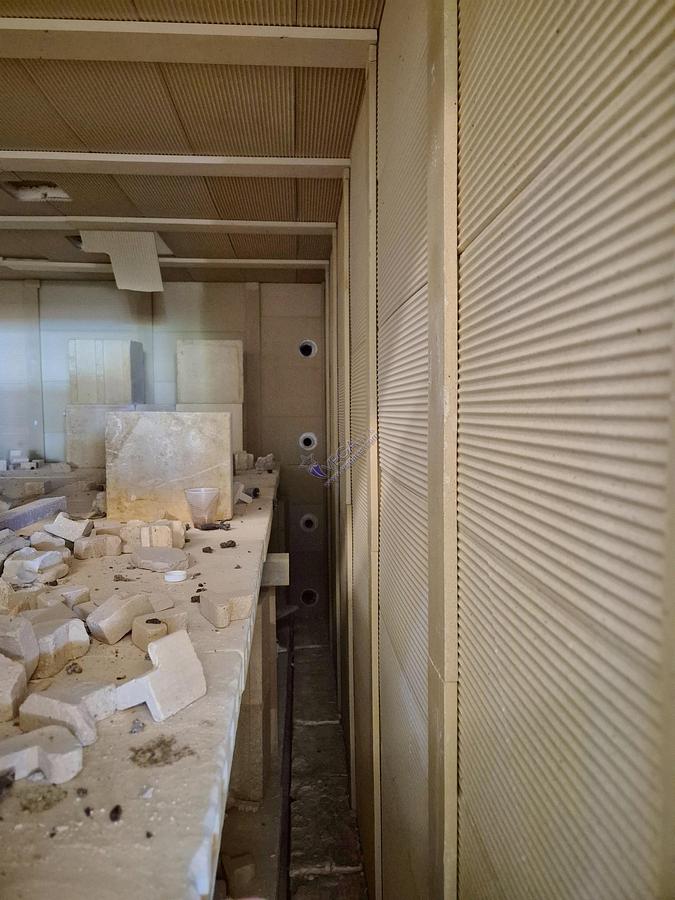

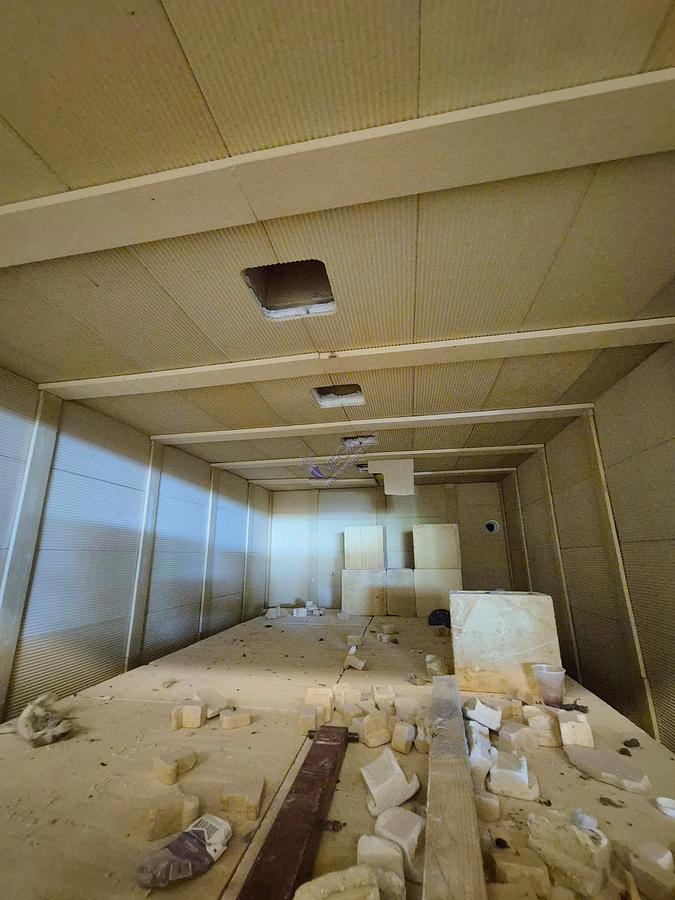

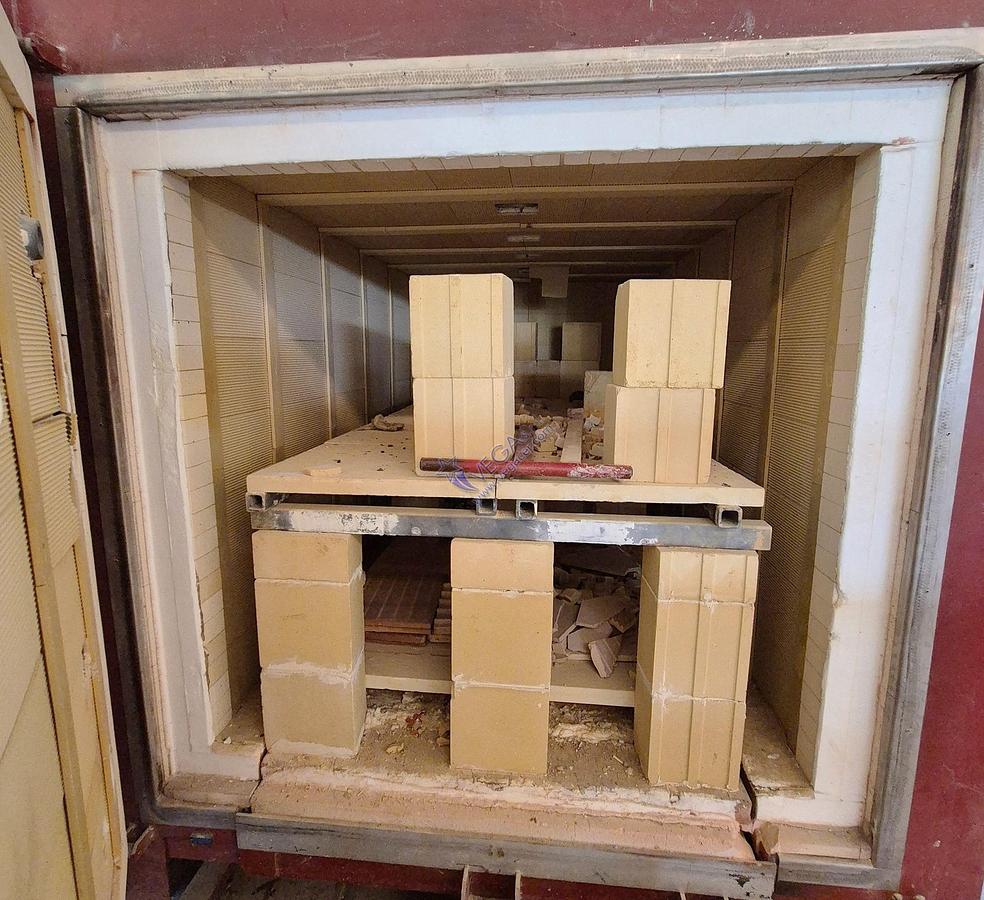

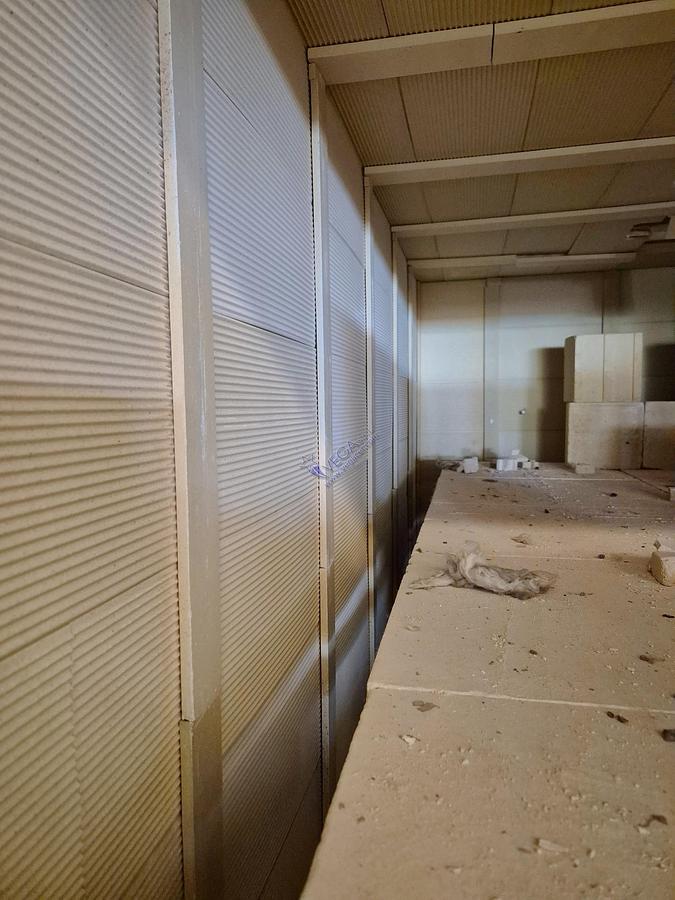

The gas turbo kiln UMBRA FORNI mod. TURBO.FIRING.LINE is designed for a maximum working temperature of 1100°C and offers a useful loading capacity of 4 m³, with internal dimensions of 1300 x 2650 x 1300 mm. The insulation system is made of ceramic fibre combined with thin refractory slabs, ensuring excellent thermal efficiency.

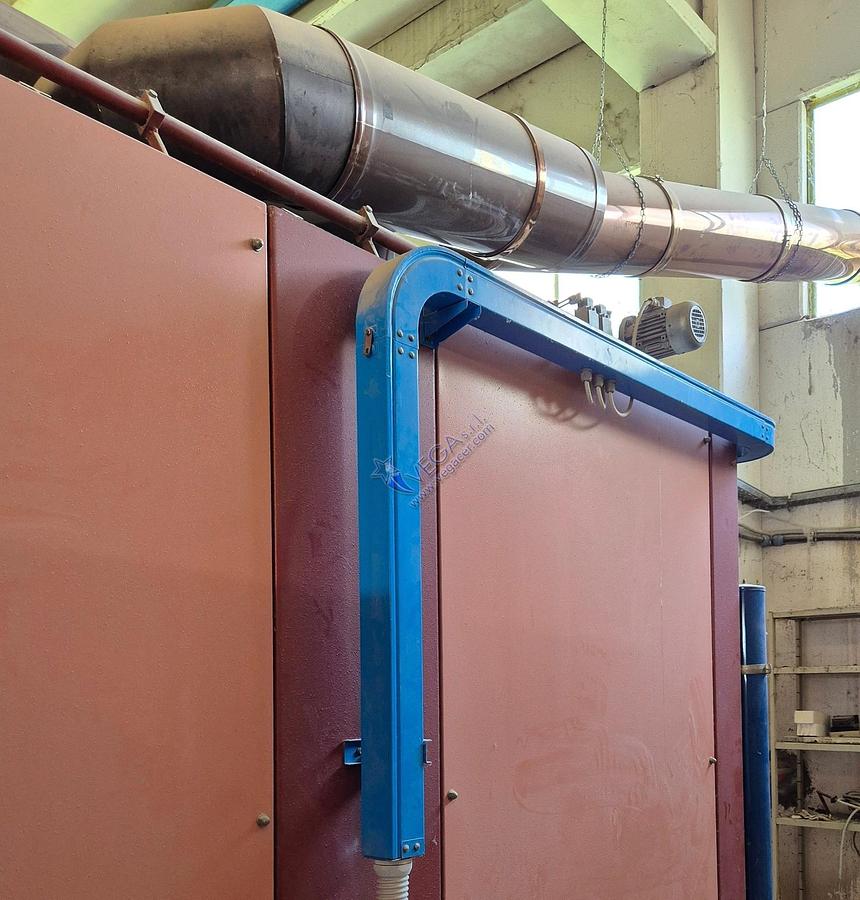

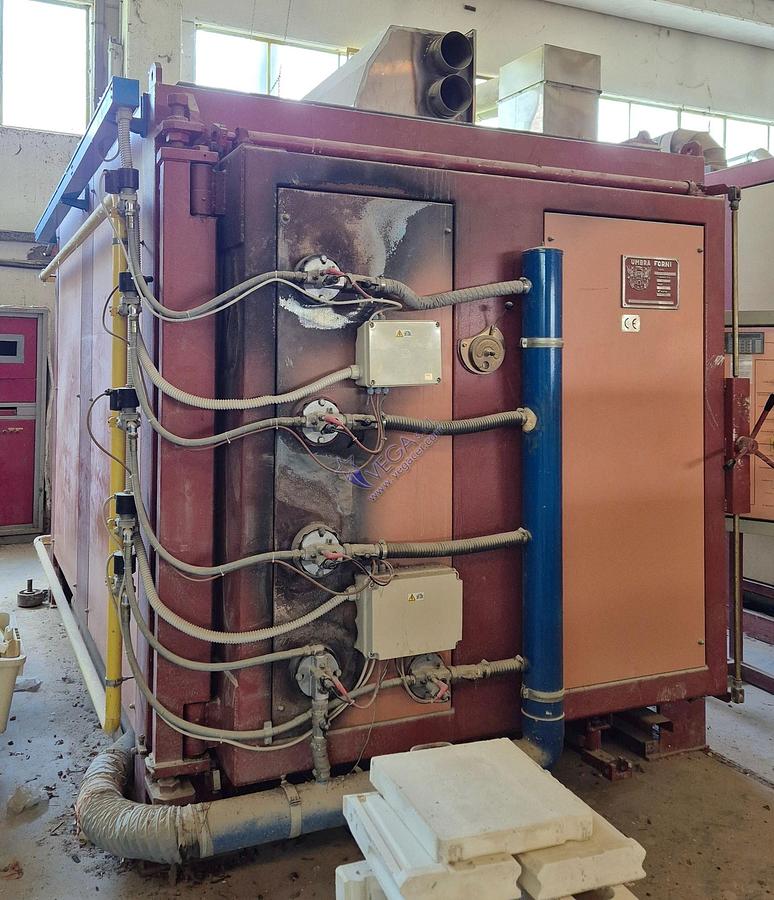

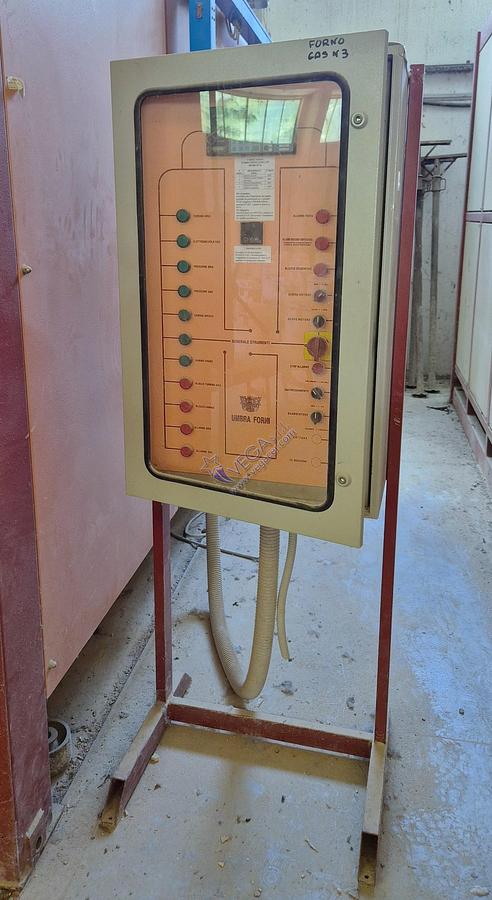

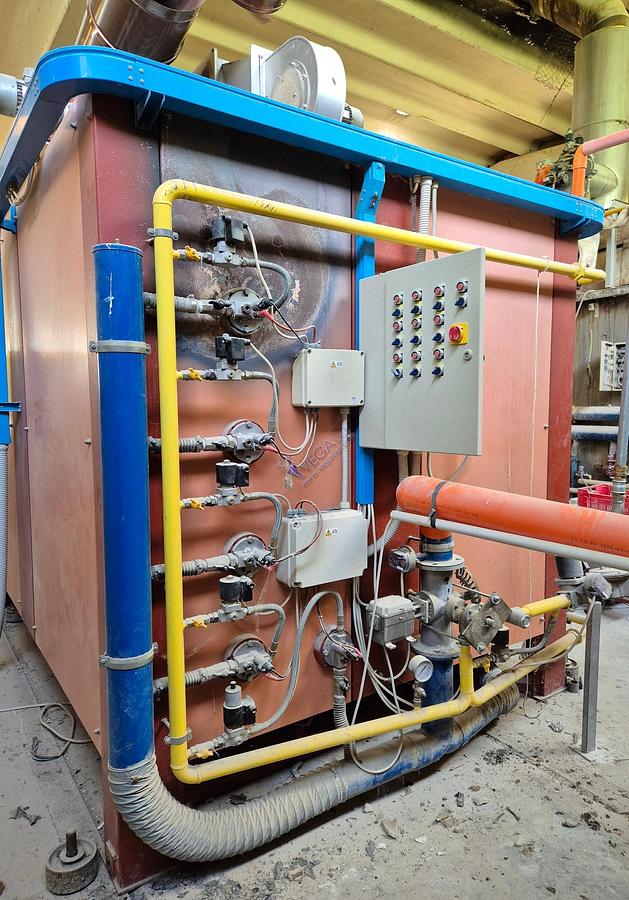

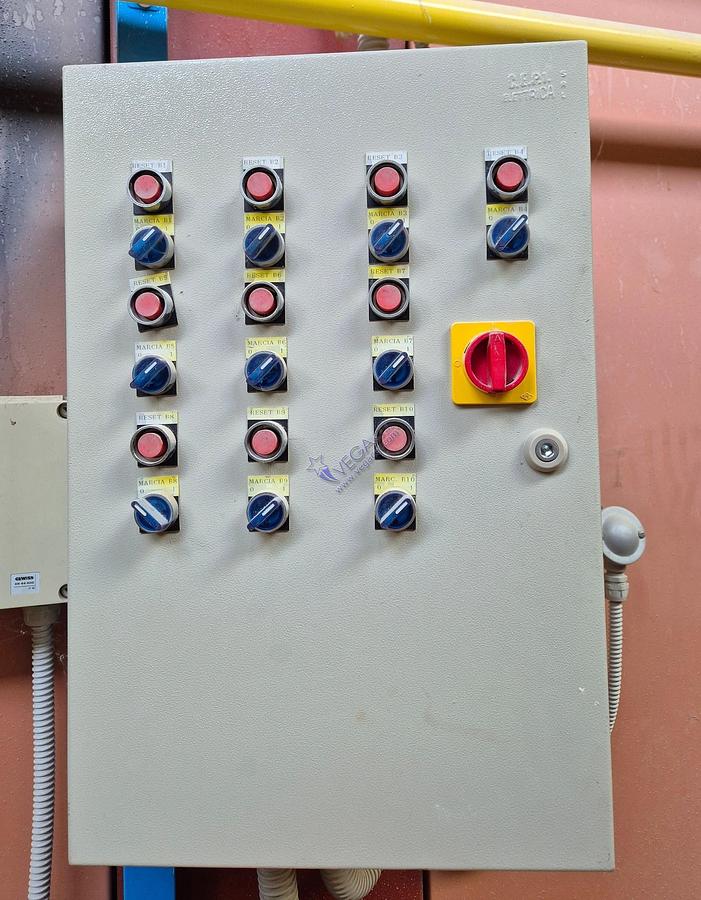

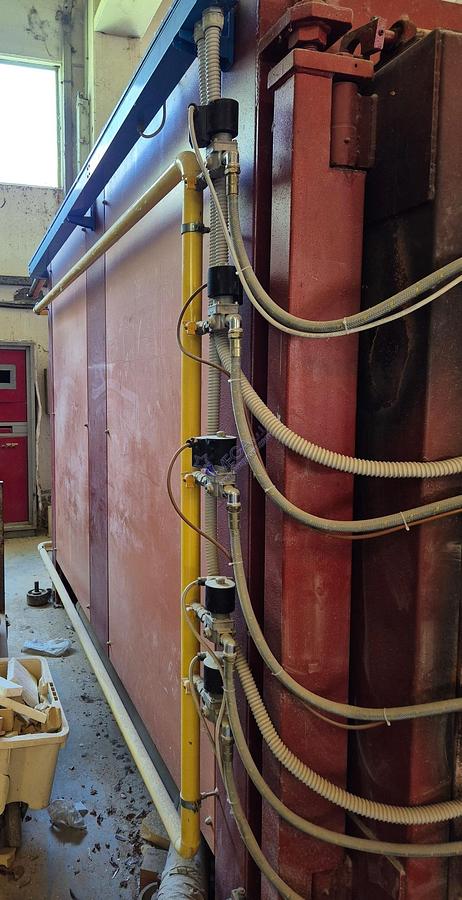

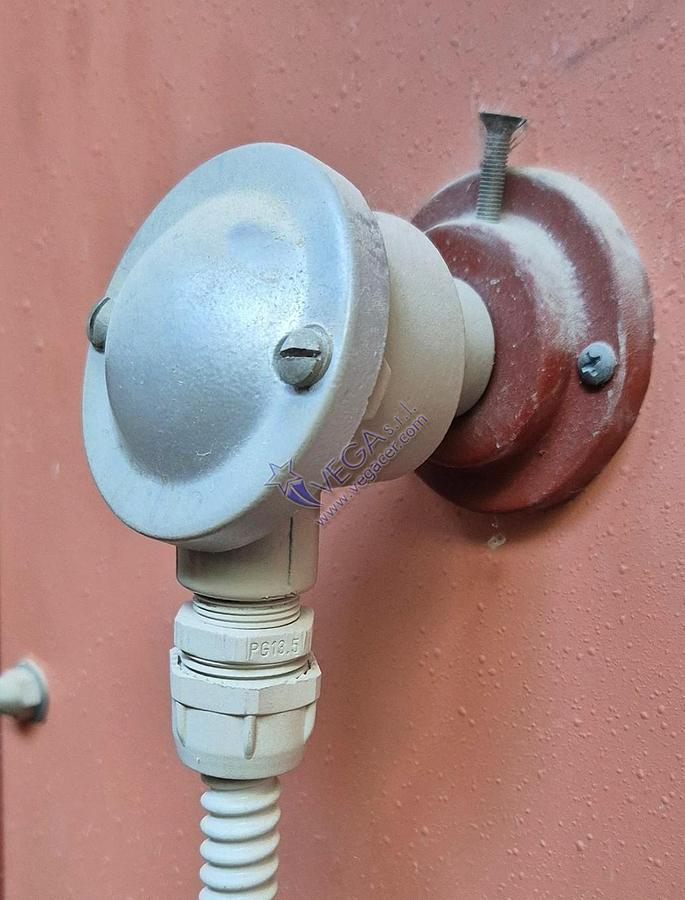

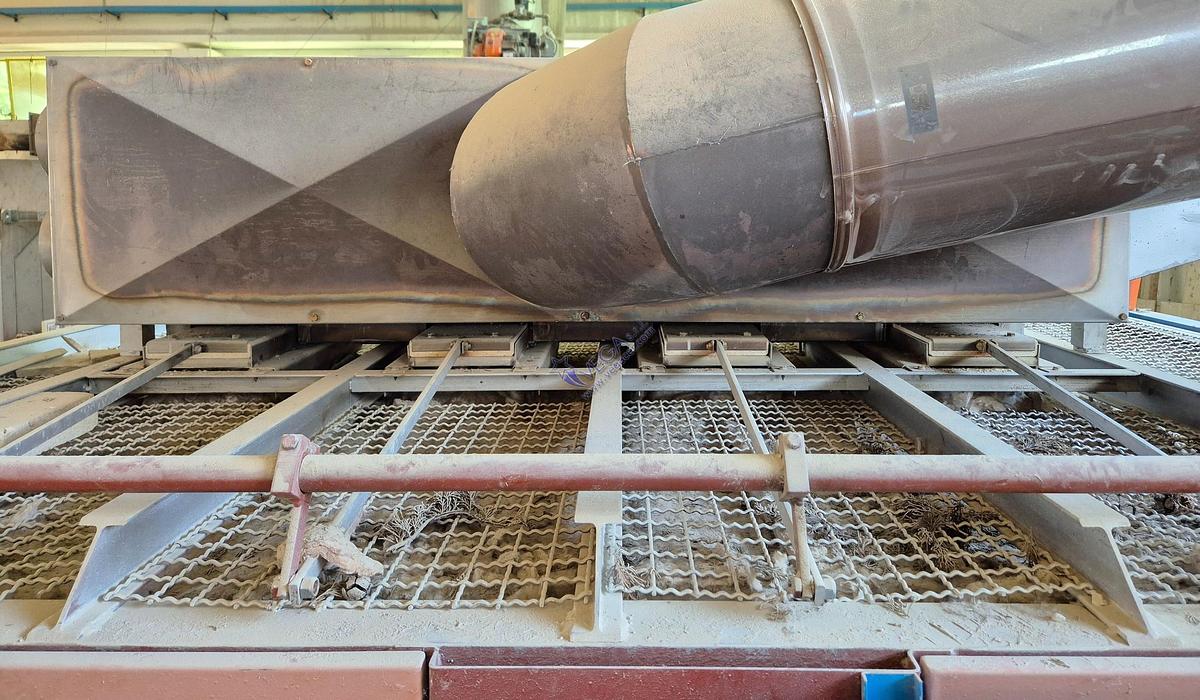

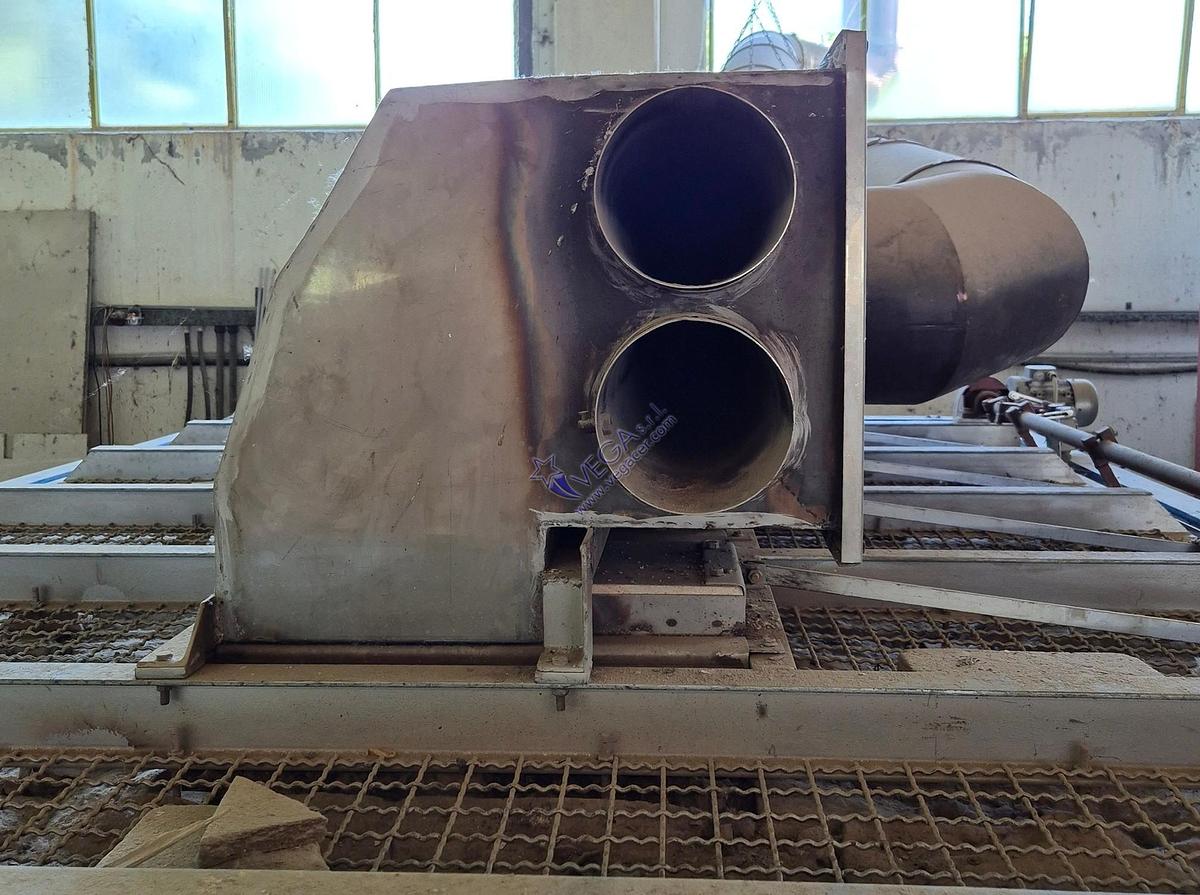

The kiln is equipped with 2 cars (1 inside and 1 in stand-by), mounted on Vulkollan wheels. It is powered by 10 burners working with natural gas (CH4) and is supplied complete with thermocouples for precise temperature monitoring. The equipment also includes an electric switchboard with microprocessor Ably TC85, a safety thermoregulator Pixsys, a motorized chimney opening/closing system, a 350 mm diameter chimney pipe and a heat exchanger for improved performance.

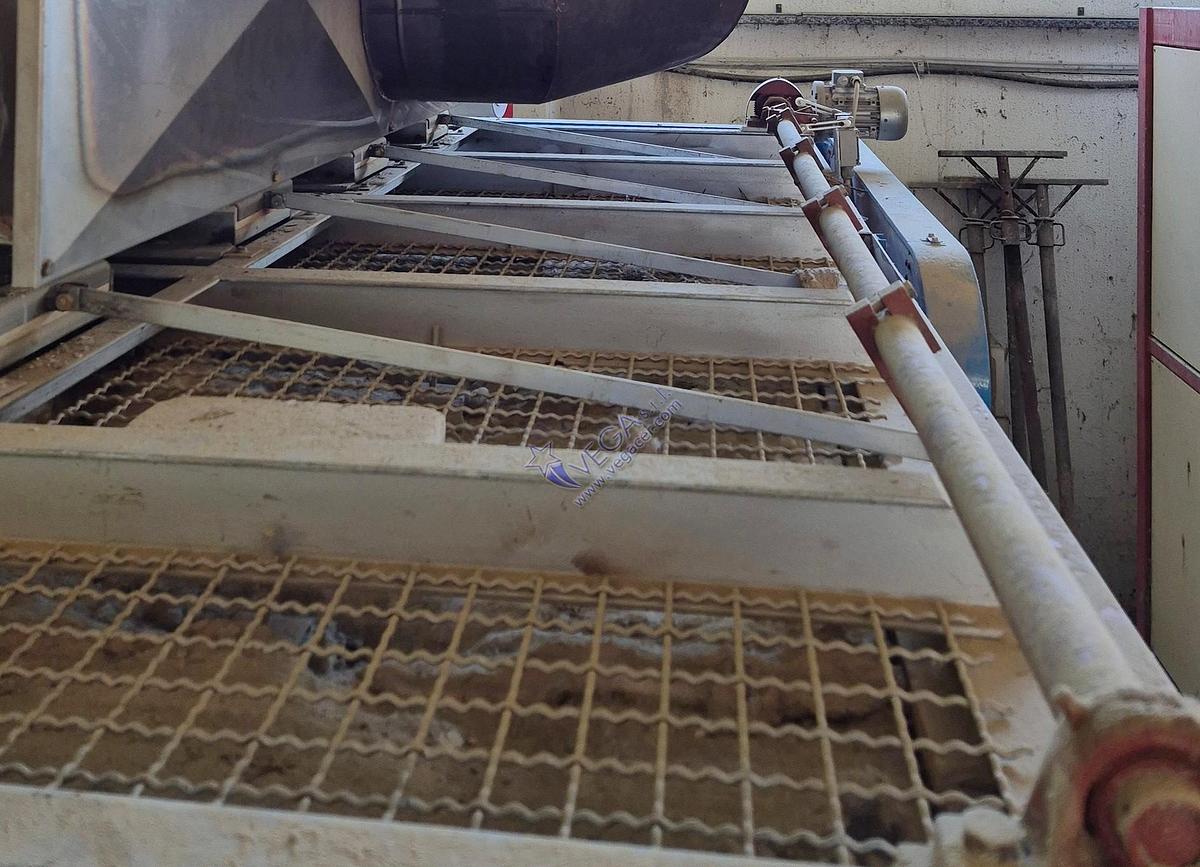

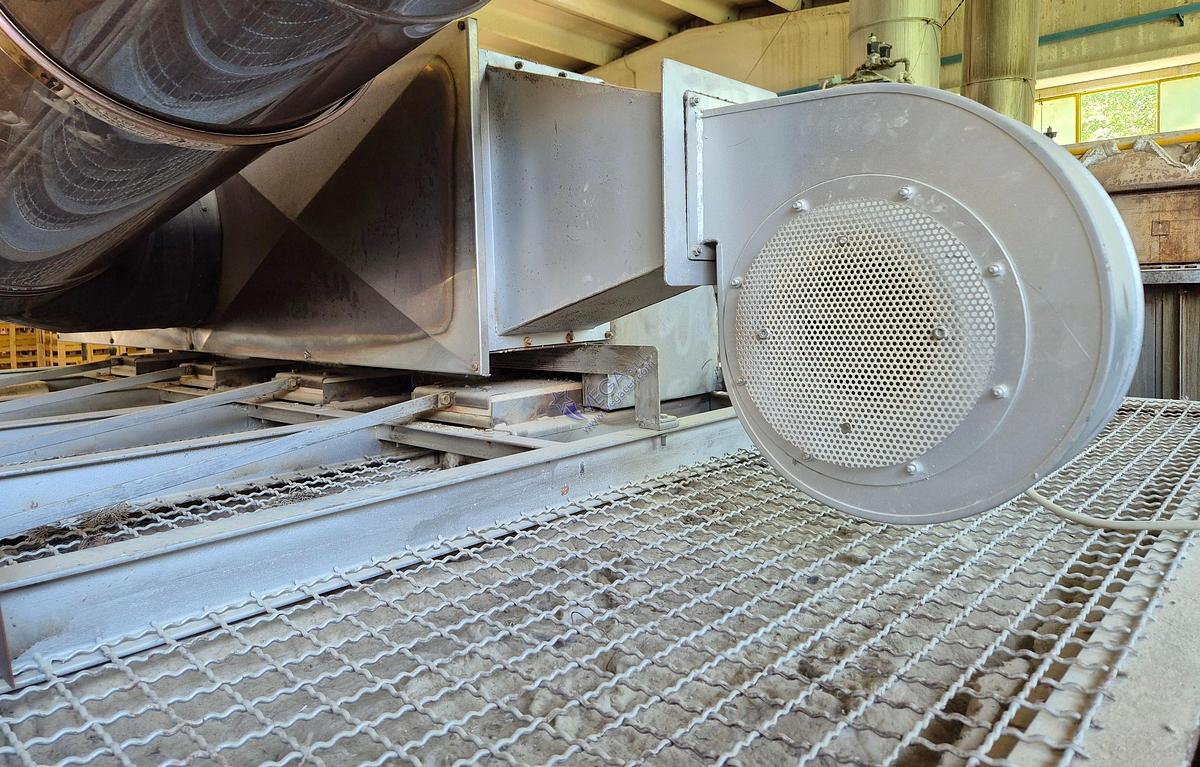

The power supply is 400 V, 50 Hz, three-phase. The overall installed dimensions of the kiln are 2580 x (length to be verified) x 2970 mm, while the cars measure 1500 x 2950 x 530 mm, the electric switchboard 650 x 600 x 1800 mm and the post-combustor with fan 500 x 2600 x 550 mm.

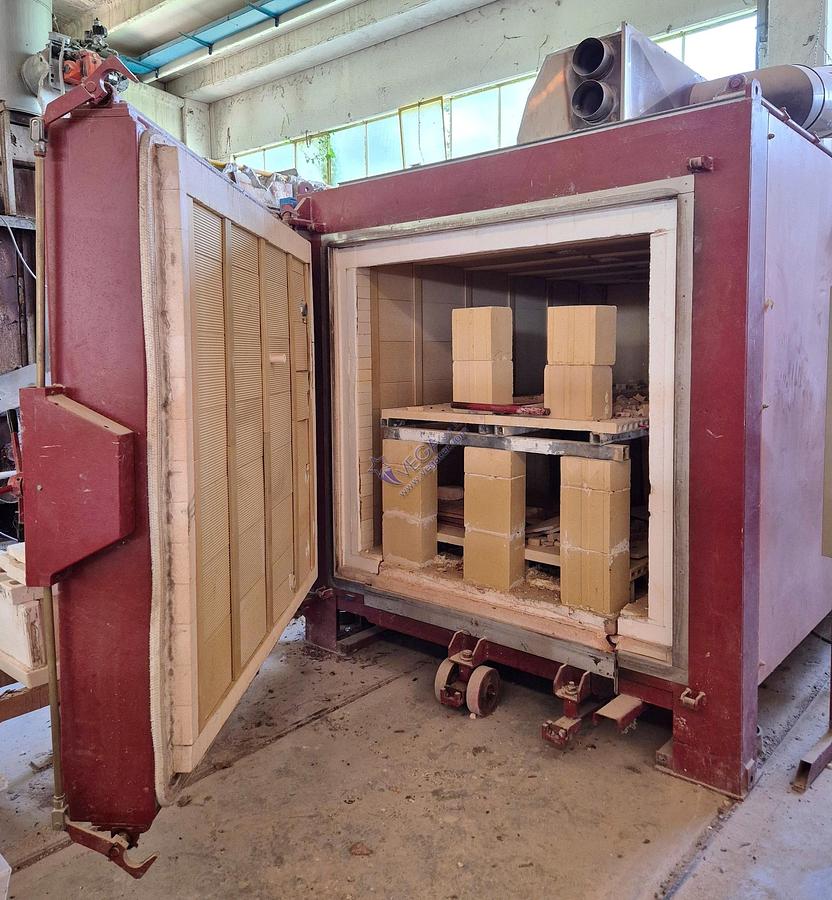

Please note: the refractory kiln furniture visible in the photos is not included. If required, it can be supplied separately. Only the first floor of slabs on the cars (hearth) and its supports are included.
Specifications

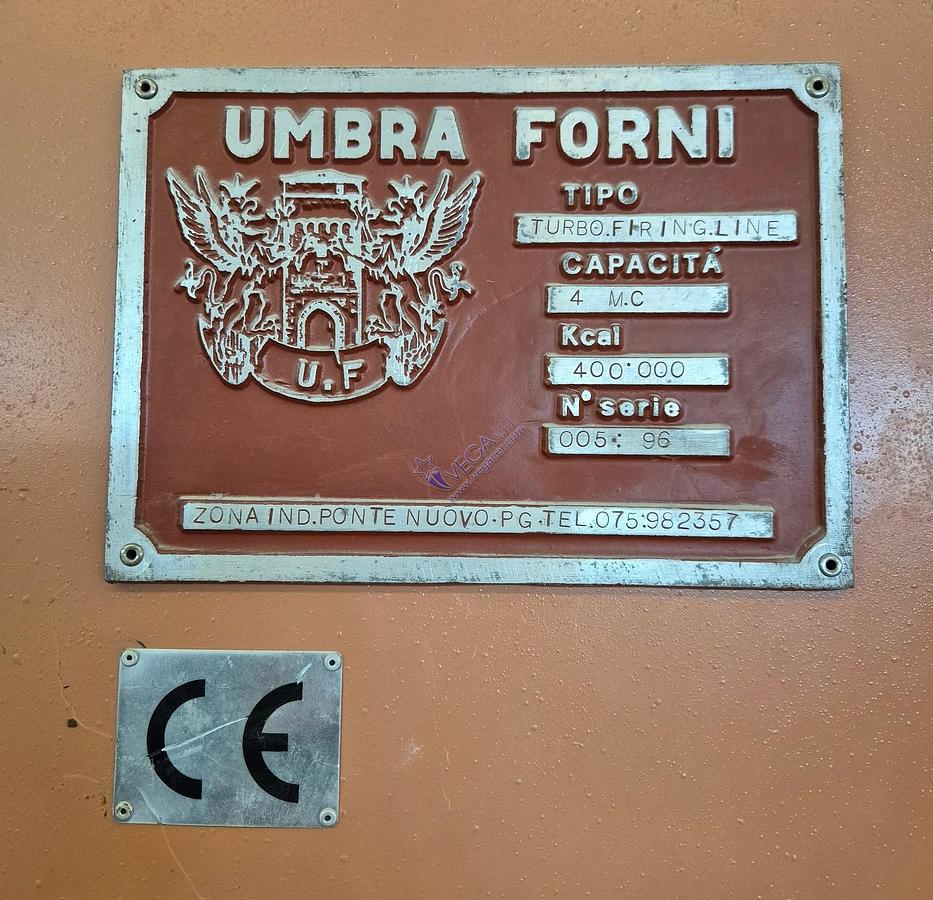

| Manufacturer | UMBRA FORNI |
| Model | mod. TURBO.FIRING.LINE |
| Condition | Used |
| Stock Number | 7979 |
| Max. working temperature °C | 1100 |
| Useful loading capacity m3 | 4 |
| Useful loading dimensions (width) x (length) x (height) mm | 1300 x 2650 x 1300 |
| Internal insulation | ceramic fibre + thin refractory slabs |
| N° of cars | 02 (n°01 inside + n°01 in stand-by) |
| Type of car wheels | Vulkollan |
| N° of burners | 10 |
| Burner fuel | natural gas (CH4) |
| Complete with thermocouple | YES |

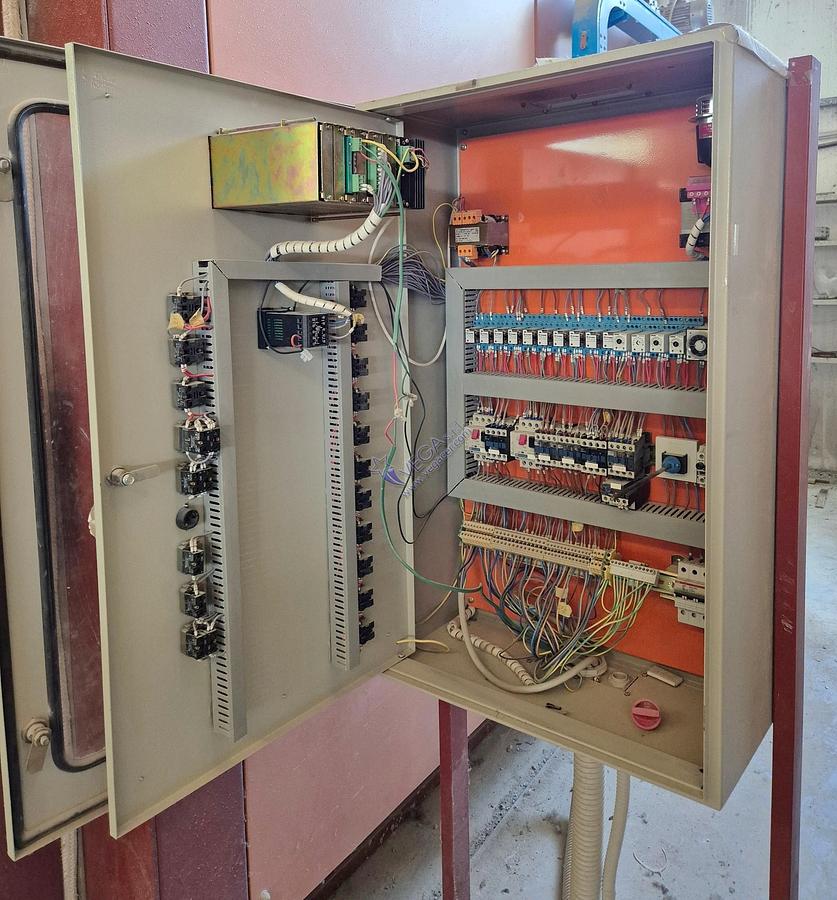

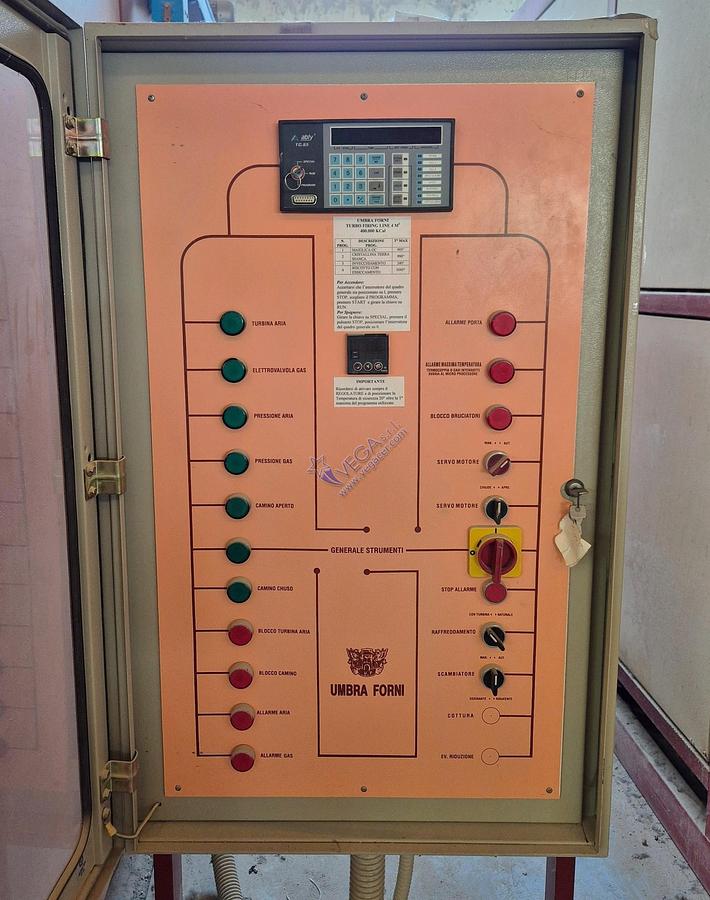

| Complete with electric switchboard with microprocessor | YES |

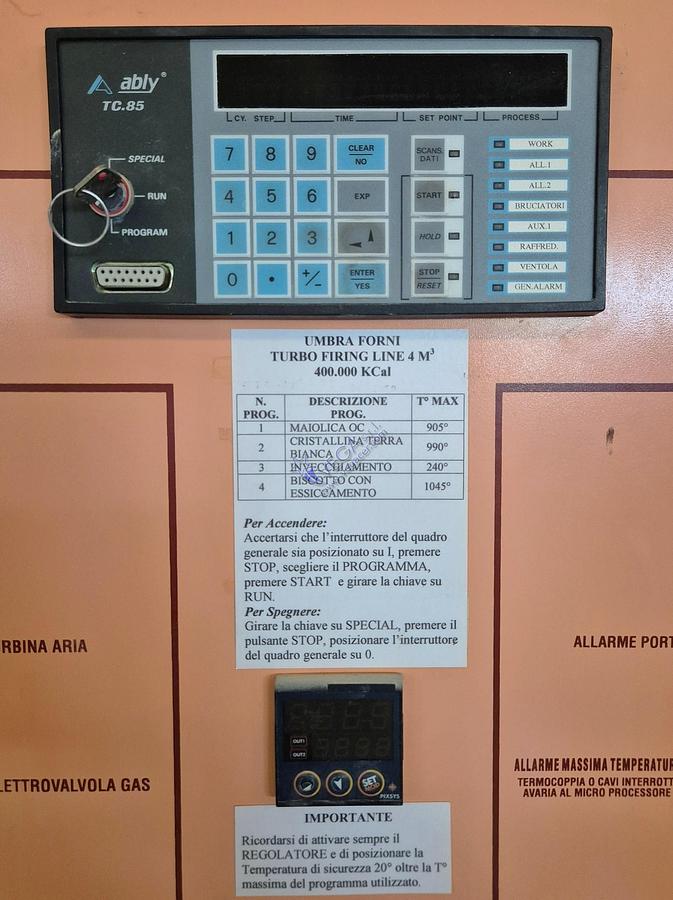

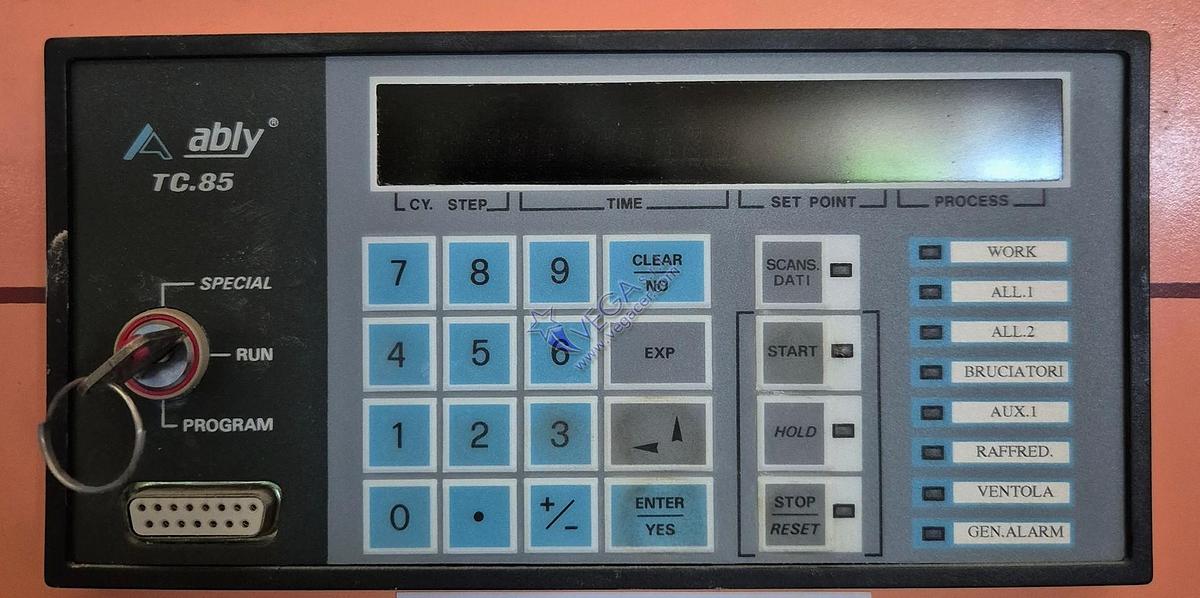

| Microprocessor model | Ably mod. TC85 |
| Complete with safety thermoregulator | YES |
| Safety thermoregulator model | Pixsys |
| Chimney pipe diameter mm | 350 |
| Complete of heat exchanger | YES |

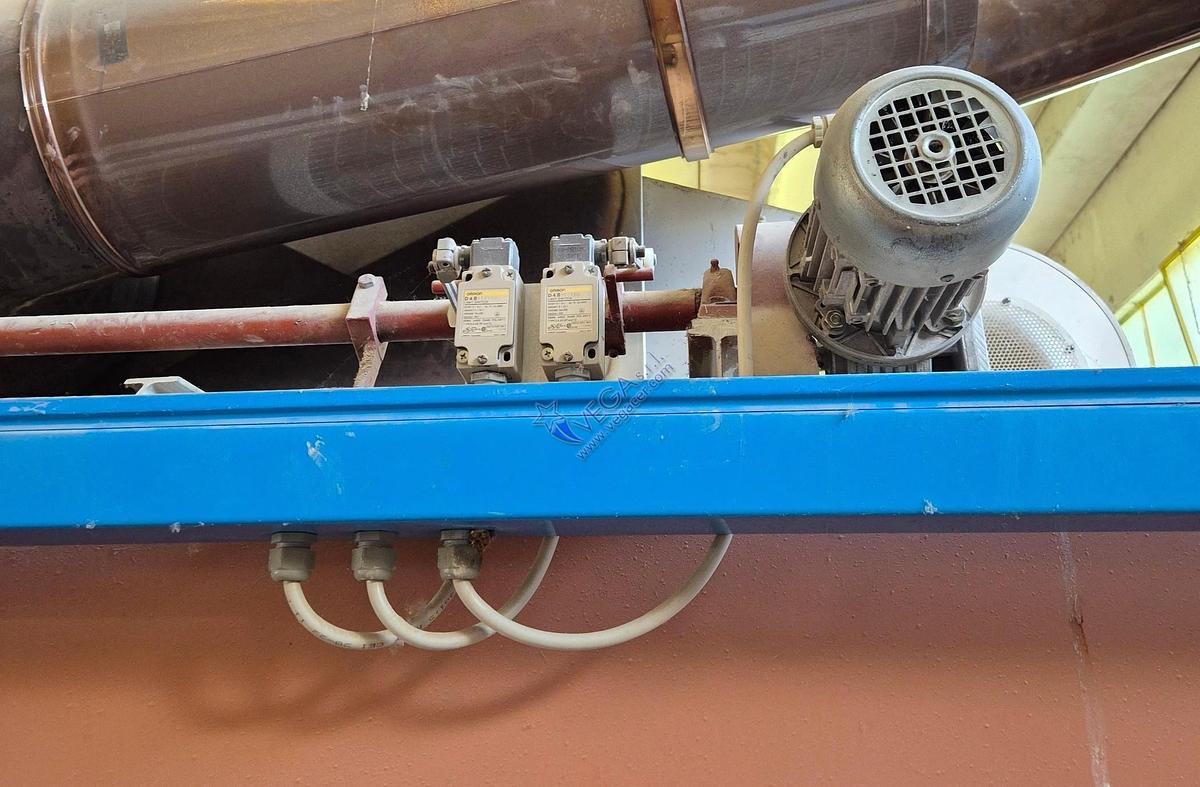

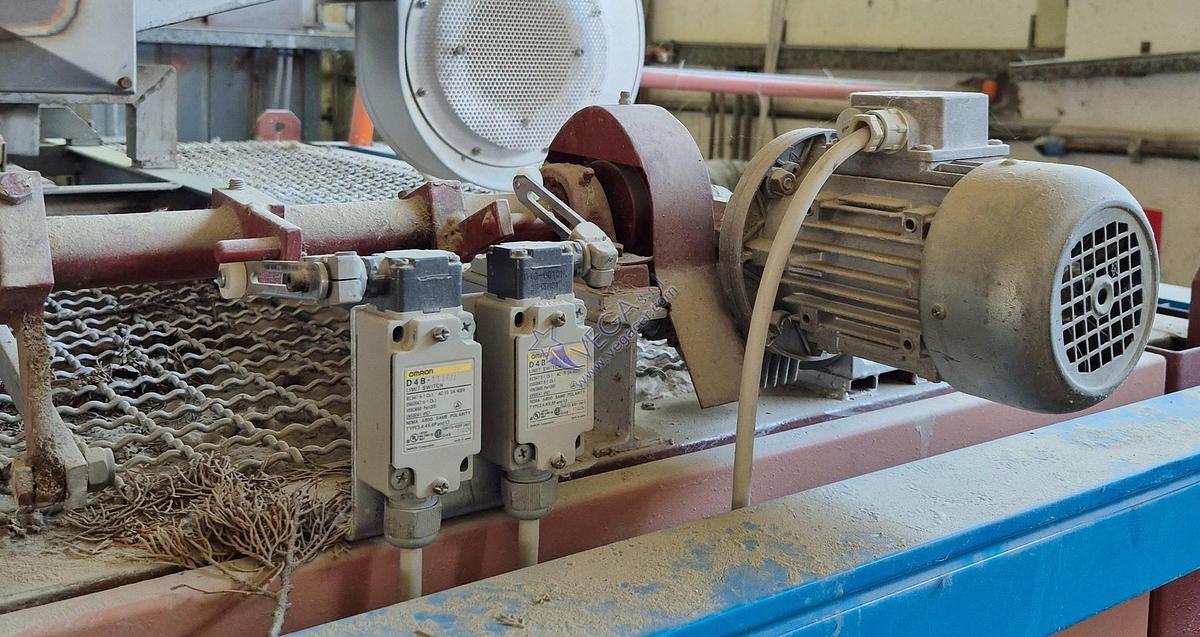

| Complete with motorized chimney opening/closing | YES |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Kiln overall dimensions when installed (width) x (length) x (height) mm | 2580 x lenght to be verified x 2970 |
| Cars overall dimensions (width) x (length) x (height) mm | 1500 x 2950 x 530 |

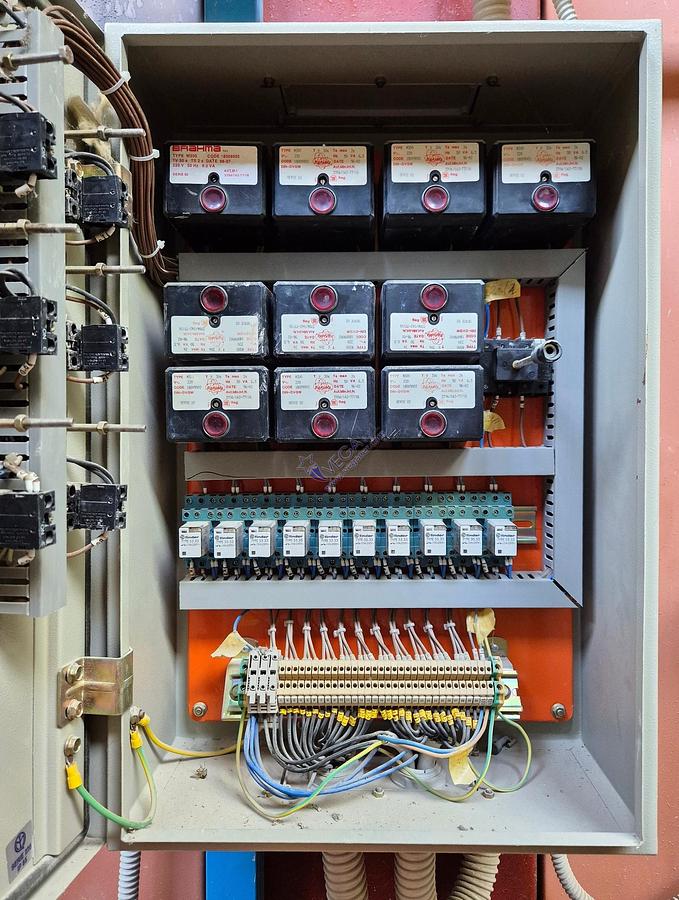

| Electric switchboard overall dimensions (width) x (length) x (height) mm | 650 x 600 x 1800 |

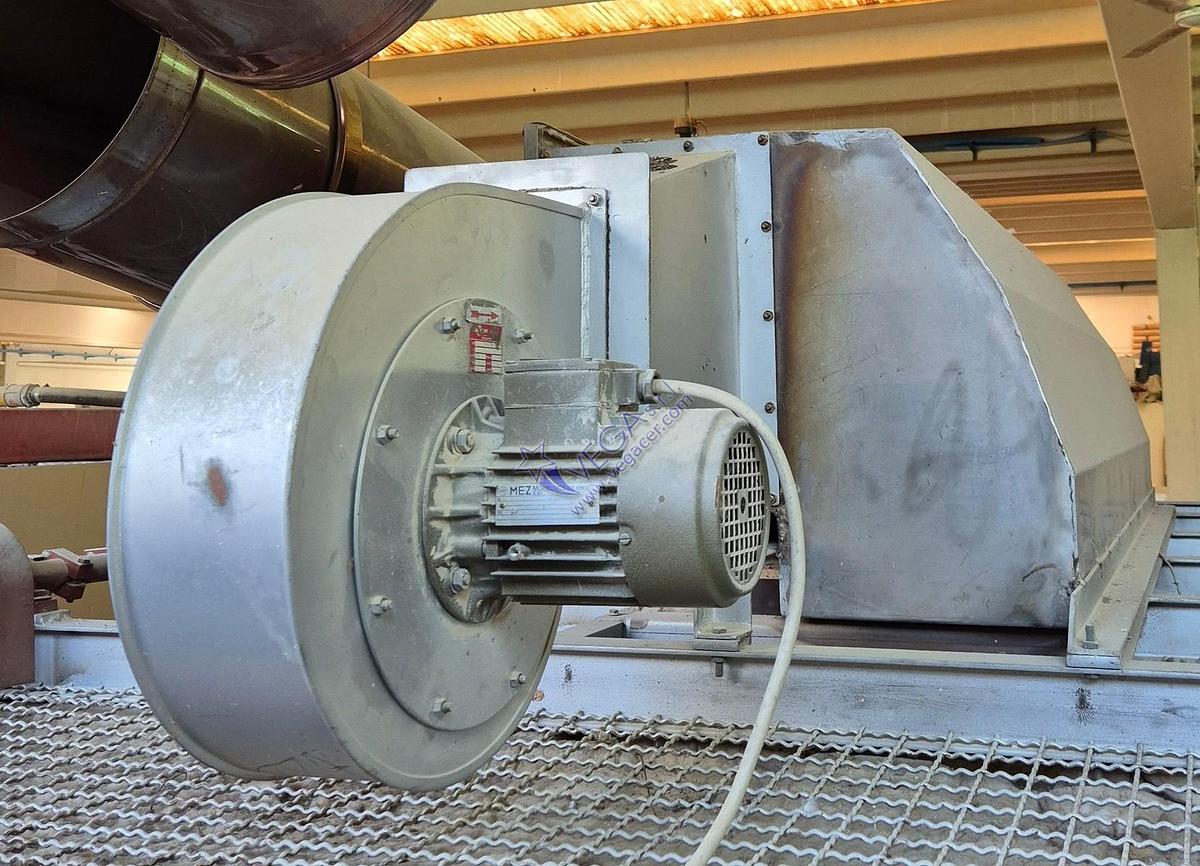

| Post-combustor with fan overall dimensions (width) x (length) x (height) mm | 500 x 2600 x 550 |
| Attention!!! | The refractory kiln furniture which you can see in the photos is not included. In case you need it we can offer it separately. Only the cars first floor of slabs and its supports are included |
