HEAT TREATMENT FURNACE - KILN

HEAT TREATMENT FURNACE - KILN

Contact us for price

Isola Vicentina, Italy

Description

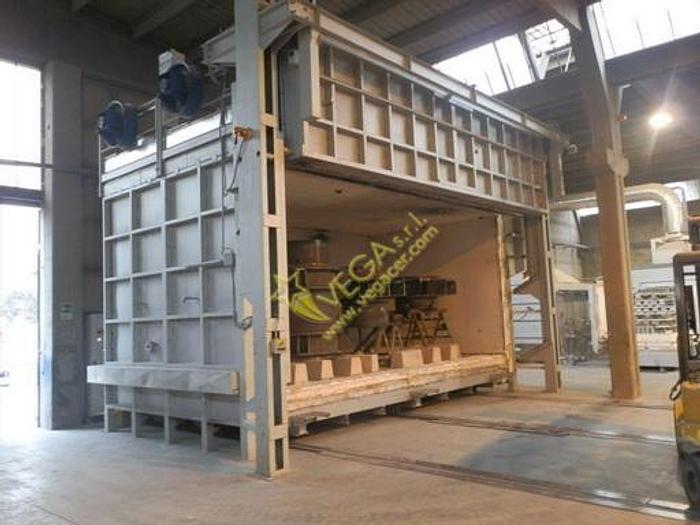

Art. 4300 N ° 01 Heat treatment furnace - kiln - Second hand machine - Manufacturing year 2009 - Useful for tempering, annealing, normalizing and other thermal treatments in general - Useful loading capacity 58 CM - Useful loading dimensions 6500 x 3000 x h 3000 mm - Max temperature 1000 ° C - Max loading weight 40 Ton / cycle - NEW Insulation lining in ceramic fiber with wall thickness 250 mm (suitable up to a nominal temperature of 1260 ° C) refractory and cup locks - N ° 08 Burners - Burner feeding: LPG (Liquid Propane Gas) (in case of need, with a small extra cost, could be changed to Natural Gas (CH4) - Thermal power installed 2.000.000 Kcal / h approx - Electrical power installed 20 Kw approx - Electric switchboard with NEW cycles programming and control instruments - N ° 01 Car on rails with motor for automatic extraction - Car overall dimensions 6800 x 3825 x h 800 mm - Guillotine door in 02 halves to limit the overall dimension in height - External overall dimensions (when installed): 6300 x 5200 x h 6000 mm approx - Necessary space to install and operate the kiln: 8 x 10 mts approx - Complete with manual, electrical drawings and CE certificate Please notice !! The kiln has been dismantled and transported by us, with care, and is now stocked inside a covered deposit.

Specifications

ConditionUsed
Stock Number4300
