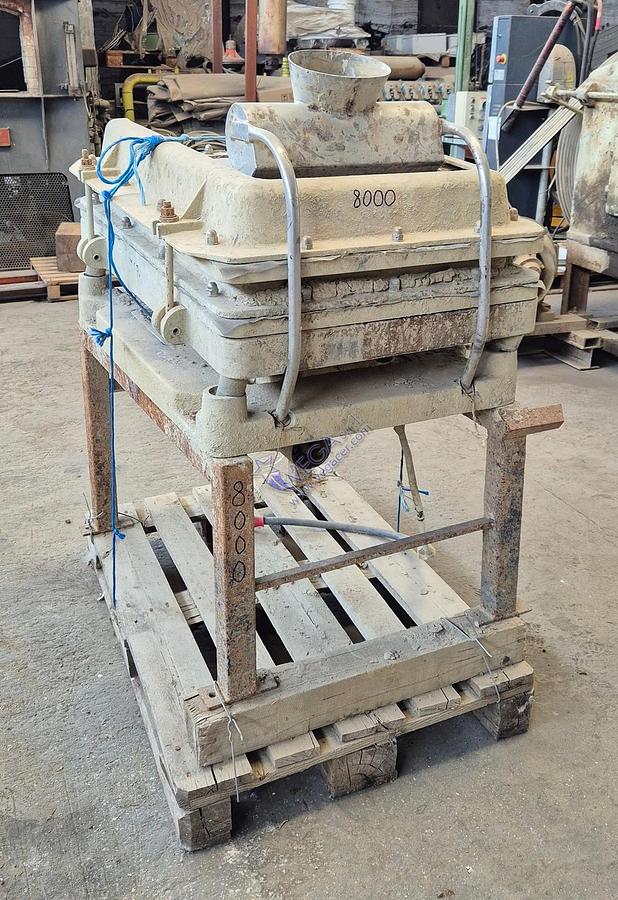

Vibrating sieve VICENTINI mod. SV 600 x 900 DR with double net
Vibrating sieve VICENTINI mod. SV 600 x 900 DR with double net
Location:Caldogno, Italy
Description
The vibrating sieve VICENTINI mod. SV 600 x 900 DR is designed for slip separation and filtration, ensuring high efficiency and continuous operation. It features a double screening net, allowing precise material control and an approximate nominal capacity of 4000 liters.
The unit offers a useful screening surface of 0.39 m² and comes complete with a metal frame support structure for enhanced stability during operation. It is also equipped with a container for anti-iron filters (diameter 150 mm) and a stainless steel slip diffuser that ensures even distribution of the material.
The vibrating sieve is powered by a 0.49 kW motor, operating at 400 V, 50 Hz, three-phase, and has a total weight of 150 kg. The overall dimensions are 1070 x 800 x 540 mm.
Specifications
| Manufacturer | VICENTINI |
| Model | mod. SV 600 x 900 DR |
| Condition | Used |
| Stock Number | 8000 |
| N° of nets | 02 |
| Approx. nominal capacity lt | 4000 |
| Useful surface net m2 | 0,39 |
| Complete of metal frame support structure | YES |
| Complete with container for anti-iron filters | YES |
| Anti-iron filter container diameter mm | 150 |
| Complete with diffuser for slip | YES |
| Slip diffuser material | stainless steel |
| Power kW | 0,49 |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Weight kg | 150 |
| Vibrating sieve overall dimensions (width) x (lenght) x (height) mm | 1070 x 800 x 540 |
