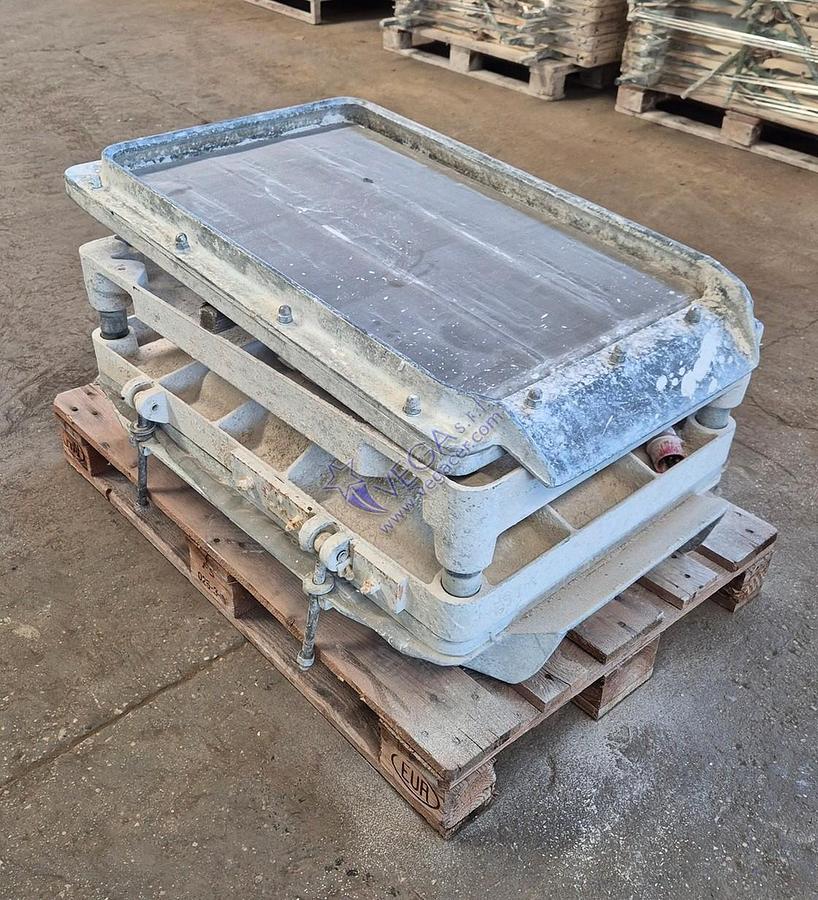

Vibrating sieve VICENTINI mod. SV 600 x 900 DR with double net
Vibrating sieve VICENTINI mod. SV 600 x 900 DR with double net
Location:Caldogno, Italy
Description
The vibrating sieve VICENTINI mod. SV 600 x 900 DR is a compact and reliable unit designed for the filtration and separation of ceramic slips and pastes. Equipped with a double sieving net, it ensures high filtering efficiency, guaranteeing the removal of impurities and uniform material distribution.
It comes complete with a container for anti-iron filters, with a diameter of 150 mm, suitable for removing residual ferrous particles from the processed material.
The machine features 2 sieving nets with a useful surface area of 0.39 m² and an approximate nominal capacity of 4000 liters. The vibrating group is driven by a 0.49 kW motor, operating at 400 V, 50 Hz, three-phase.
The total weight is 150 kg, and the overall dimensions are 1070 x 800 x 540 mm (width x length x height).
Compact, quiet, and easy to maintain, this model is ideal for ceramic production lines requiring continuous operation, precise filtration, and long-term reliability.
Specifications
| Manufacturer | VICENTINI |
| Model | mod. SV 600 x 900 DR |
| Condition | Used |
| Stock Number | 7083 |
| N° of nets | 02 |
| Approx. nominal capacity lt | 4000 |
| Useful surface net m2 | 0,39 |
| Complete with container for anti-iron filters | YES |
| Anti-iron filter container diameter mm | 150 |
| Power kW | 0,49 |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Weight kg | 150 |
| Vibrating sieve overall dimensions (width) x (lenght) x (height) mm | 1070 X 800 X 540 |
