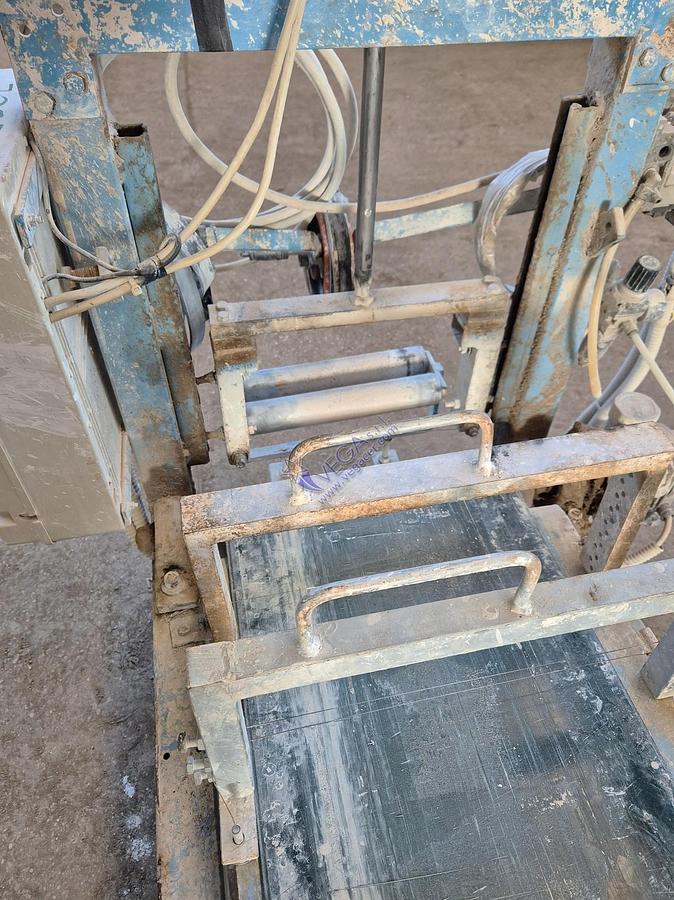

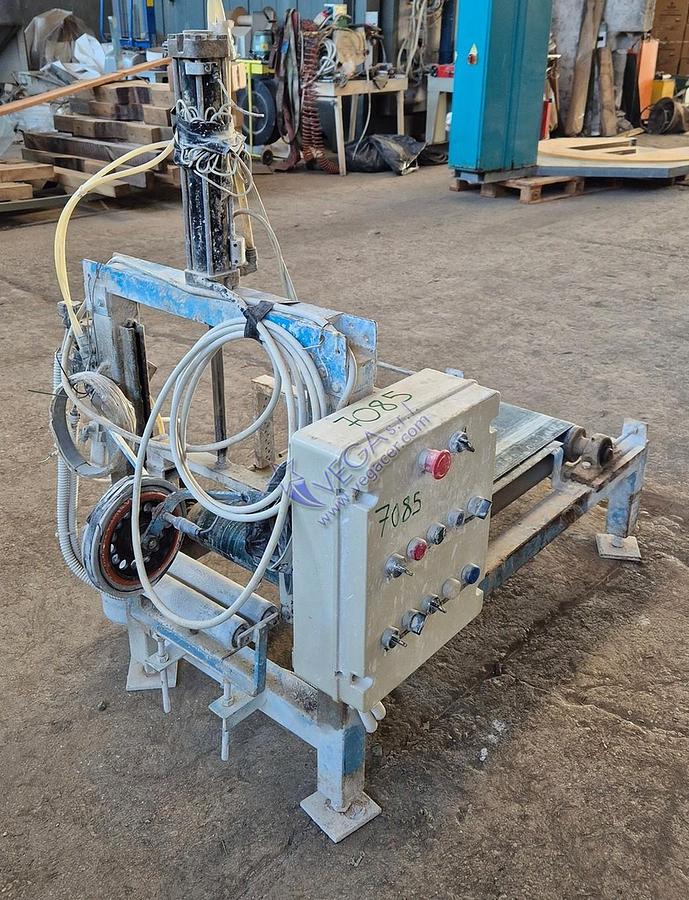

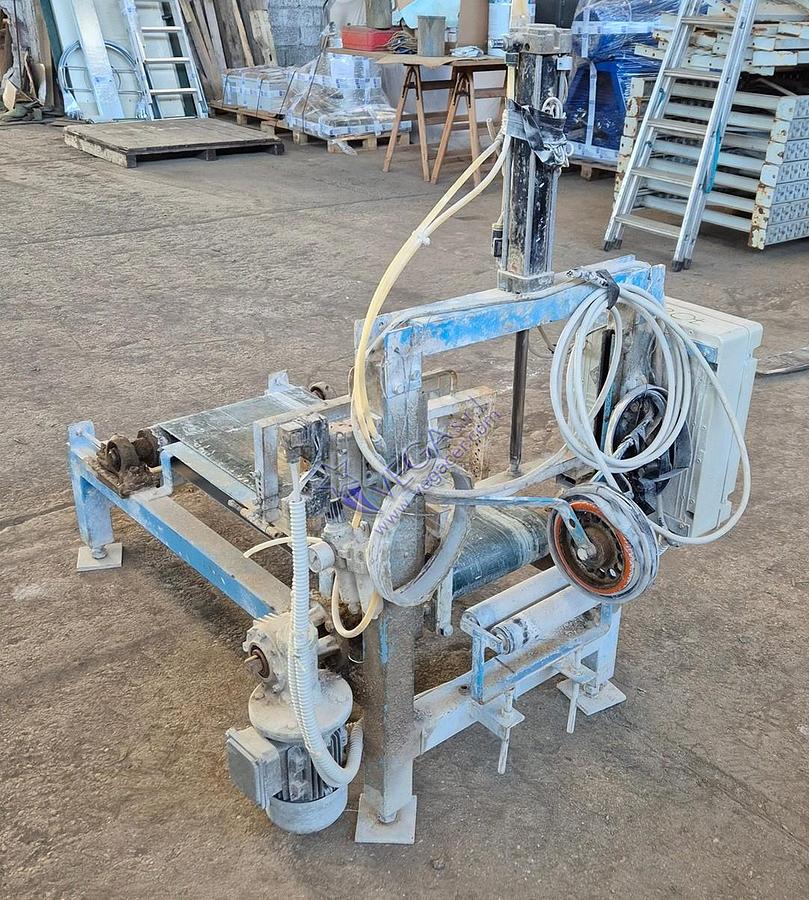

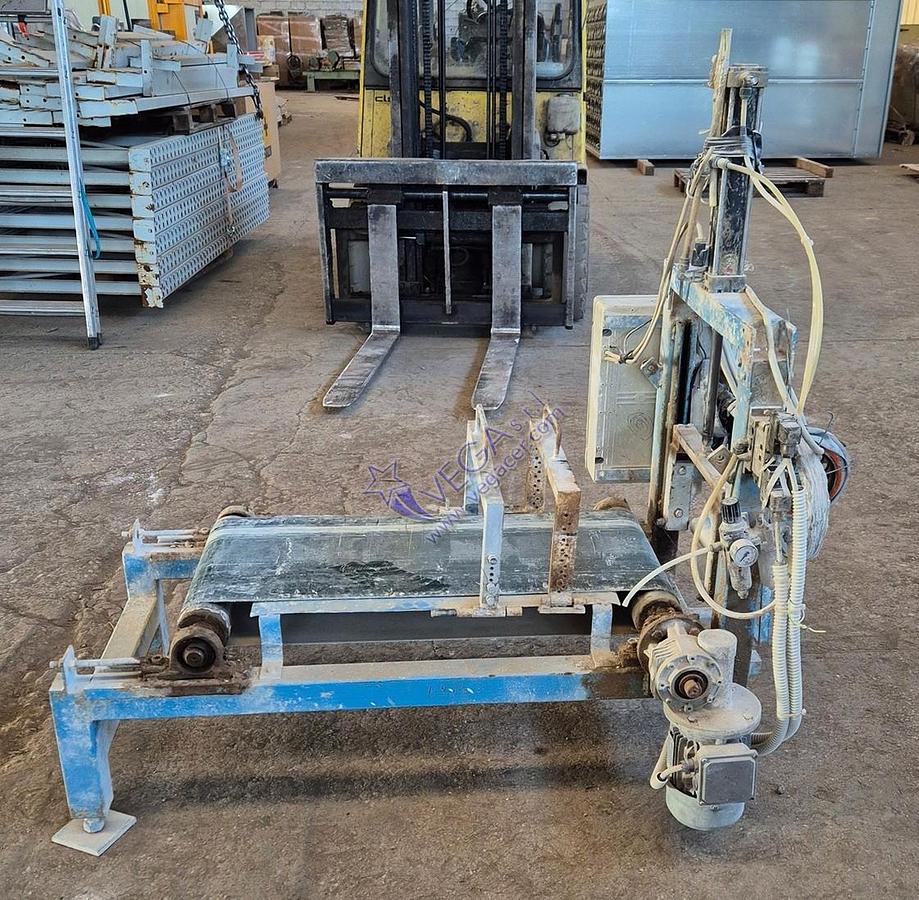

Automatic wire cutter with encoder for cutting length adjustment

The automatic wire cutter with encoder for cutting length adjustment is a reliable and precise solution for shaping refractory and ceramic. Designed to ensure high productivity and cutting accuracy, it allows easy adjustment of cutting lengths through its encoder control system.

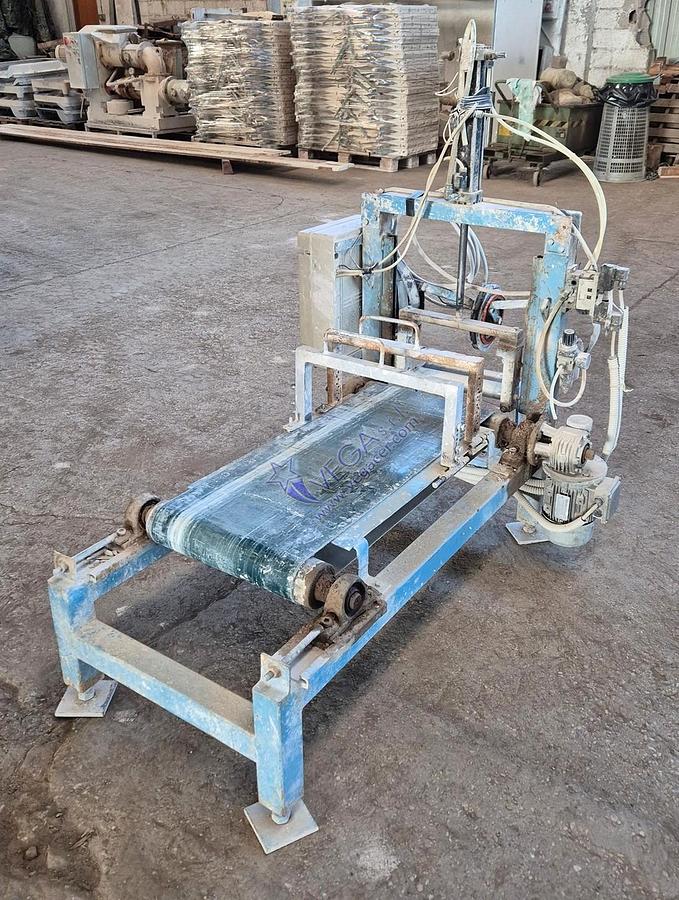

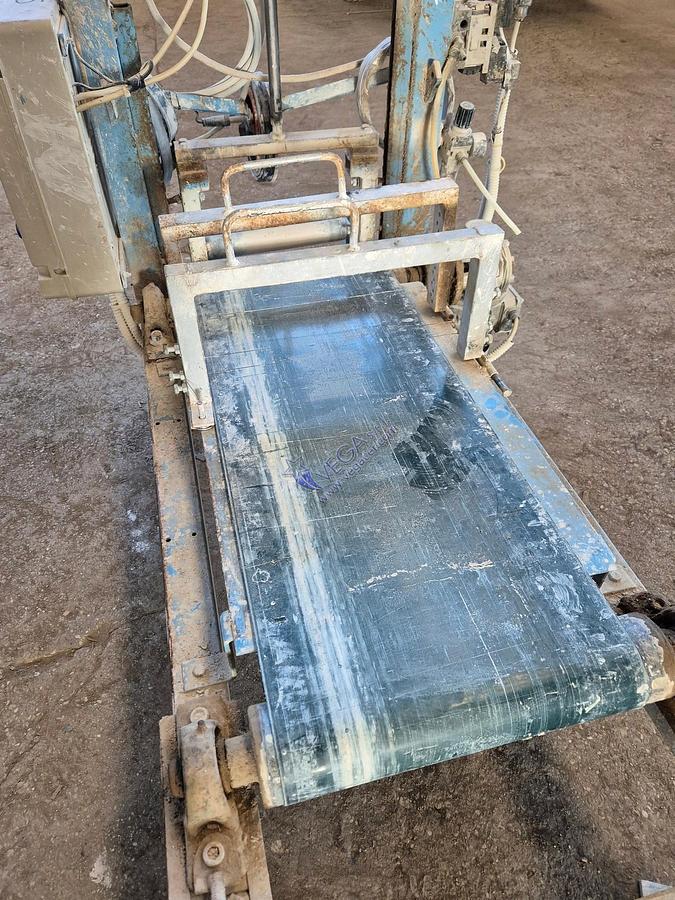

With maximum cutting dimensions of 300 x 400 mm, the machine is complete with a cutting arch and equipped with a conveyor belt measuring 370 x 850 mm, facilitating smooth and efficient handling of the material during the process.

Driven by a 0.37/0.44 kW motor and operating on a 400 V / 50 Hz power supply, the cutter combines compact size with robust performance. Its overall dimensions are 900 x 1600 x 1300 mm, making it suitable for installation even in limited production spaces.

Efficient, compact, and easy to operate, this automatic wire cutter ensures precise results and is an ideal solution for continuous industrial applications in refractory and ceramic processing.
