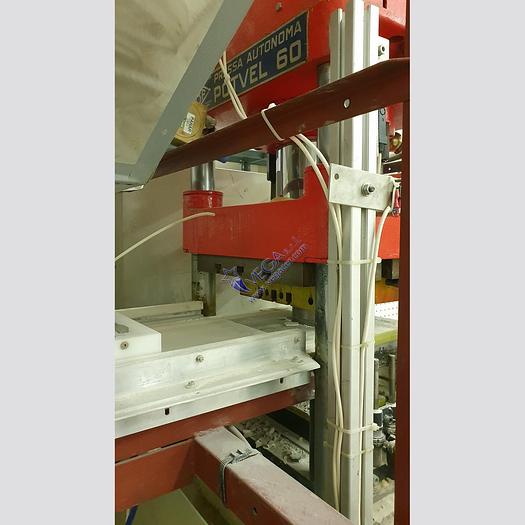

Hydraulic press POTVEL with 4 columns

Hydraulic press POTVEL with 4 columns

Contact us for price

Isola Vicentina, Italy

Description

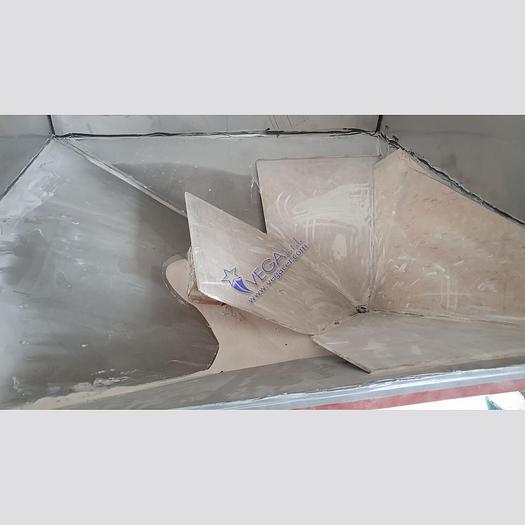

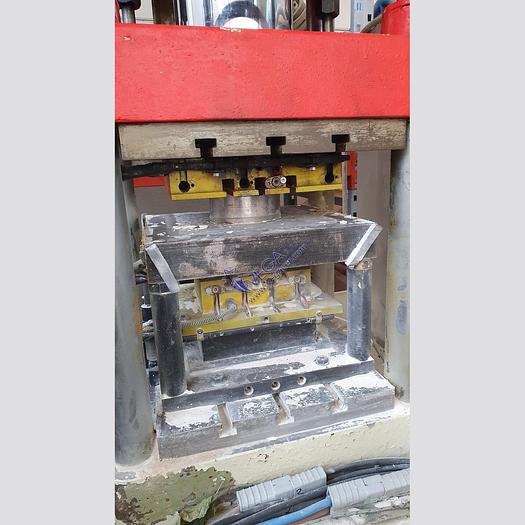

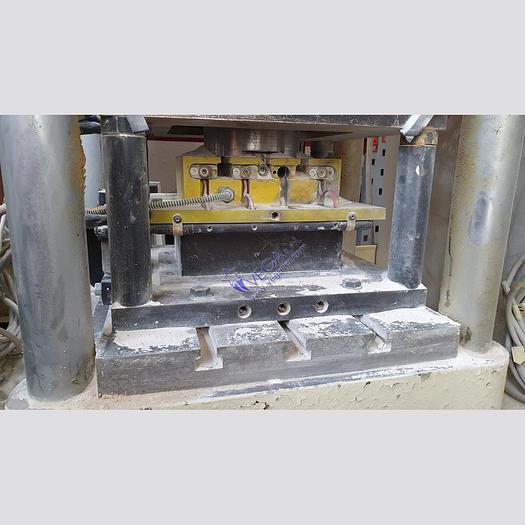

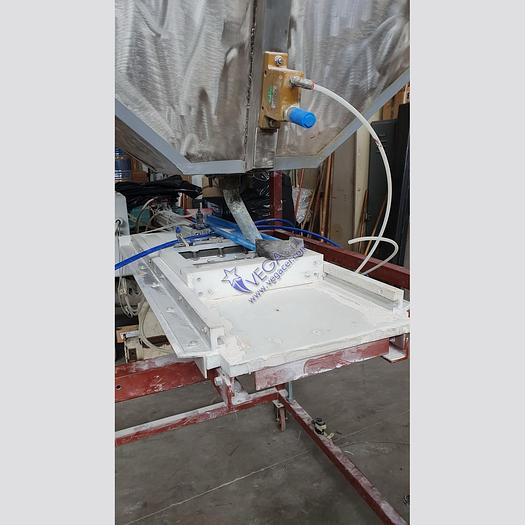

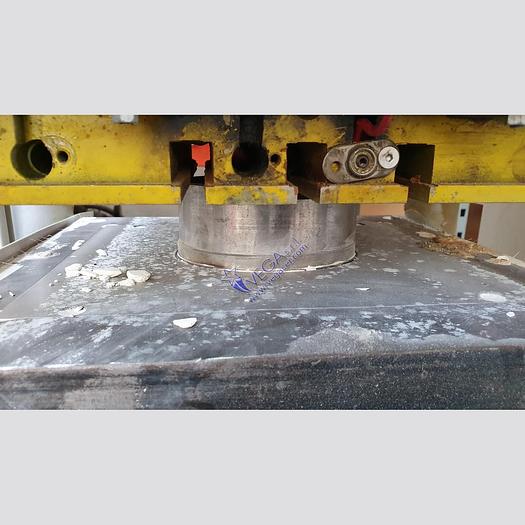

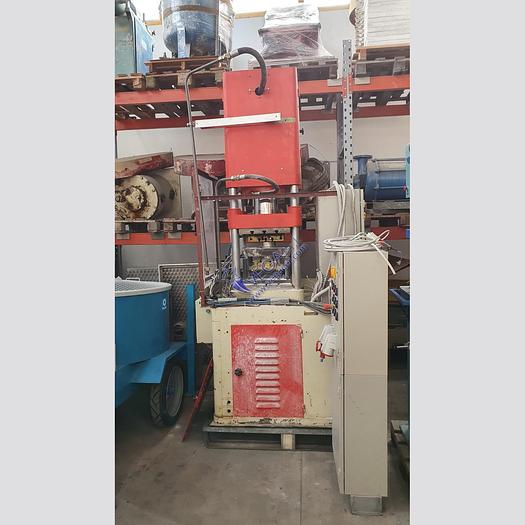

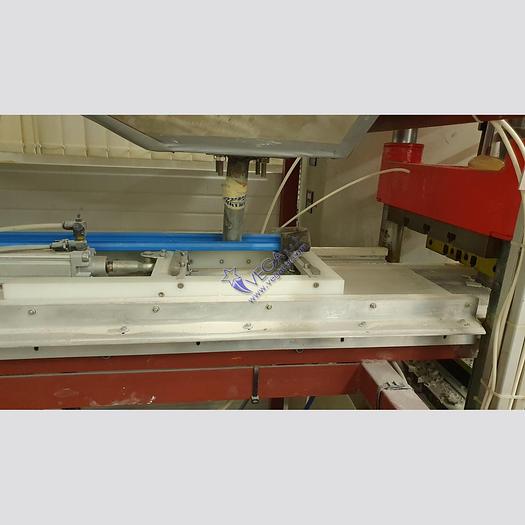

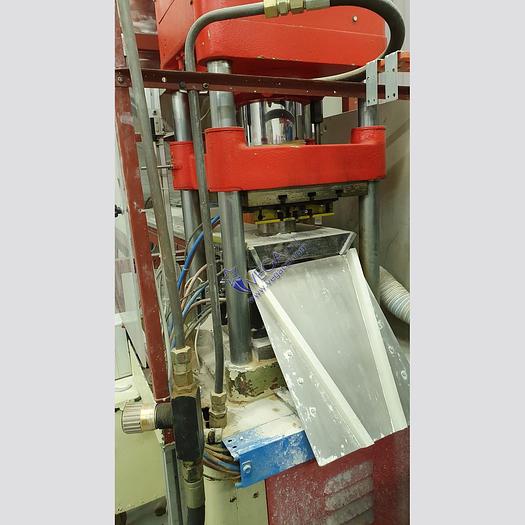

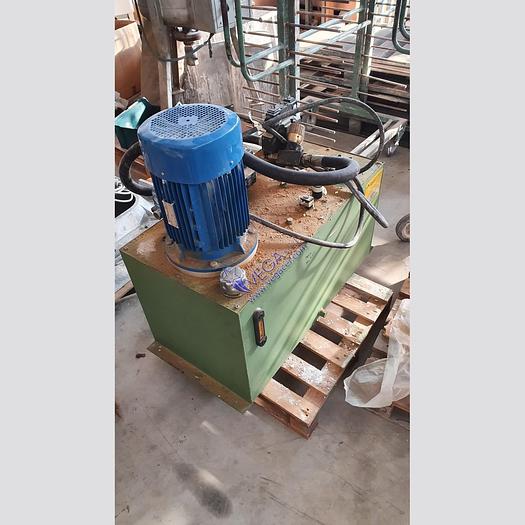

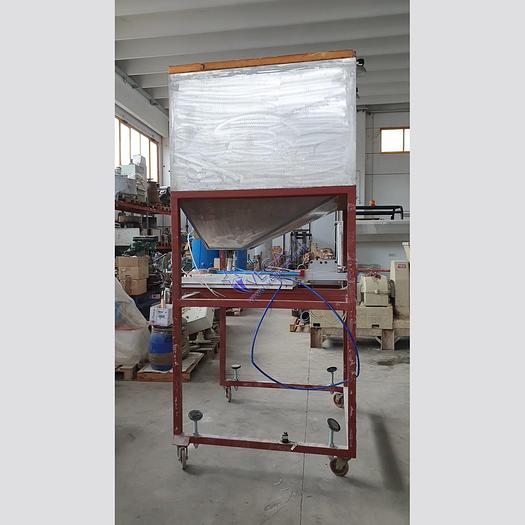

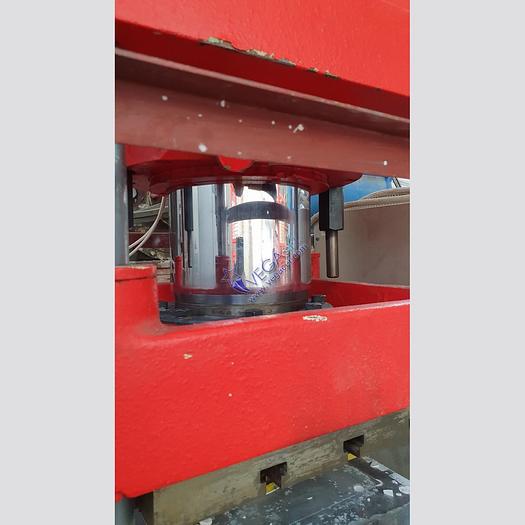

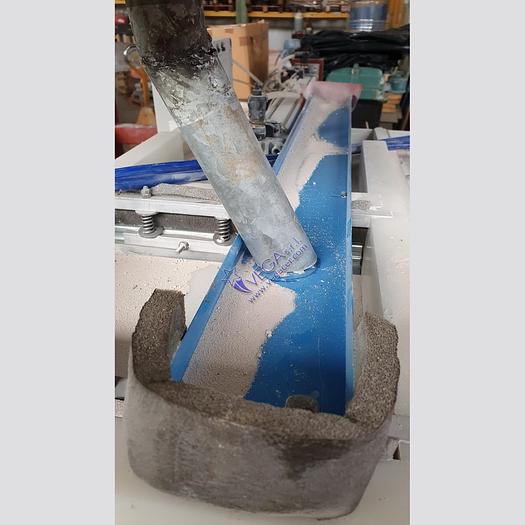

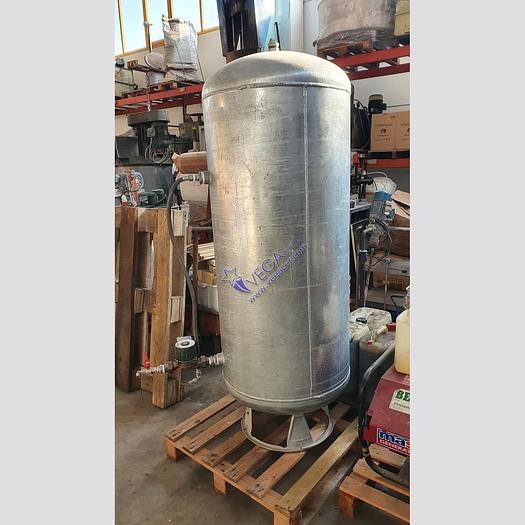

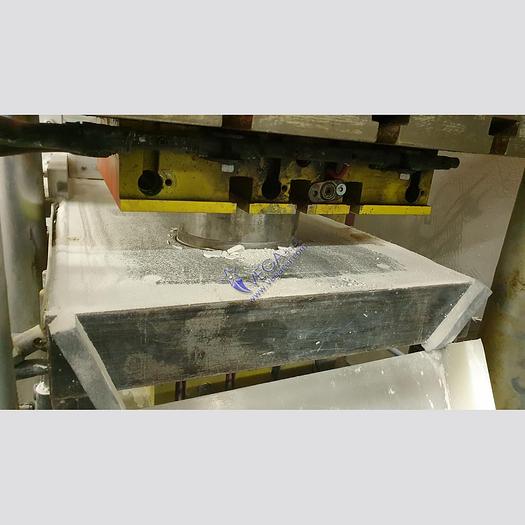

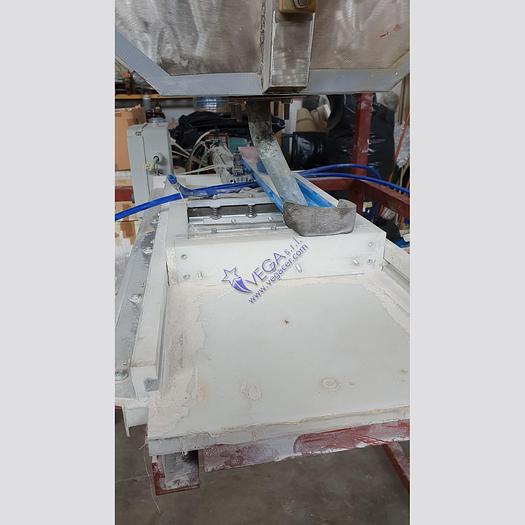

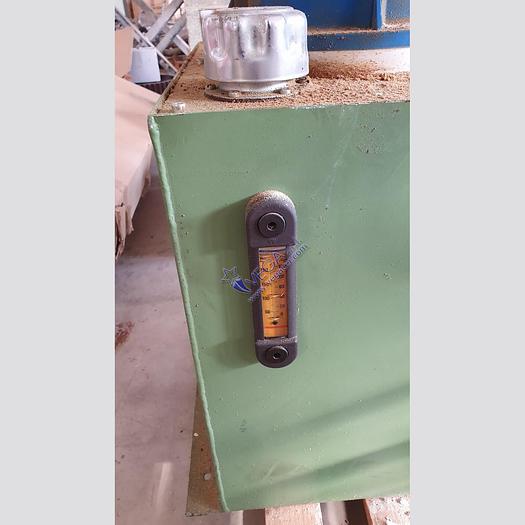

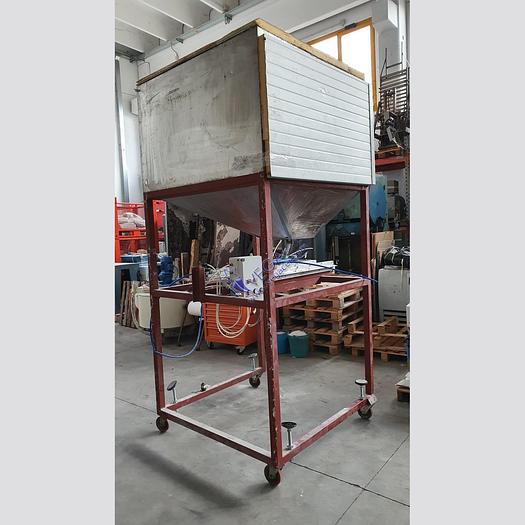

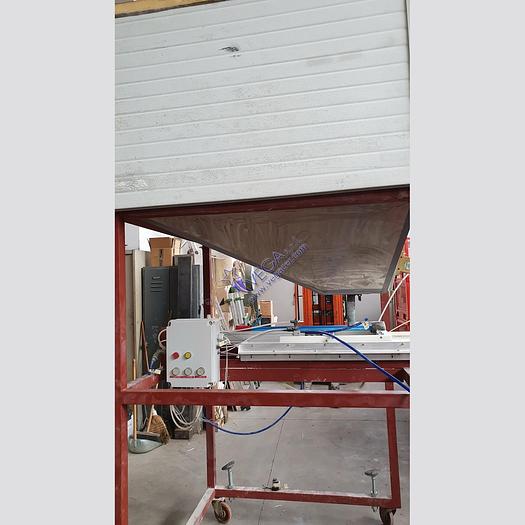

Art. 4330 N ° 01 Hydraulic press POTVEL with 4 columns - Second hand machine - Press type: with 4 columns - Useful workplan: 380 x 420 mm - Heated workplans - Stroke length: 530 mm - Previously used to press oval porcelain plates for funeral art - Complete with automatic atomized powder loading system with hopper stainless steel, mounted on wheels and with height-adjustable feet - Automatic unloading system and loading on glazing line - Useful hopper dimensions: 1260 x 1240 x h 730 mm + conical part h 400 mm - Pressing power: 60 Ton - Cylinder ø: 200 mm - 200 lts. Hydraulic power-pack PANAR AUTOMAZIONI installed just before the last date of press using - Hydraulic power-pack power: 10 Hp - Oil cooling system with water tank with capacity 300 lts. approx. Equipped with pump - Overall dimensions press body: 1380 x 800 x h 2050 mm - Overall dimensions hopper with loading system: 1450 x 1250 x h 2760 mm - Overall dimensions hydraulic power-pack: 1050 x 750 x h 950 mm - Overall dimensions cooling water tank: ø 650 x h 1500 mm - Overall dimensions press with its accessories when installed: 1450 x 2050 x h 2760 mm

Specifications

ConditionUsed
Stock Number4330
