Gas turbo kiln FICOLA mod. F6/14 for High Temperature

Gas turbo kiln FICOLA mod. F6/14 for High Temperature

Location:Isola Vicentina, Italy

Description

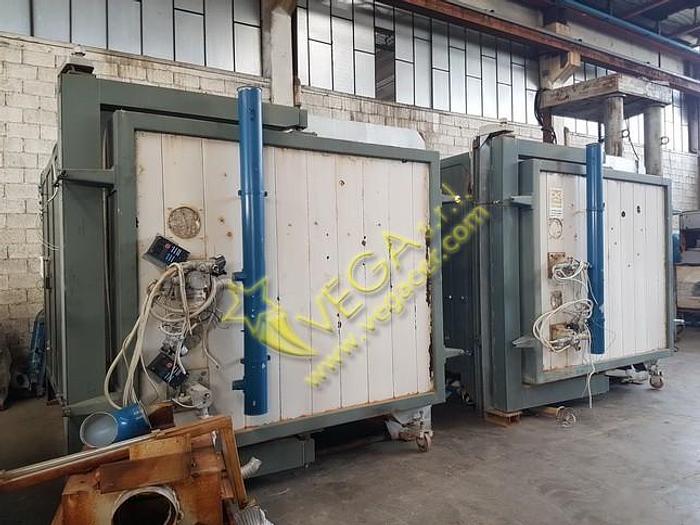

Art. 4317 N ° 01 Turbo gas kiln FICOLA mod. F6 / 14 for High Temperature

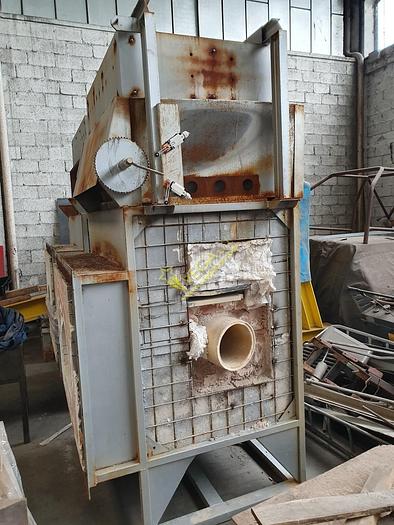

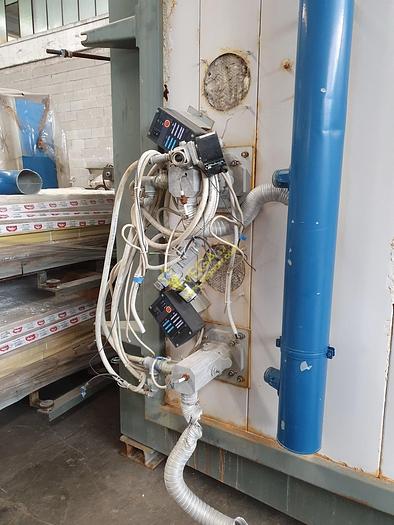

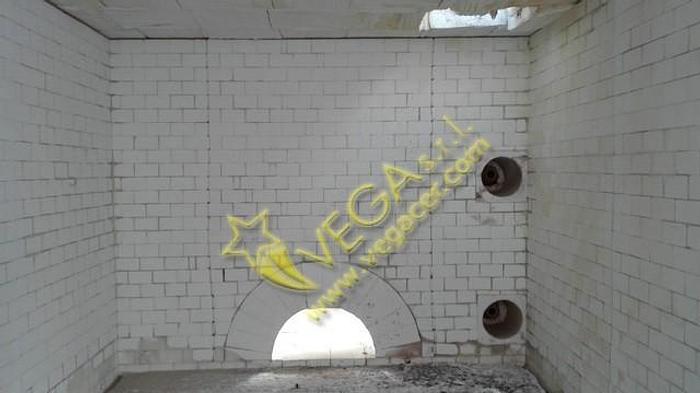

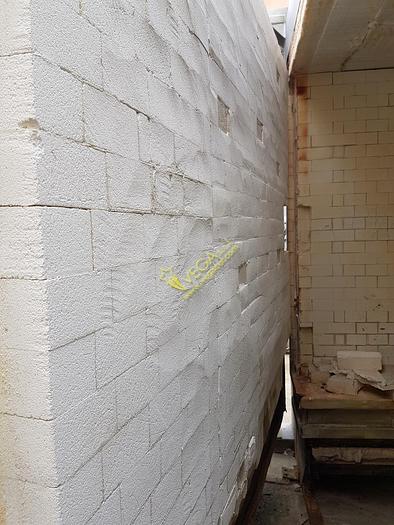

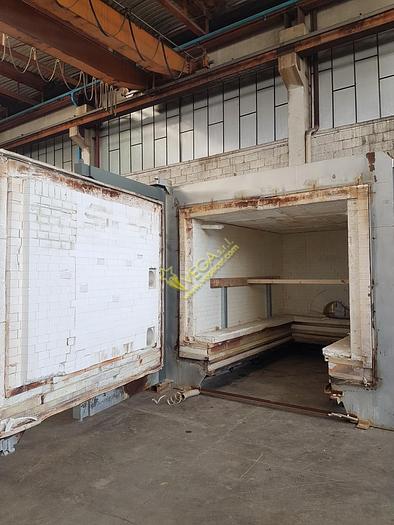

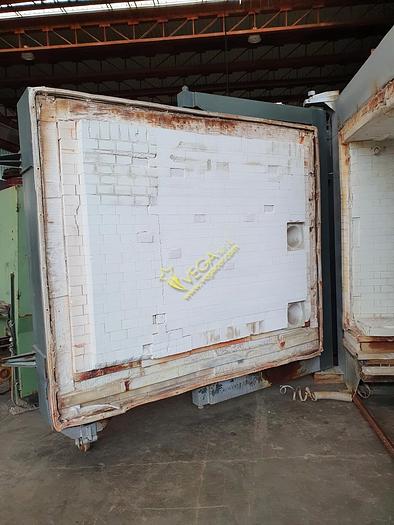

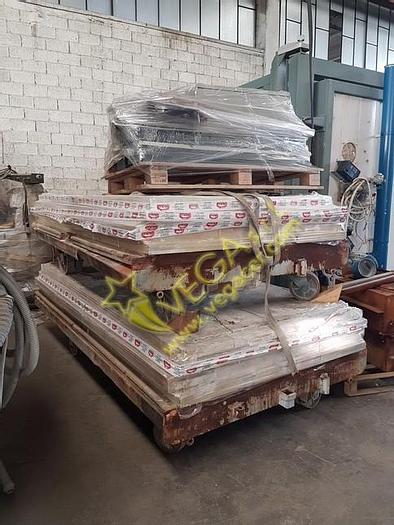

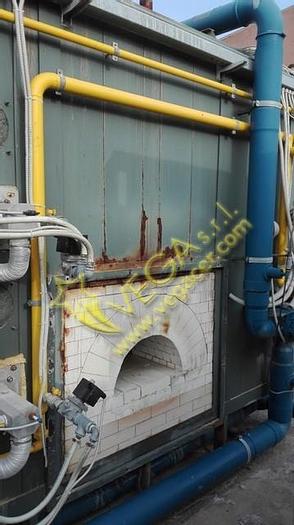

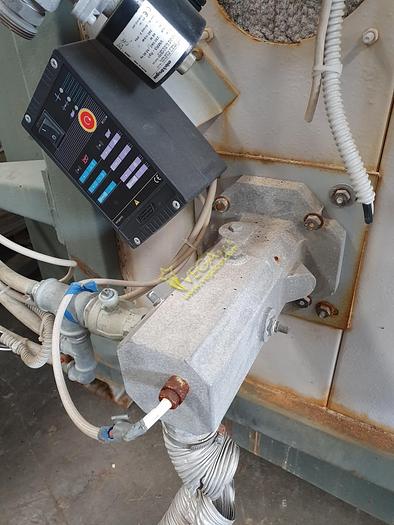

- Second hand machine - Max working temperature: 1450 ° C - Useful loading capacity: 6 m3 - Internal insulation: Class ASTM 30 bricks in hot face + class ASTM 28 bricks in cold face + roof realized with Z-Block done with Maftec blanket for 1600 ° C - Chimney at the car floor level (said reverse flame) - Door type: Flag door - Roof type: Flat roof with Z- Block - N ° of cars: 01 on wulkollan wheels - N ° of burners: 4 x 140.000 Kcal / h each - Burner feeding: Natural Gas (if needed modifiable to LPG) - Gas ramp: Will be supplied totally NEW (on customer request will be possible to quote and supply the kiln equipped with instruments and gas valves suitable to fire in oxygen reduction atmosphere, automatically controlled in real time) - Electric switchboard and firing controlling instruments: Will be supplied totally NEW - Overall car dimension: 1650 x 3000 x h 730 mm - Useful loading dimension: 1450 x 2830 x h 1400 mm - Overall dimensions of kiln body (dimensions for transport, with some parts on the sides dismantled): 3000 Width x 5000 Depth x Height 2900 mm (due to the width it is necessary a special transport without technical escort) - Overall dimension reverse flame chimney: 1550 x 1250 x h 2580 mm - Weight (only kiln body): 14 Ton ** Dimensions and other specifications listed above are merely indicative and, if binding for the customer, should be verified before the purchase by the customer.

Specifications

ManufacturerFICOLA
Modelmod. F6/14
ConditionUsed
Stock Number4317
