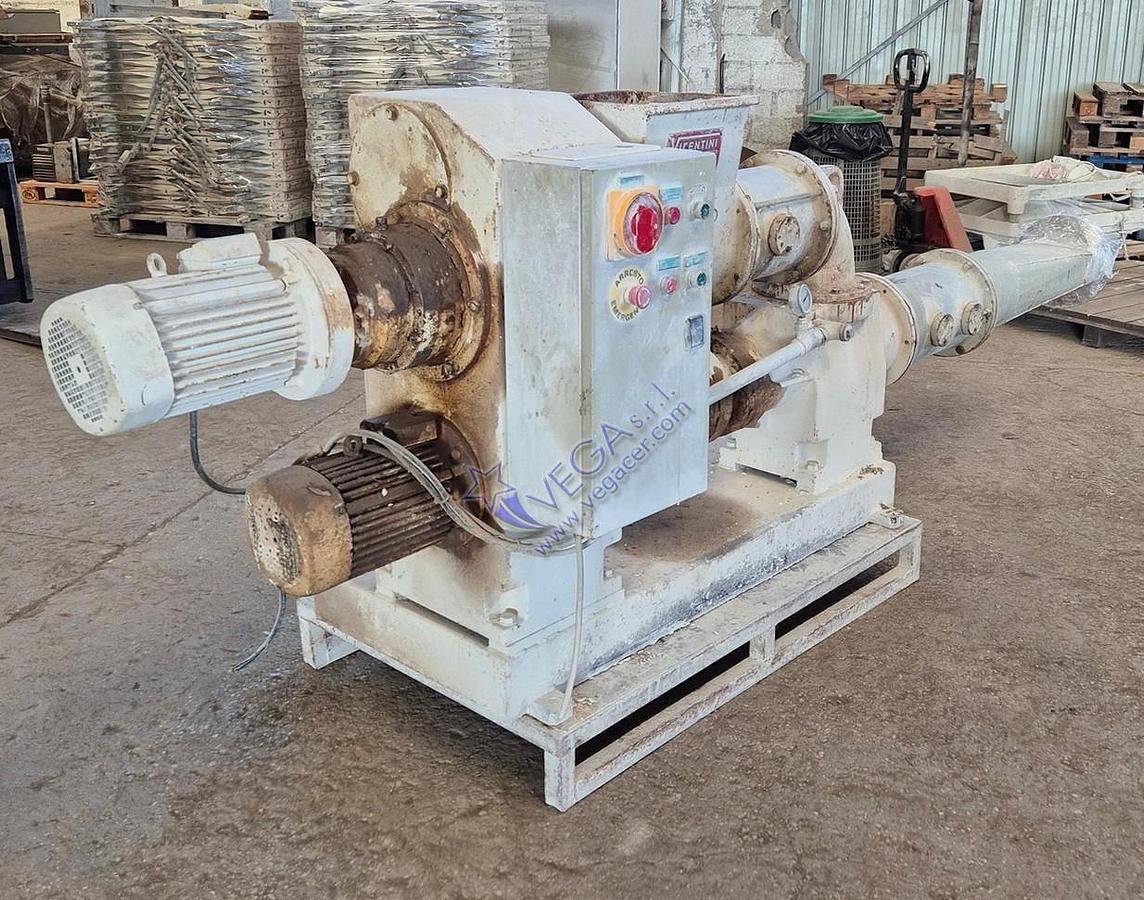

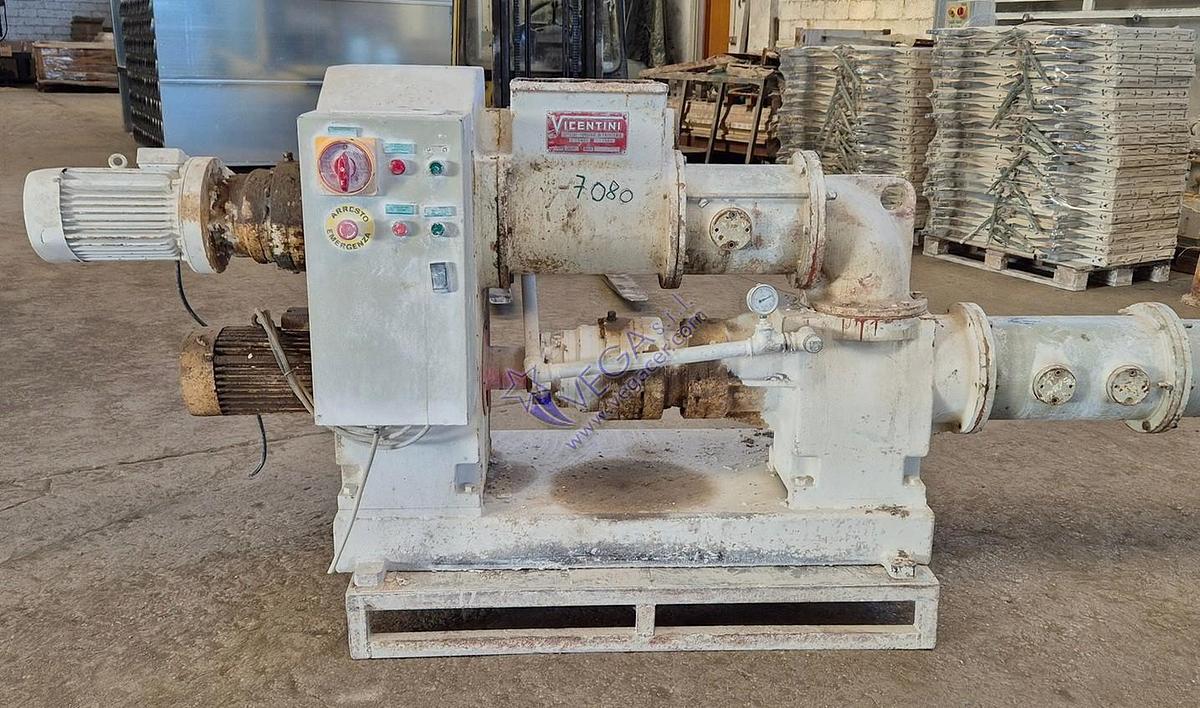

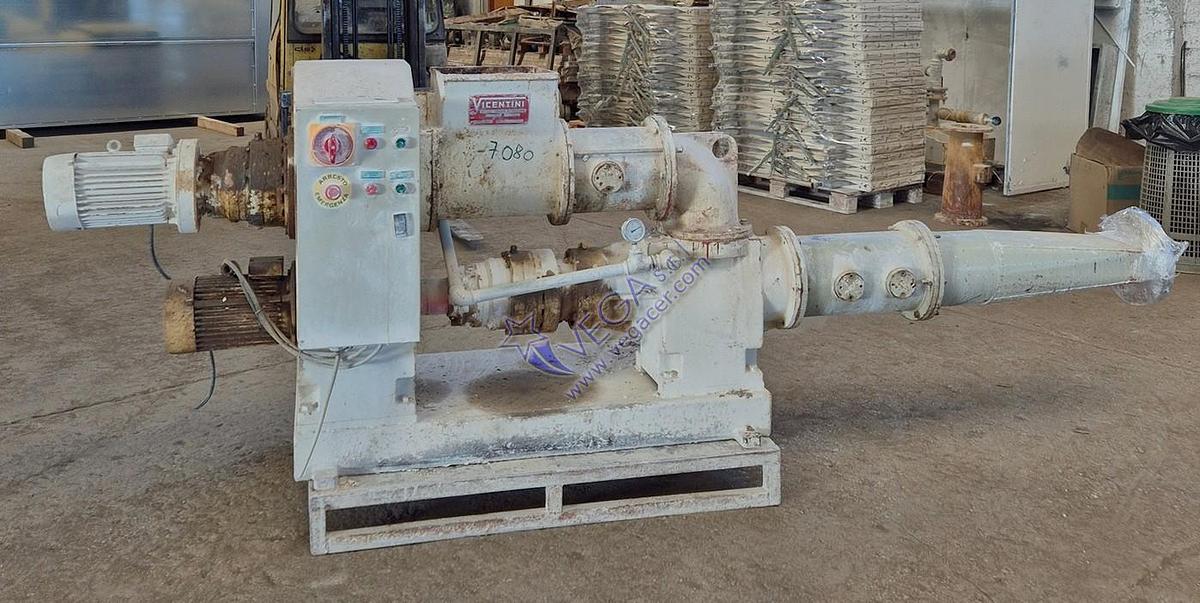

De-airing pugmill VICENTINI mod. IMP250M
En vedette
De-airing pugmill VICENTINI mod. IMP250M
Adresse:Caldogno, Italy
Caractéristiques
| Fabricant | VICENTINI |
| Modèle | mod. IMP250M |
| Condition | D'occasion |
| Numéro de stock | 7080 |
| Indicative production Kg/h | 1700 |
| Machine body material | cast iron |

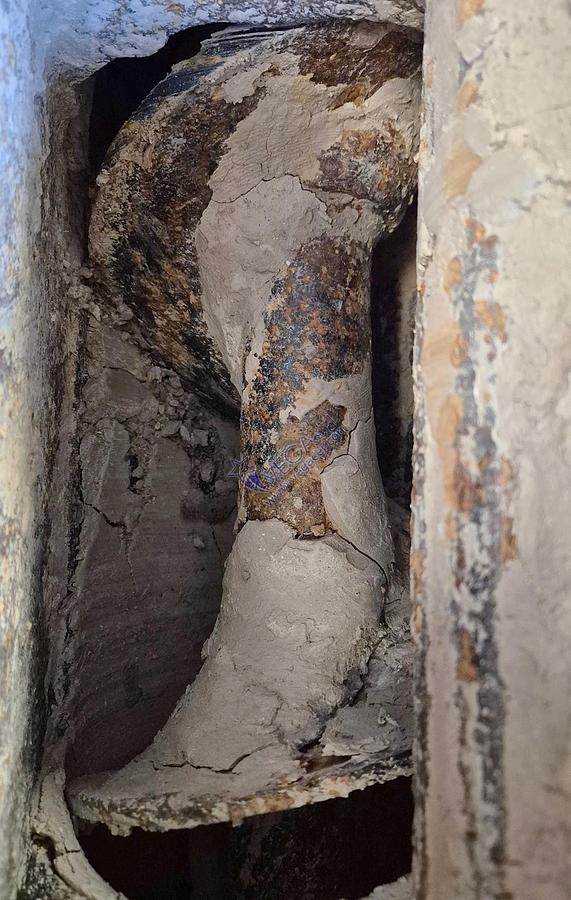

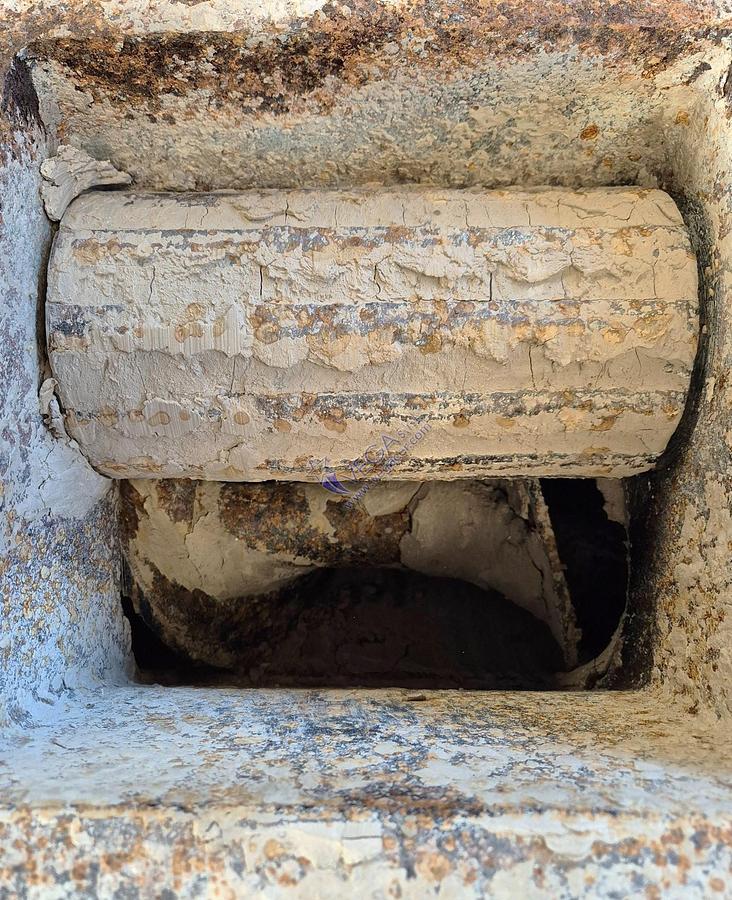

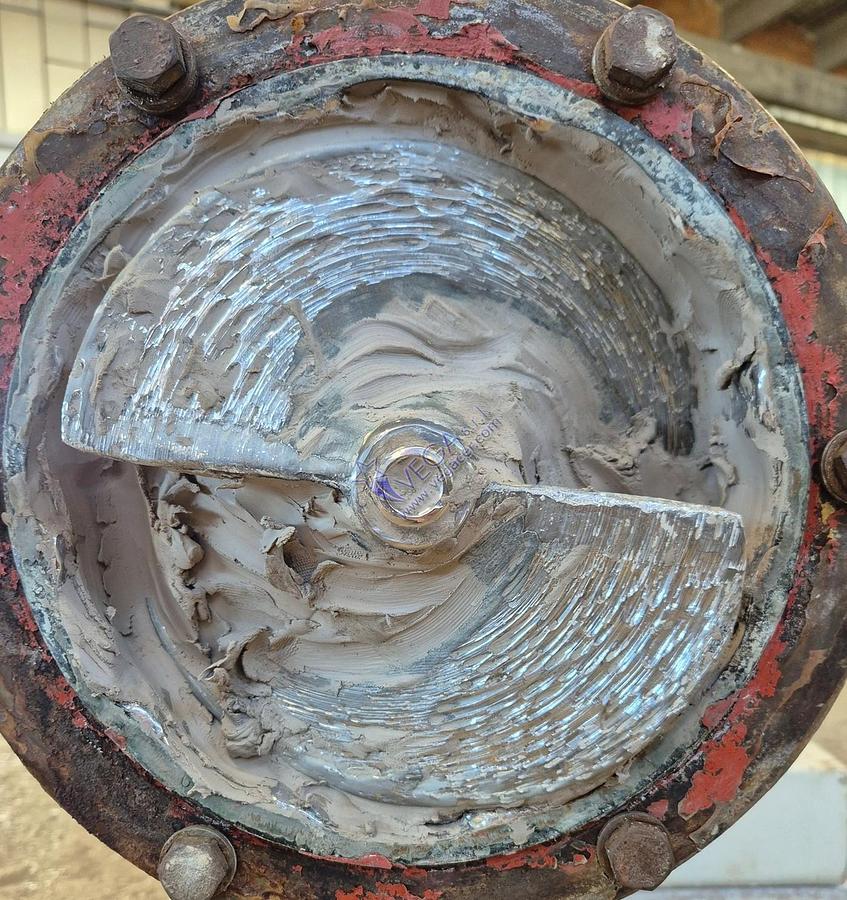

| N° of screws | 02 |
| Screws material | iron |
| Diameter of screws mm | 250 |

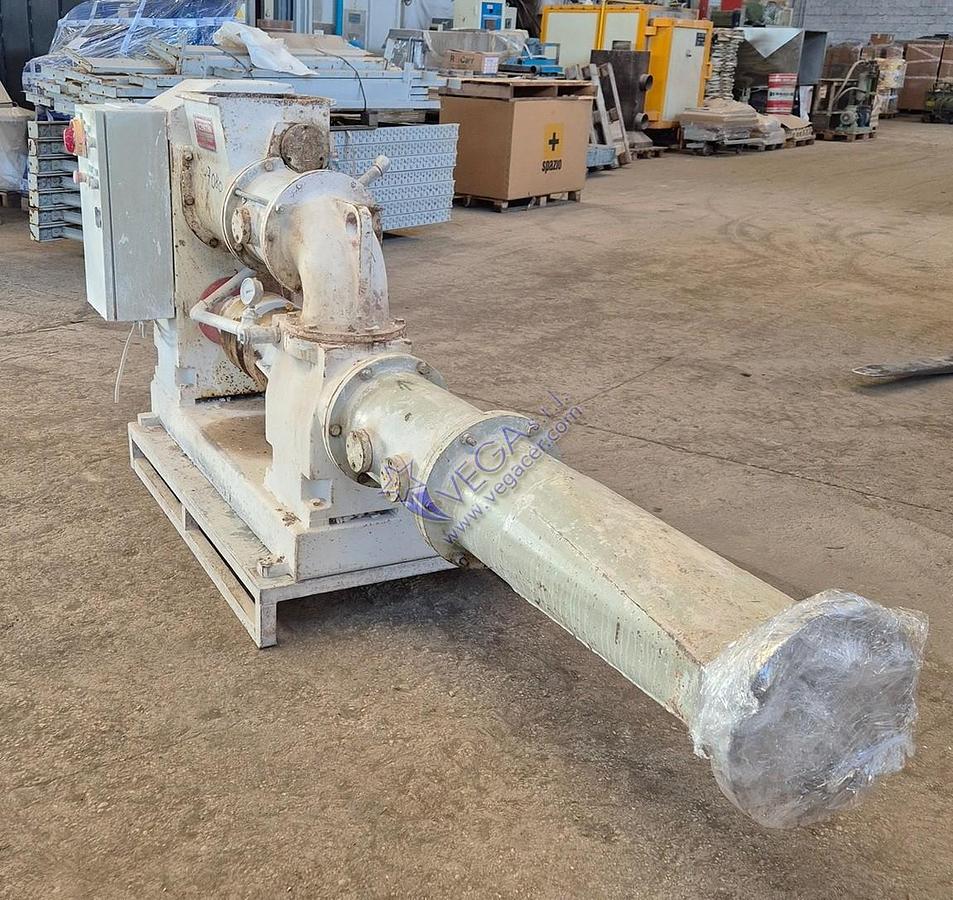

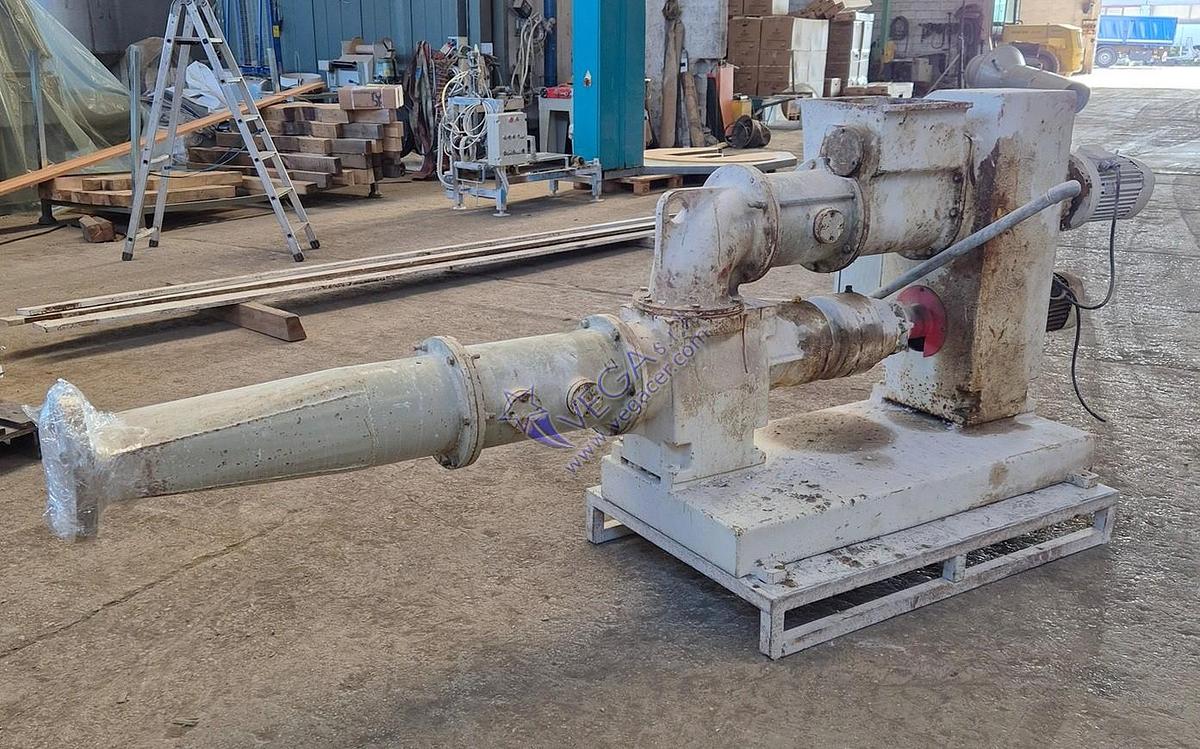

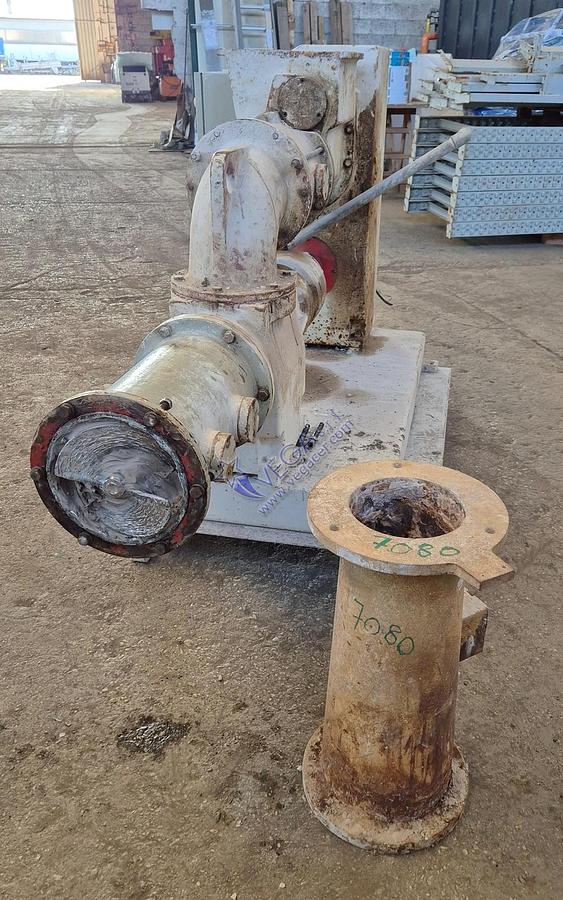

| Type of extrusion mouth | n°01 cylindrical barrel with round exit + n°01 conical barrel with rectangular exit |
| Diameter of the clay rod in exit from the cylindrical barrel mm | 180 |

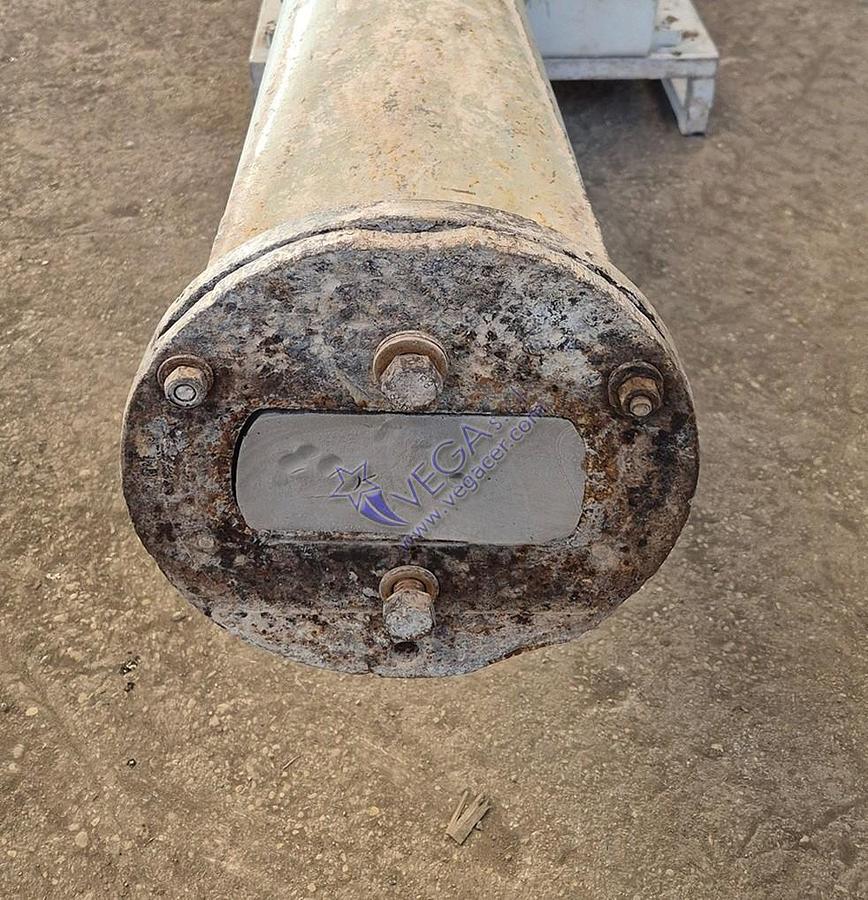

| Diamensions of the clay rod in exit from the conical barrel (width) x (height) mm | 250 x 80 |
| N° of reduction die for the conical barrel | 04 |
| First reduction die with rectangular exit (width) x (height) mm | 165 x 80 |
| Second reduction die with rectangular exit (width) x (height) mm | 160 x 65 |
| Third reduction die with rectangular exit (width) x (height) mm | 190 x 85 |
| Fourth reduction die with rectangular exit (width) x (height) mm | 140 x 85 |
| N° of reduction die for the cylindrical barrel | 01 |

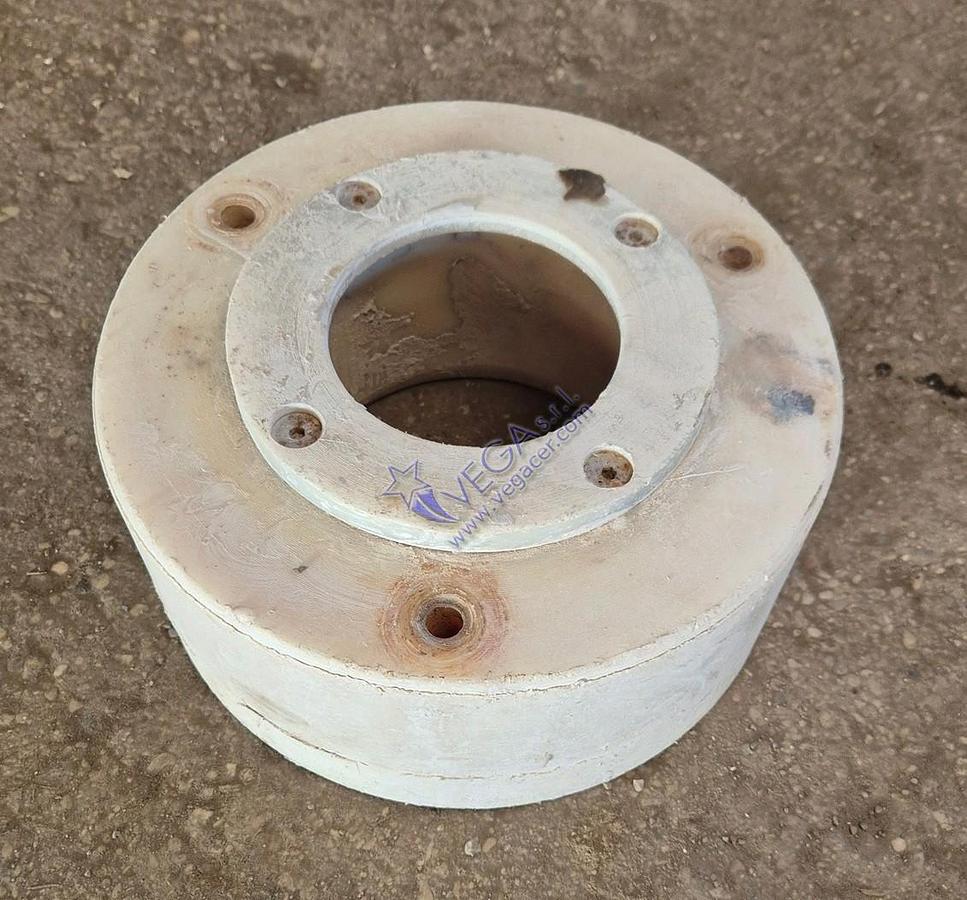

| Nylon reduction die with round exit diameter mm | 140/120 (the "120" refers to a diameter of a second reduction to be installed on the "140" nylon one) |

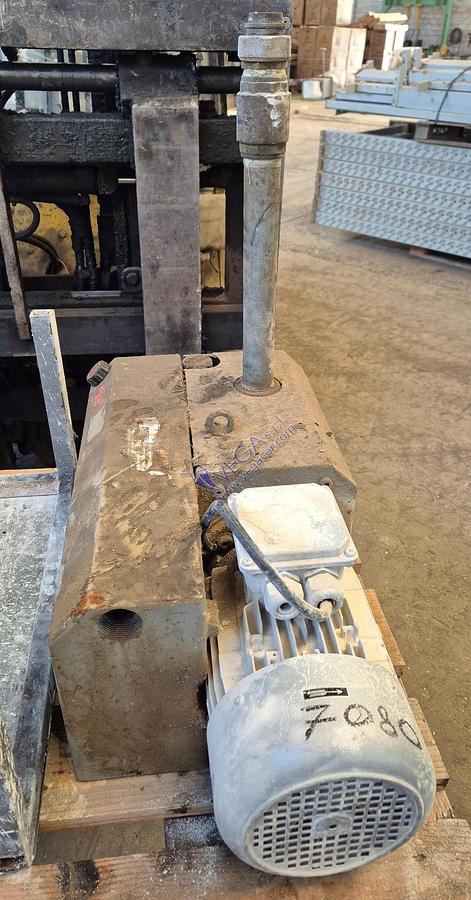

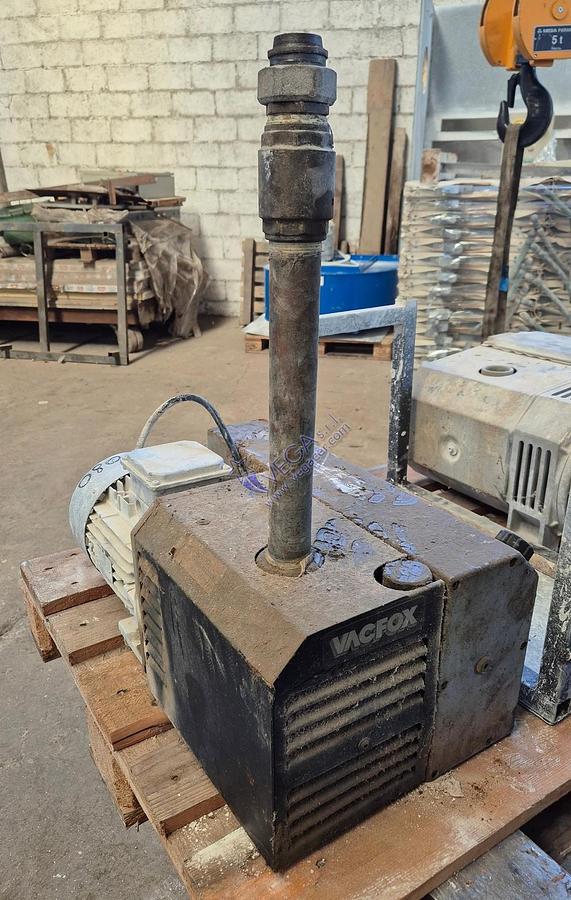

| Complete of vacuum pump | YES |
| Vacuum pump type | oil |
| Vacuum pump capacity m3/h | 70/84 |
| Complete with stand for vacuum pump | YES |

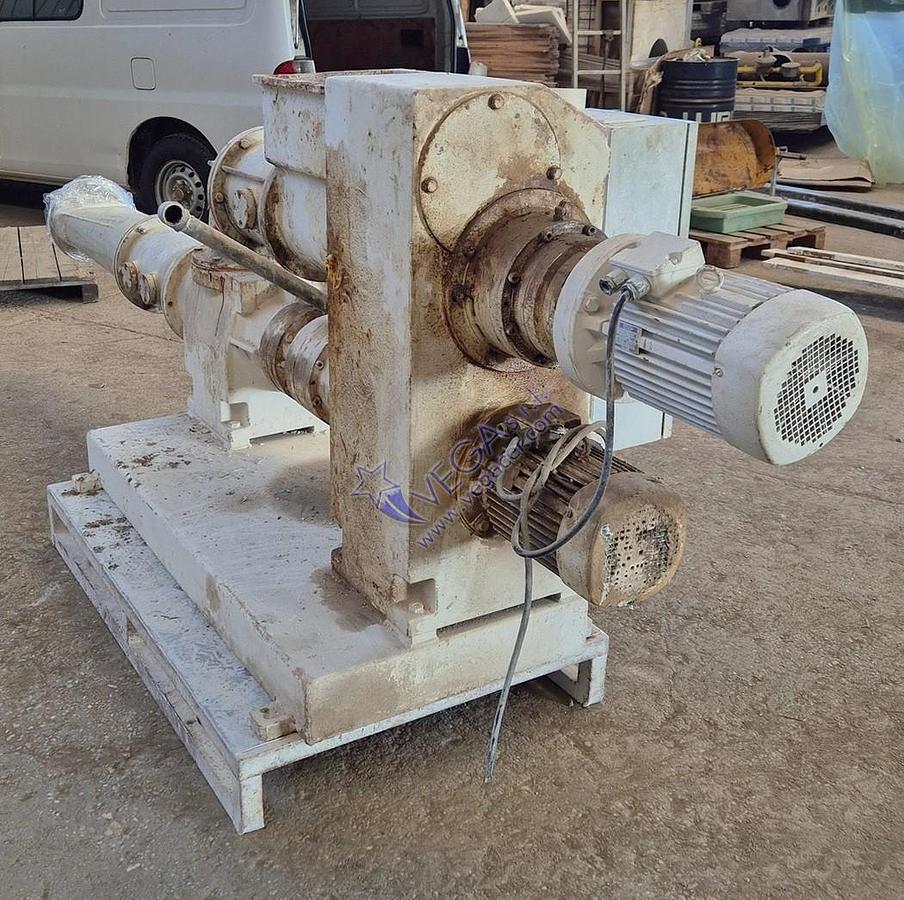

| Higher screw motor power kW | 4 |
| Lower screw motor power kW | 4 |
| Power vacuum pump kW | 1,85/2,2 |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Weight Kg | 1700 |
| De airing pugmill overall dimensions (width) x (lenght) x (height) mm | 900 x 2500 (+ 800 conical barrel) x 1100 |
| Please note | Before use, the de-airing pugmill must be completely emptied as the material inside is dry |
