Ball mill VICENTINI mod. ALSING 150
Ball mill VICENTINI mod. ALSING 150
Location:Caldogno, Italy
Description

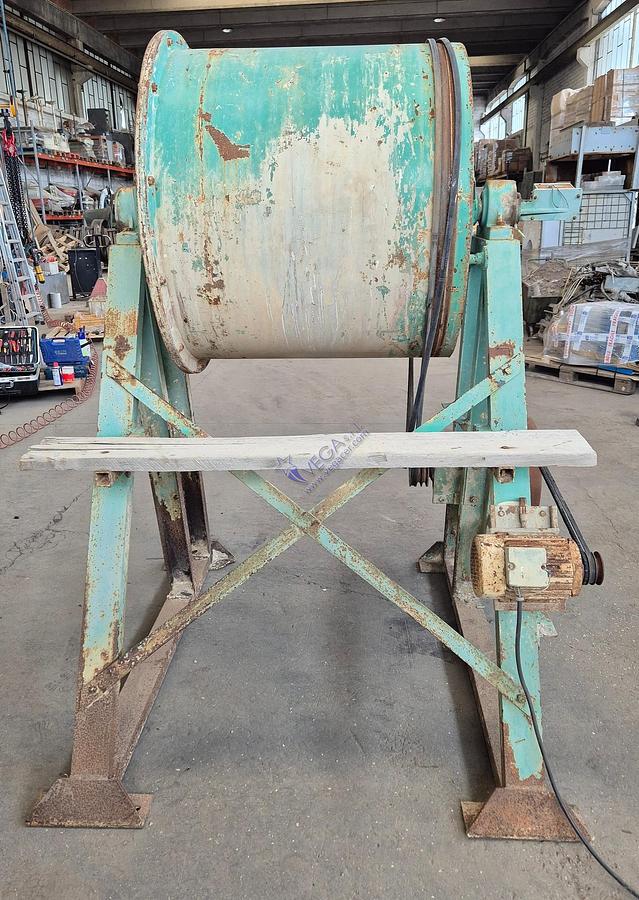

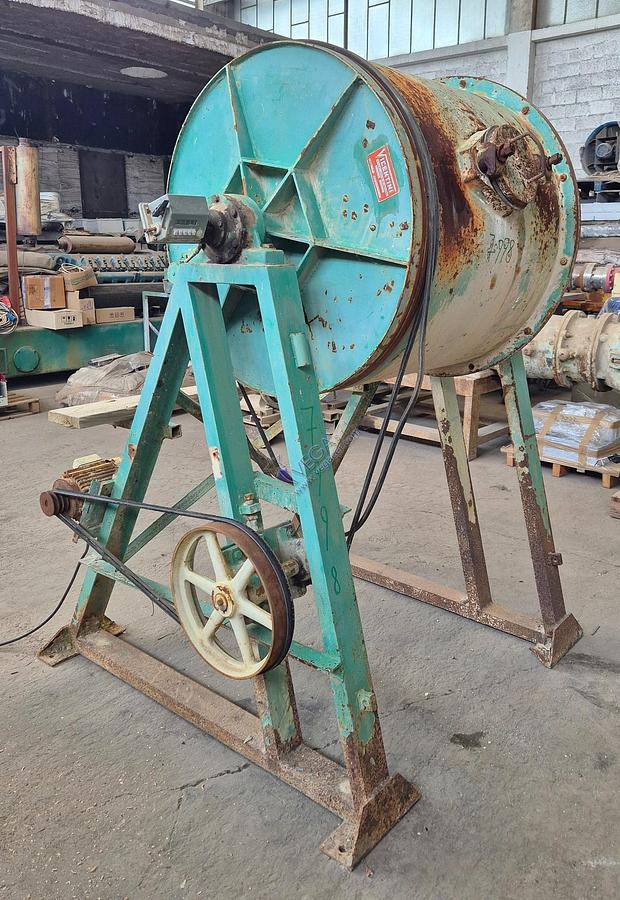

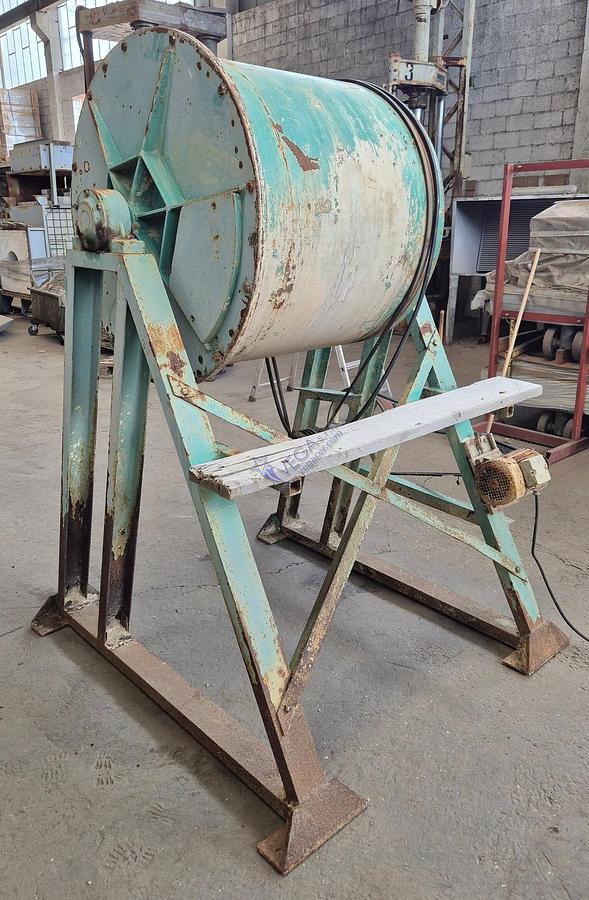

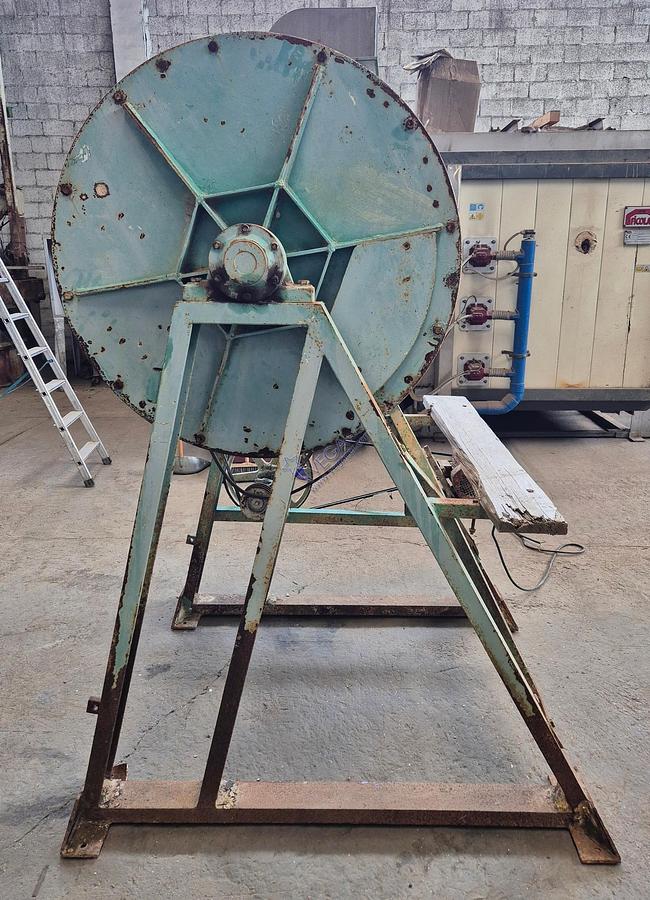

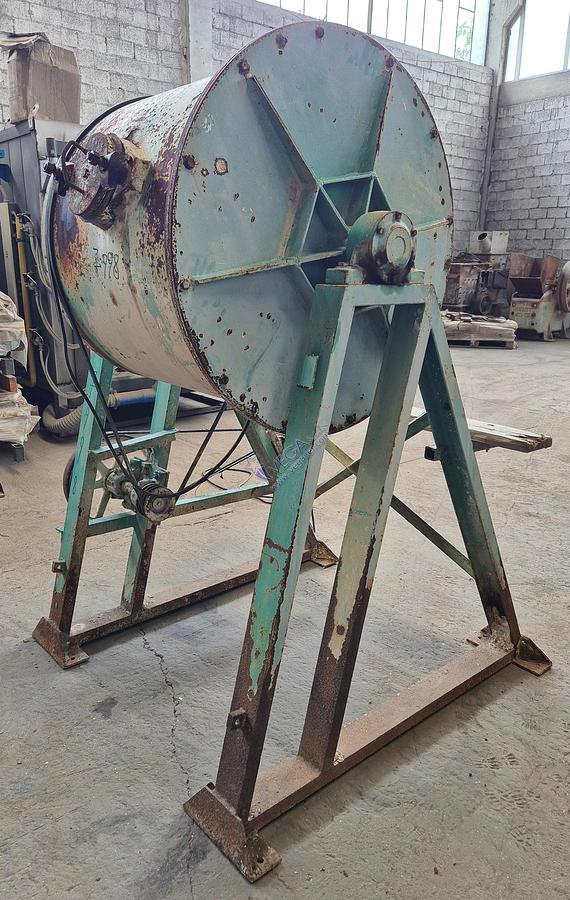

The ball mill VICENTINI mod. ALSING 150 is a robust and high-capacity grinding machine, suitable for ceramic production or other industrial applications. It features a large drum with internal dimensions of 900 x 800 mm and providing a total internal volume of 500 liters without lining

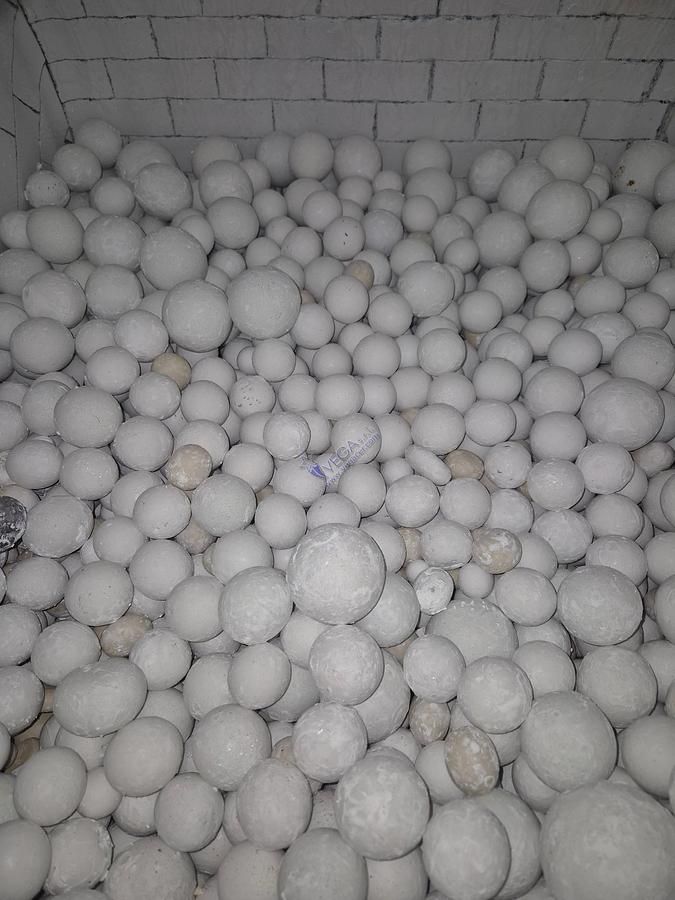

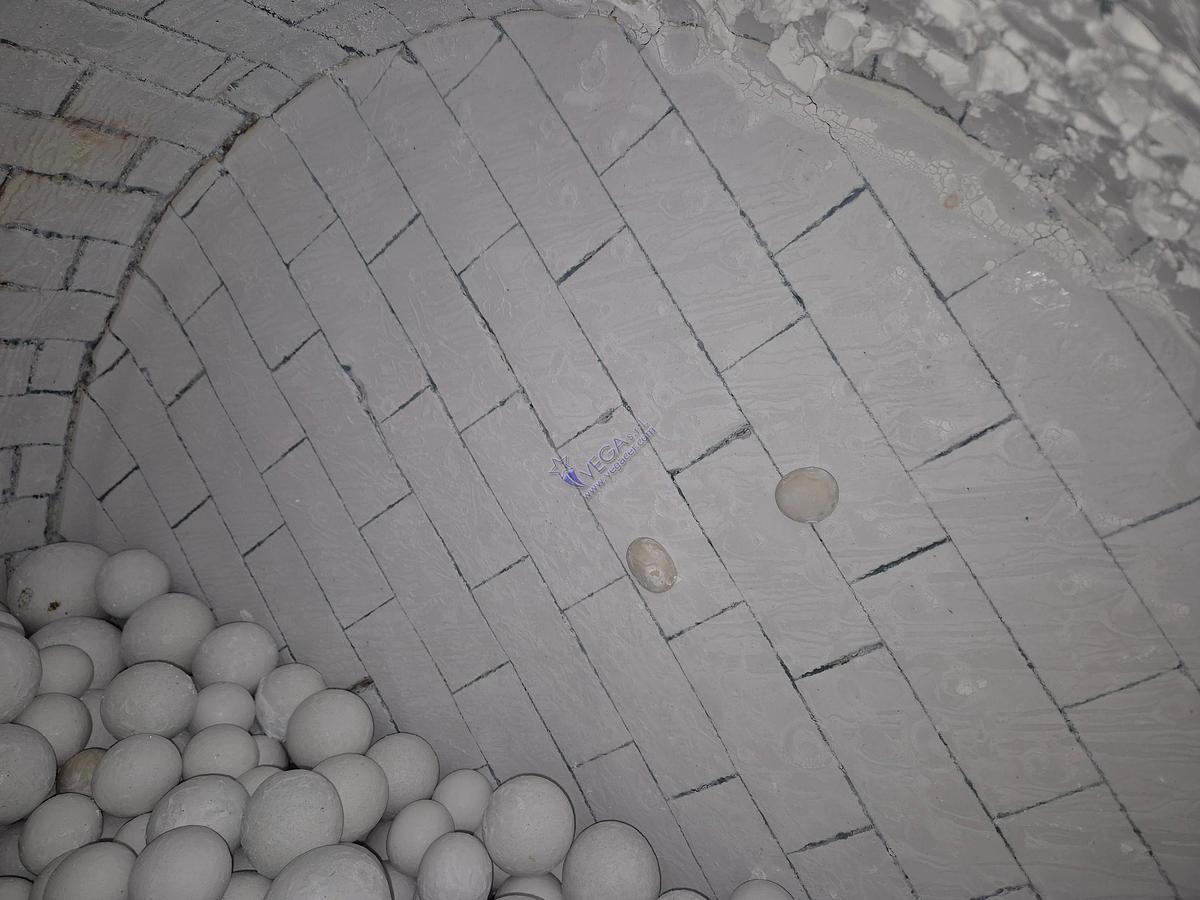

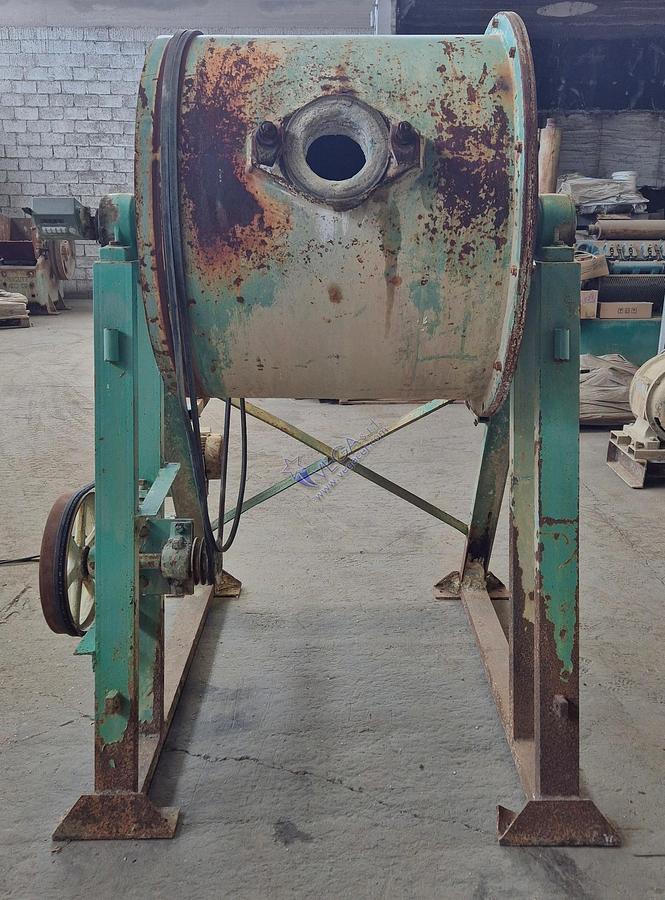

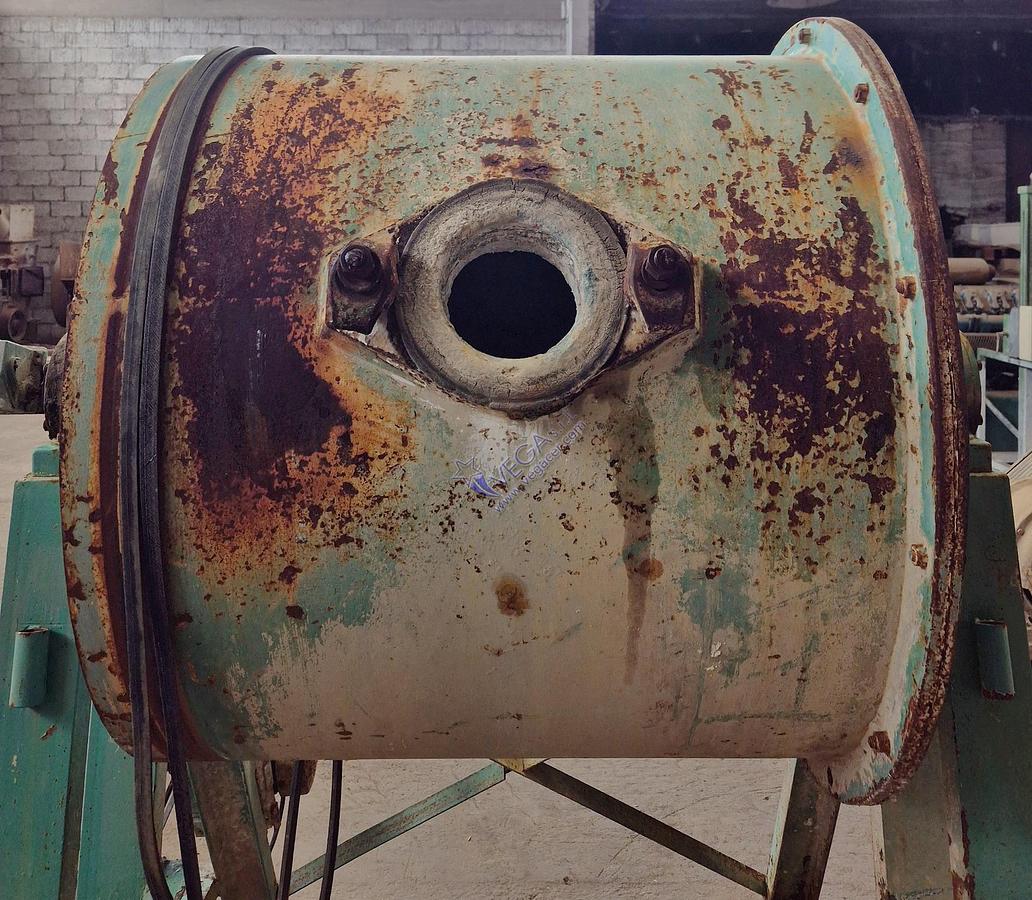

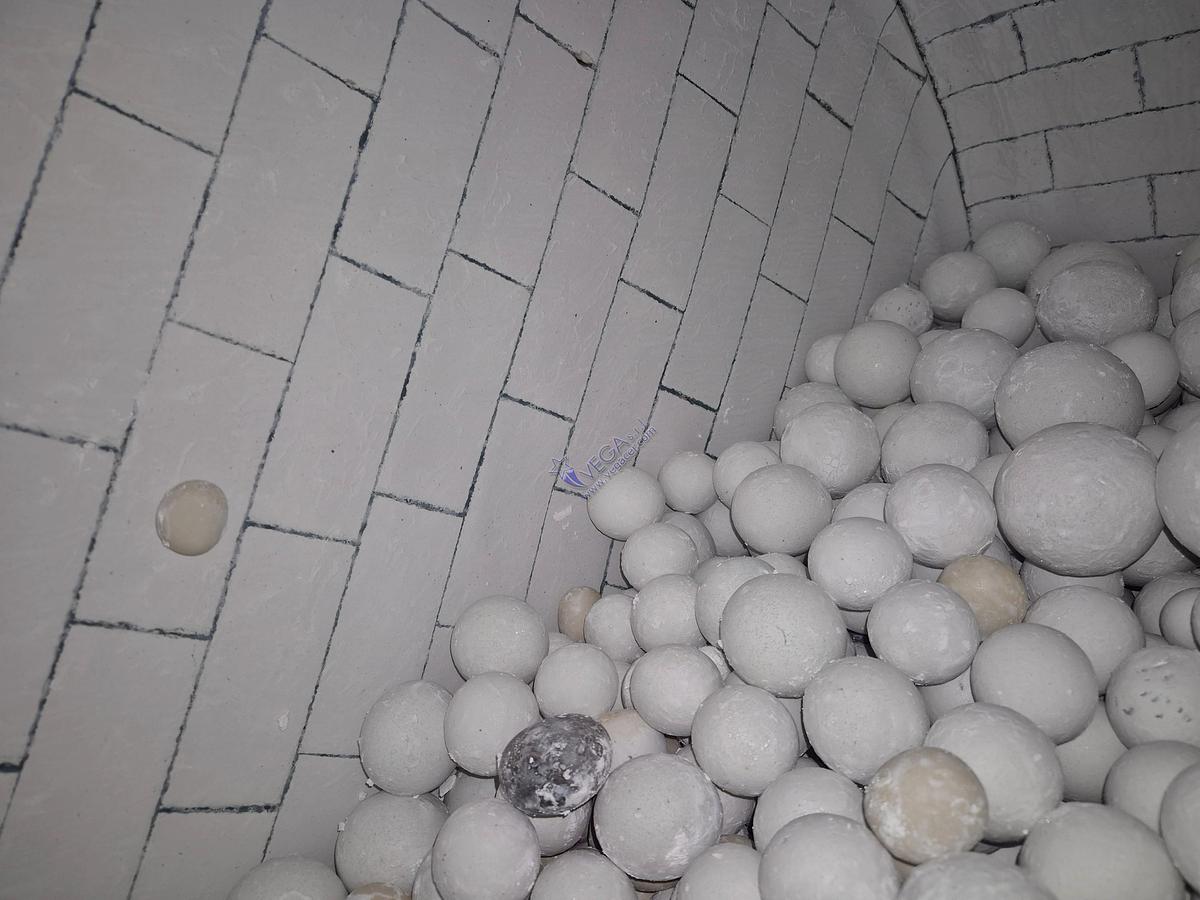

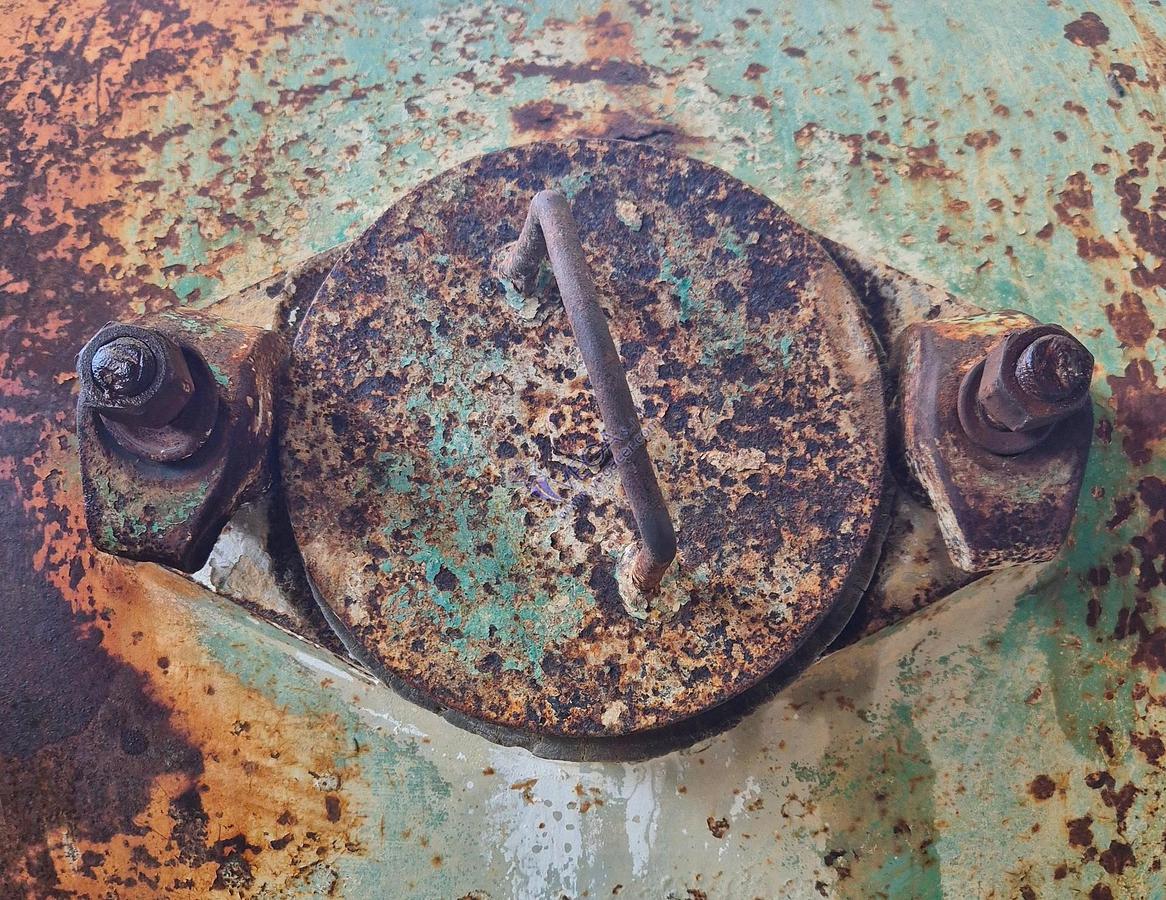

The drum is lined with alumina in good condition, and the machine is complete with grinding media, specifically alumina balls, ensuring a consistent and effective grinding process. It can handle dry material loads between 175 and 200 kg, and is equipped with a loading opening (145 mm diameter).

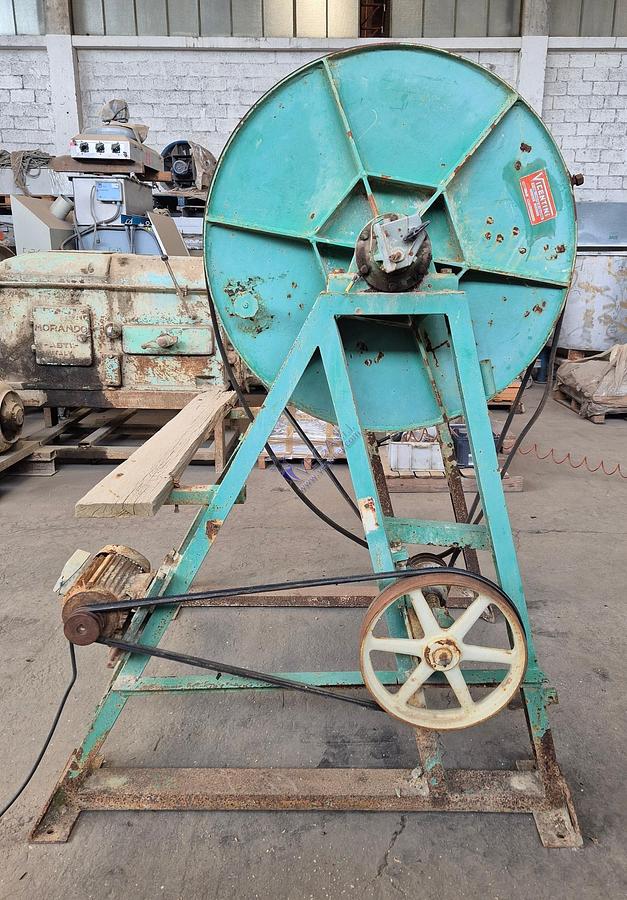

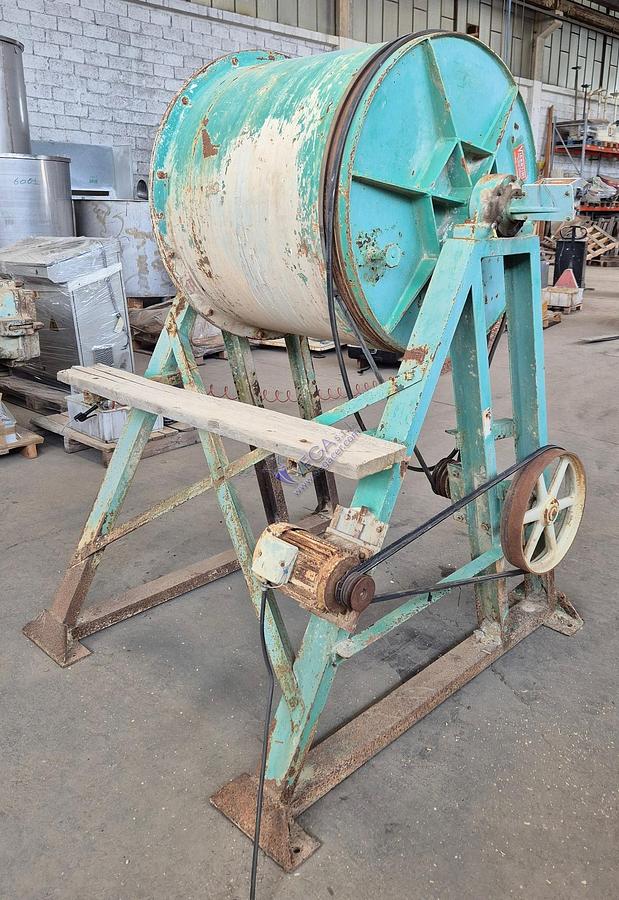

The machine is powered by a 2.2 kW three-phase motor (400V / 50 Hz). It weighs 535 kg, and has overall dimensions of 1550 x 1600 x 2000 mm.
Important notice: the machine is in working condition, but replacing the electric motor is recommended to ensure long-term reliability and performance.
Specifications
| Manufacturer | VICENTINI |
| Model | mod. ALSING 150 |
| Condition | Used |
| Stock Number | 7998 |
| Drum internal dimensions (diameter) x (lenght) mm | 900 x 800 |
| Drum internal volume without lining lt | 500 |
| Drum internal lining | alumina |
| Drum internal lining condition | good |
| Dry material to be ground Kg | 175/200 |
| Loading opening diameter mm | 145 |
| Complete with grinding media | YES |
| Grindig media material | alumina balls |
| Power kW | 2,2 |
| Phase | three phases |
| Tension Volt / Frequency Hz | 400/50 |
| Weight Kg | 535 |
| Ball mill overall dimenisons (width) x (length) x (height) mm | 1550 x 1600 x 2000 |
| Attention!!! | even if it works it is advisable to replace the electric motor |
