Double shaft mixer MORANDO mod. MBAF 4
Double shaft mixer MORANDO mod. MBAF 4
Location:Caldogno, Italy
Description

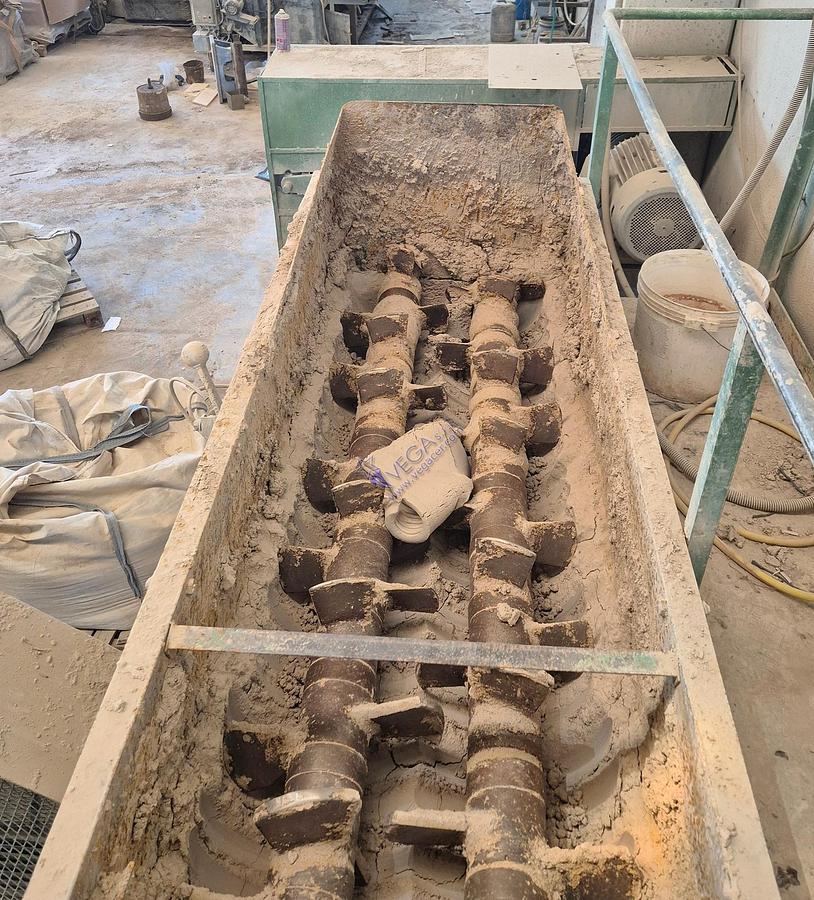

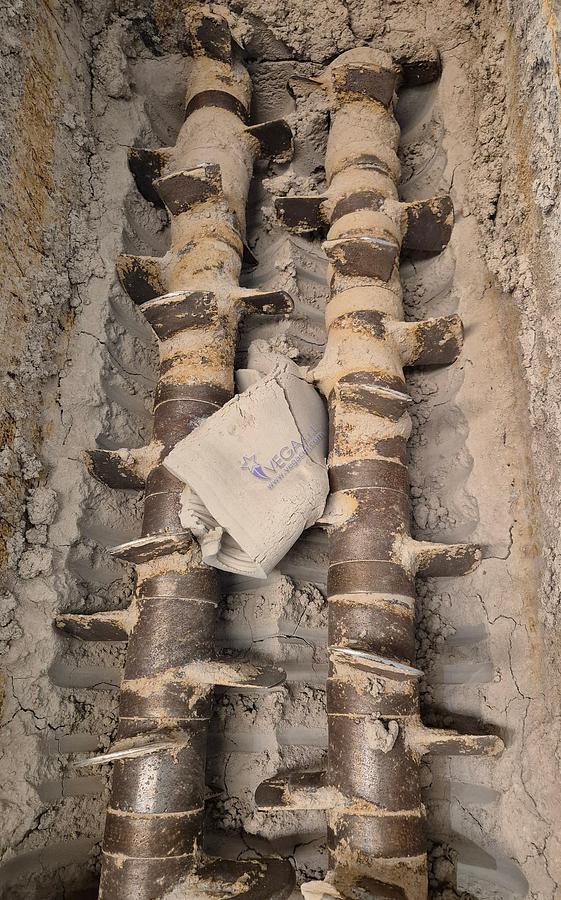

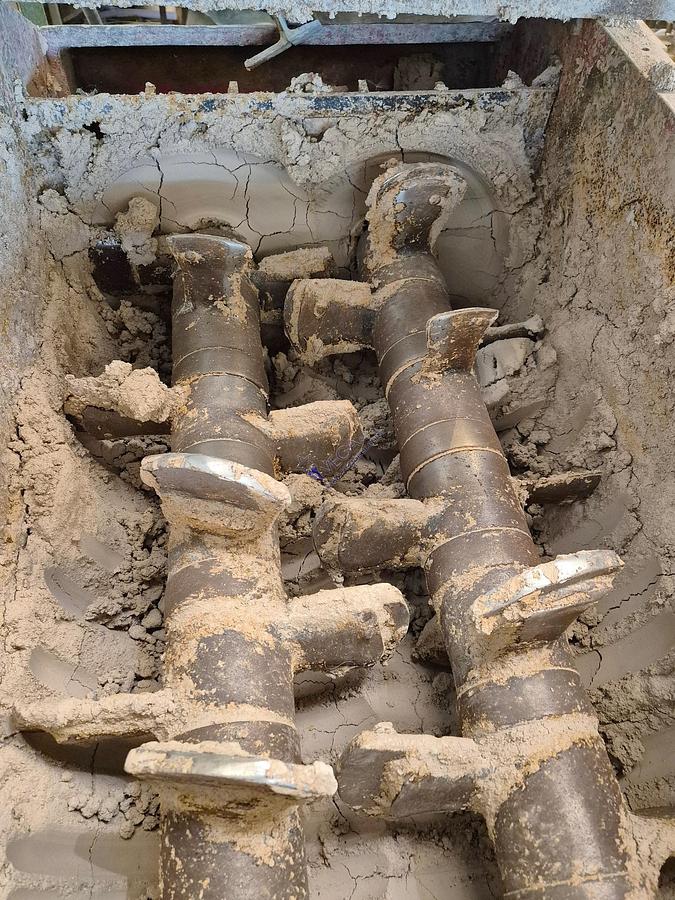

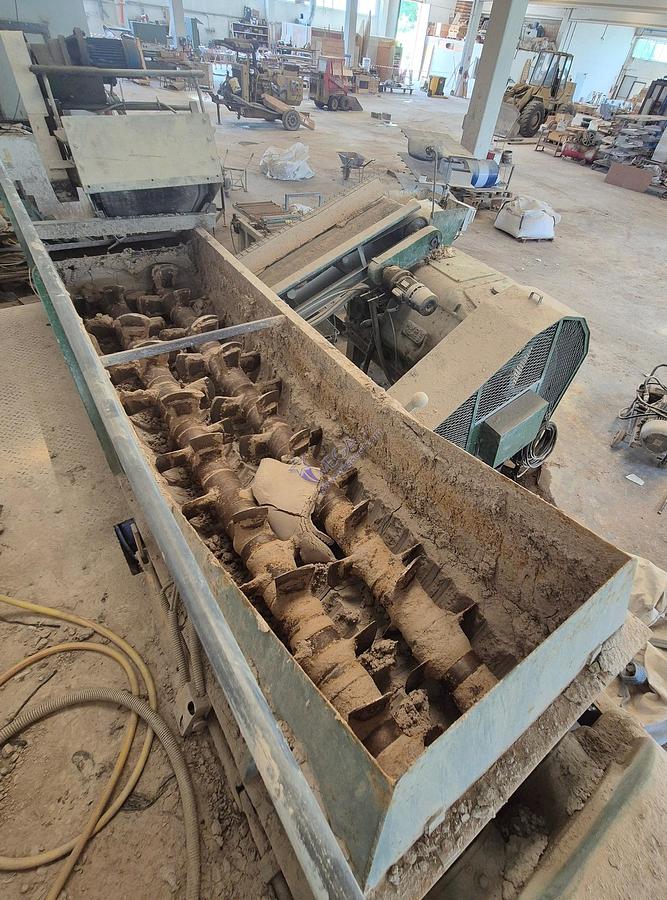

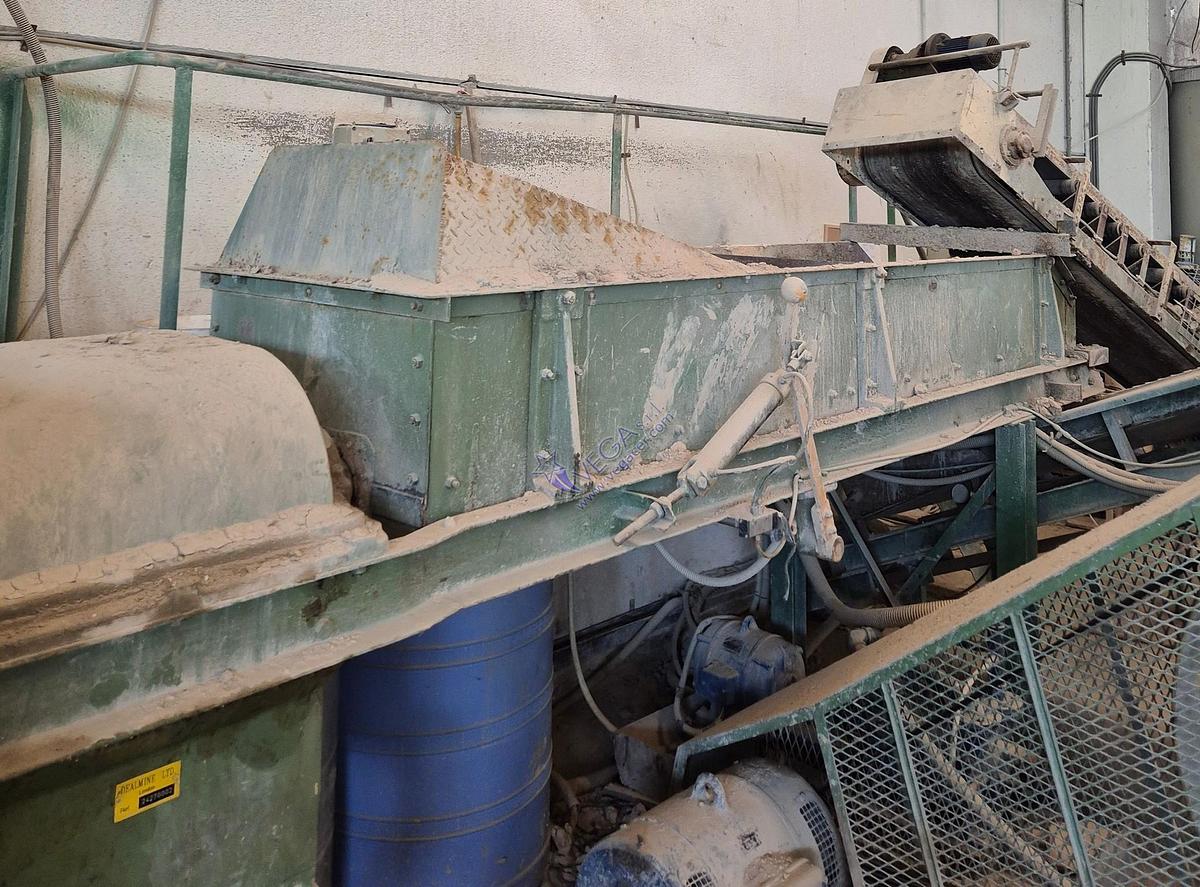

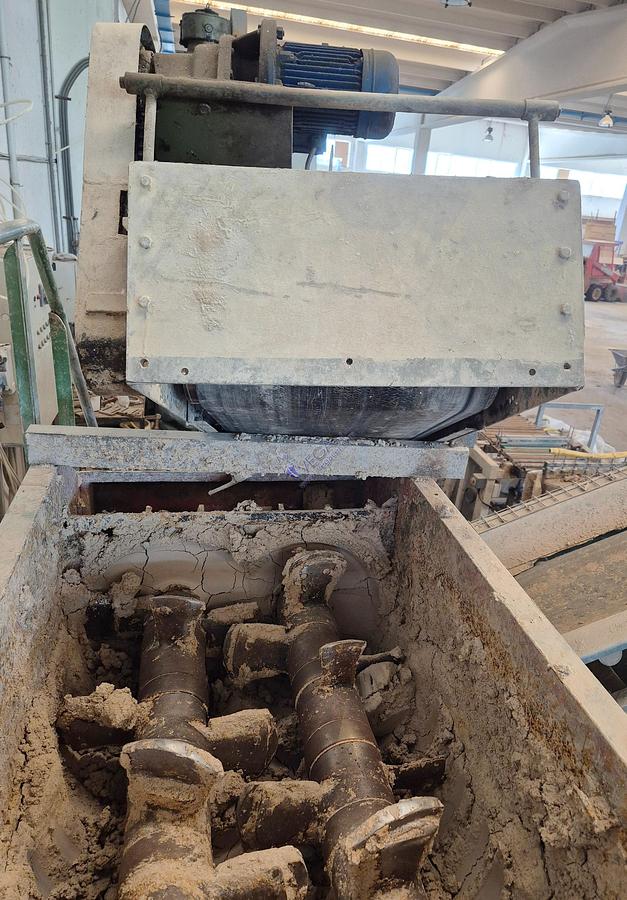

The double shaft mixer MORANDO mod. MBAF 4 is designed to ensure efficient and consistent material mixing. The mixing tank measures 2900 x 800 mm and allows an indicative production of 15/20 m³/h. The screw paddles, with a diameter of 420 mm, guarantee homogeneous material processing.

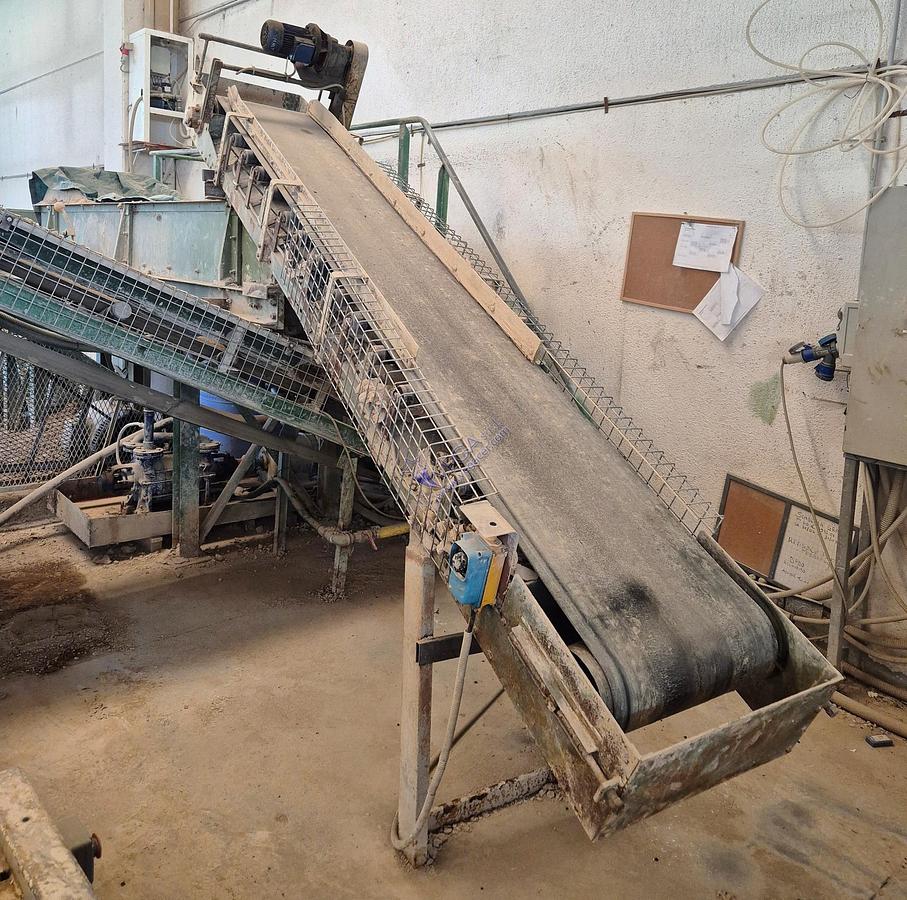

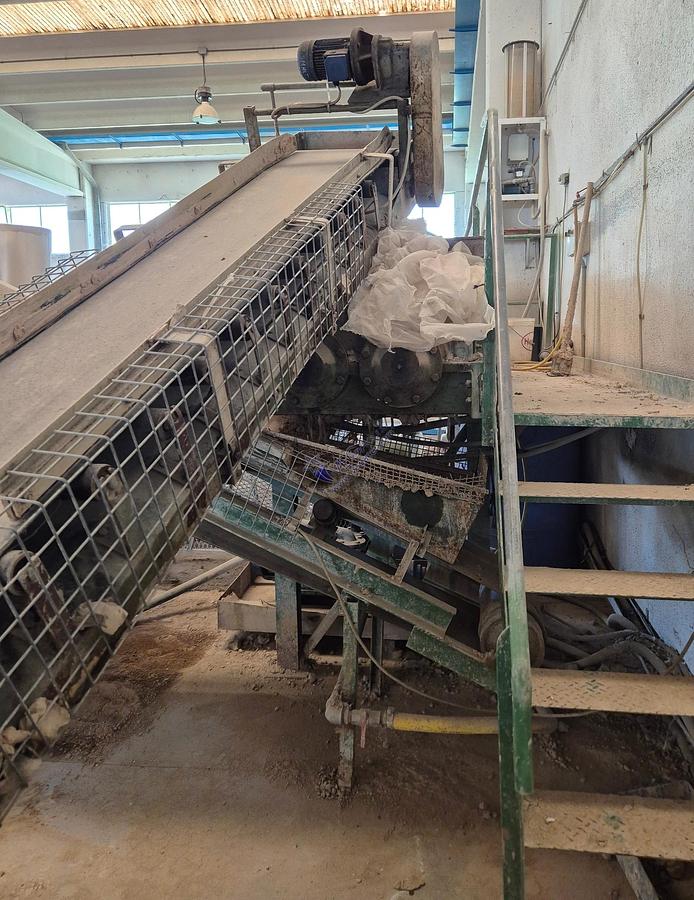

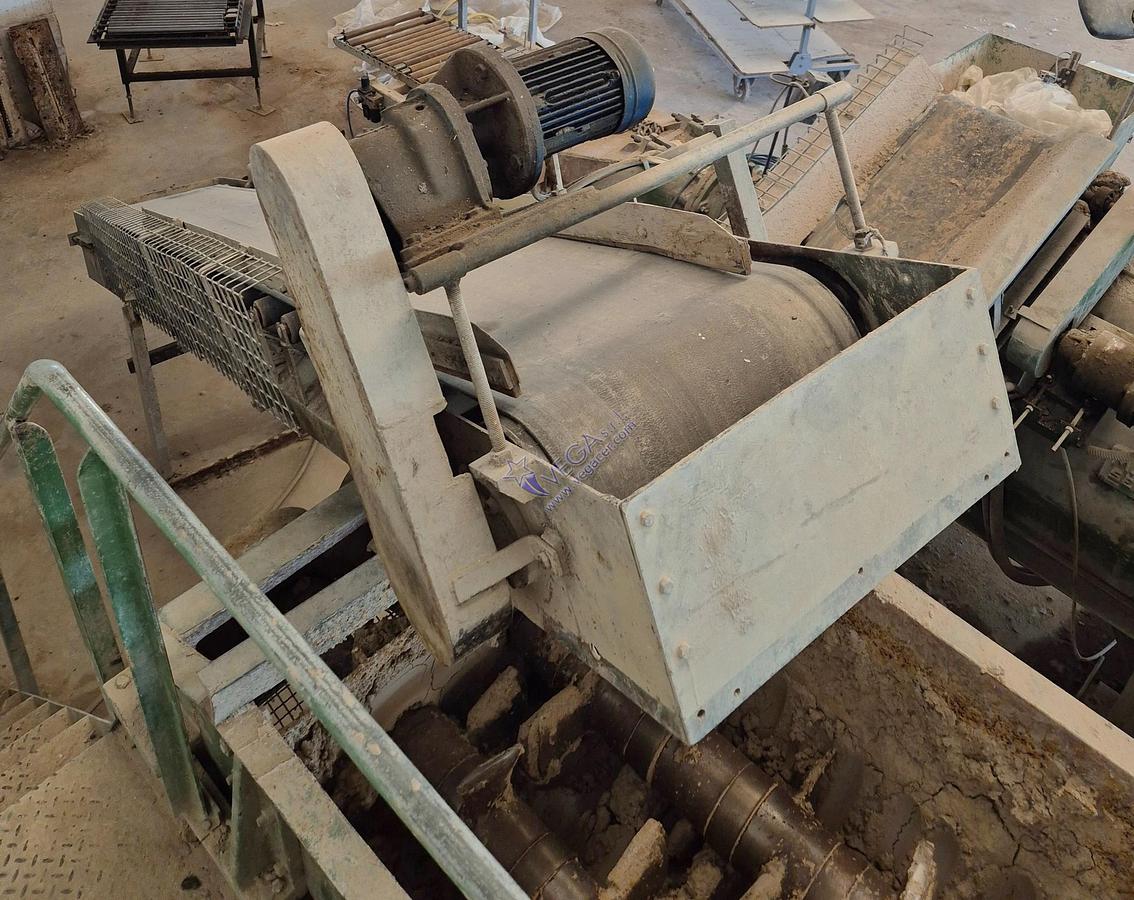

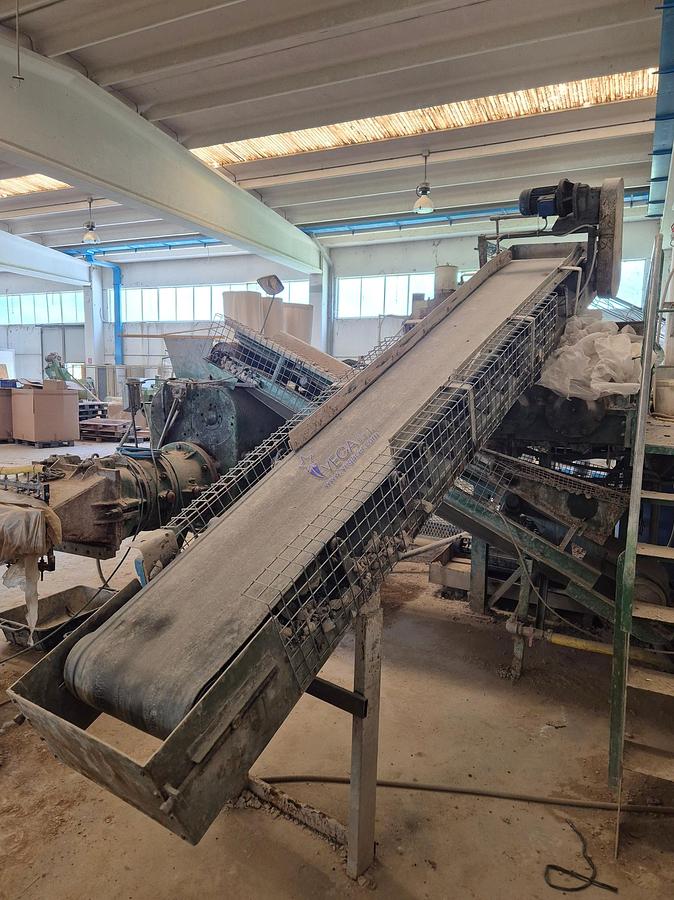

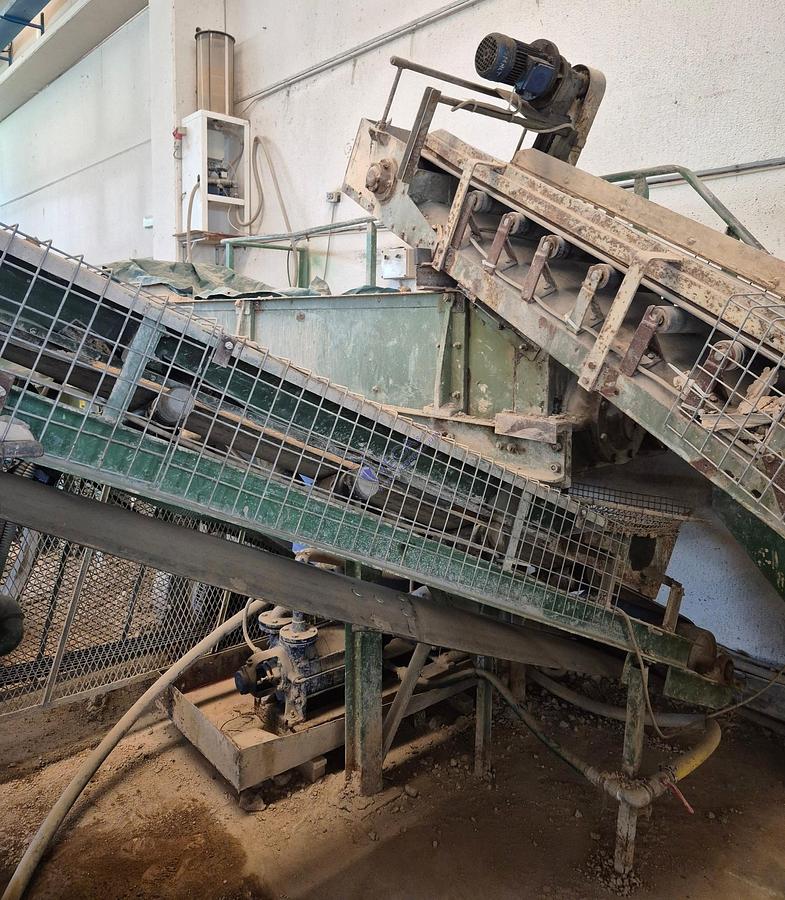

The machine is complete with filter grid, metal carpentry support structure with stair and mezzanine, and a loading conveyor belt with a useful width of 450 mm, which facilitates material feeding into the mixer.
The system operates with an electrical supply of 400 V, 50 Hz, three-phase and a power of 37 kW. The weight of the mixer is 4600 kg. The overall dimensions of the mixer are 5050 x 2100 x 1400 mm.

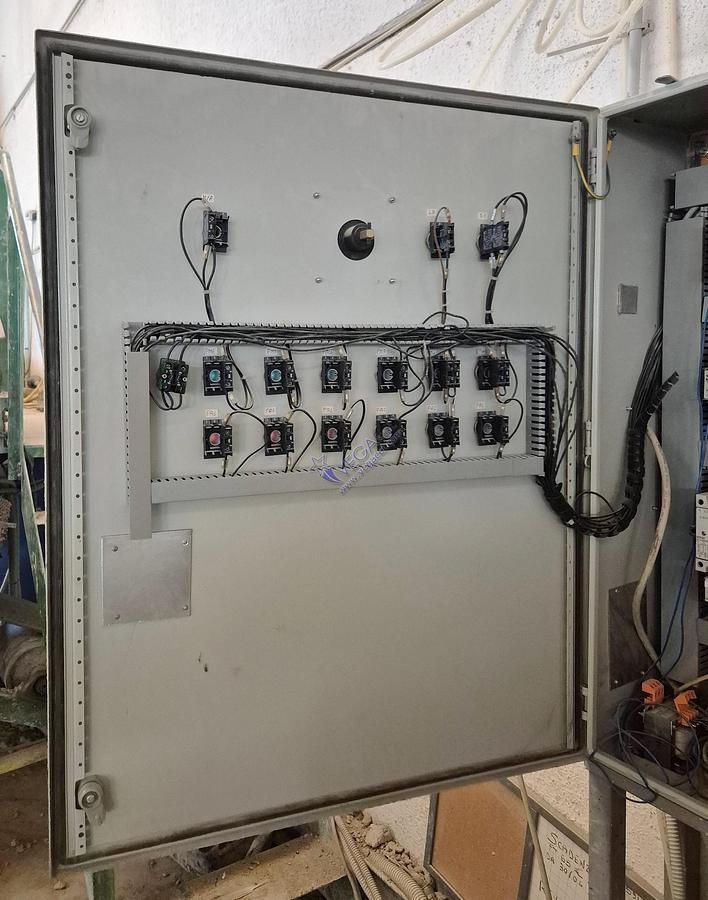

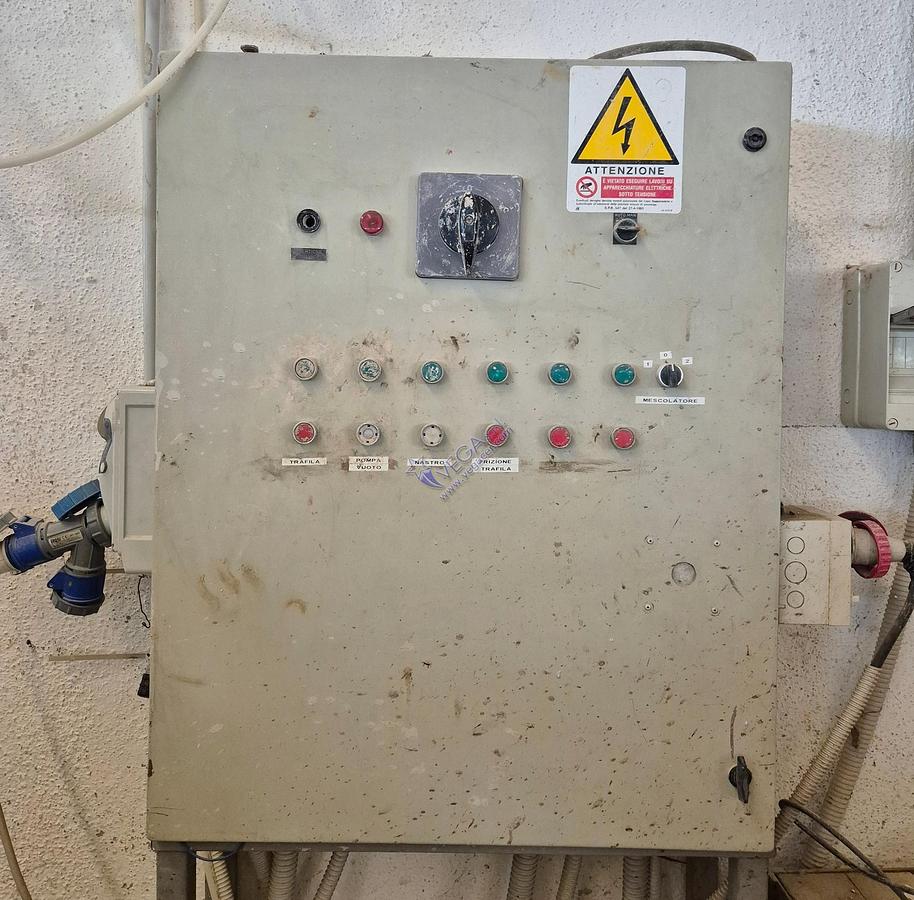

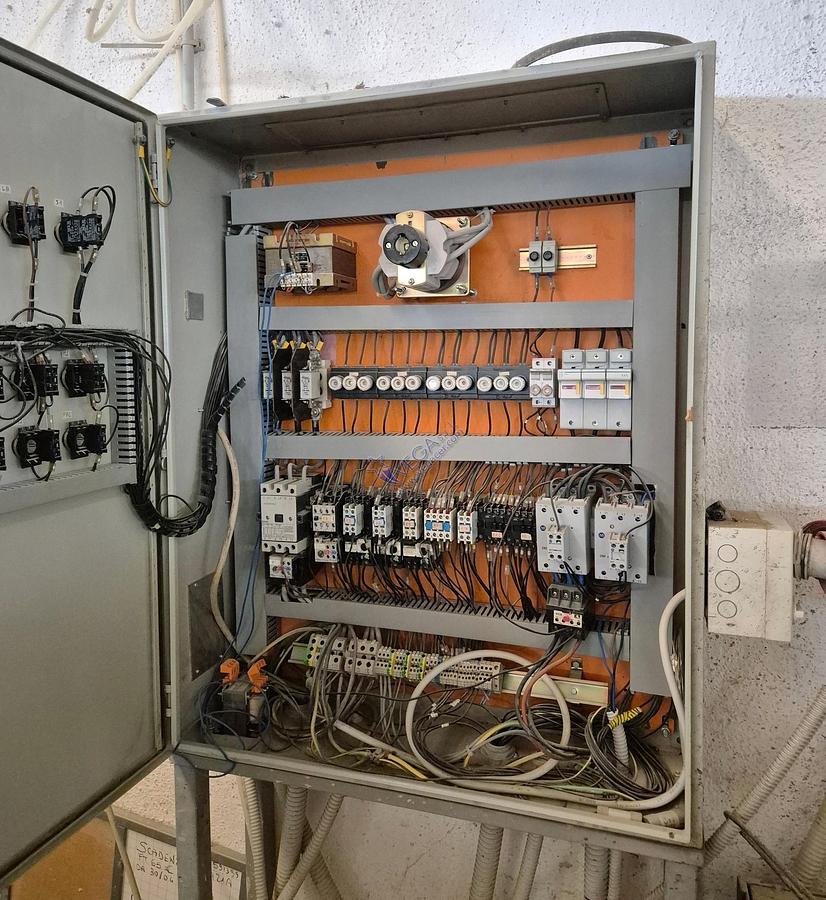

When installed with the metal support structure with stair and mezzanine, the overall dimensions reach 6150 x 2100 x 2400 mm. Alternatively, with the support structure without mezzanine, the dimensions are 5050 x 2100 x 2250 mm. The loading conveyor belt has overall dimensions of 3830 x 850 x 700 mm and the electric switchboard has overall dimensions of 1050 x 270 x 1000 mm.
Specifications
| Manufacturer | MORANDO |
| Model | mod. MBAF 4 |
| Condition | Used |
| Stock Number | 7987 |
| Mixing tank dimensions (width) x (lenght) mm | 2900 x 800 |
| Indicative production m3/h | 15/20 |
| Screw paddles diameter mm | 420 |
| Complete with filter grid | YES |
| Complete with metal carpentry support structure with stair and mezzanine | YES |
| Complete with the conveyor belt for loading the material | YES |
| Loading conveyour belt useful width mm | 450 |
| Power kW | 37 |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Double shaft mixer weight kg | 4600 |
| Double shaft mixer overall dimensions (width) x (lenght) x (height) mm | 5050 x 2100 x 1400 |
| Electric switchboard overall dimensions (width) x (length) x (height) mm | 1050 x 270 x 1000 |
| Metal carpentry support structure with stair and mezzanine and double shaft mixer when installed overall dimensions (width) x (lenght) x (height) mm | 6150 x 2100 x 2400 |
| Double shaft mixer with support structure when installed overall dimensions (width) x (lenght) x (height) mm | 5050 x 2100 x 2250 |
| Loading conveyour belt overall dimensions (width) x (lenght) x (height) mm | 3830 x 850 x 700 |
