Semi-automatic trasversal disk cutter RAIMONDI mod. C.M. 150
Semi-automatic trasversal disk cutter RAIMONDI mod. C.M. 150
Location:Caldogno, Italy
Description

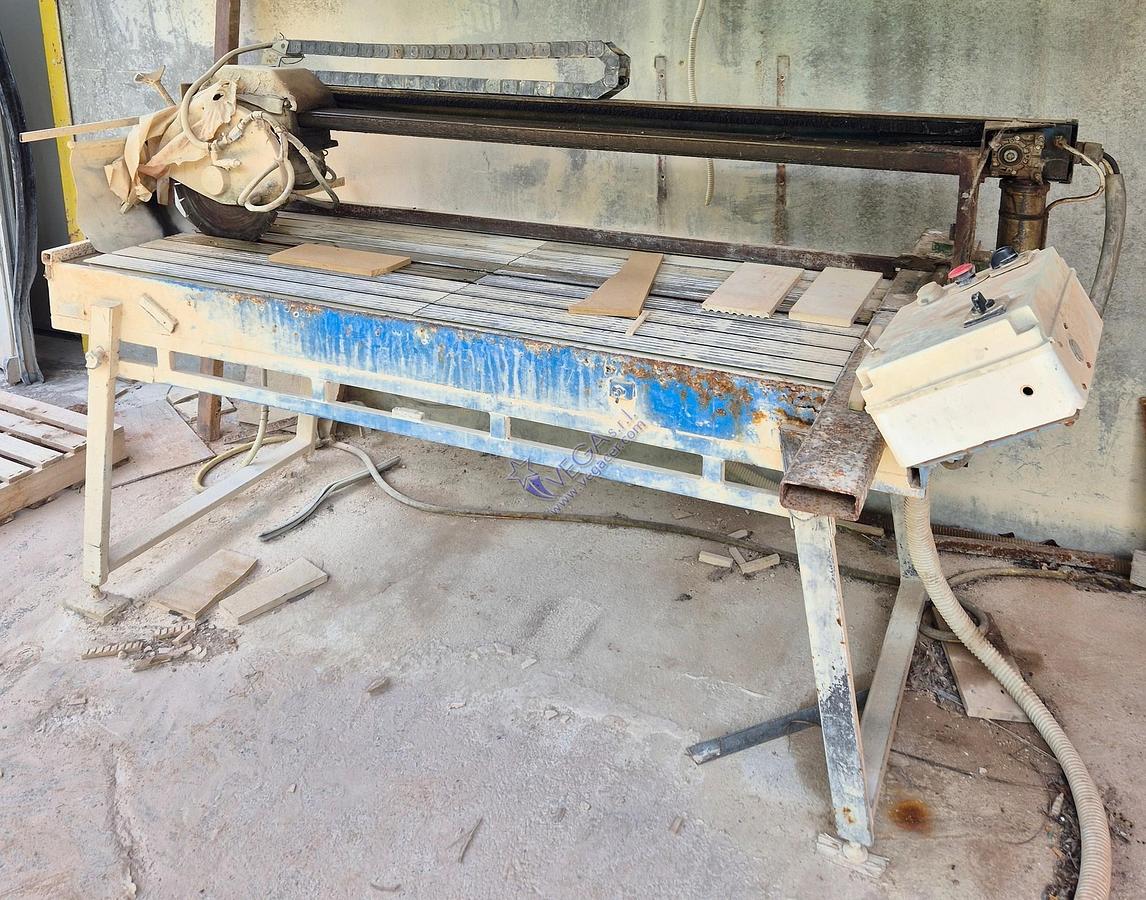

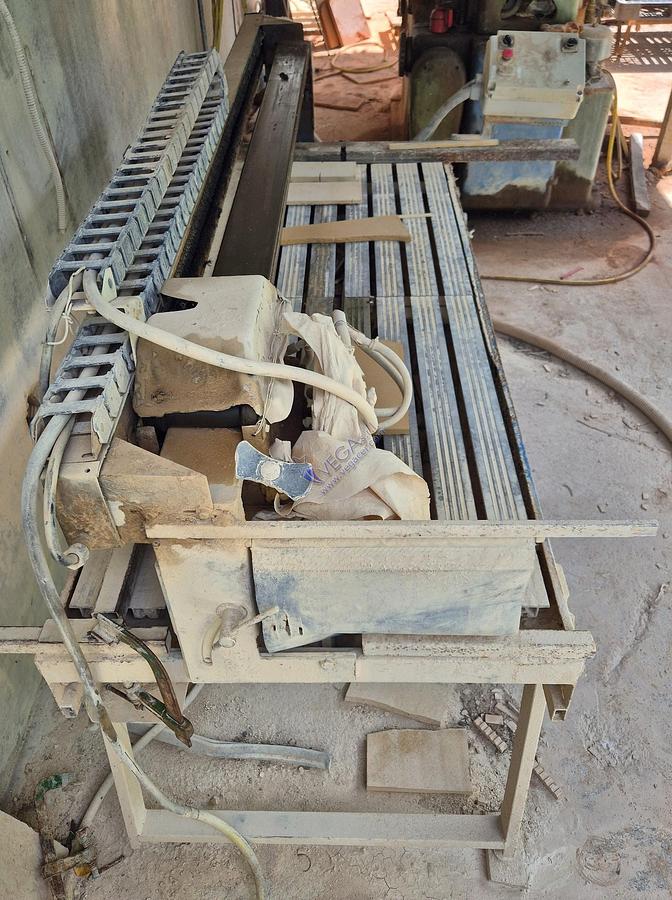

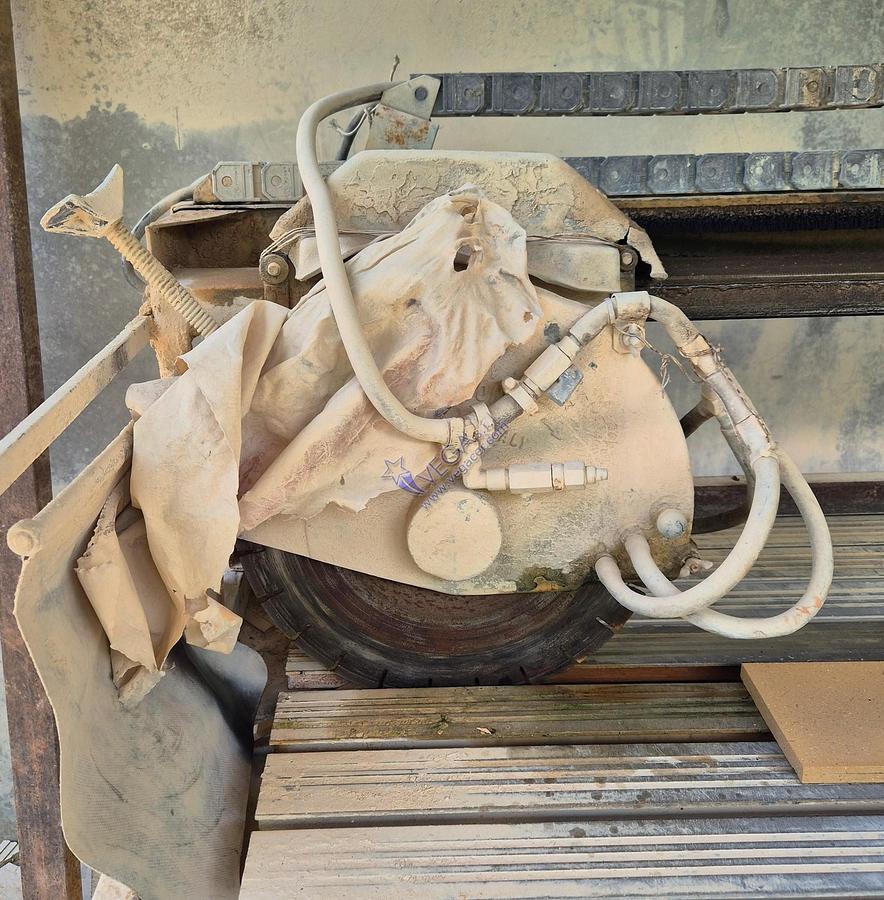

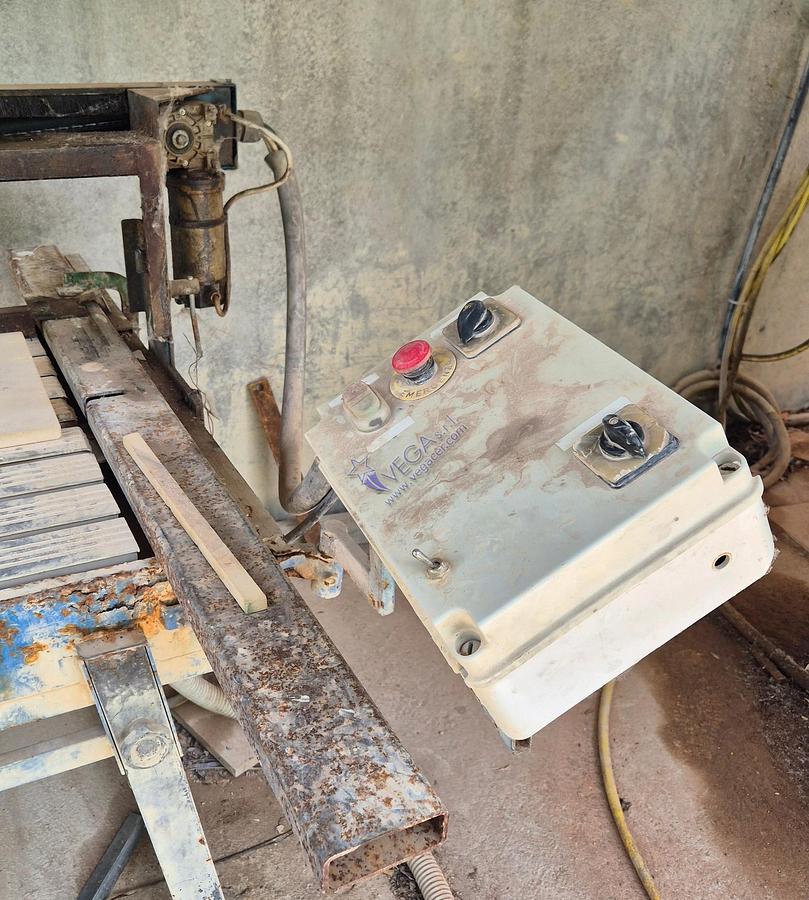

The semi-automatic transversal disk cutter RAIMONDI mod. C.M. 150 is equipped with one disk with sectors of 350 mm diameter. The machine is provided with a cutting table of 1800 x 750 mm, ensuring precision in transversal cuts. It is complete with electrical switchboard and operates at 400 V / 50 Hz, three phases. Compact yet solid, the cutter has overall dimensions of 2300 x 1600 x 1400 mm, making it suitable for industrial use.
Specifications
| Manufacturer | RAIMONDI |
| Model | mod. C.M. 150 |
| Condition | Used |
| Stock Number | 7996 |
| Cutter type | semi-automatic trasversal disk cutter |
| N° of disk | 01 |
| Disk type | disk with sectors |
| Disk diameter mm | 350 |
| Cutting table dimensions (width) x (lenght) mm | 1800 x 750 |
| Complete with electric switchboard | YES |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Cutter overall dimensions (width) x (lenght) x (height) mm | 2300 x 1600 x 1400 |
