Jib crane with STARTEK hoist
Jib crane with STARTEK hoist
Location:Caldogno, Italy
Description

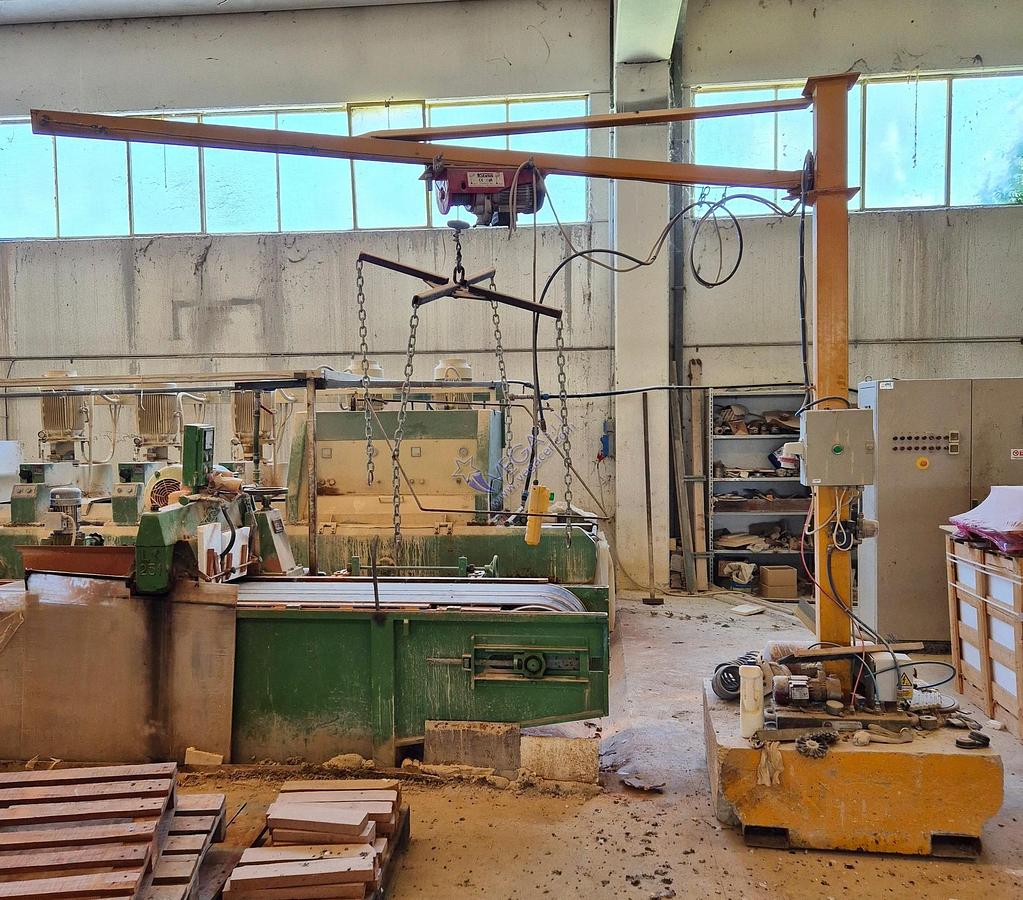

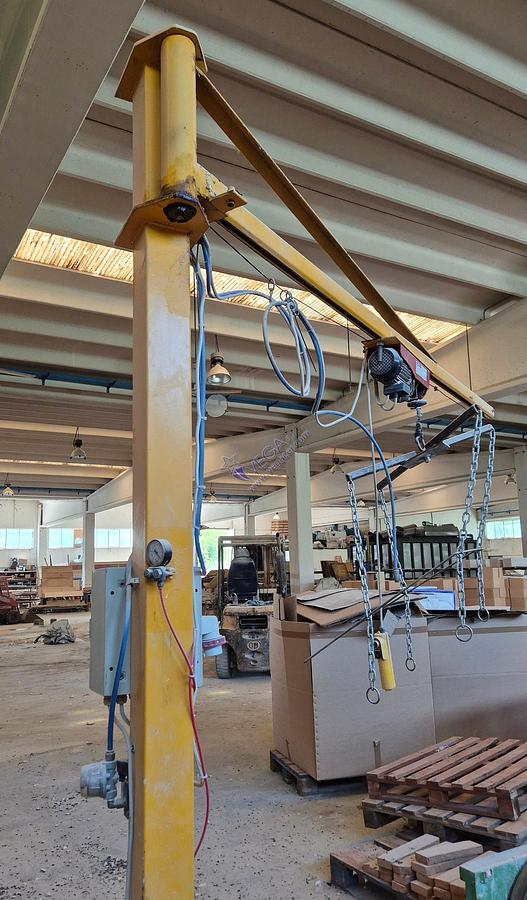

The jib crane with STARTEK hoist is a solution designed for lifting and handling operations in industrial environments, ideal for workstations requiring precision, reliability, and ease of use.

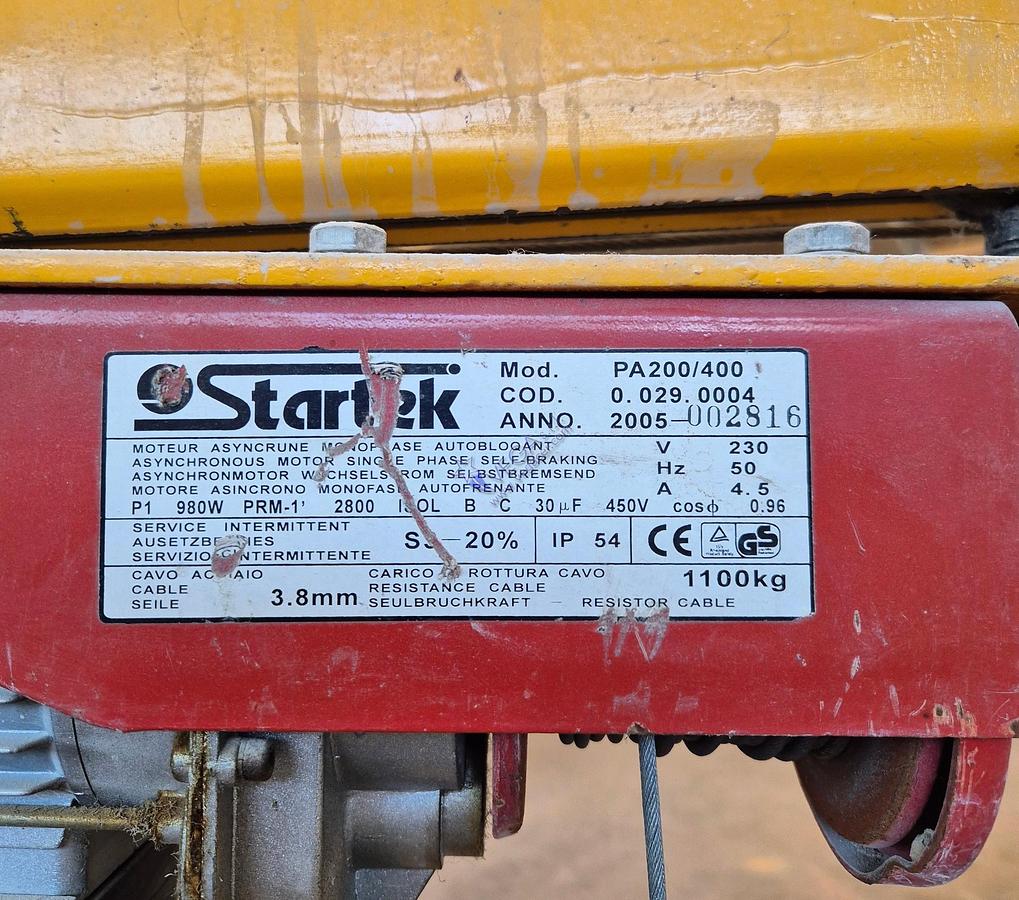

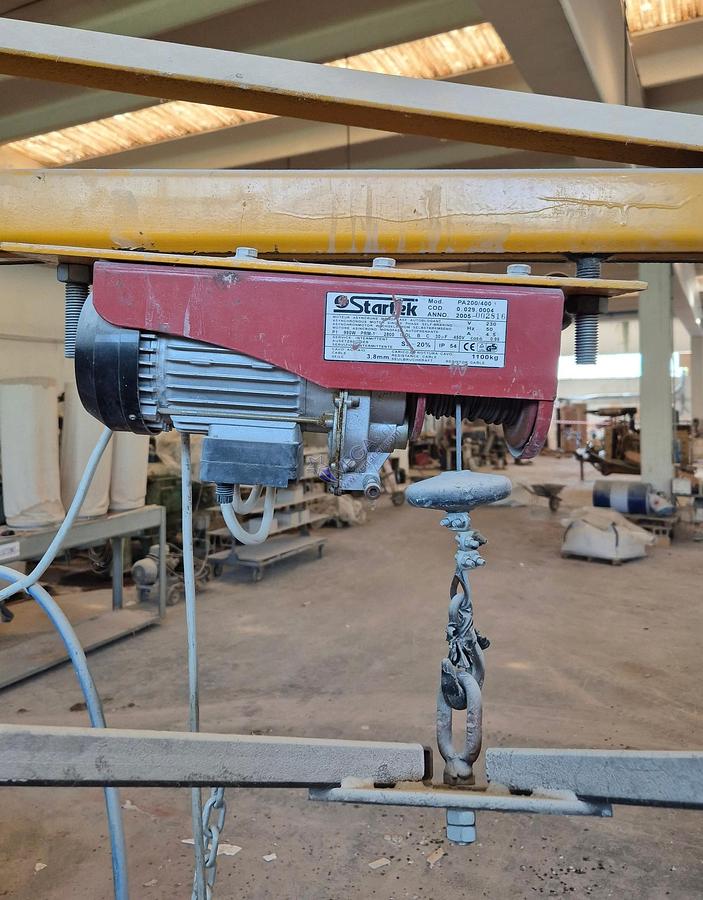

The crane features 180° rotation and a 2650 mm outreach, ensuring adequate coverage of the working area. The lifting system consists of a STARTEK hoist equipped with a steel cable and hook, with a maximum hook height of 2300 mm.

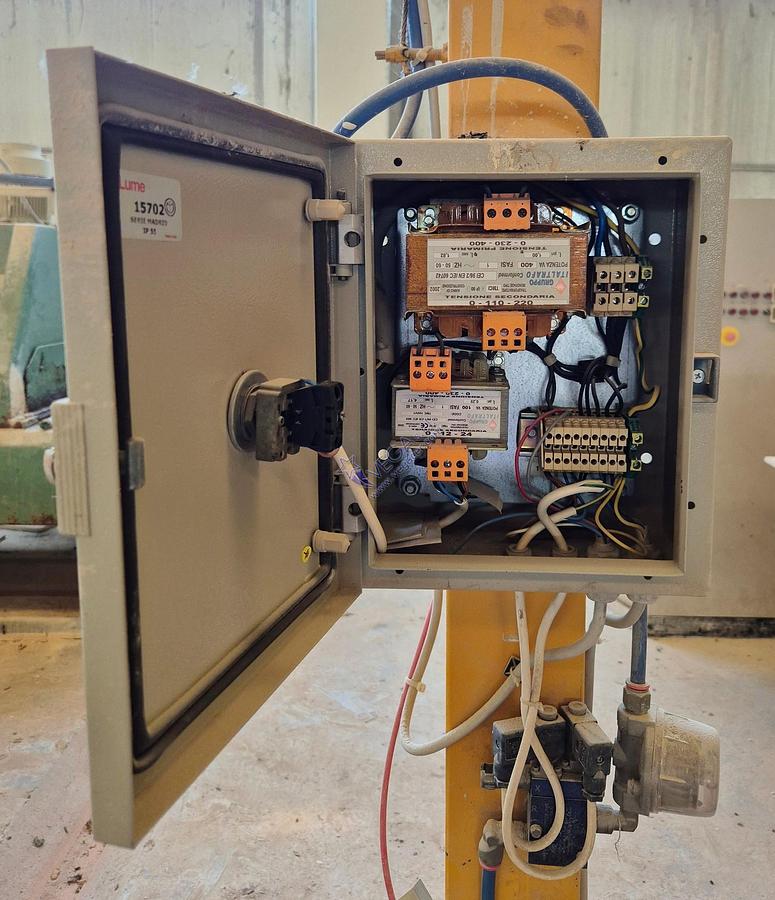

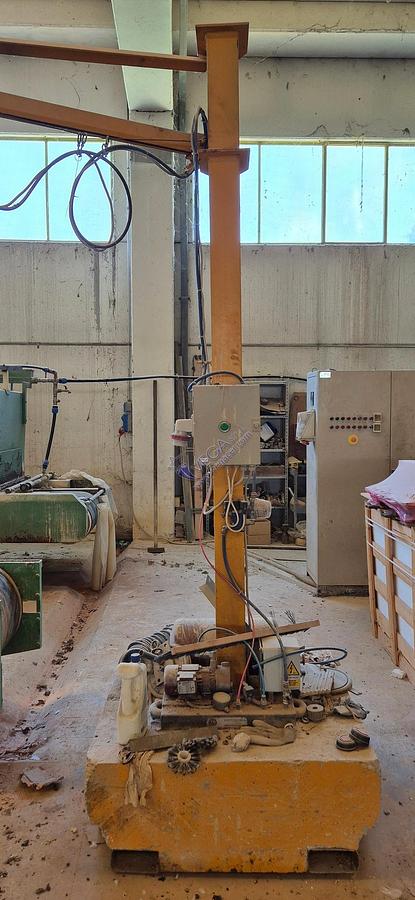

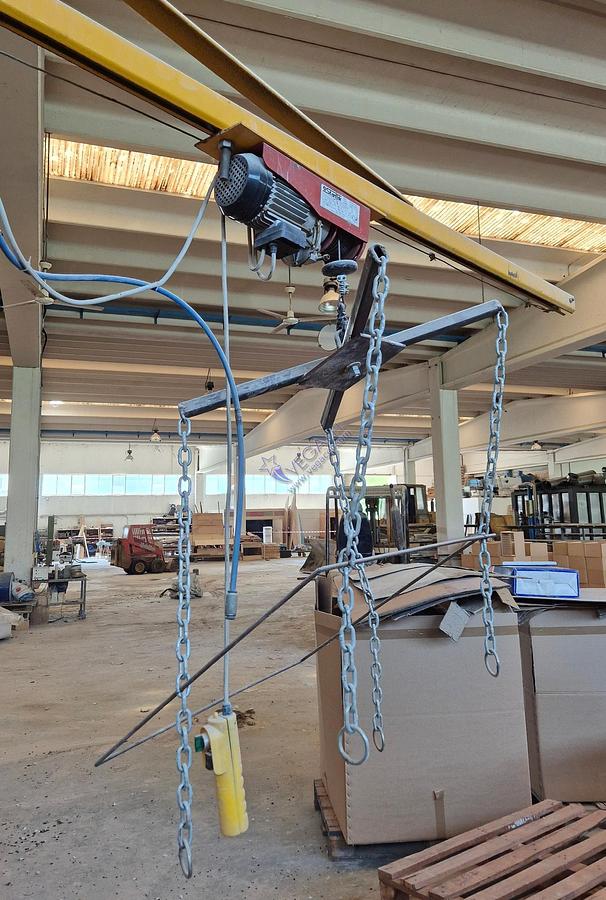

The unit includes additional lifting systems, expanding its range of applications. The crane is complete with electric switchboard and supplied with a concrete base equipped with forklift slots, facilitating handling and installation operations.
The power supply is 400 V / 50 Hz – three phases. The column height is 3030 mm, while the base dimensions are 1000 x 1000 x 400 mm. The overall jib crane dimensions are 1000 x 3150 x 3030 mm (width x length x height).
This crane represents a robust and efficient solution for organizing independent lifting stations within production departments.
Specifications
| Condition | Used |
| Stock Number | 7983 |
| Jib crane rotation ° | 180 |
| Jib crane outreach mm | 2650 |
| Type of hoist | STARTEK |
| Type of lifting system | steel cable with hook |
| Max. hook/lifting system height mm | 2300 |
| Additional lyfting systems | YES |
| Complete of electric switchboard | YES |
| Complete with base with forklift slots | YES |
| Base material | concrete |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Column height mm | 3030 |
| Base dimensions (width) x (length) x (height) mm | 1000 x 1000 x 400 |
| Jib crane overall dimensions (width) x (length) x (height) mm | 1000 x 3150 x 3030 |
