Slow agitator VICENTINI mod. LABOR 50 with tank
Slow agitator VICENTINI mod. LABOR 50 with tank
Location:Caldogno, Italy
Description

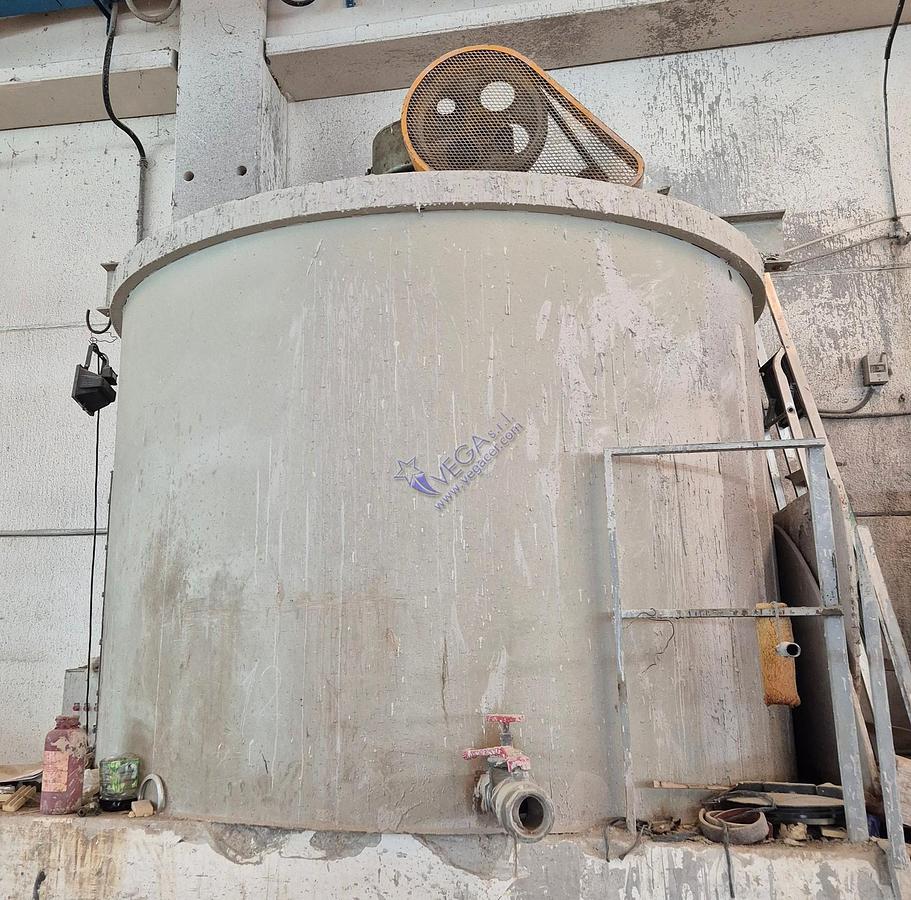

The slow agitator VICENTINI mod. LABOR 50 is complete with iron tank. The tank has useful dimensions of 2500 x 1700 mm with a total diameter of 2600 mm, and is equipped with a slow agitator crossbeam of 2700 mm. The machine features two rake-type paddles in iron and is supplied complete with bottom valve SIRSI type. The agitator is powered by a 3 HP motor and operates with 400 V / 50 Hz, three-phase connection. The overall dimensions of the agitator with tank are 2700 x 3200 mm.
Specifications
| Manufacturer | VICENTINI |
| Model | mod. LABOR 50 |
| Condition | Used |
| Stock Number | 7990 |
| Tank useful dimensions (diameter) x (height) mm | 2500 x 1700 |
| Tank total diameter mm | 2600 |
| Tank material | iron |
| Slow agitator crossbeam length mm | 2700 |
| N° of paddles | 02 |
| Paddles type | rake-paddles |
| Paddles material | iron |
| Complete with bottom valve | YES |
| Bottom valve type | SIRSI valve |
| Slow agitator power HP | 3 |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Slow agitator with tank overall dimensions (diameter) x (height) mm | 2700 x 3200 |
