Heavy duty blunger VICENTINI mod. TD 5000
Heavy duty blunger VICENTINI mod. TD 5000
Location:Caldogno, Italy
Description

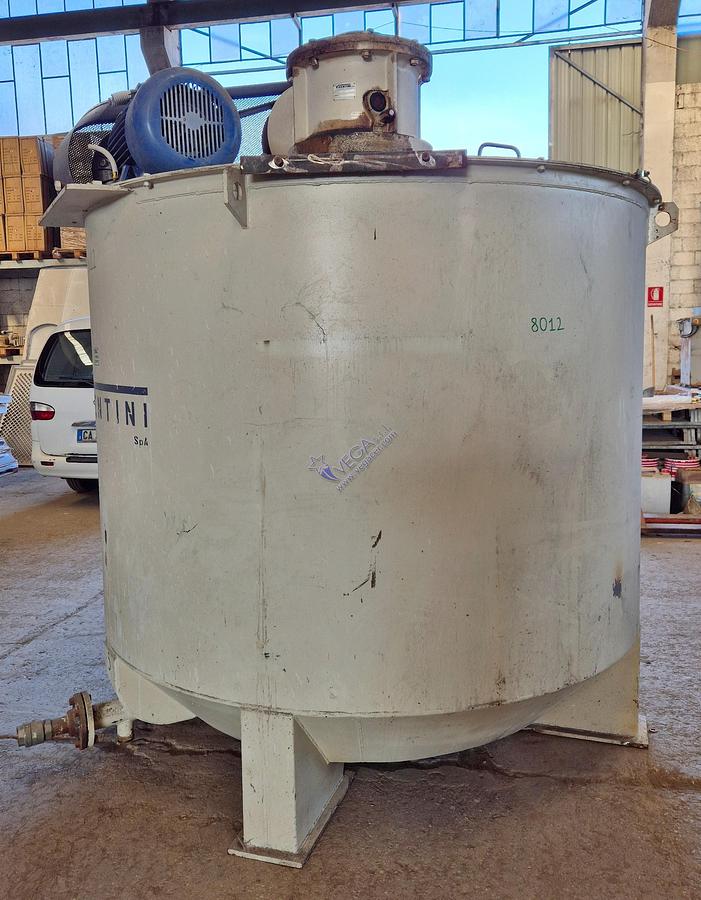

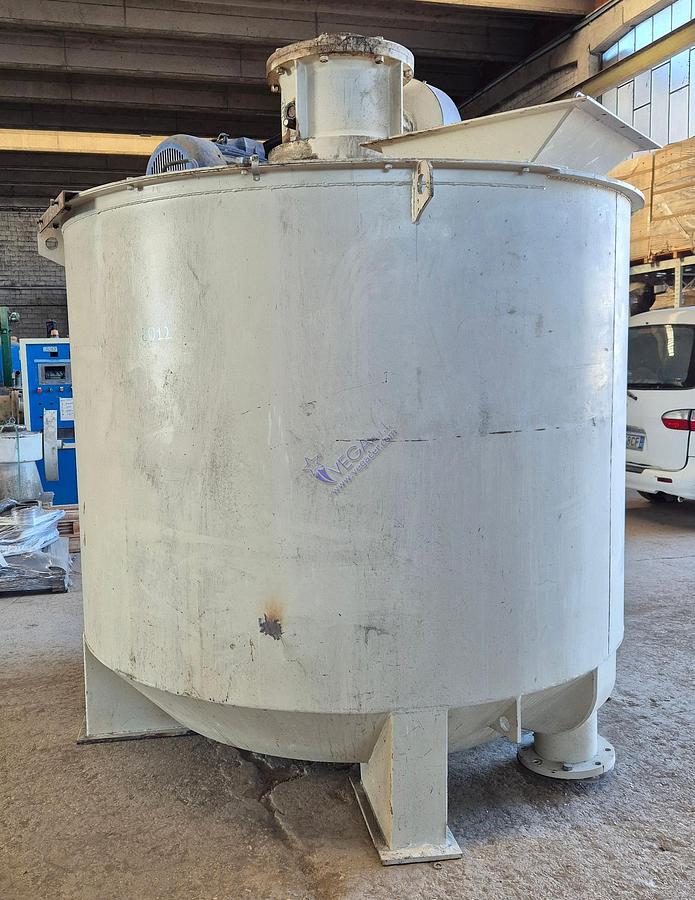

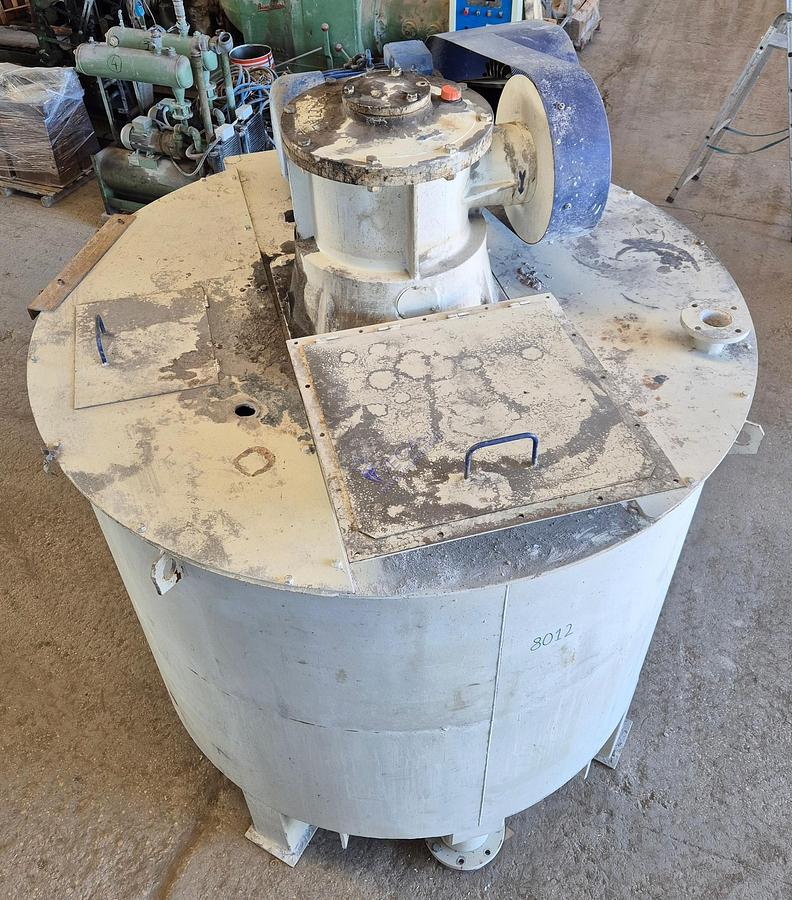

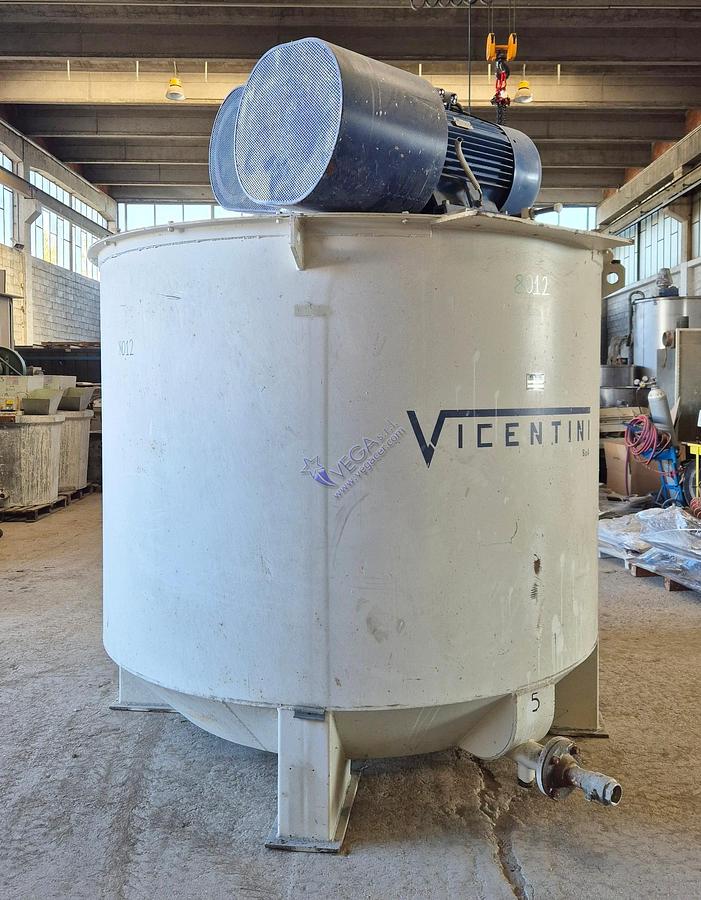

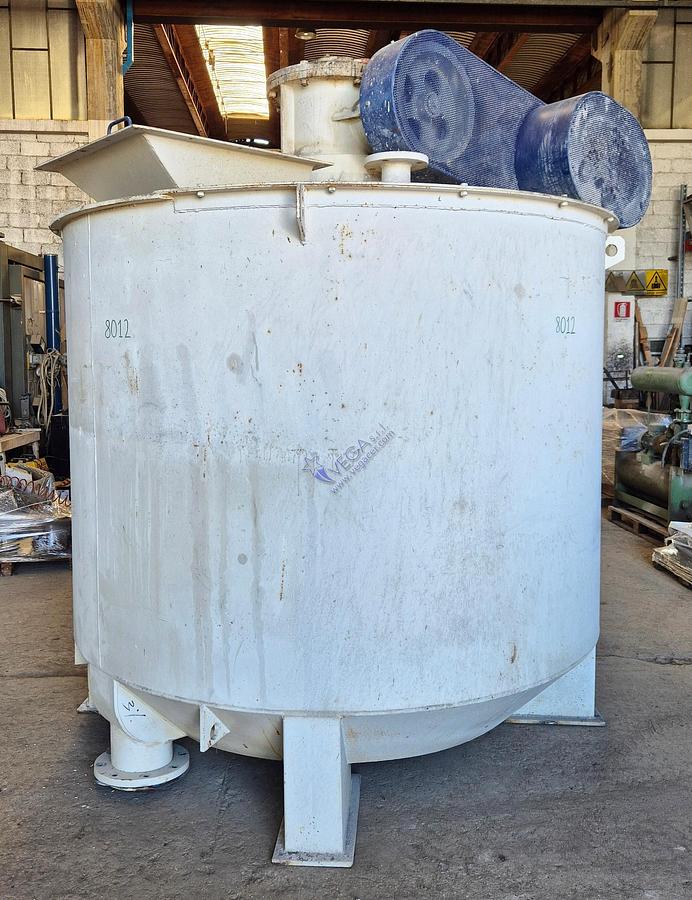

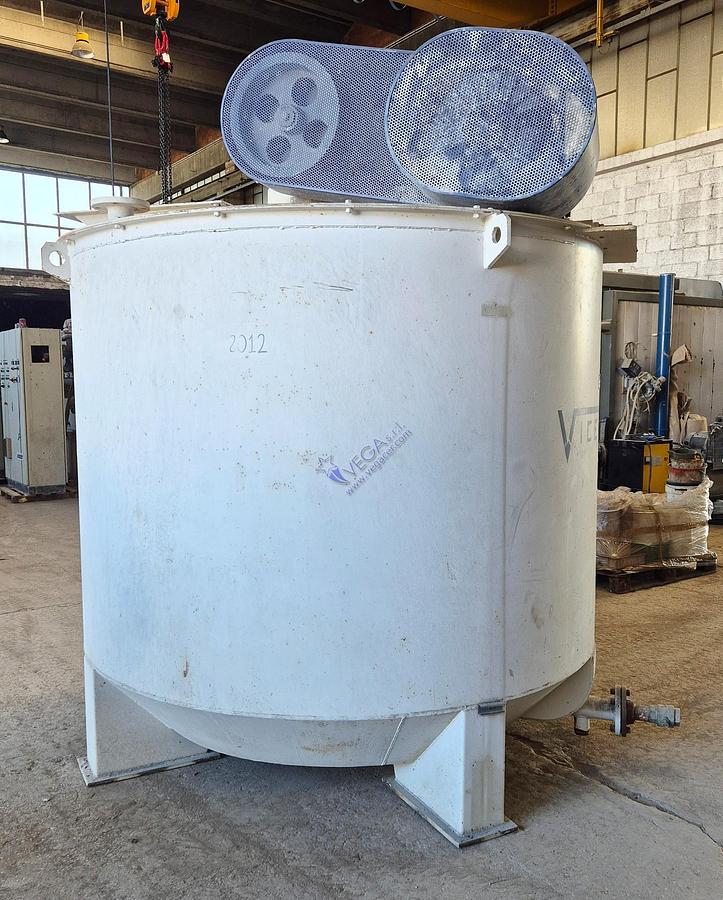

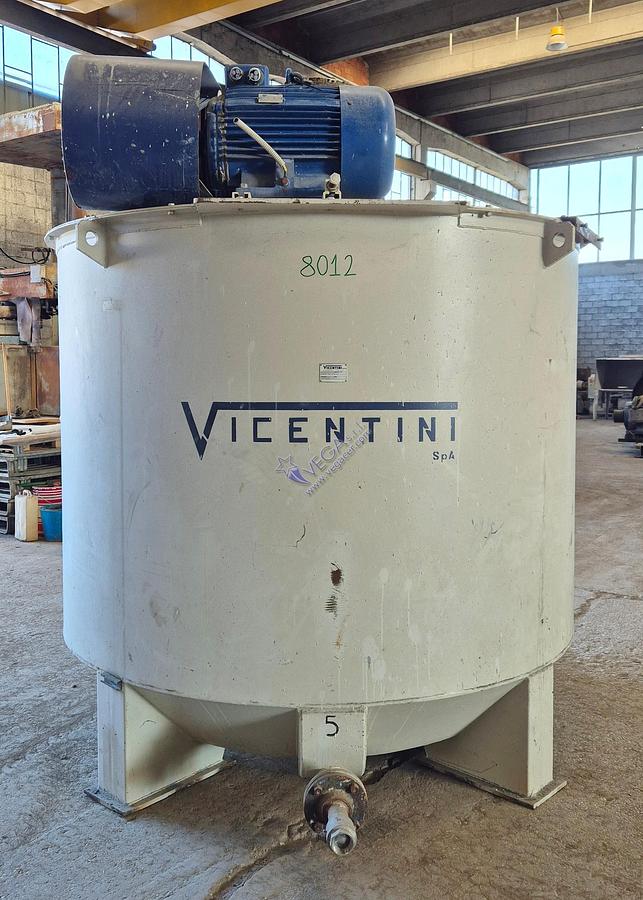

The heavy duty blunger VICENTINI mod. TD 5000 is a high-performance machine designed for the preparation of ceramic slip and body under heavy-duty working conditions.

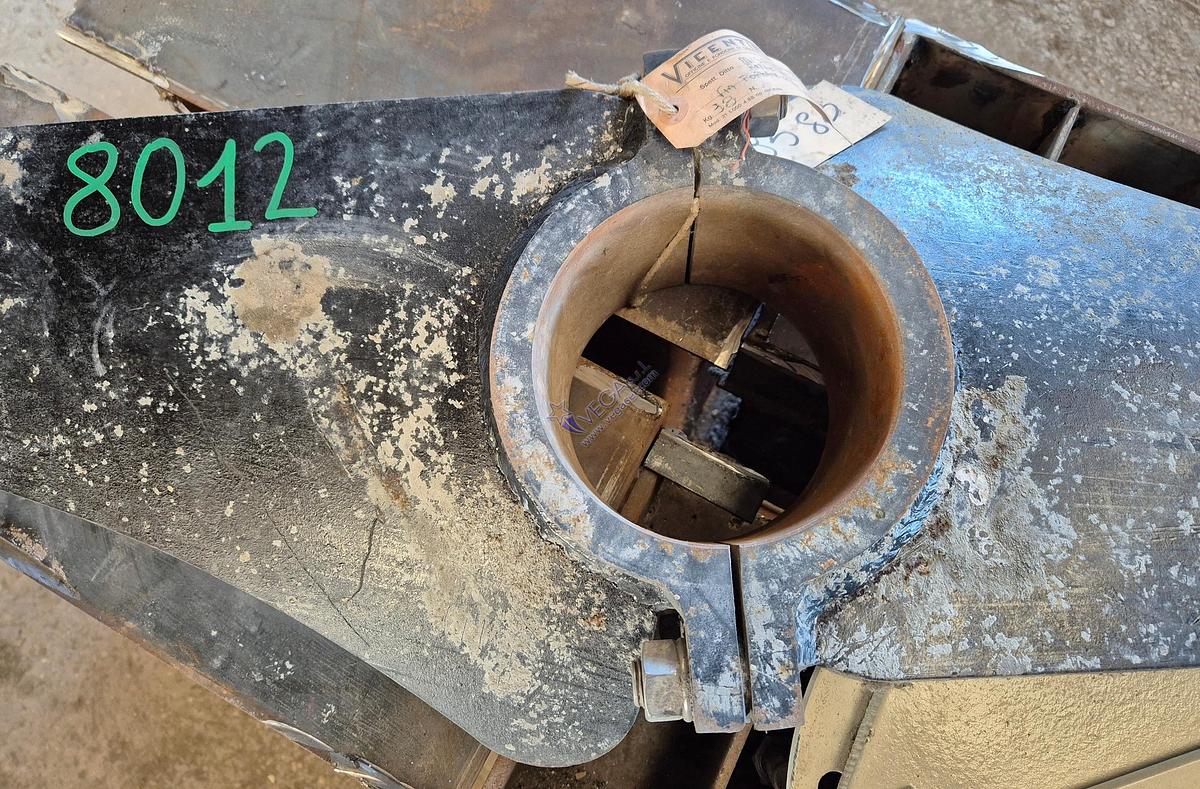

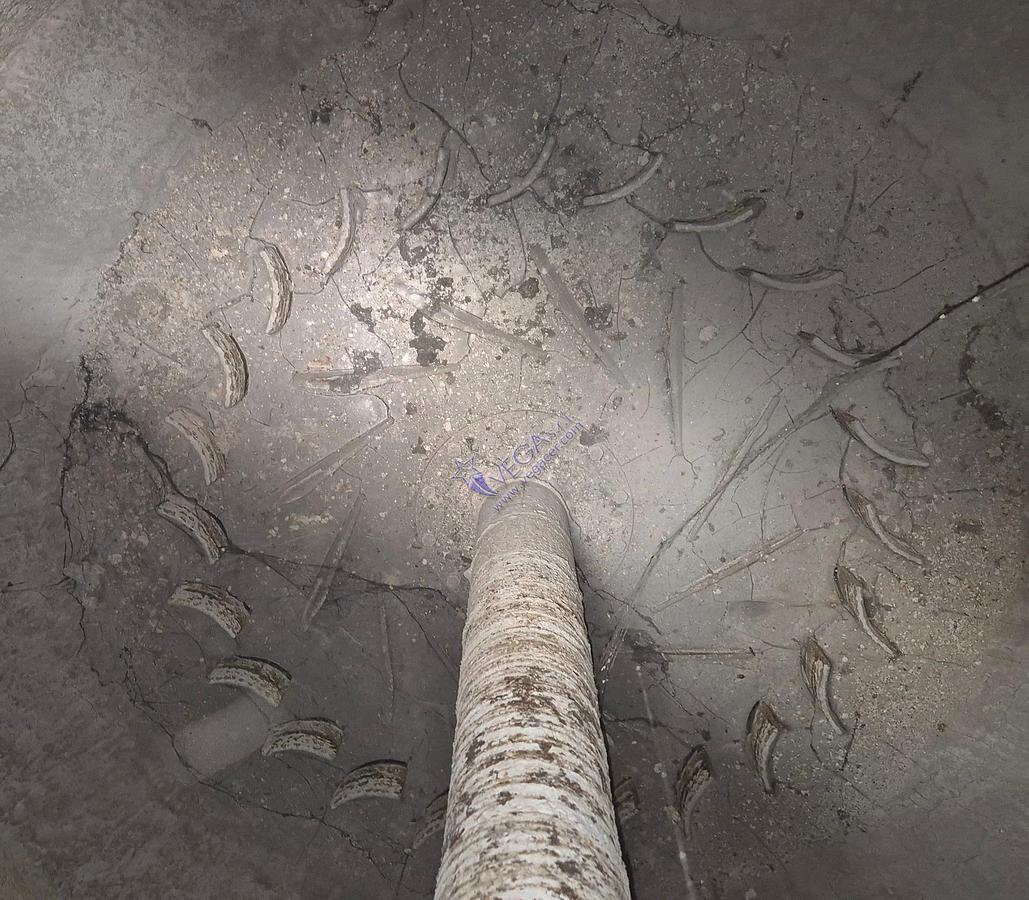

The tank, with a useful capacity of 5 m³ and a total capacity of 6.8 m³, features a bottom made of anti-abrasive hard steel, ensuring excellent wear resistance and long-lasting reliability. The rotor, also in anti-abrasive hard steel, has a diameter of 1000 mm and a speed of 140 rpm, and is in as-new condition, as are the fixed paddles.

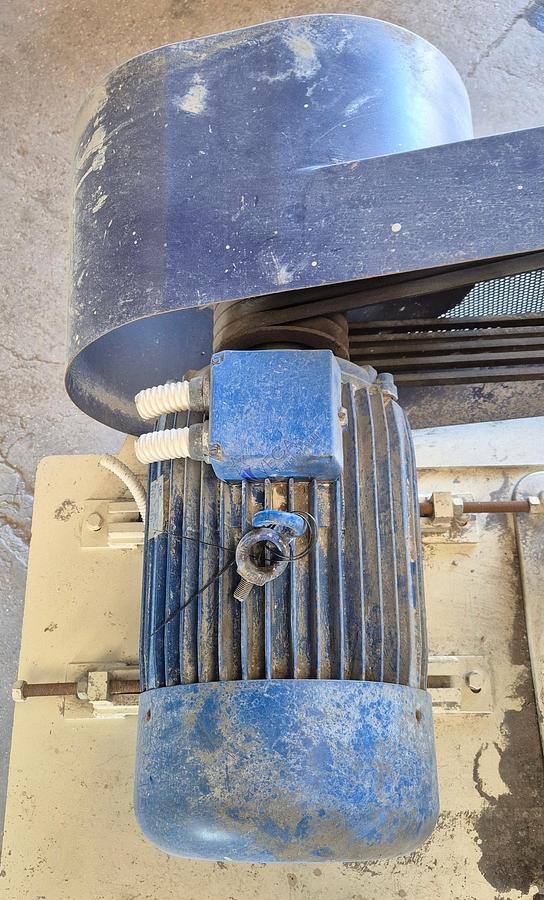

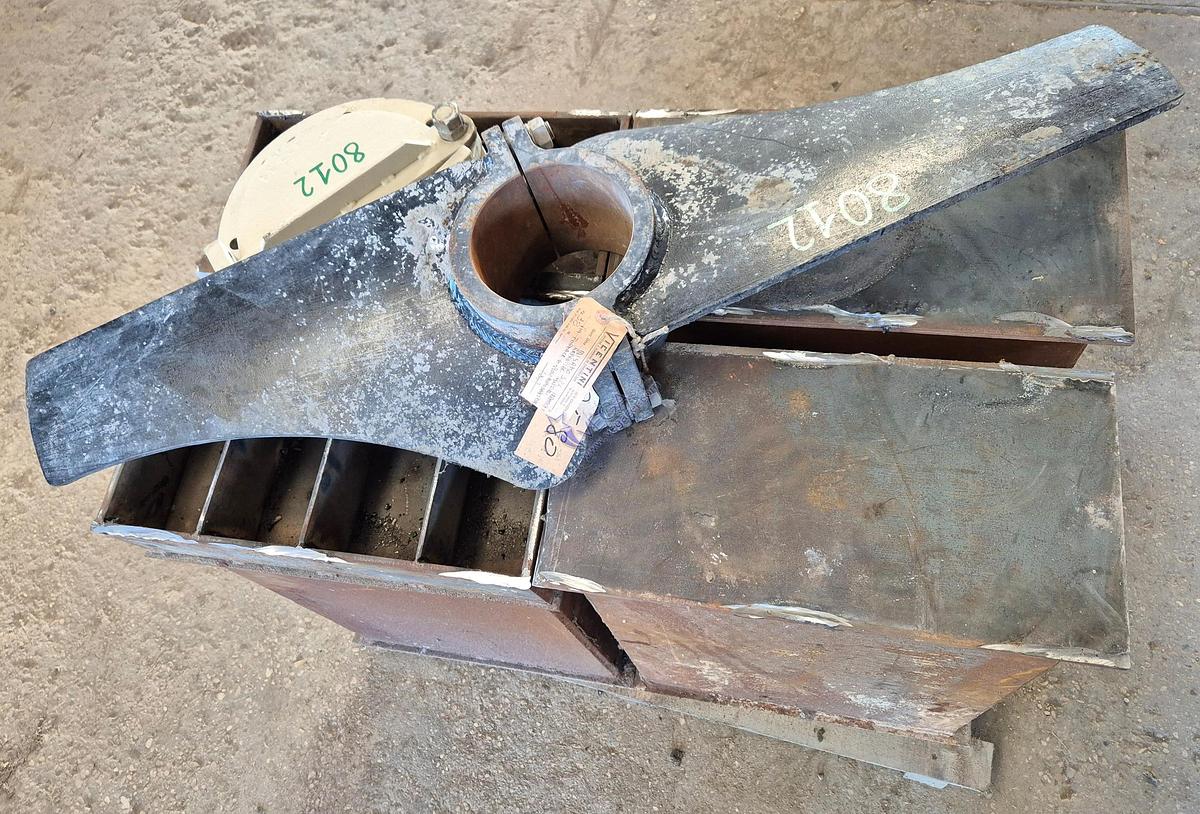

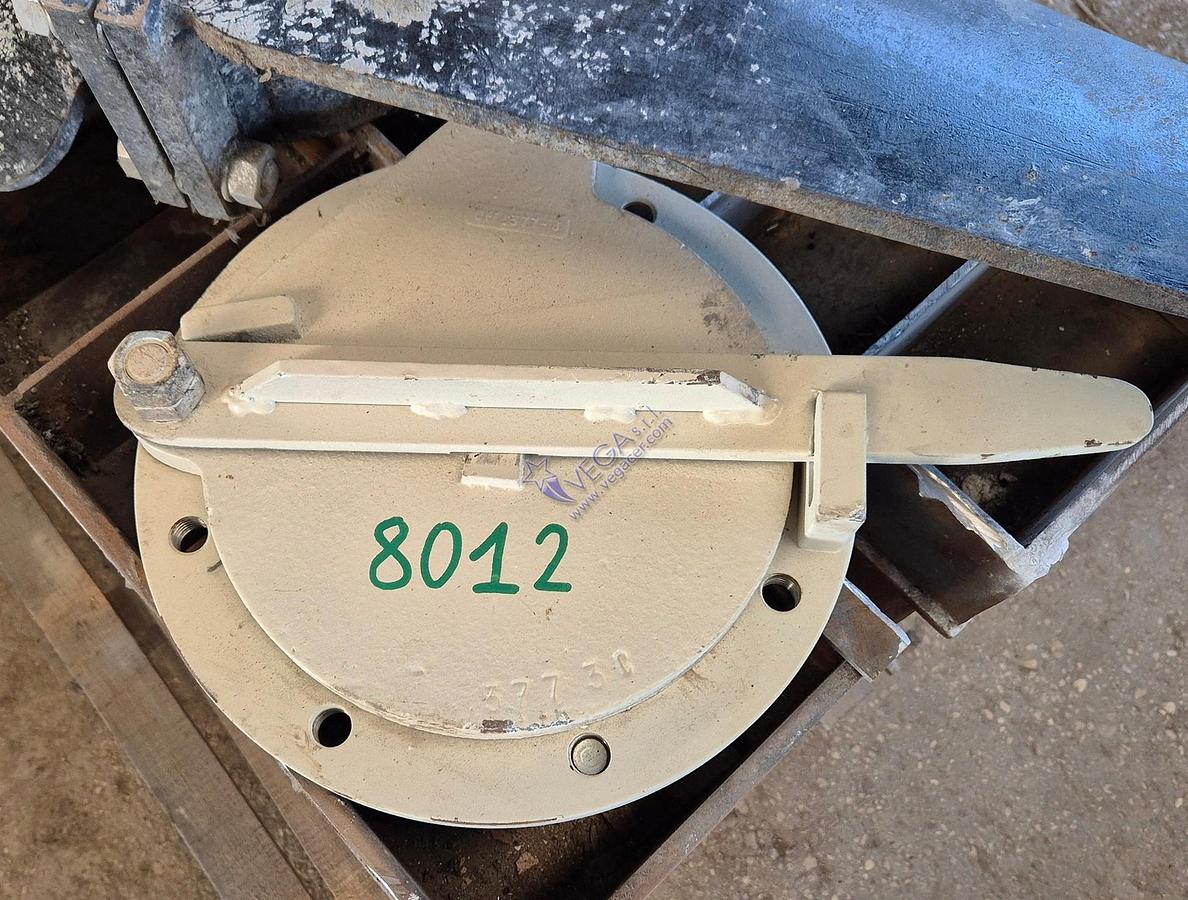

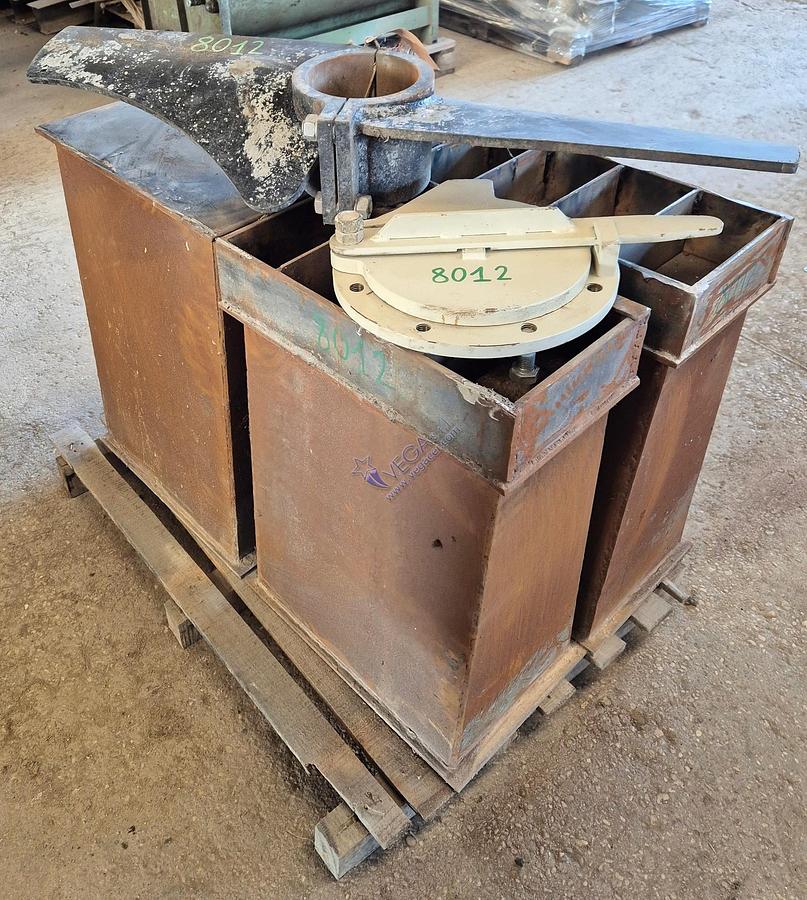

The heavy duty blunger is complete with a brand new auxiliary impeller (never mounted) with a diameter of 1100 mm, a 3-inch ball discharge valve, and support legs with a height of 690 mm. It is powered by a 37 kW motor, 400 V, 50 Hz, three-phase.

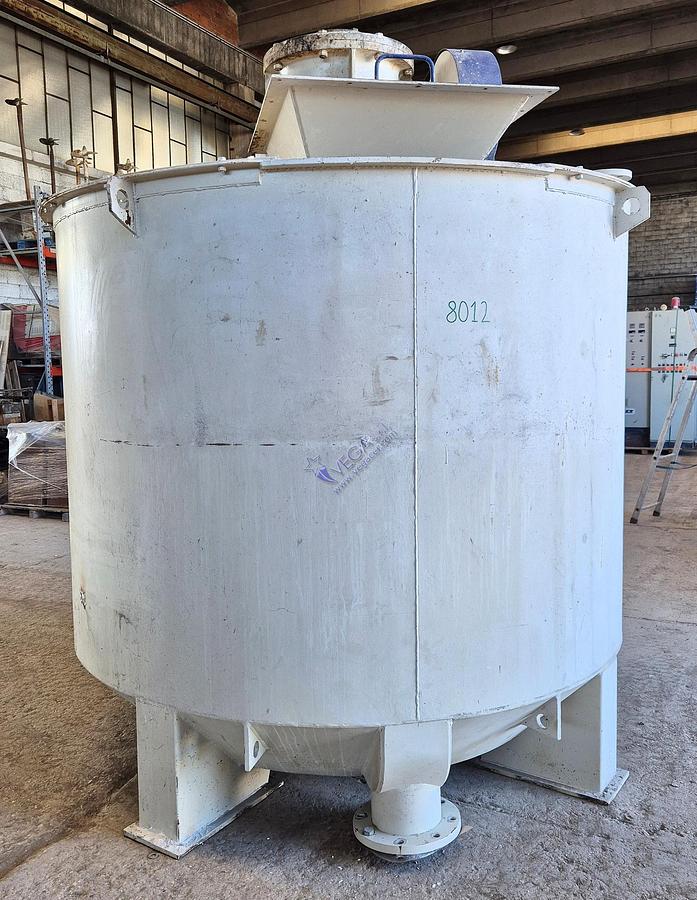

The total weight of the machine is 3600 kg, and its overall dimensions are 2430 x 2830 mm (diameter x height).
Specifications
| Manufacturer | VICENTINI |
| Model | mod. TD 5000 |
| Condition | Used |
| Stock Number | 8012 |
| Bottom tank material | anti-abrasive hard steel |
| Tank useful capacity m3 | 5 |
| Tank total capacity m3 | 6,8 |
| Tank internal dimensions (diameter) x (height) mm | 2200 x 1900 |
| Rotor condition | as new |
| Rotor material | anti-abrasive hard steel |
| Rotor diameter mm | 1000 |
| Rotor speed rpm | 140 |
| Fixed paddles condition | as new |
| Fixed paddles material | anti-abrasive hard steel |

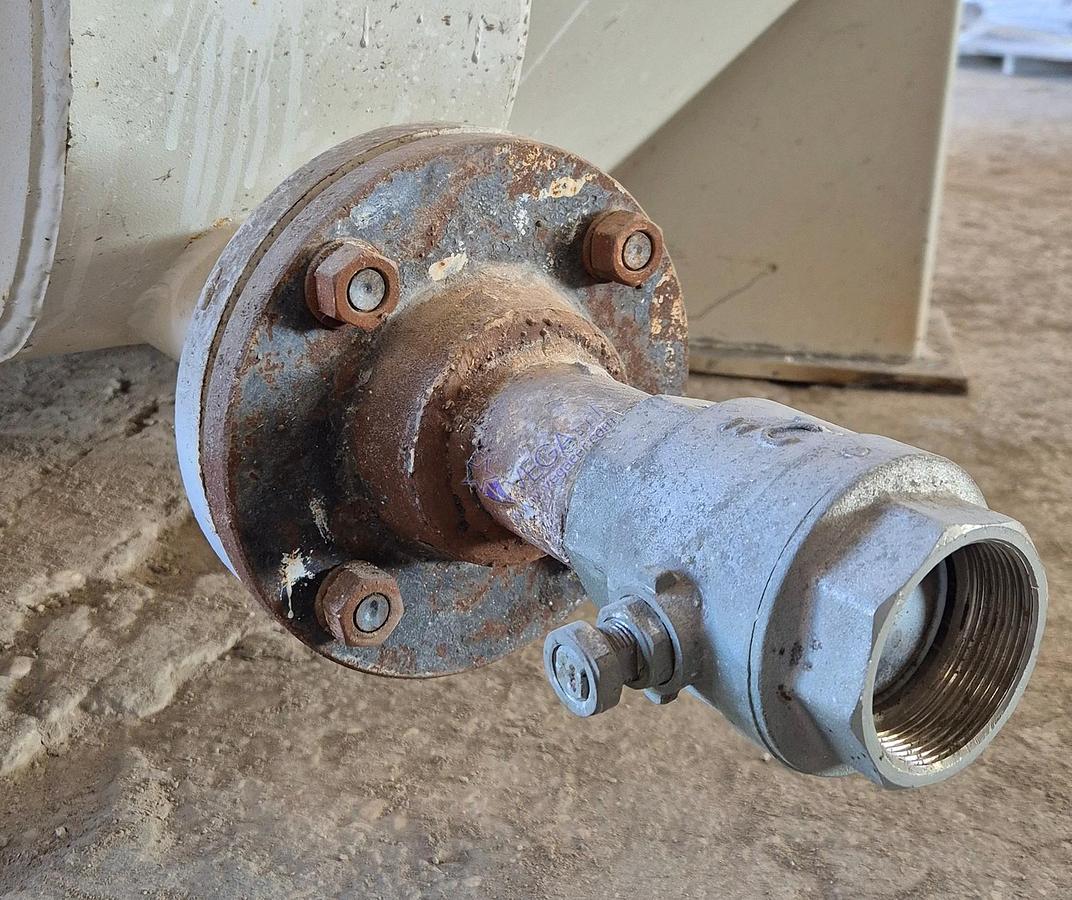

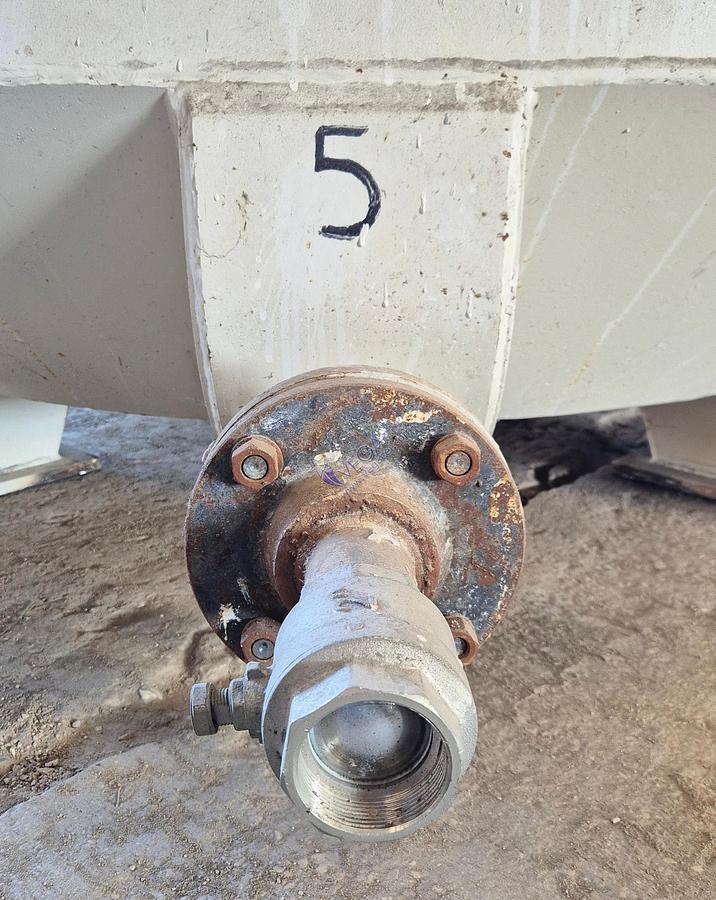

| Discharge valve | 3 inch ball valve |
| Complete with auxiliary impeller | YES |
| Auxiliary impeller condition | new, never mounted |
| Auxiliary impeller diameter mm | 1100 |
| Complete of support legs | YES |
| Support legs height mm | 690 |

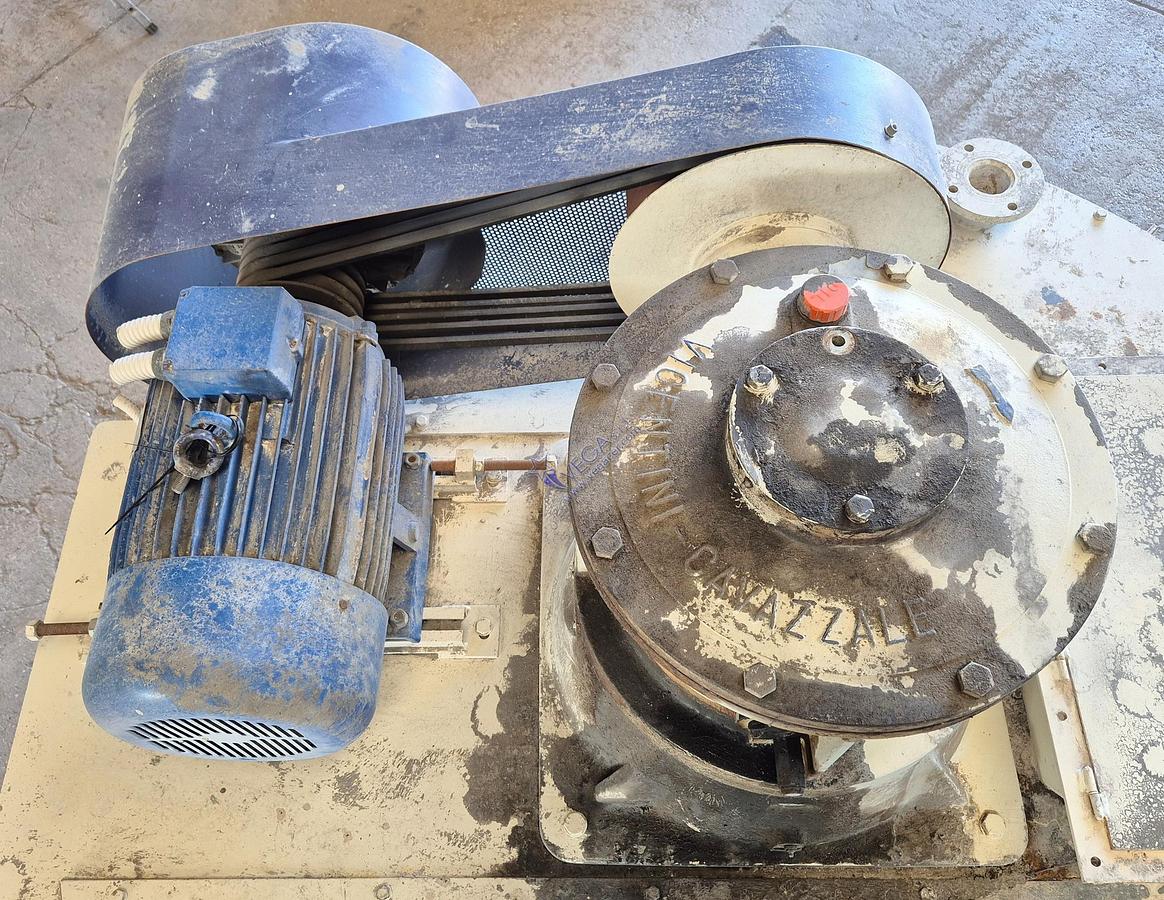

| Power kW | 37 |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Weight Kg | 3600 |
| Heavy duty blunger overall dimensions (diameter) x (height) mm | 2430 x 2830 |
