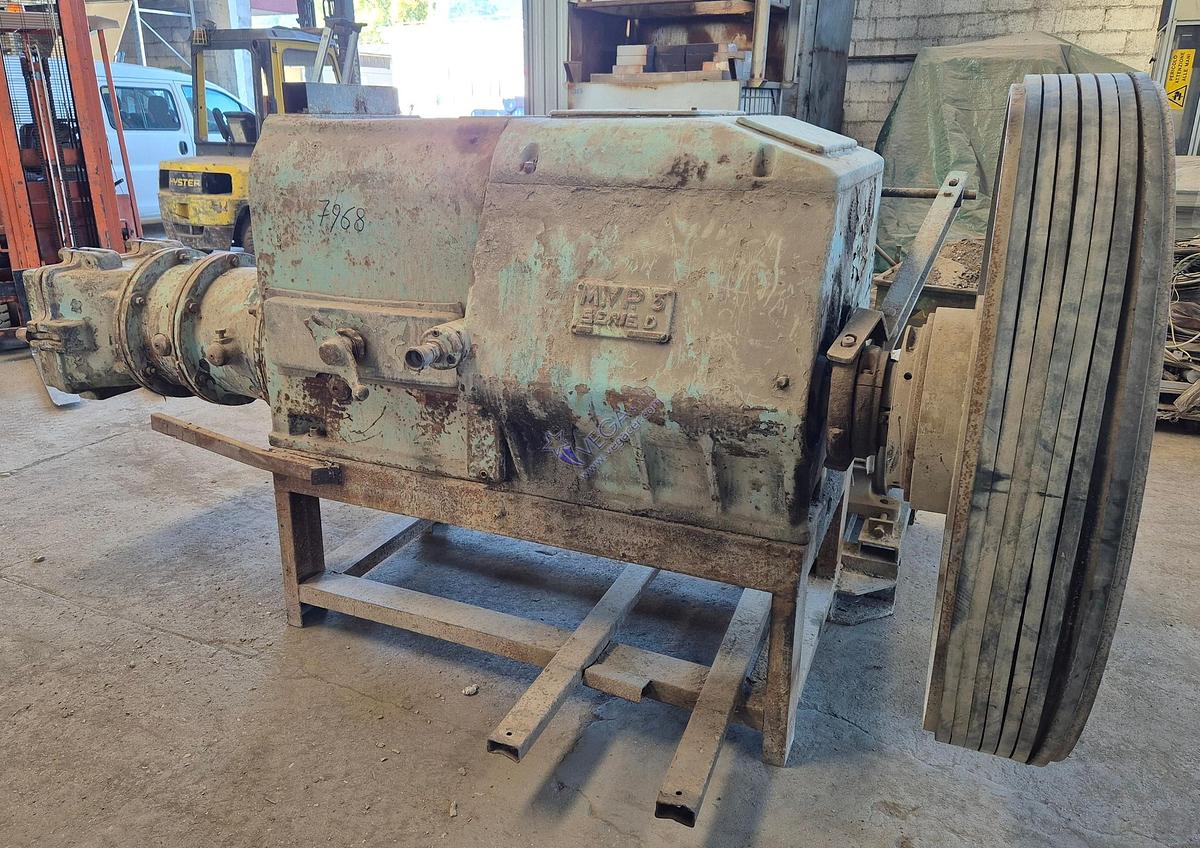

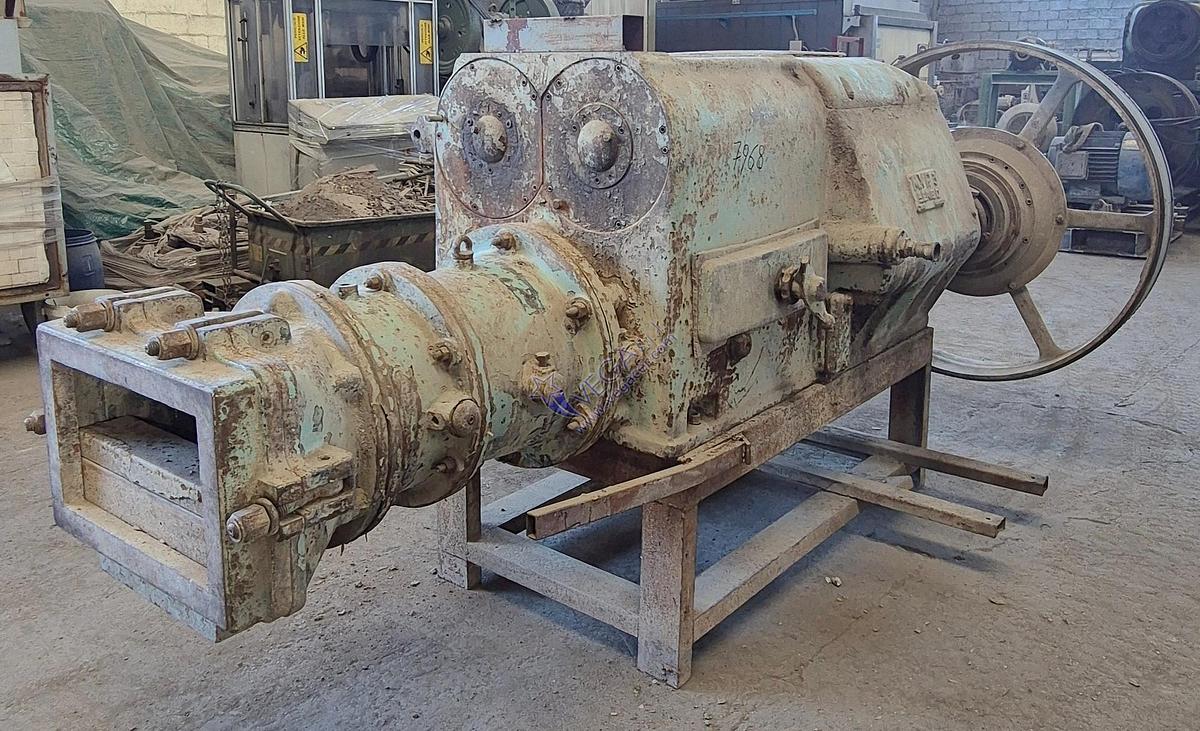

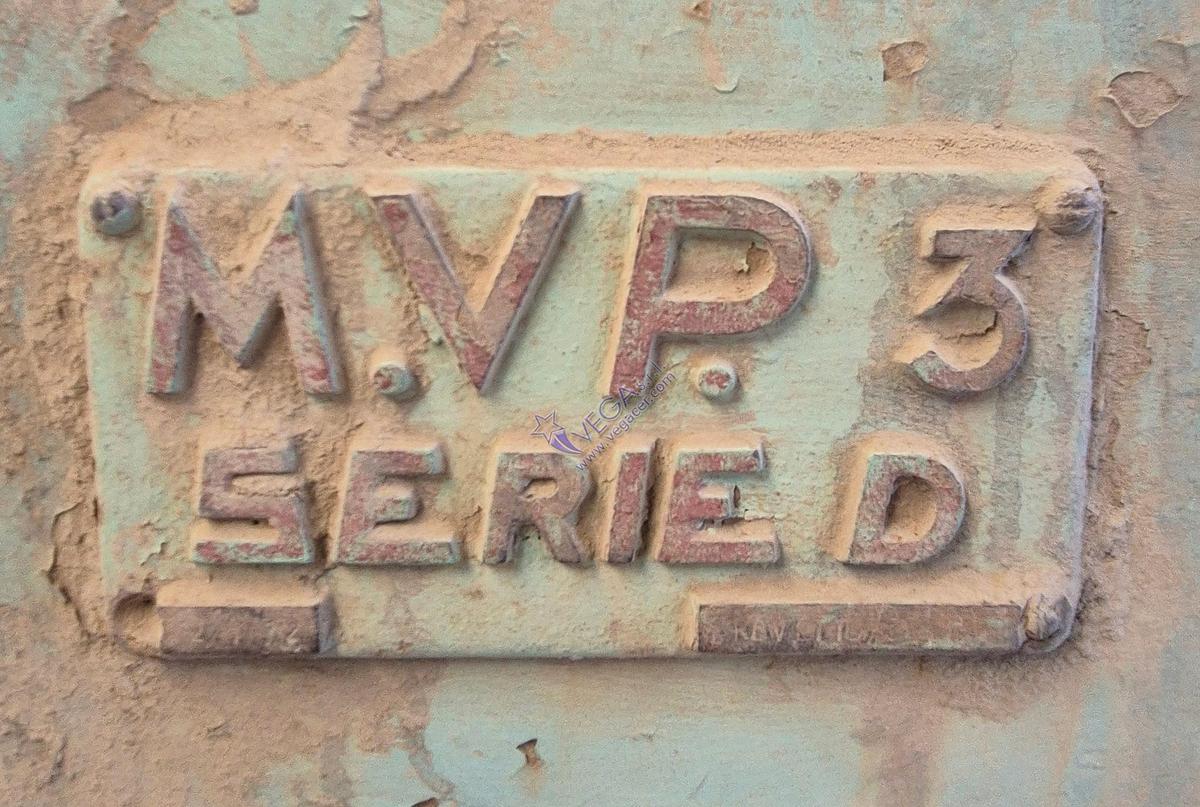

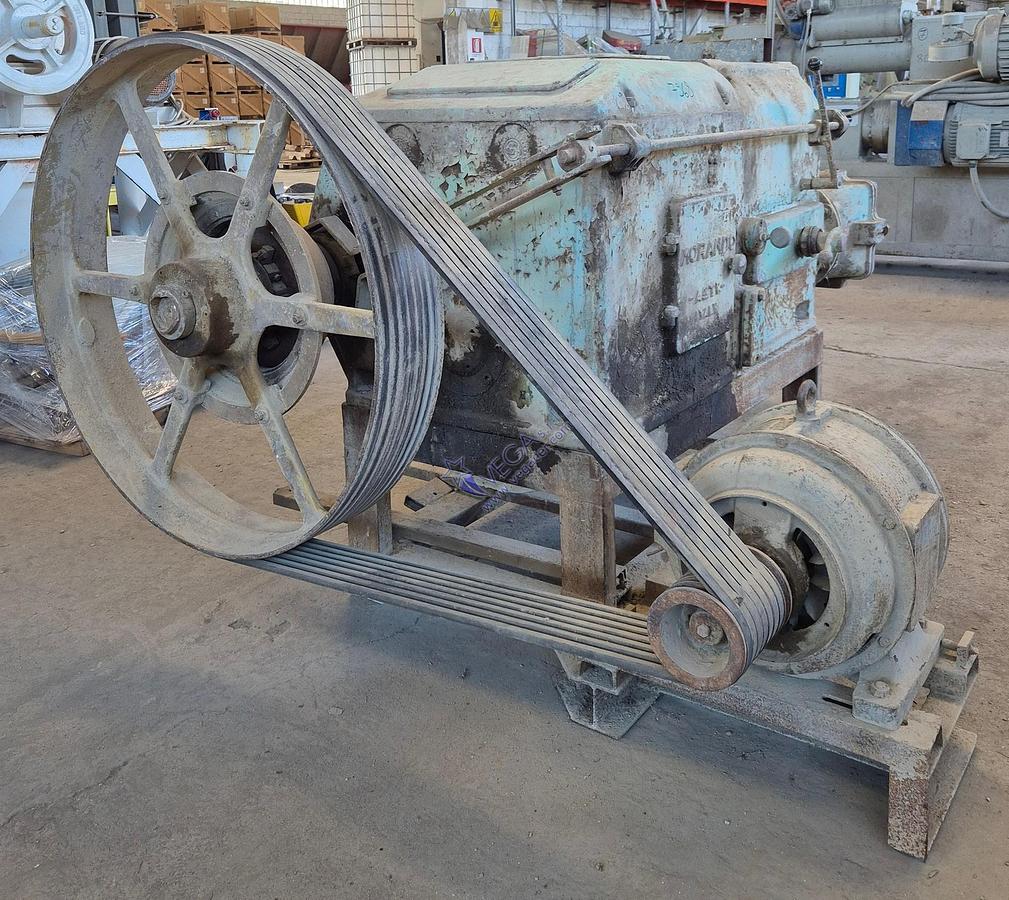

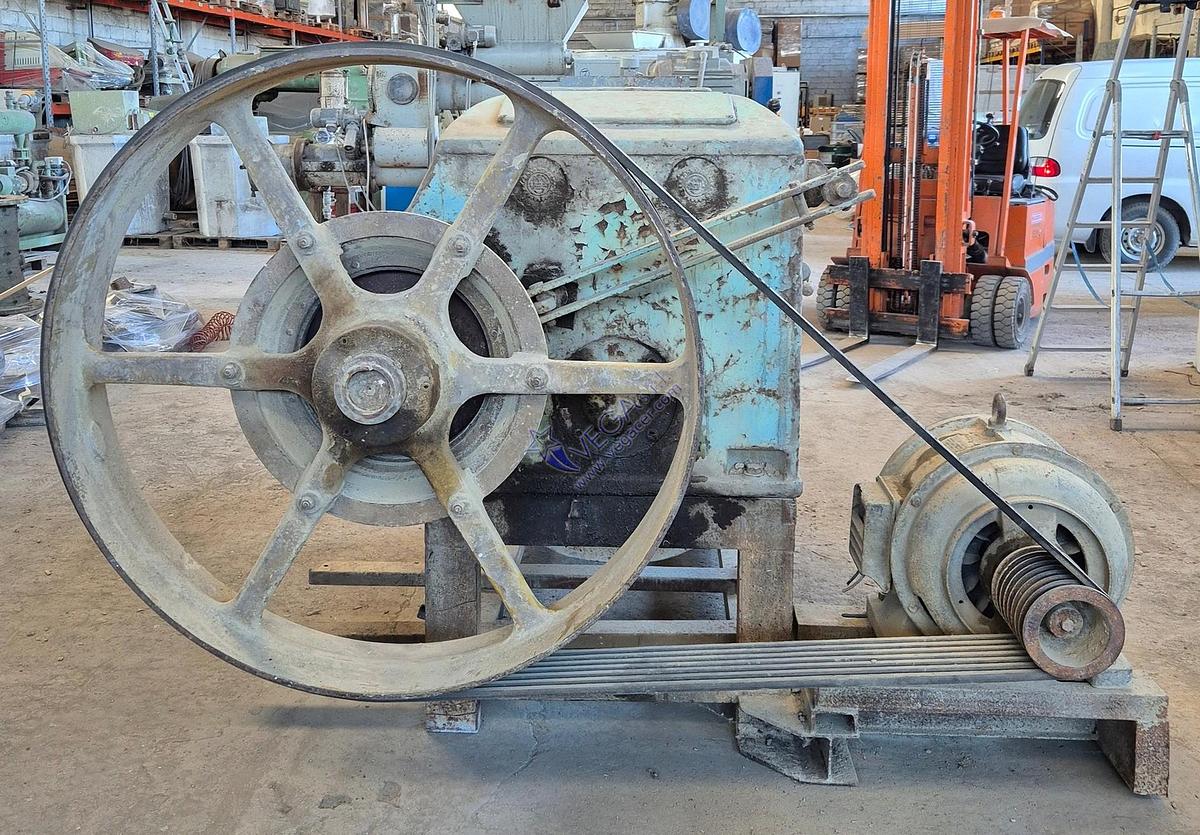

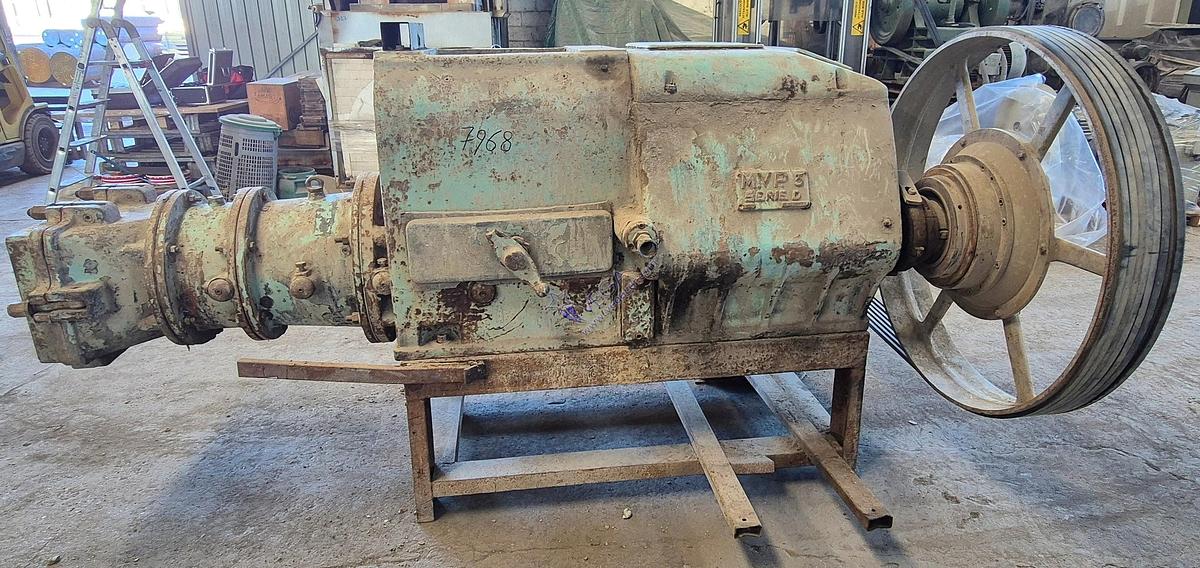

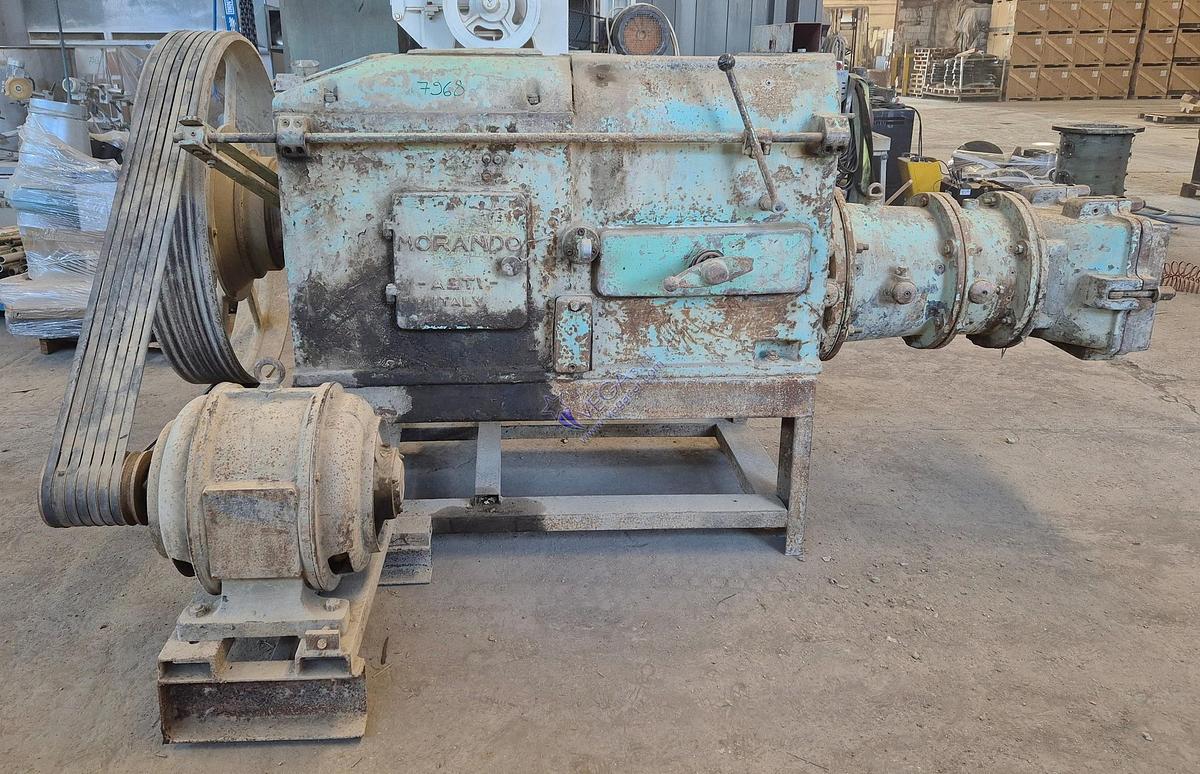

Extruder MORANDO mod. MVP 3 series D
Extruder MORANDO mod. MVP 3 series D
Location:Caldogno, Italy
Description

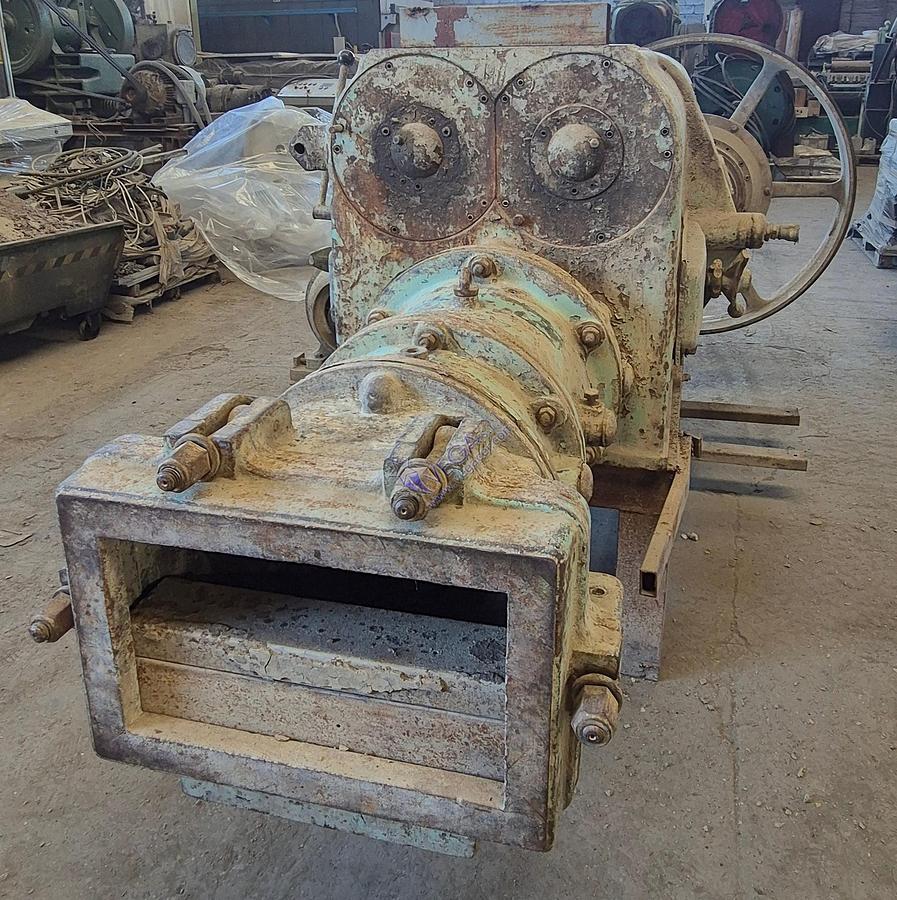

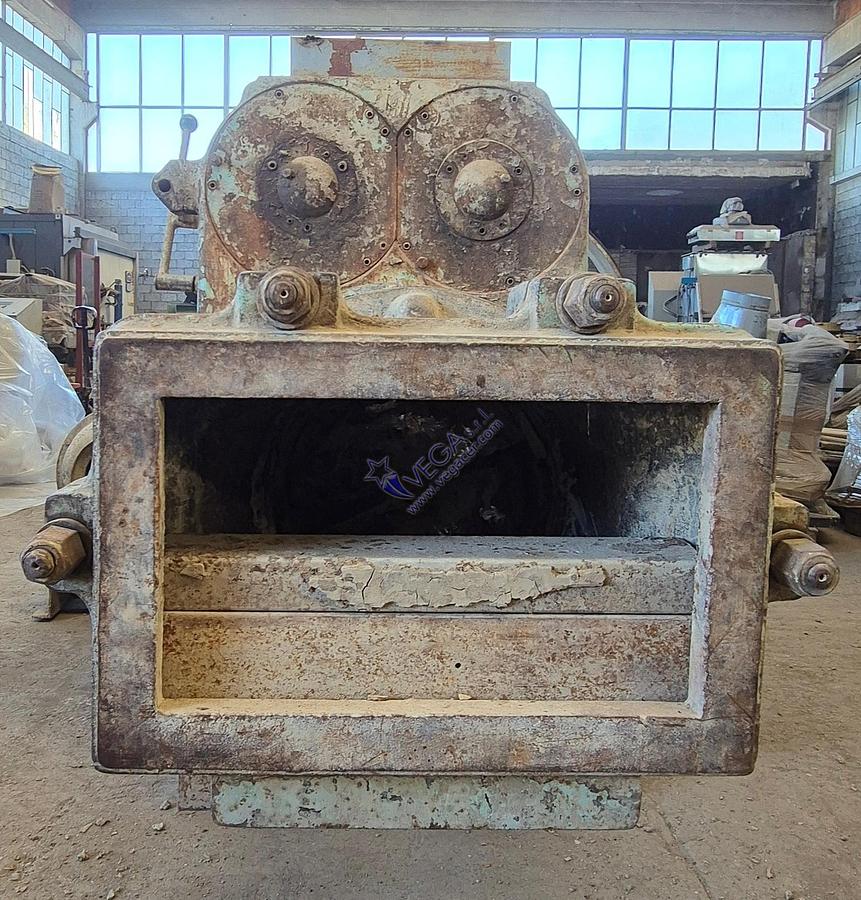

The extruder MORANDO mod. MVP 3 series D is designed for ceramic extrusion, ensuring an indicative production rate of 12–15 kg/h. The 350 mm exit auger diameter provides reliable material conveying through the die holder mouth, supplied complete, with useful dimensions of 480 x 280 mm, suitable for the production of different extruded shapes.
The machine is equipped with a DVP oil vacuum pump, featuring a nominal capacity of 60 m³/h, essential to improve material density and product quality by eliminating residual air during processing.

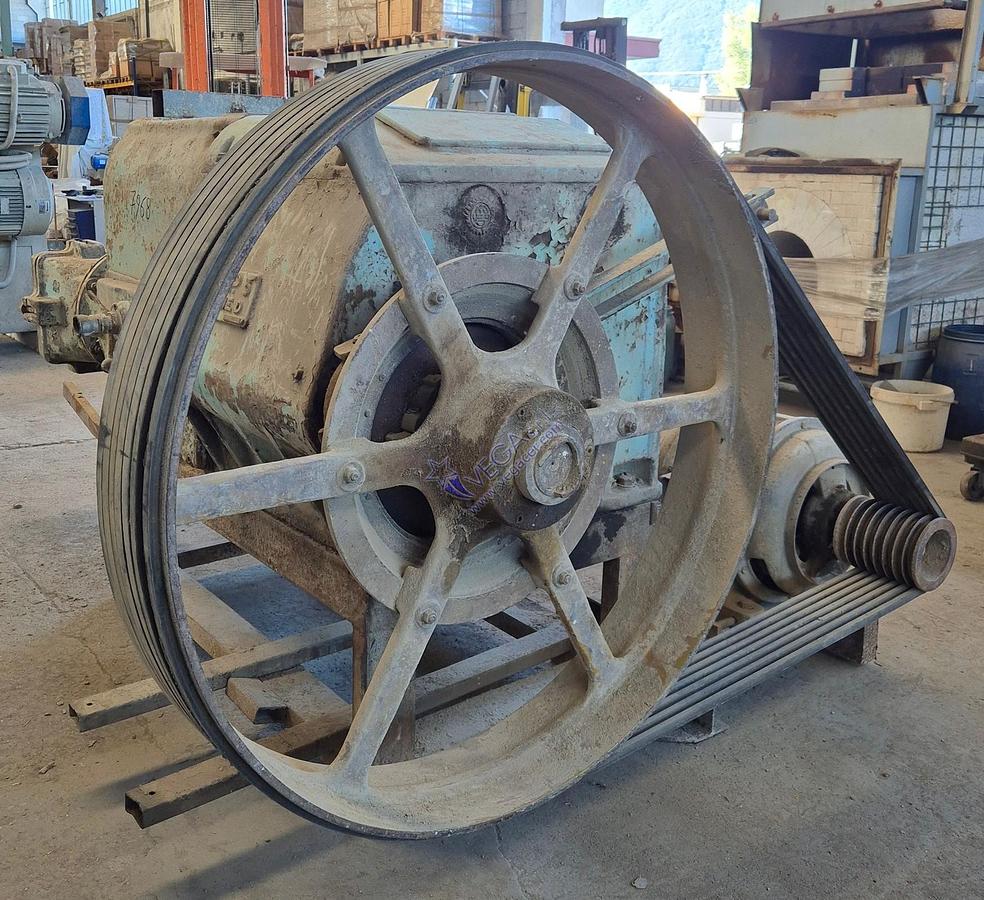

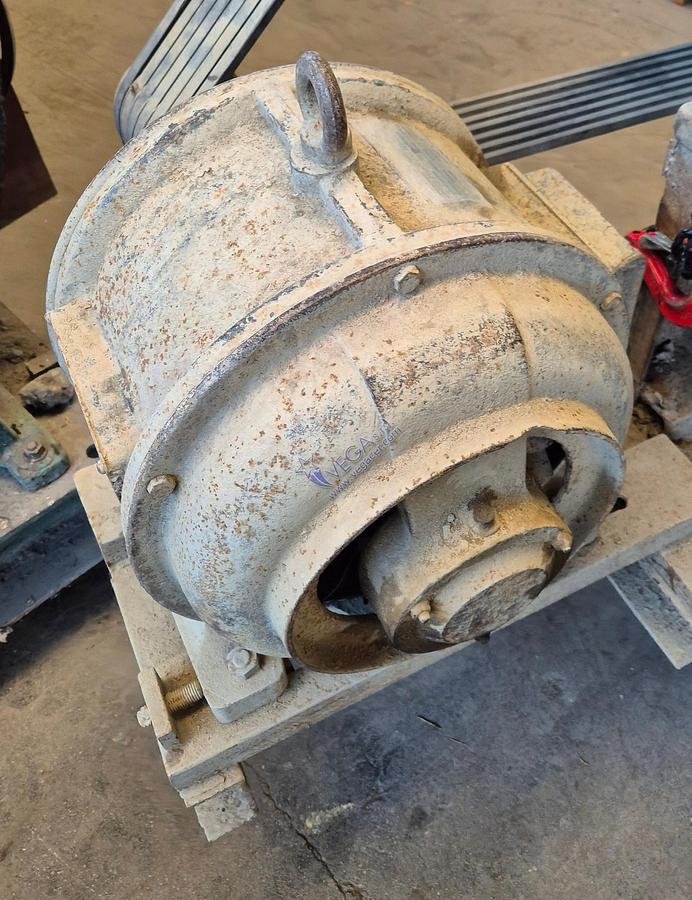

It is powered by a 40 HP motor, operating at 400 V, 50 Hz, three-phase, and features a strong industrial-grade structure suitable for continuous production cycles.
The overall dimensions when installed are 2200 (width) x 3050 (lenght) x 1560 (height) mm.

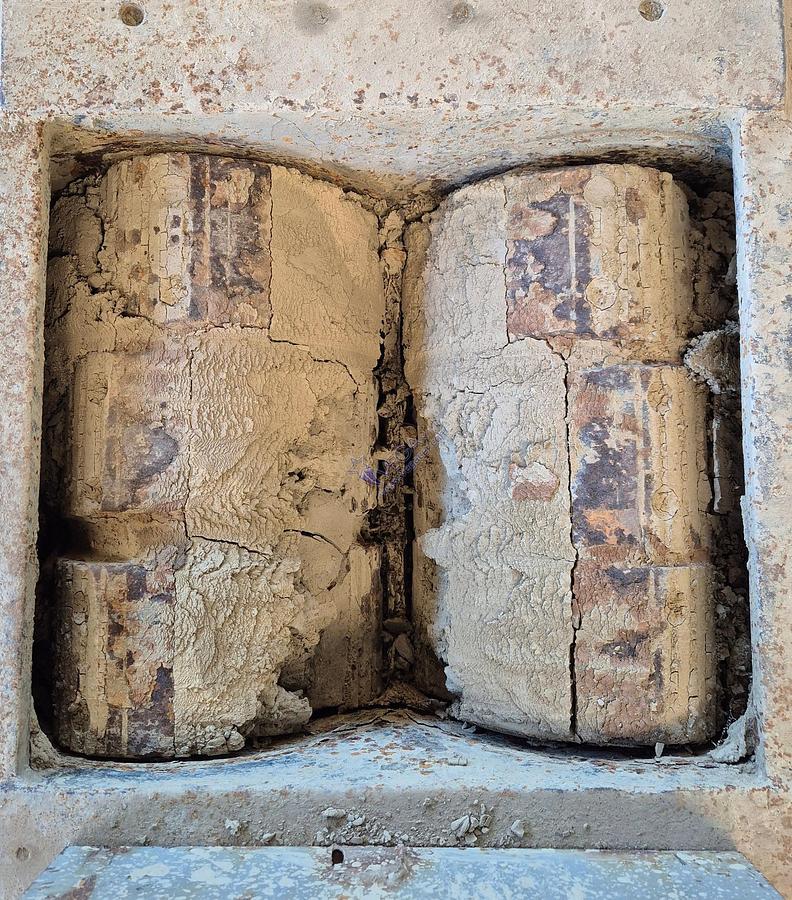

Attention! Before use, the extruder must be completely emptied, as the material currently inside is dry.
Specifications
| Manufacturer | MORANDO |
| Model | mod. MVP 3 series D |
| Condition | Used |

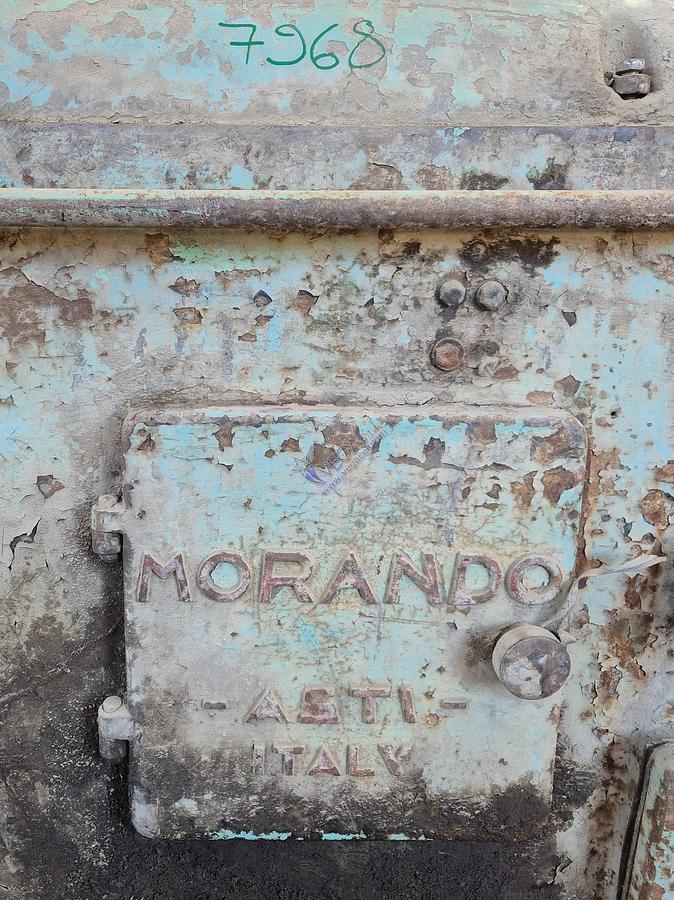

| Stock Number | 7968 |
| Indicative production kg/h | 12/15 |
| Exit auger diameter mm | 350 |
| Complete of vacuum pump | YES |
| Vacuum pump brand | DVP |
| Vacuum pump type | oil vacuum pump |
| Vacuum pump nominal capacity m3/h | 60 |
| Complete with die holder mouth | YES |
| Die holder mouth useful dimensions (width) x (height) mm | 480 x 280 |
| Extruder motor power HP | 40 |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Extruder overall dimensions when installed (width) x (lenght) x (height) mm | 2200 x 3050 x 1560 |
| Attention!!! | Before use the extruder must be completely emptied as the material inside is dry |
