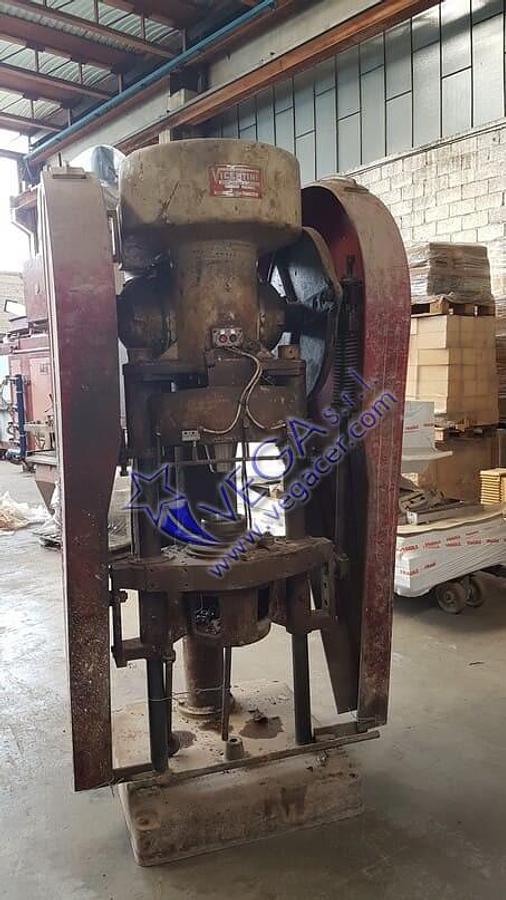

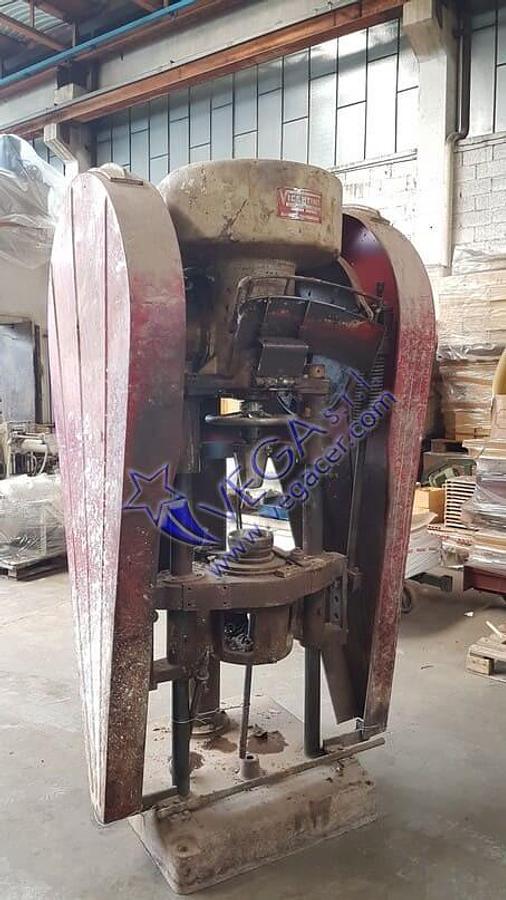

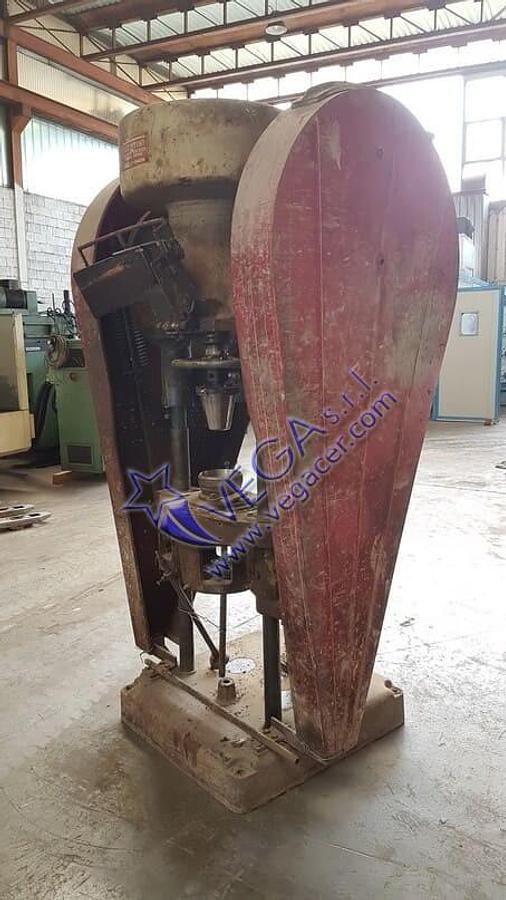

Rotary press VICENTINI mod. FULGOR 240
Rotary press VICENTINI mod. FULGOR 240
Location:Veneto, Italy
Description
The rotary press VICENTINI mod. FULGOR 240 is a machine designed for the pressing of products using metal moulds, particularly suitable for productions requiring precision, repeatability, and operational continuity.
The press allows the manufacturing of unfired products with maximum dimensions of 240 mm in diameter and 280 mm in height, while the minimum workable diameter is 40 mm, ensuring versatility in production types.
The structure features a distance between columns of 480 mm and a useful stroke of the moving floor of 700 mm, providing adequate working capacity and flexibility during pressing operations.

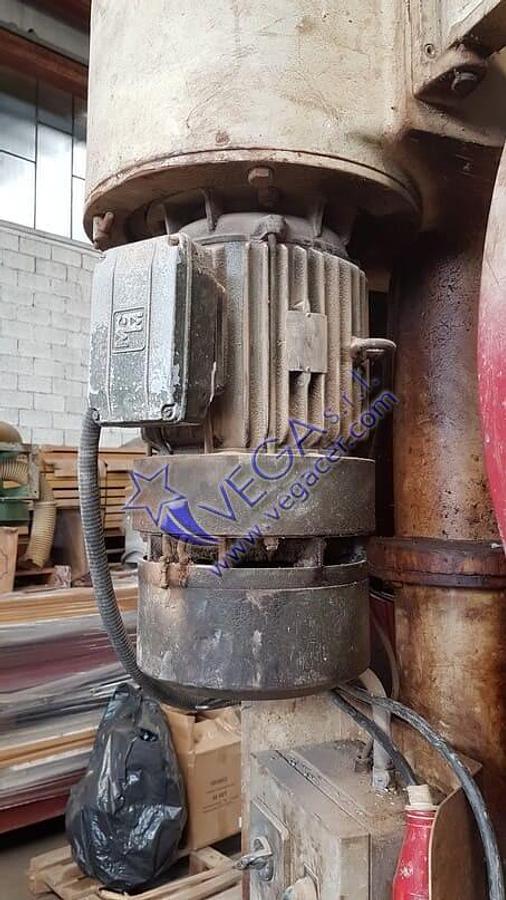

The machine is equipped with a 7.5 kW motor and operates with a 400 V / 50 Hz – three-phase power supply, a standard configuration for industrial use. The total weight is 1300 kg, confirming its solid construction.
The overall dimensions are 1000 x 1200 x 2200 mm (width x length x height), making the press suitable for installation in properly structured production departments.
A reliable solution for production lines dedicated to metal mould pressing in the ceramic and related industries.
Specifications
| Manufacturer | VICENTINI |
| Model | mod. FULGOR 240 |
| Condition | Used |
| Stock Number | 5012 |
| Press type | rotary press for metal moulds |
| Max. dimensions of unfired object (diameter) x (height) mm | 240 x 280 |
| Min. diameter of unfired object mm | 40 |
| Distance between columns mm | 480 |
| Useful stroke of the moving floor mm | 700 |
| Power kW | 7,5 |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Weight kg | 1300 |
| Rotary press overall dimensions (width) x (length) x (height) mm | 1000 x 1200 x 2200 |
