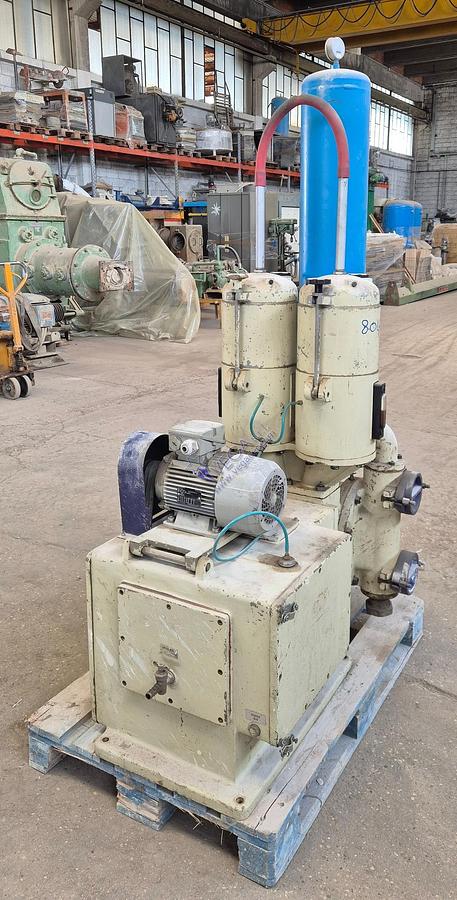

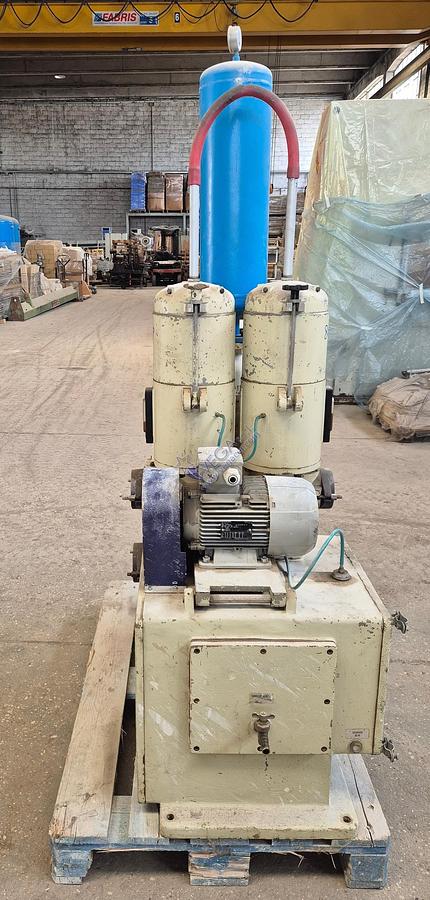

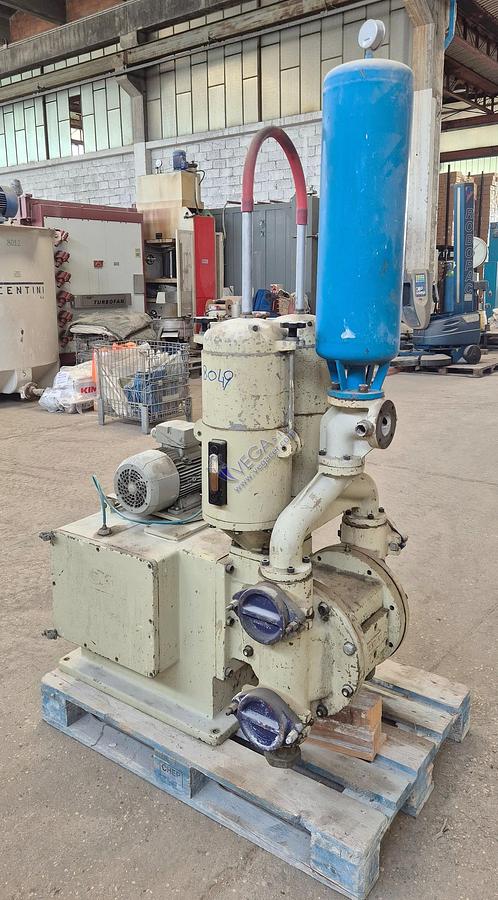

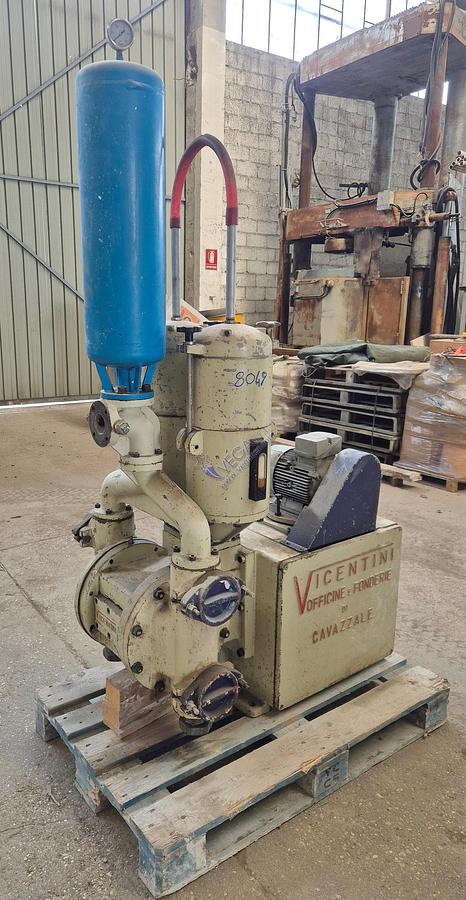

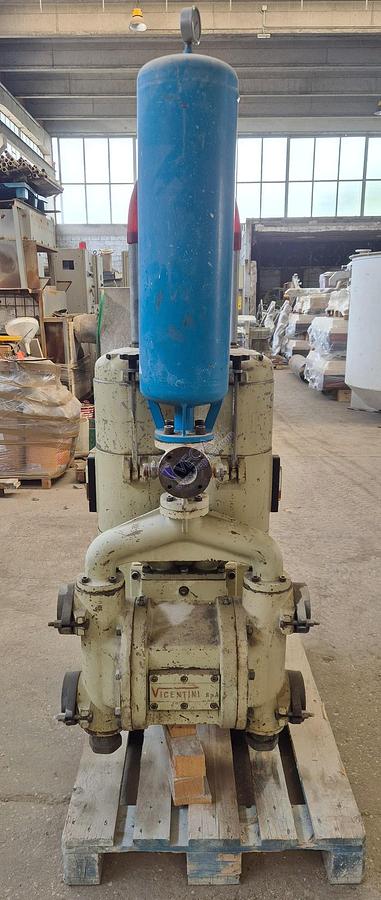

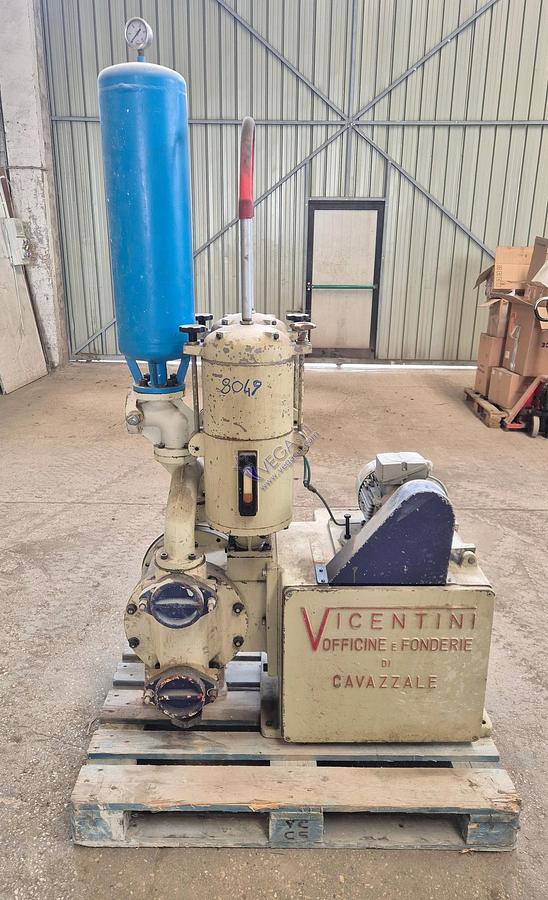

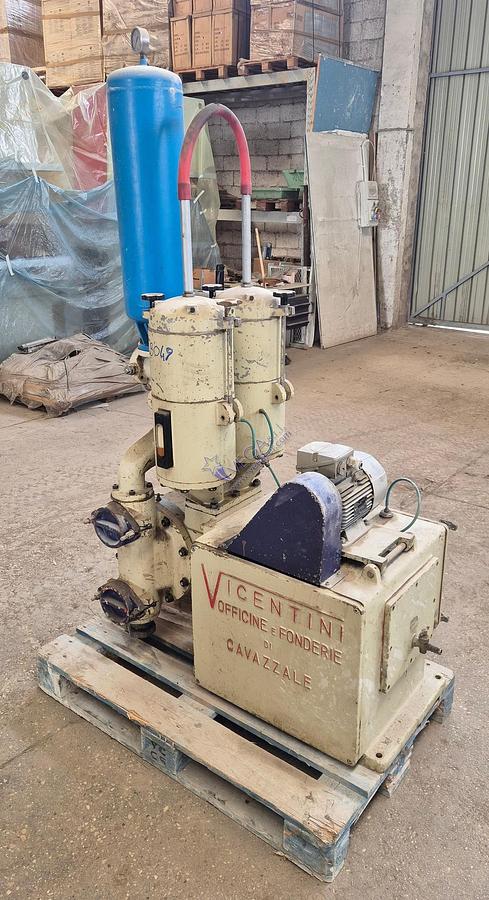

Diaphragm pump VICENTINI mod. PM 2000 DUPLEX
Diaphragm pump VICENTINI mod. PM 2000 DUPLEX
Location:Veneto, Italy
Description
The electric diaphragm pump VICENTINI mod. PM 2000 DUPLEX is designed for industrial applications requiring high working pressure, continuous operation, and reliable fluid transfer performance.
The machine provides a nominal delivery capacity of 5000 lt/h and is designed to operate with a maximum working pressure of 18 bar, making it suitable for various industrial plants and production processes. The structure is equipped with two pistons, a configuration that improves flow regularity and overall operating performance.
The pump is also complete with lung damper, an important component that helps reduce pulsations and ensures a more stable material flow during operation.
Installed power is 3 kW, with a 400 V / 50 Hz – three-phase power supply. The total weight is approximately 750 kg, confirming the robust construction of the machine.
The overall dimensions are 740 x 1150 x 1950 mm (width x length x height), allowing integration into different plant layouts.
Attention: the pump is supplied with new diaphragm, new balls, new ball seats, new piston basket, new oil, and new belts, ensuring optimal operating conditions before commissioning.
Specifications
| Manufacturer | VICENTINI |
| Model | mod. PM 2000 DUPLEX |
| Condition | Refurbished |
| Stock Number | 8049 |
| Pump nominal delivery lt/h | 5000 |
| Max. working pressure bar | 18 |
| N° of pistons | 02 |
| Complete of lung damper | YES |
| Power kW | 3 |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Weight Kg | 750 |
| Electric diaphragm pump overall dimensions (width) x (lenght) x (height) mm | 740 x 1150 x 1950 |
| Attention!!! | diaphgram pump supplied with new diaphragm, new balls, new balls seats, new piston basket, new oil and new belts |
