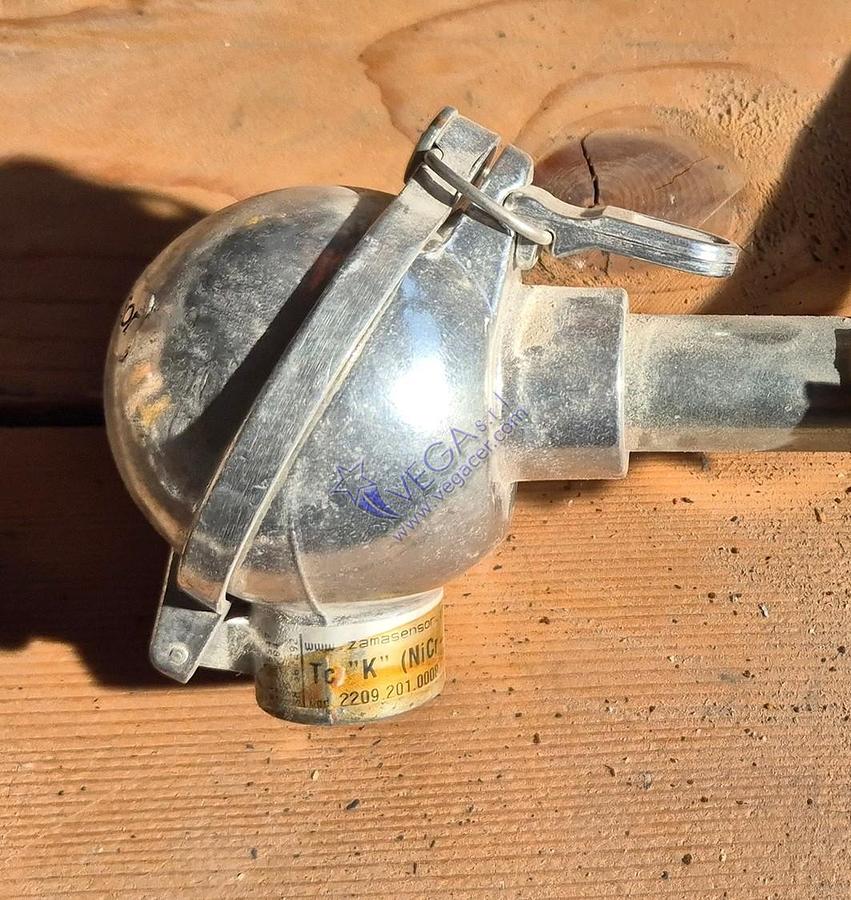

Single thermocouple ZAMA type K

The single thermocouple ZAMA type K is designed for temperature measurement and control in kilns and thermal plants, ensuring reliability, accuracy, and ease of installation.

The thermocouple features a single type K configuration, one of the most widely used thermocouple types in industrial applications thanks to its versatility and ability to operate over a wide temperature range. It is suitable for operating temperatures up to 1100°C, making it ideal for numerous thermal processes in the ceramic and industrial sectors.

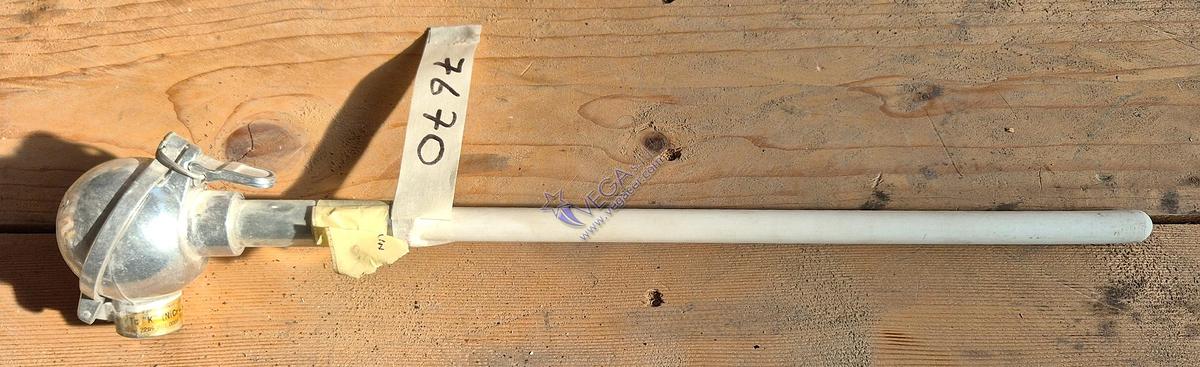

The probe is equipped with a ceramic sheath measuring 15 x 315 mm (diameter x length), which protects the sensing element from high temperatures and the demanding operating conditions typically found in kilns. It is also complete with a metal protection tube measuring 20 x 75 mm (diameter x length), facilitating installation and fixing of the thermocouple to the equipment.

Thanks to its robust construction and compact dimensions, this thermocouple represents a reliable solution for temperature monitoring in a wide range of industrial applications.
