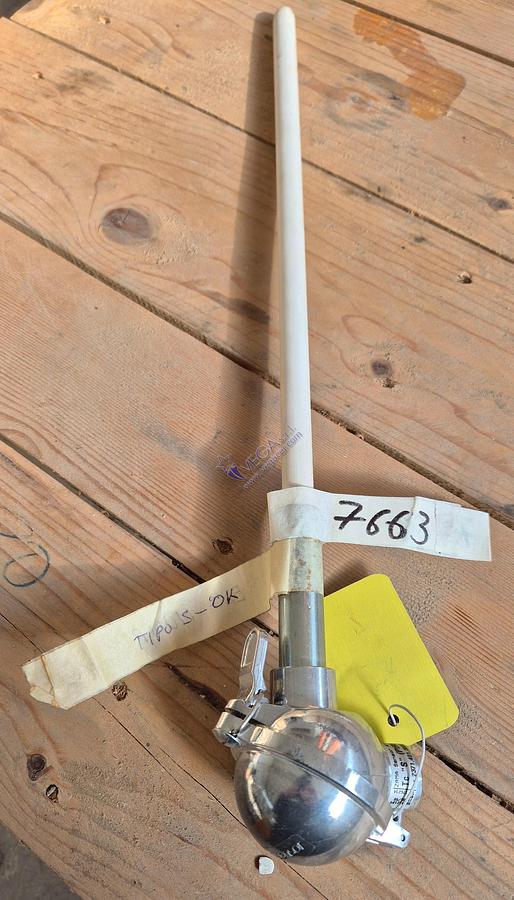

Single thermocouple ZAMA type S

The single thermocouple ZAMA type S is designed for temperature control and monitoring in kilns and industrial thermal systems, providing accurate and reliable measurements even during high-temperature operating cycles. Thanks to the characteristics of type S thermocouples, it is particularly suitable for ceramic applications and processes requiring high measurement stability.

The unit is configured as a single thermocouple and is suitable for operating temperatures up to 1280 °C, allowing accurate monitoring of firing and heat-treatment processes.

The thermocouple is equipped with a ceramic sheath measuring 15 x 380 mm (diameter x length) and a metal protection tube measuring 20 x 75 mm (diameter x length), designed to provide adequate protection for the sensing element under normal operating conditions.

The sensing element features a wire diameter of 0.35 mm, contributing to accurate and stable temperature measurement.

The thermocouple is also supplied complete with SIT certification, confirming the reliability and conformity of its measurement characteristics.
