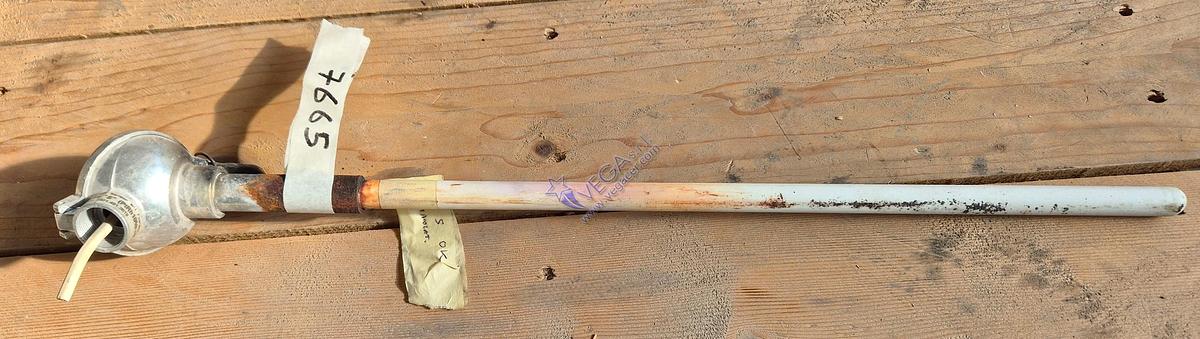

Single thermocouple ZAMA type S

The single thermocouple ZAMA type S is designed for temperature control and monitoring in kilns and industrial thermal systems, providing accurate and reliable measurements even during high-temperature operating cycles. Thanks to the characteristics of type S thermocouples, it is particularly suitable for ceramic applications and processes requiring high measurement stability and accuracy.

The unit is configured as a single thermocouple and is suitable for operating temperatures up to 1280 °C, allowing accurate monitoring of firing and heat-treatment processes.

The thermocouple is equipped with a ceramic sheath measuring 15 x 425 mm (diameter x length), designed to protect the sensing element from high temperatures and demanding operating conditions. It is also complete with a metal protection tube measuring 20 x 75 mm (diameter x length), contributing to the protection and correct positioning of the assembly.

The sensing element features a wire diameter of 0.35 mm, contributing to accurate and stable temperature measurement.

Its construction features make it a suitable solution for industrial applications requiring reliability, durability and accuracy in temperature monitoring.
