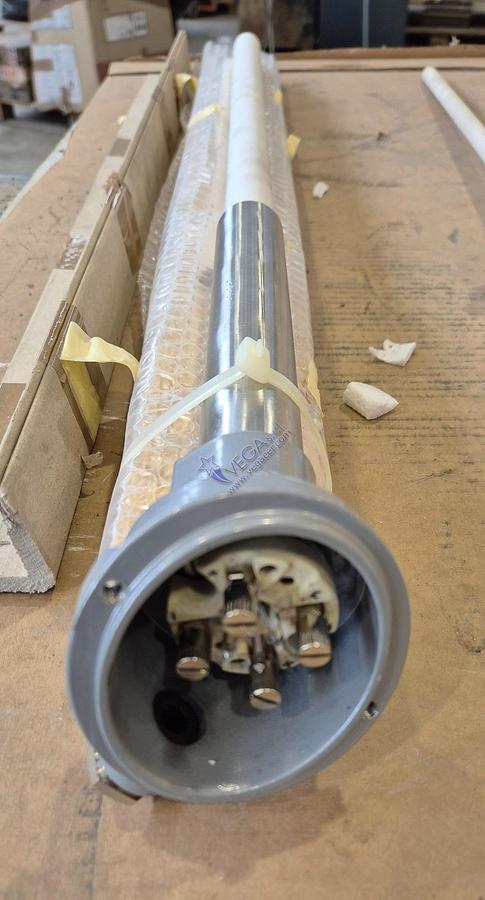

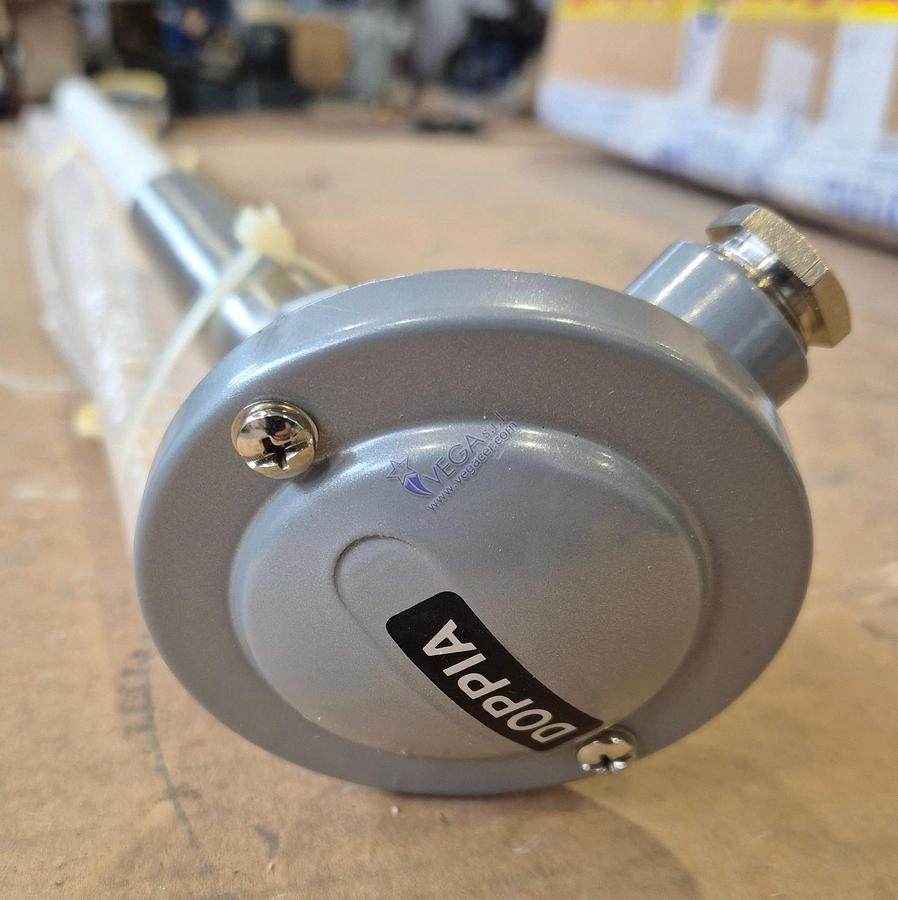

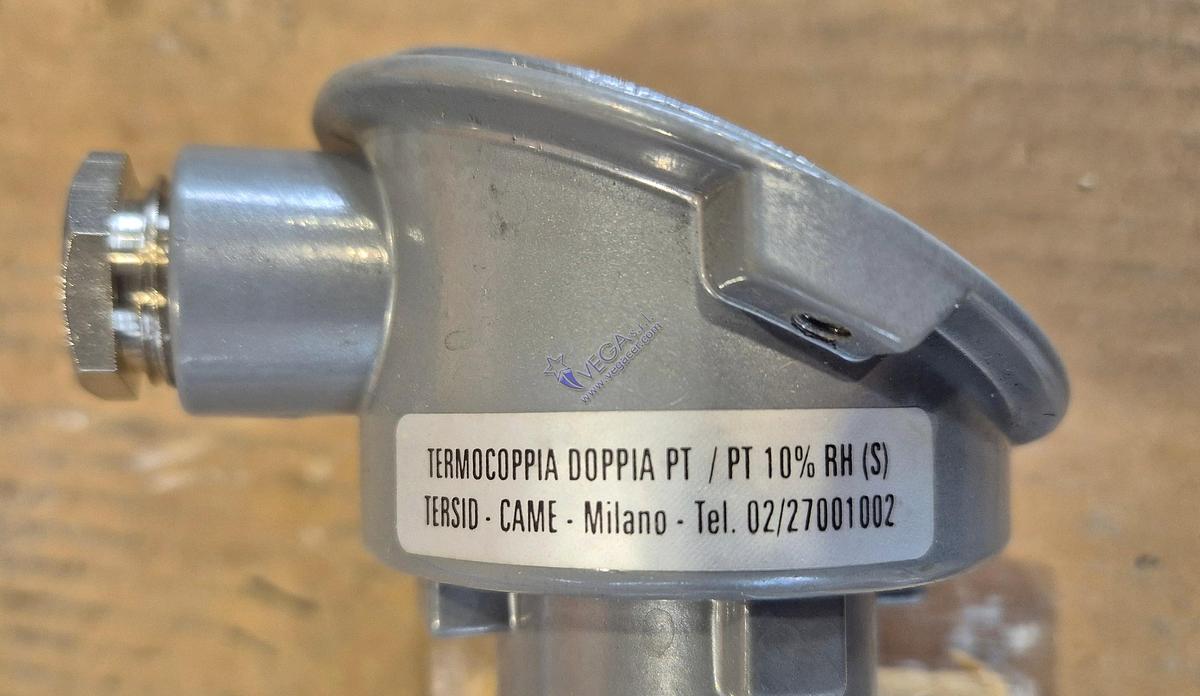

Double thermocouple type S

The double thermocouple type S is designed for temperature control and monitoring in kilns and industrial thermal systems, providing reliable and stable measurement even during high-temperature processes. The double-element configuration allows greater flexibility and continuity in thermal process control.

The unit is configured as a double thermocouple and is suitable for operating temperatures up to 1280 °C, making it particularly suitable for ceramic applications where accurate firing cycle control is required.

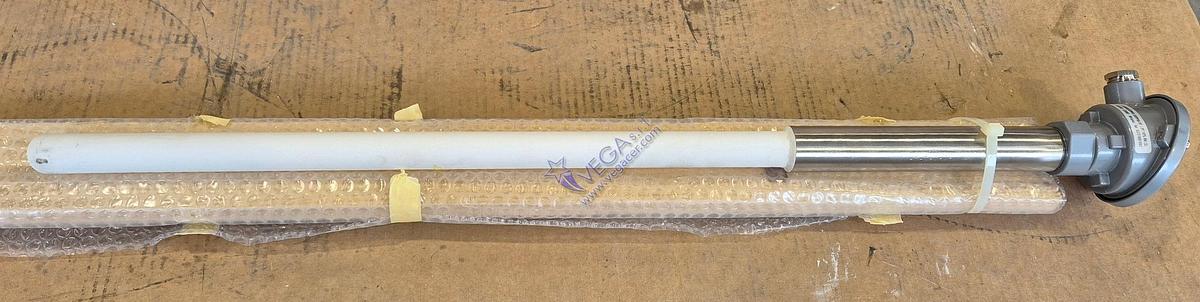

The thermocouple is equipped with a ceramic sheath measuring 26 x 500 mm (diameter x length), designed to protect the sensing elements from high temperatures and demanding operating conditions. It is also complete with a stainless steel metal protection tube measuring 23.5 x 200 mm (diameter x length), ensuring high mechanical resistance and protection during operation.

The sensing element features a wire diameter of 0.45 mm, contributing to accurate and stable temperature measurement.

Thanks to its robust construction and high-quality materials, this thermocouple is a reliable solution for industrial systems requiring accuracy, durability and safety in temperature monitoring.
