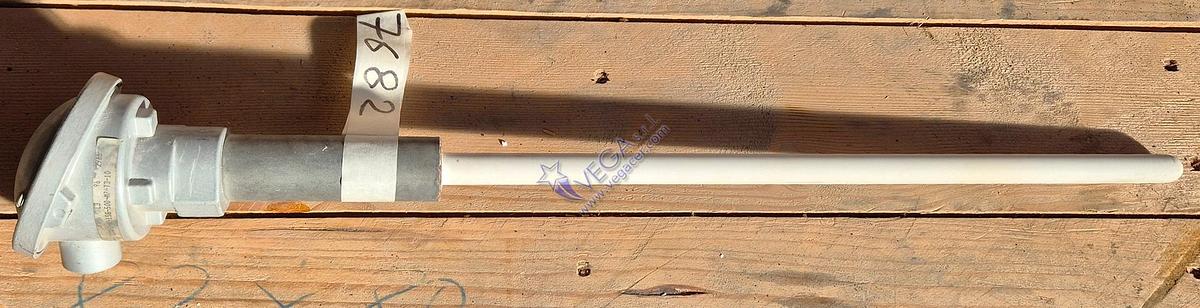

Double thermocouple type K

The double thermocouple type K is designed for temperature control and monitoring in kilns and industrial thermal systems, providing reliable and continuous measurement even during high-temperature operating cycles. The double configuration allows simultaneous or redundant process monitoring, offering greater flexibility and safety in industrial applications.

The unit is configured as a double thermocouple and is suitable for operating temperatures up to 1100 °C, making it suitable for firing processes, heat treatments and temperature control in the ceramic industry and other industrial applications.

The thermocouple is equipped with a ceramic sheath measuring 15 x 405 mm (diameter x length), designed to protect the sensing elements from high temperatures and demanding operating conditions. It is also complete with a metal protection tube measuring 33 x 100 mm (diameter x length), providing mechanical protection and stability during installation and operation.

Thanks to its double configuration and robust construction, this thermocouple represents a reliable solution for industrial systems requiring accuracy, continuous monitoring and long service life.
