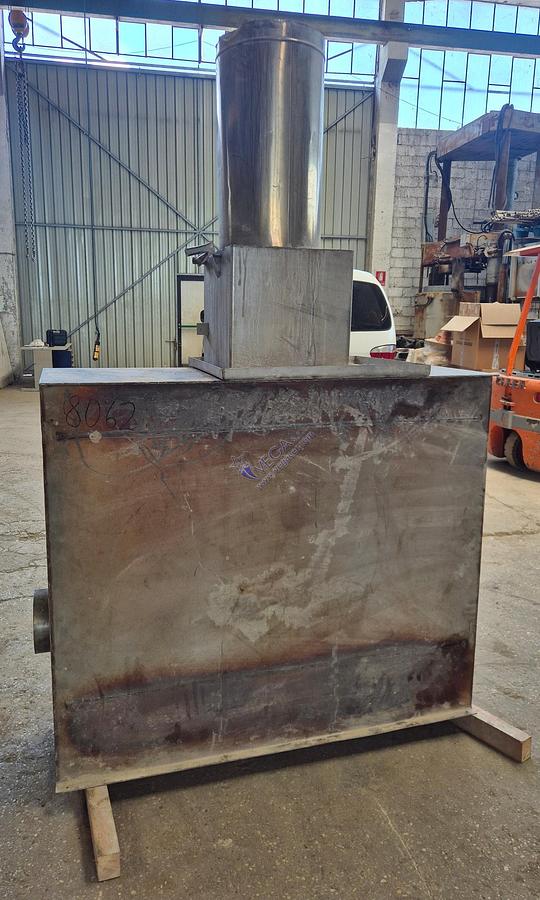

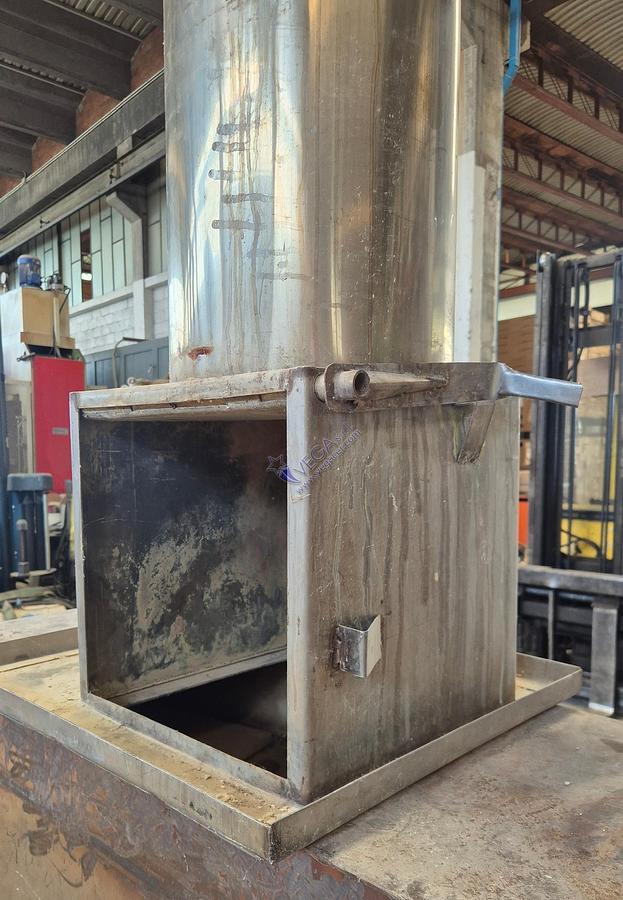

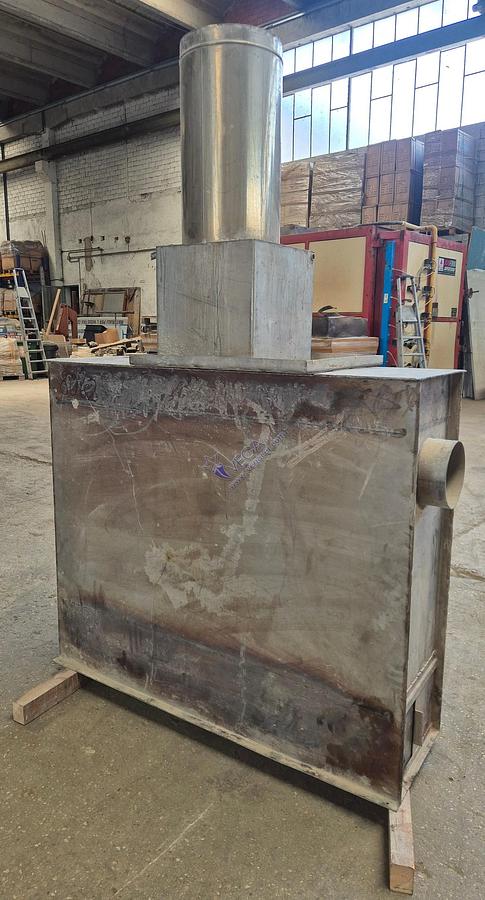

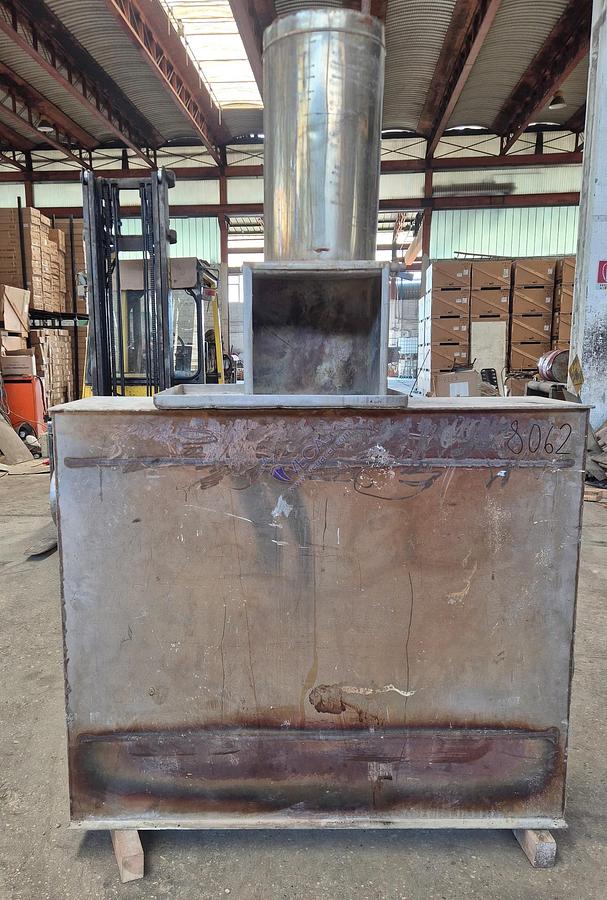

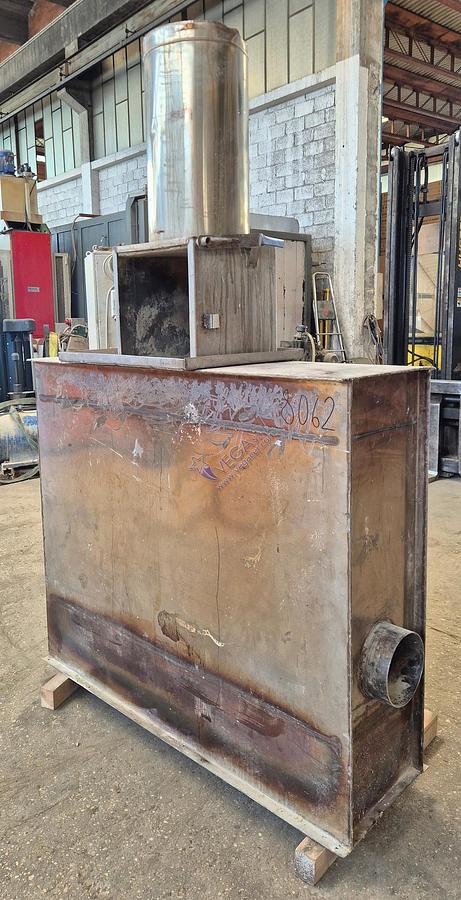

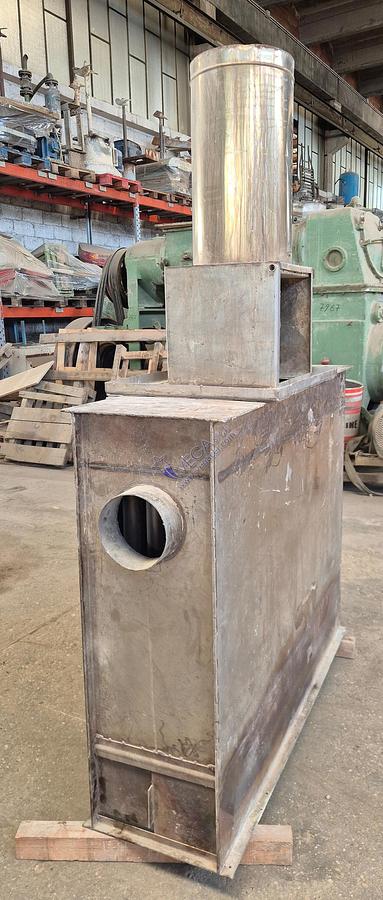

Stainless steel shell-and-tube heat exchanger

The stainless steel shell-and-tube heat exchanger is designed for industrial air heating and heat recovery applications, providing a reliable solution for environment heating and dryer systems. Its robust stainless steel construction ensures excellent corrosion resistance and long service life, even under demanding operating conditions.

The unit is suitable for both environment heating and dryers and is entirely manufactured in stainless steel, ensuring durability and reliable performance in industrial applications involving high operating temperatures.

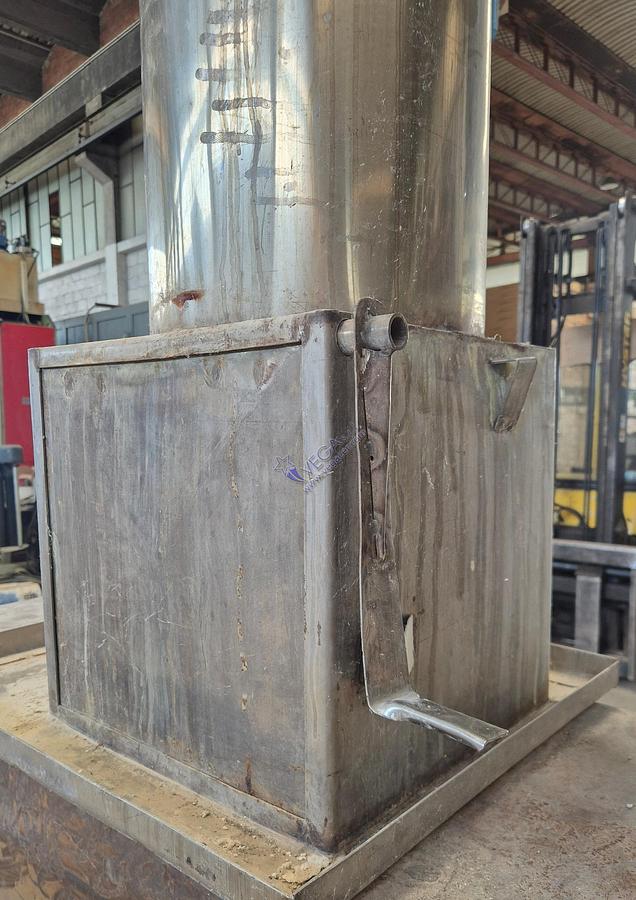

The heat exchanger is equipped with an air outlet pipe with a diameter of 300 mm, suitable for connection to hot air distribution systems. It is also fitted with a manual three-way valve, allowing the heat transfer fluid flow to be regulated according to process requirements.

The flange connection dimensions are 1360 x 430 mm (width x height), allowing easy integration into existing installations.

The overall dimensions of the heat exchanger are 1350 x 500 x 2050 mm (width x length x height), making it a robust solution suitable for industrial applications requiring efficient heat exchange performance.
