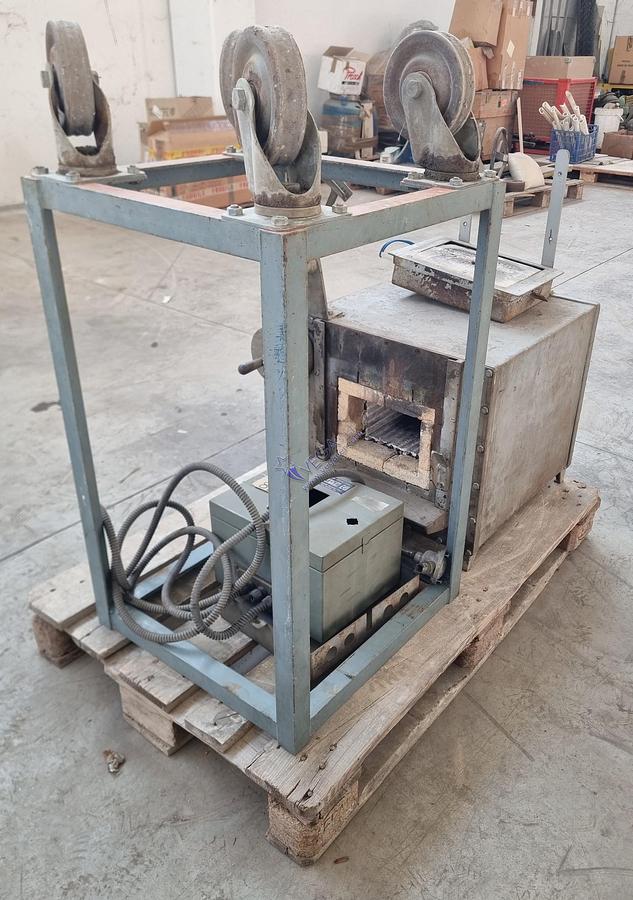

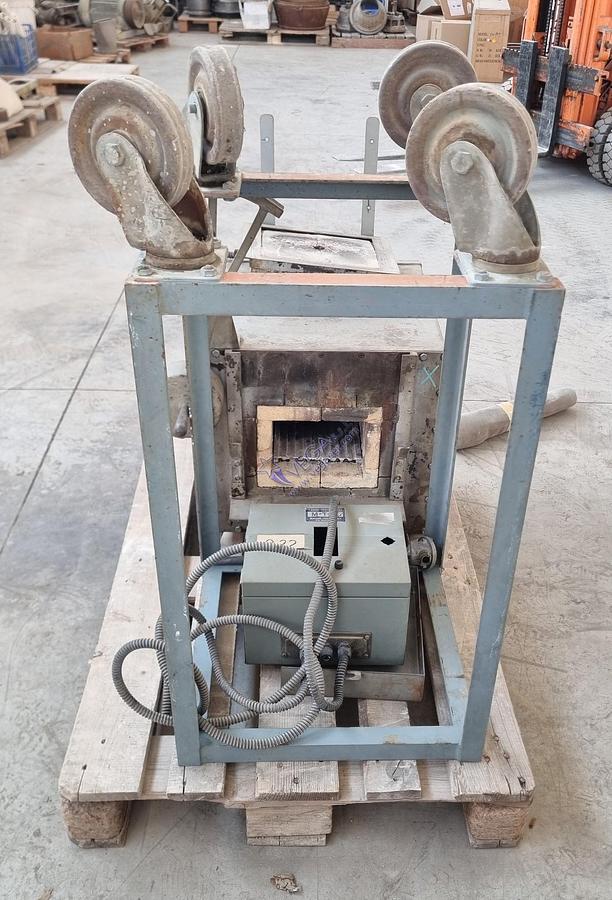

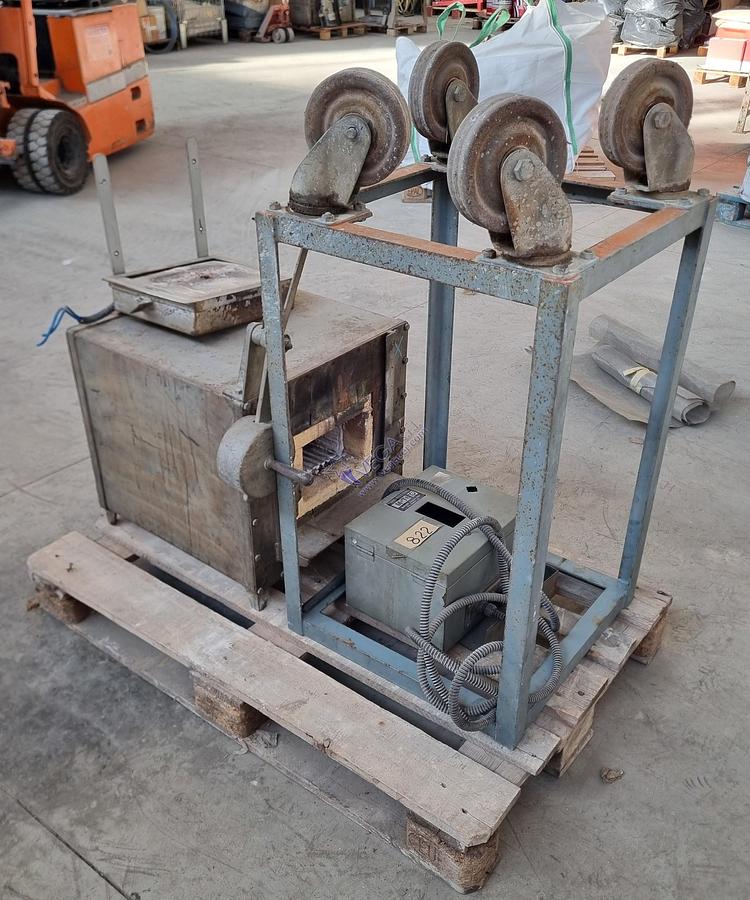

Laboratory electric kiln MT
Laboratory electric kiln MT
Location:Veneto, Italy
Description
The laboratory electric kiln MT is designed for firing tests, laboratory applications, and small-scale production, ensuring reliable thermal process control and excellent temperature uniformity. Thanks to its compact dimensions, it is an ideal solution for ceramic laboratories, research centers, and product development departments.
The kiln reaches a maximum working temperature of 1050 °C and provides a useful loading capacity of 8 litres, with a useful chamber size of 175 x 400 x 120 mm (width x length x height), making it suitable for firing samples and small ceramic products.

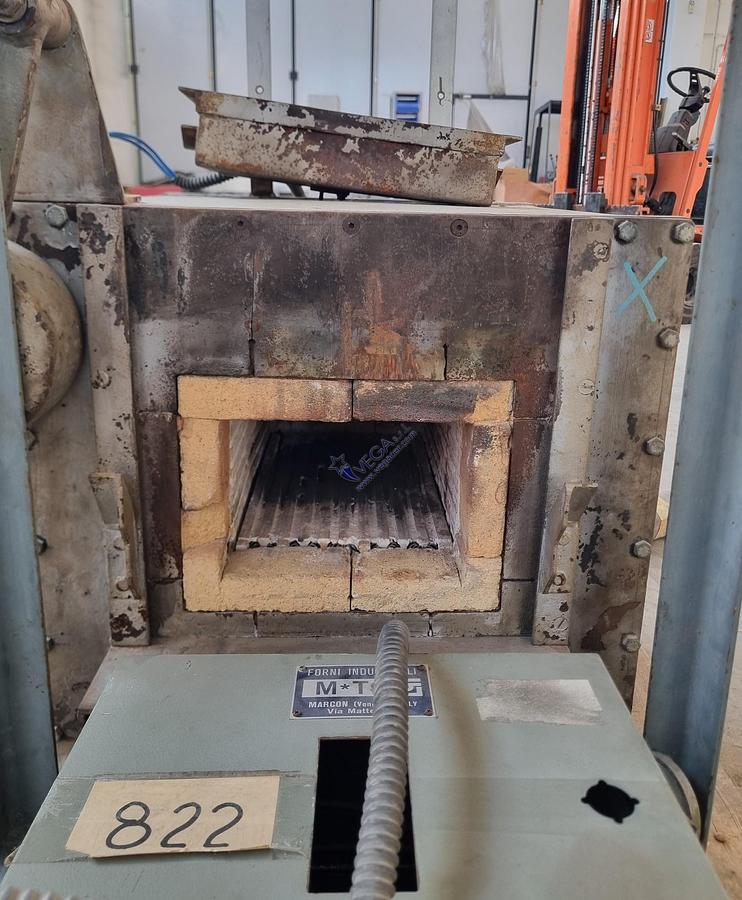

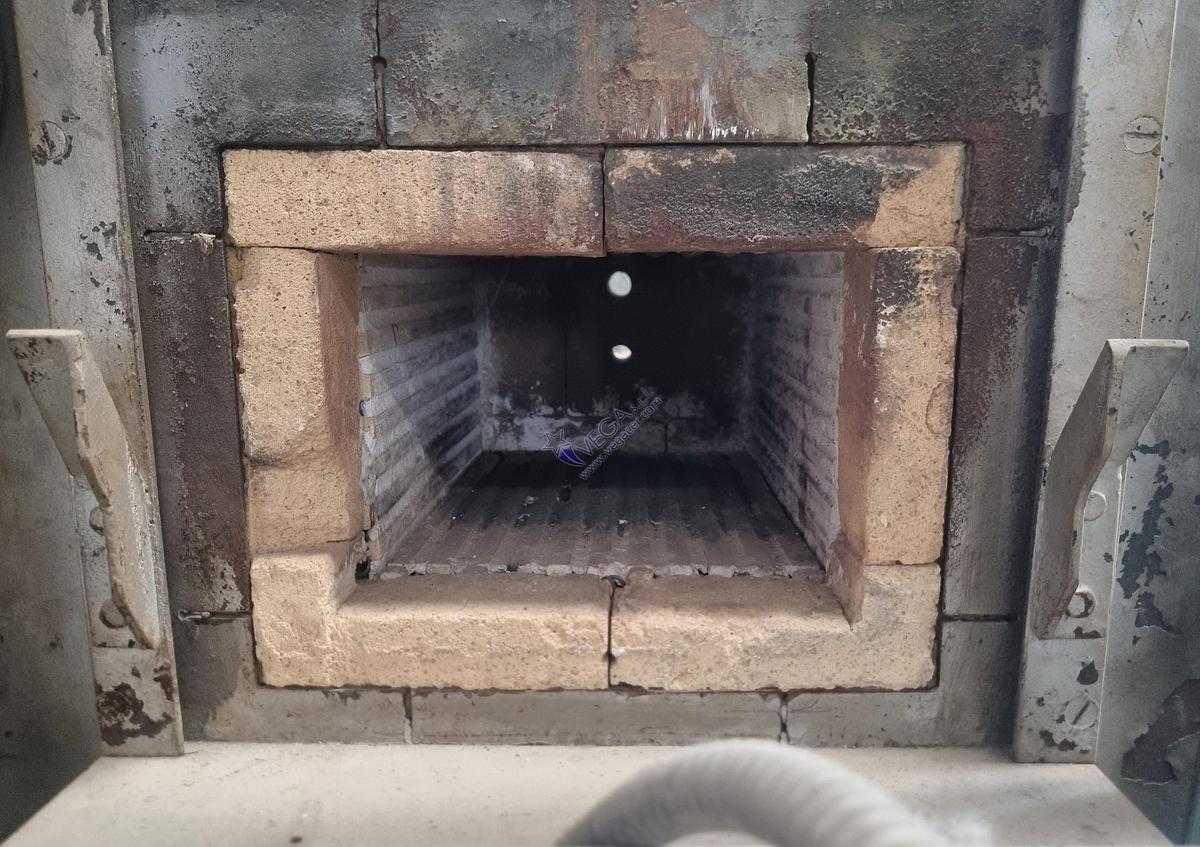

The firing chamber is lined with refractory bricks, providing excellent thermal insulation, uniform heat distribution, and high resistance to elevated temperatures.
The system operates on a 400 V / 50 Hz three-phase power supply and is equipped with a 3.5 kW installed power, ensuring reliable and continuous operation for laboratory applications.
The overall dimensions of the kiln are 900 x 800 x 400 mm (width x length x height), making it a compact solution that can be easily installed even in laboratories with limited available space.
Specifications
| Condition | Used |
| Stock Number | 7332 |
| Max. working temperature °C | 1050 |
| Useful loading capacity lt | 8 |
| Useful loading dimensions (width) x (length) x (height) mm | 175 x 400 x 120 |
| Internal insulation | refractory bricks |
| Power kW | 3,5 |
| Tension Volt / Frequency Hz | 400/50 |
| Phase | three phases |
| Kiln overall dimensions (width) x (length) x (height) mm | 900 x 800 x 400 |
